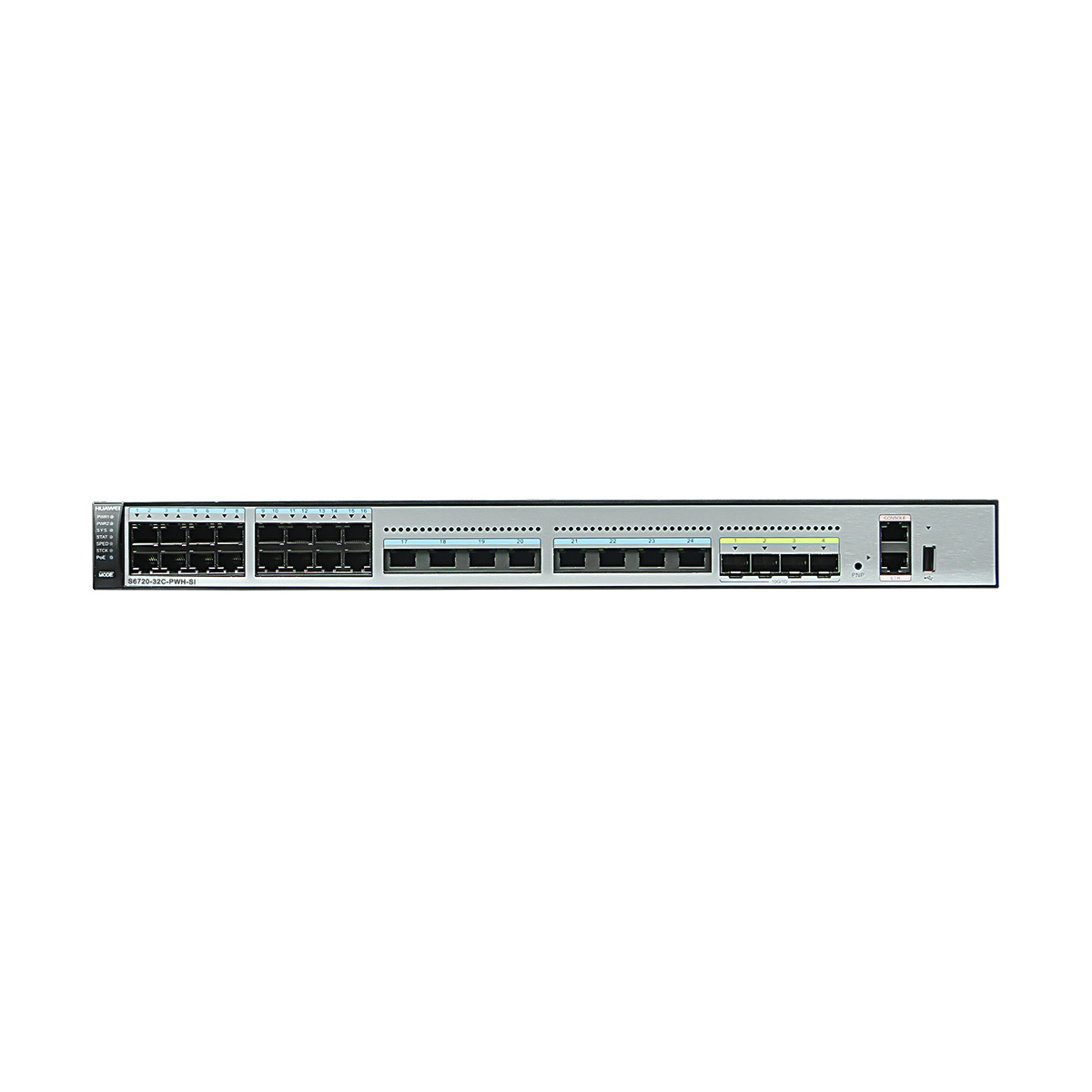

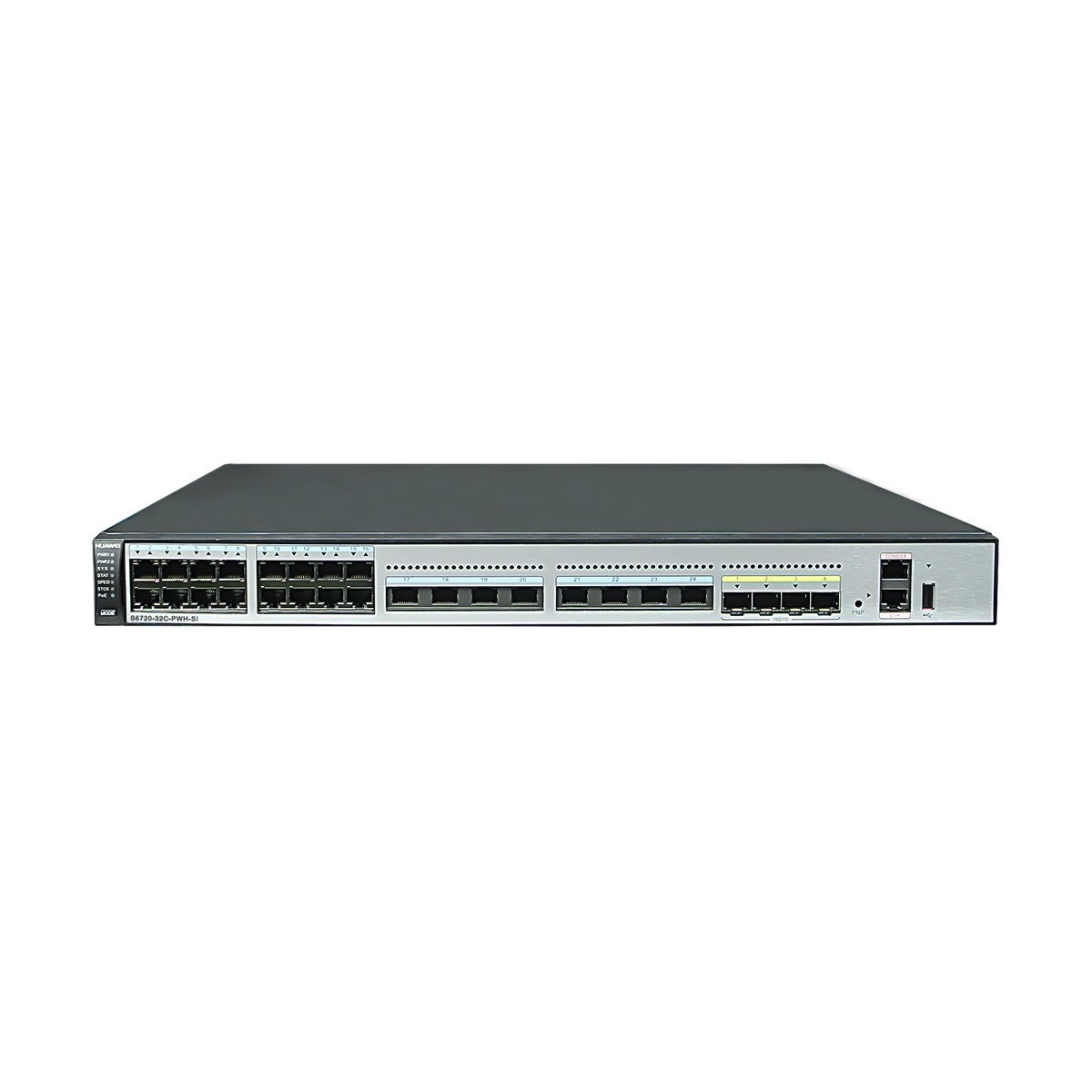

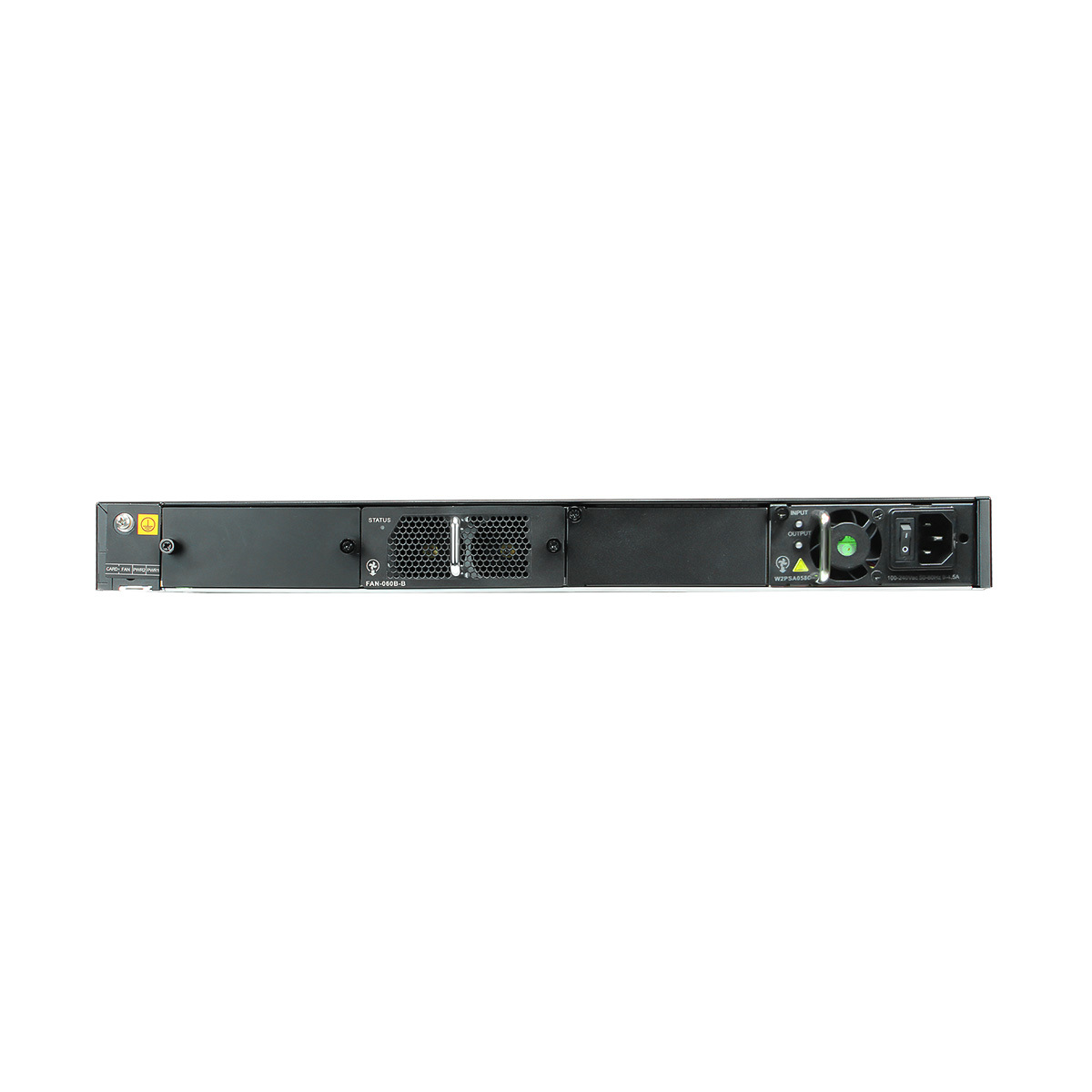

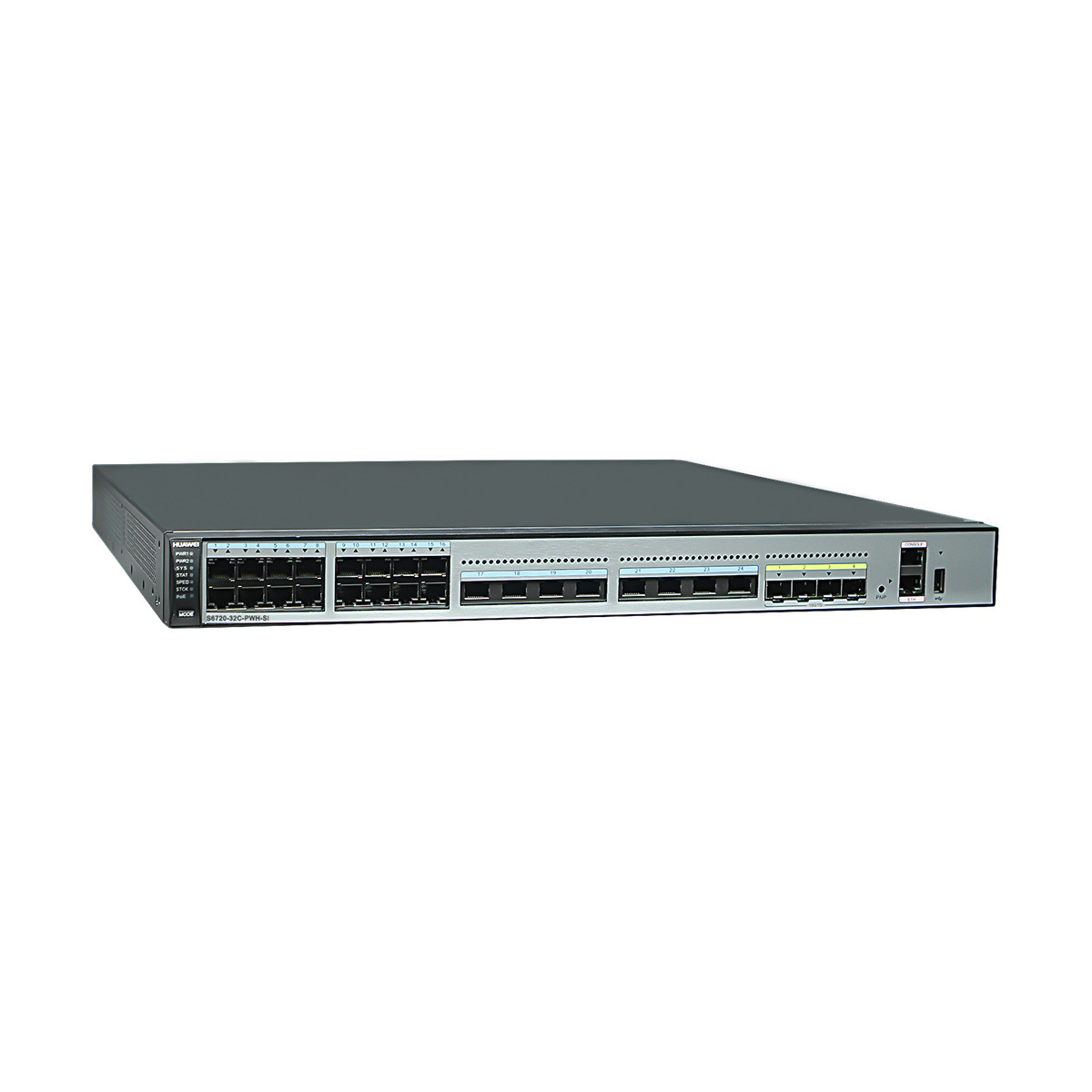

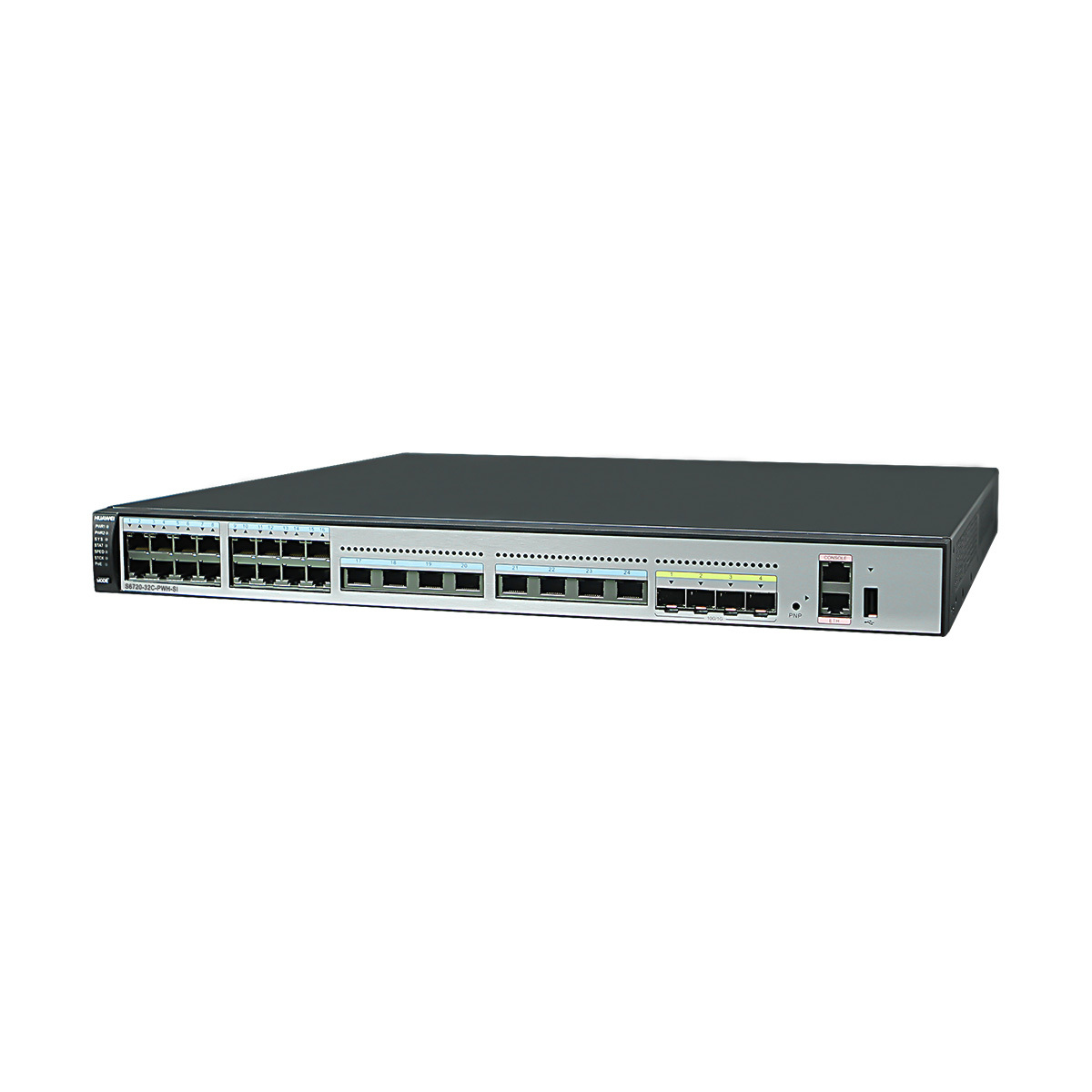

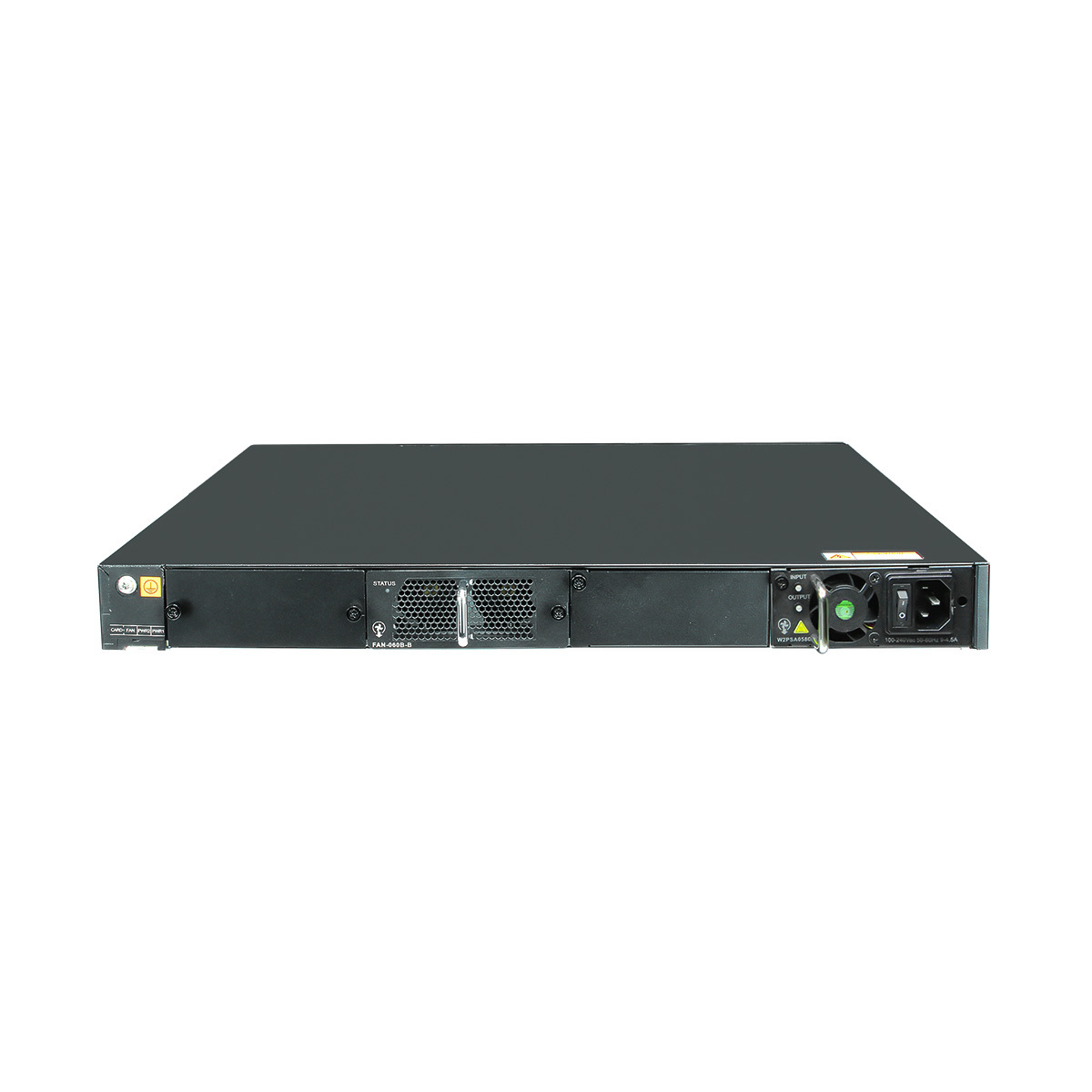

Huawei S6720-32C-PWH-SI-AC 24-port Switch

No.MF0210
Huawei CloudEngine S6720-32C-PWH-SI-AC switch, fixed 24*PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port), 4*10GE SFP+ ports, 2 pluggable power slots flexible configuration with AC/DC power module
Brand
Huawei
Part Number
98010719
Packing Box Specifications
45*44*45cm
Gross Weight
9kg
Condition
Original New
Lead Time
1-3 working days
Warranty
12 months
Shipping Method
DHL, UPS, FedEx, Sea/Air/Railway Freight
Payment Method
PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay
Power:
AC power module
DC power module
Get Price/Help
Bulk Quote View Quote List
  • Huawei S6720-32C-PWH-SI-AC 24-port Switch
  • Huawei S6720-32C-PWH-SI-AC 24-port Switch
  • Huawei S6720-32C-PWH-SI-AC 24-port Switch
  • Huawei S6720-32C-PWH-SI-AC 24-port Switch
  • Huawei S6720-32C-PWH-SI-AC 24-port Switch
  • Huawei S6720-32C-PWH-SI-AC 24-port Switch

  • Description

  • Huawei Switch Module

S6720-32C-PWH-SI-AC Introduction

  • Fixed ports: 24*PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port), 4*10GE SFP+ ports
  • 2 pluggable power slots, 1+1 power backup

S6730-S Series Switches Overview

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and their hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

The S series fixed Ethernet switches are available in a variety of models for you to choose based on your network requirements.

S6700 Series Switches Characteristics
The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation.

The Huawei S6720-32C-PWH-SI-AC is a compact PoE + 10 Gigabit AC-powered switch from the Huawei S6720 series. Its core advantage is its compact PoE networking capability for small to medium-sized AC-powered scenarios. It features 24 Gigabit Ethernet ports supporting PoE + power supply (maximum power of 30W per port, total PoE power ≥370W), 4 10 Gigabit optical ports + 4 Gigabit optical ports for flexible uplink, and adaptability to 2000-3000 terminals. It supports a wide AC input voltage range of 100-240V, and its compact design saves data center space. The total switching capacity is ≥336Gbps, and the forwarding performance reaches 126Mpps. It supports PoE intelligent management, link aggregation, and other functions, and features built-in 9KV surge protection + AC/PoE dual protection, with an annual failure rate of <0.03%. It is an ideal choice for small to medium-sized office/campus/monitoring scenarios that rely on AC power and have limited space, balancing stability, practicality, and cost.

S6720-32C-PWH-SI-AC FAQ

Q1: With AC power supply and a compact design, are heat dissipation and stability guaranteed?

A1: Yes, Huawei has optimized the heat dissipation structure, allowing for stable 24/7 operation despite the compact body. The AC wide voltage range adapts to grid fluctuations, and combined with PoE overload/short circuit protection, the risk of failure is low.

Q2: What are the core advantages compared to the DC power supply version of the same model?

A2: AC power supply connects directly to ordinary mains power, eliminating the need for an additional DC power supply. This makes deployment more convenient and cost-effective, suitable for small to medium-sized scenarios without dedicated DC power.

Q3: Can the total power supply support the needs of high-definition cameras if 24 PoE devices are connected simultaneously?

A3: Absolutely. The total PoE power is ≥370W, stably supporting 24 standard 15.4W PoE cameras or 12 30W PoE + high-definition cameras, meeting the needs of distributed monitoring scenarios.

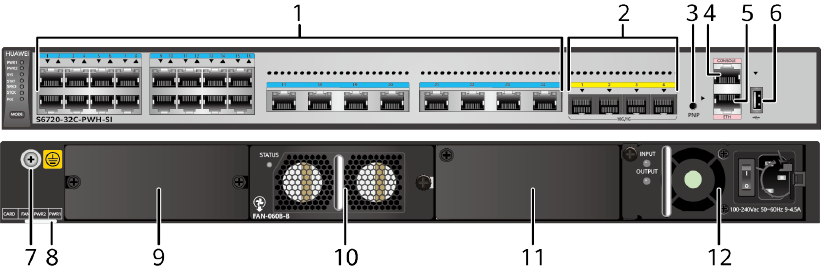

S6720-32C-PWH-SI-AC Appearance


1

Twenty-four PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port)

2

Four 10GE SFP+ ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (100M/1000M auto-sensing)
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, supported in V200R011C10 and later versions)
NOTE:

The four 10GE SFP+ ports on the front panel cannot be used simultaneously with ports on the rear card (except the 4-port 10GE rear card).

If a rear card other than a 4-port 10GE rear card is installed in the switch, only the ports on the front panel can be used by default.
  • V200R011 version: To use the port on the rear card, run the set device port-on-card enable command. Then the four 10GE SFP+ ports on the front panel cannot be used.
  • V200R012 and later versions: To use the port on the rear card, run the undo set device port-config-mode port-on-board enable command. Then the four 10GE SFP+ ports on the front panel cannot be used.

3

One PNP button

NOTICE:

Applicable in V200R012C00 and later versions:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

4

One console port

5

One ETH management port

6

One USB port

7

Ground screw

NOTE:
It is used with a ground cable.

8

ESN label

NOTE:

You can draw it out to view the ESN and MAC address of the switch.

9

Rear card slot

NOTE:
Cards supported:
  • ES5D21Q02Q00
  • ES5D21X04S01

10

Fan slot

NOTE:

Applicable fan module:

FAN-060B-B (Fan Box (B, Fan Panel Side Exhaust))

11

Power module slot 2

NOTE:
Applicable power modules:
  • 580 W AC PoE power module
  • 650 W DC PoE power module
  • 1000 W AC PoE power module (applicable in V200R013C00 and later versions)

12

Power module slot 1

NOTE:
Applicable power modules:
  • 580 W AC PoE power module
  • 650 W DC PoE power module
  • 1000 W AC PoE power module (applicable in V200R013C00 and later versions)

S6720-32C-PWH-SI-AC Port Description

100M/1000M/2.5GE/5GE/10GE BASE-T port (MultiGE port)

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3an, mgbase-t

Working Mode

100/1000/2500/5000/10000 Mbit/s auto-sensing

Cable Type (6-a-1 Bundle)

MultiGE Port (Different Rates)

24*100M/1000M

Left 16x2.5GE

Right 8x2.5GE

24x5GE

24x10GE

Category 5e unshielded twisted pair (Cat5e UTP)

100 m

100 m

100 m
  • 55 m
  • 100 m (6-a-1 bundle only for the first 30 m)

Not recommended due to high risk

Not supported

Category 5e shielded twisted pair (Cat5e STP)

100 m

100 m

200 m

Only the APs listed below are supported if the transmission distance is longer than 100 m:
  • AP7052DN/AP7152DN
  • AP6052DN
  • AP8082DN/AP8182DN
  • AP7052DE
  • AP7060DN

100 m

Not supported

Category 6 unshielded twisted pair (Cat6 UTP)

100 m

100 m

100 m

100 m

Not recommended due to high risk

Not supported

Category 6 shielded twisted pair (Cat6 STP)

100 m

100 m

200 m

Only the APs listed below are supported if the transmission distance is longer than 100 m:
  • AP7052DN/AP7152DN
  • AP6052DN
  • AP8082DN/AP8182DN
  • AP7052DE
  • AP7060DN

100 m

Not supported

Category 6A unshielded twisted pair (Cat6A U/UTP)

100 m

100 m

100 m

100 m

Not recommended due to high risk

Not supported

Category 6A foiled/unshielded twisted pair (Cat6A F/UTP)

100 m

100 m

200 m

Only the APs listed below are supported if the transmission distance is longer than 100 m:
  • AP7052DN/AP7152DN
  • AP6052DN
  • AP8082DN/AP8182DN
  • AP7052DE
  • AP7060DN

100 m

100 m

Category 6A shielded twisted pair (Cat6A STP)

100 m

100 m

200 m

Only the APs listed below are supported if the transmission distance is longer than 100 m:
  • AP7052DN/AP7152DN
  • AP6052DN
  • AP8082DN/AP8182DN
  • AP7052DE
  • AP7060DN

100 m

100 m

Category 7 twisted pair (Cat7)

100 m

100 m

200 m

Only the APs listed below are supported if the transmission distance is longer than 100 m:
  • AP7052DN/AP7152DN
  • AP6052DN
  • AP8082DN/AP8182DN
  • AP7052DE
  • AP7060DN

100 m

100 m

10GE SFP+ port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ae

Working mode

GE/10GE auto-sensing

Technical specifications of the S6720-32C-PWH-SI-AC

Item

Description

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

22.7 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection
  • Using 580 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)

Weight (including package)

9.1 kg (20.06 lb)

Stack ports

Any MultiGE, 10GE SFP+, or 40GE QSFP+ ports (a maximum of 16 physical ports)

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)
  • Using 650 W DC or 580 W AC power modules:
    • Not providing the PoE function: 125.6 W (without card)
    • 100% PoE loads: 1017.2 W (system power consumption: 278 W, PoE: 739.2 W, without card)
  • Using 1000 W AC power modules:
    • Not providing the PoE function: 125.6 W (without card)
    • 100% PoE loads: 1735 W (system power consumption: 295 W, PoE: 1440 W)

Typical power consumption (30% of traffic load, tested according to ATIS standard)
  • Using 650 W DC or 580 W AC power modules: 106.9 W (without card and PoE)
  • Using 1000 W AC power modules: 121.6 W (without card and PoE)

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Short-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
  • The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.
  • The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.

The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 62.3 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

98010719
Optical Modules Supported by Huawei S Series Switches

Module Name Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310 2 km
eSFP-FE-LX-SM1310 15 km
S-SFP-FE-LH40-SM1310 40 km
S-SFP-FE-LH80-SM1550 80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module) 15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
  • Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310  10 km
S-SFP-GE-LH40-SM1310 40 km
S-SFP-GE-LH40-SM1550 40 km
S-SFP-GE-LH80-SM1550  80 km
eSFP-GE-ZX100-SM1550 100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module) 10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)  40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)  40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module) 80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)  80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module) 10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1 10 km
CSFP-GE-FE-BIDI2  20 km
CSFP-GE-FE-BIDI4 40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271 80 km
CWDM-SFPGE-1291 80 km
CWDM-SFPGE-1311 80 km
CWDM-SFPGE-1331 80 km
CWDM-SFPGE-1351 80 km
CWDM-SFPGE-1371 80 km
CWDM-SFPGE-1391 80 km
CWDM-SFPGE-1411 80 km
CWDM-SFPGE-1431 80 km
CWDM-SFPGE-1451 80 km
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61 120 km
10GE SFP+ Optical Modules
SFP-10G-USR 0.1 km
OSXD22N00
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km
  • Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
SFP-10G-iLR 1.4 km
OSX010000 10 km
OSX040N01 40 km
SFP-10G-ER-1310 40 km
SFP-10G-ZR 80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module) 40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module) 40 km
10GE XFP Optical Modules
XFP-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310 10 km
XFP-STM64-LH40-SM1550  40 km
XFP-STM64-SM1550-80km 80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471 70 km
SFP-10G-ZCW1491 70 km
SFP-10G-ZCW1511 70 km
SFP-10G-ZCW1531 70 km
SFP-10G-ZCW1551 70 km
SFP-10G-ZCW1571 70 km
SFP-10G-ZCW1591 70 km
SFP-10G-ZCW1611 70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471 70 km
CWDM-XFP10G-1491 70 km
CWDM-XFP10G-1511 70 km
CWDM-XFP10G-1531 70 km
CWDM-XFP10G-1551 70 km
CWDM-XFP10G-1571 70 km
CWDM-XFP10G-1591 70 km
CWDM-XFP10G-1611 70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT 60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47  80 km
DWDM-XFP10G-1534-25  80 km
DWDM-XFP10G-1535-04  80 km
DWDM-XFP10G-1552-52  80 km
DWDM-XFP10G-1553-33  80 km
DWDM-XFP10G-1554-13  80 km
DWDM-XFP10G-1530-33  80 km
DWDM-XFP10G-1549-32  80 km
DWDM-XFP10G-1531-12  80 km
DWDM-XFP10G-1531-90  80 km
DWDM-XFP10G-1550-12  80 km
DWDM-XFP10G-1550-92  80 km
DWDM-XFP10G-1532-68  80 km
DWDM-XFP10G-1551-72  80 km
DWDM-XFP10G-1529-55  80 km
DWDM-XFP10G-1548-51  80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4 1.4 km
QSFP-40G-eSM4 10 km
QSFP-40G-LX4

Single-mode fiber: 2 km

Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4 10 km
QSFP-40G-ER4 40 km
QSFP-40G-SR-BD
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-40G-LR4 10 km
CFP-40G-ER4 40 km
CFP-40G-ZR4 80 km
100GE CFP Optical Modules
CFP-100G-SR10
  • Multimode fiber (OM2): 0.03 km
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-100G-LR4 10 km
CFP-100G-ER4 40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4 10 km
QSFP28-100G-10KM 10 km
QSFP28-100G-PSM4 500 m
QSFP28-100G-SR4

  • Multimode fiber (OM3): 70 m

  • Multimode fiber (OM4): 100 m
QSFP-100G-eSR4
  • Multimode fiber (OM3): 200 m
  • Multimode fiber (OM4): 300 m
QSFP-100G-CLR4  2 km
QSFP-100G-CWDM4  2 km
QSFP-100G-ER4-Lite Single-mode fiber (G.652):
  • Disables the RS-FEC function: 30 km
  • Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2  20 km
Industrial Optical Modules
OGSM01880
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
OGSC10DD0 10 km
OGSC40DD0 40 km
SFP+10GE-LH10-SM1310  10 km
SFP-10G-SR 0.3 km
SFP-10G-iLR  1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module) 10 km

Download

MF-Telecom
About Us
Professional Certificates
Buy in Bulk
Contact Us
Cases
Blog
Featured Product
Access Network List
CATV Solution List
Switch List
Optical Module List
Service
Buyer Guide
Payments
Delivery & Shipping
Warranty & Return
Privacy Policy
Terms & Conditions
CONTACT
No.29 Second Road, Wanggang Industrial Zone, Guangzhou, China
Sales@mf-telecom.com
+86 13416664642
Leave a message
Your Name
Company Name
Contact Info(Email/WhatsApp)
Message
We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.
