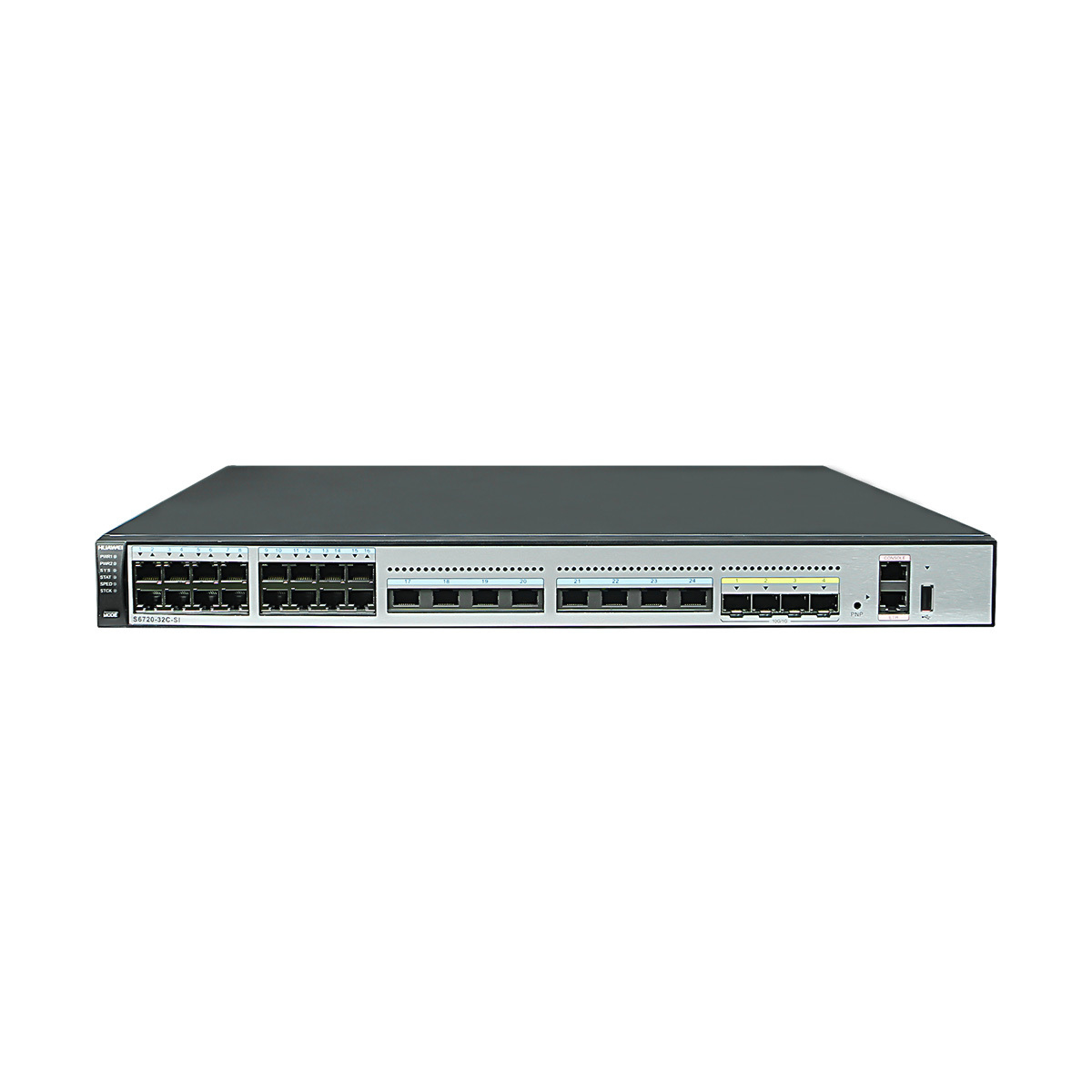

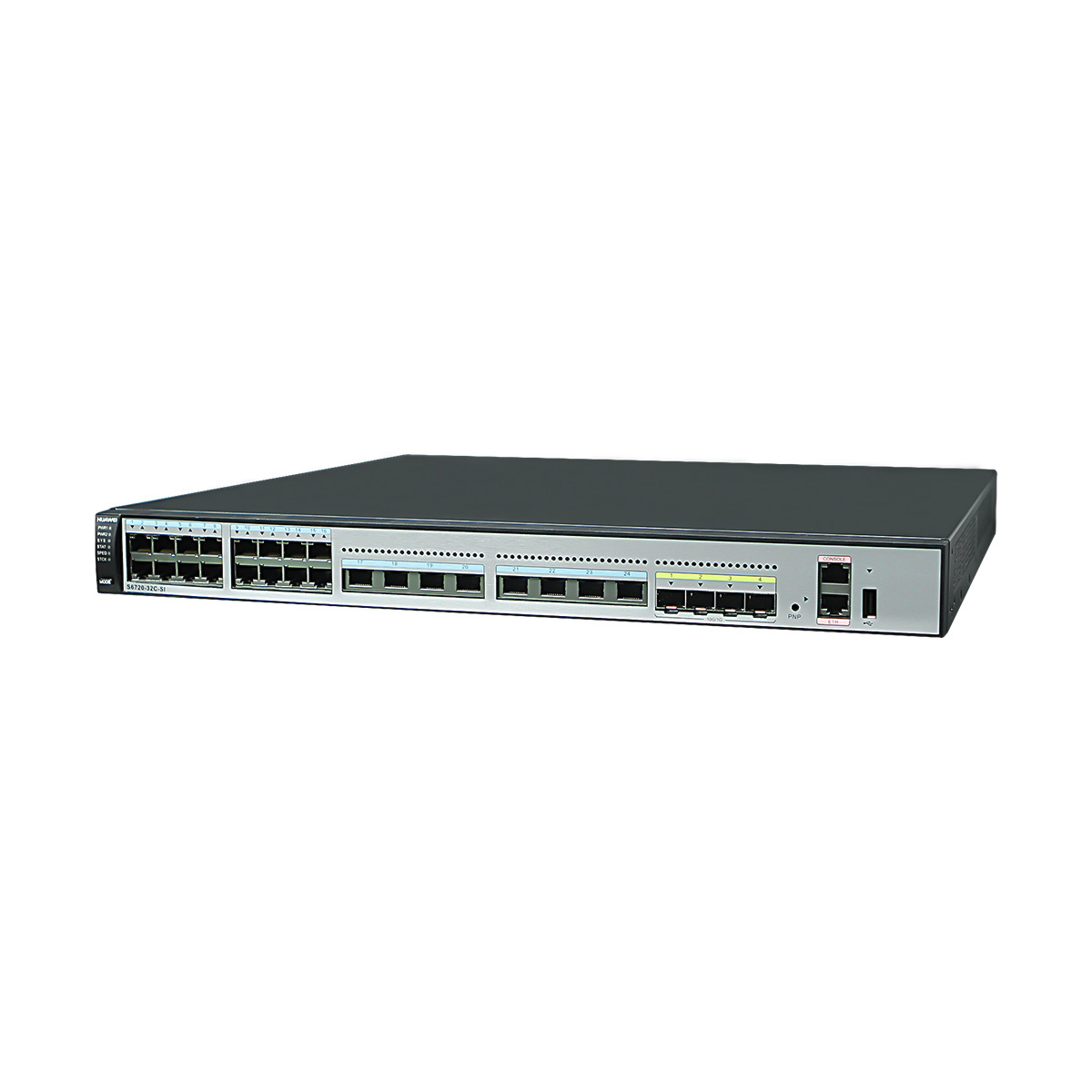

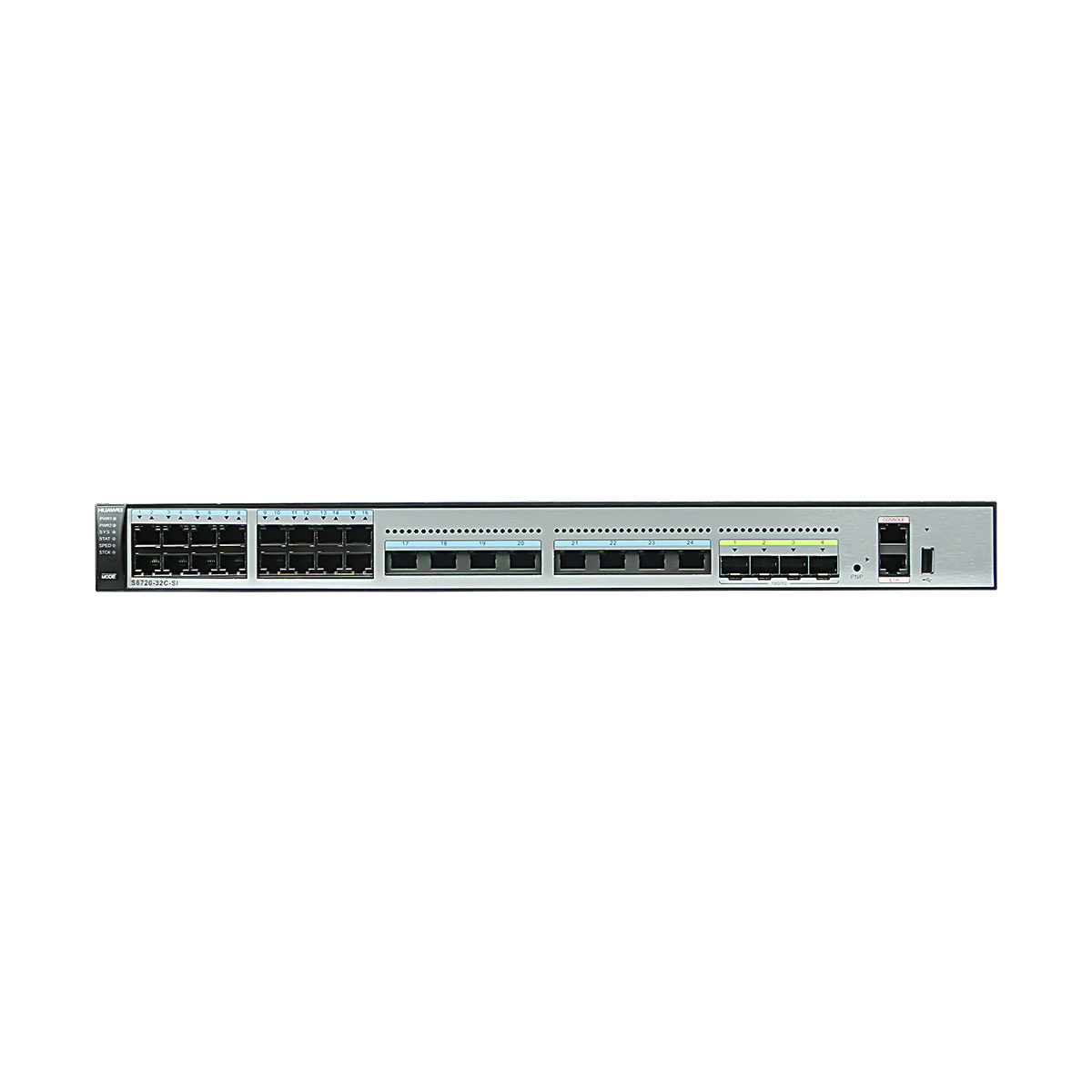

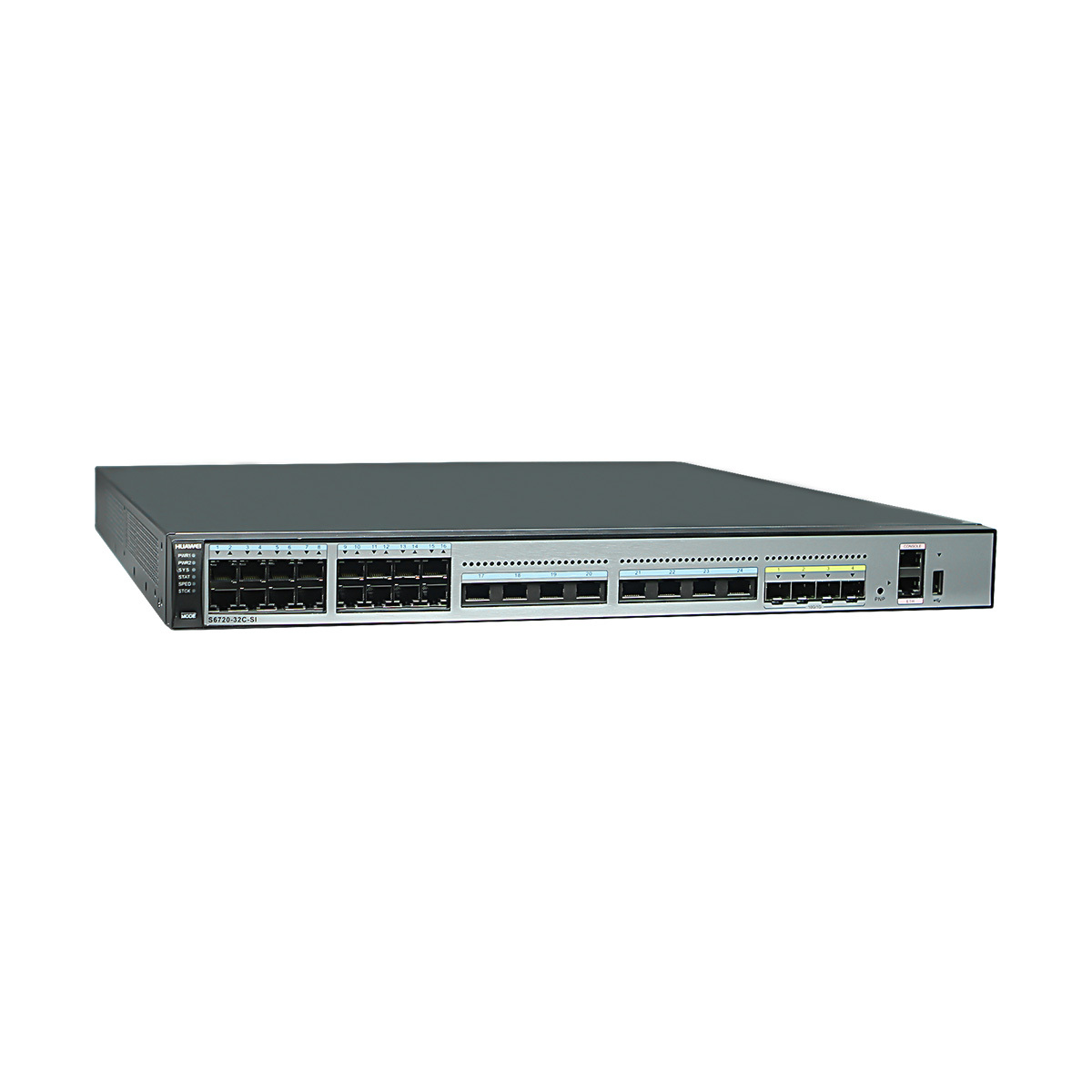

Name: Huawei S6720-32C-SI-DC 24-port Switch
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0209
Price: 2150.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0209

Huawei CloudEngine S6720-32C-SI-DC switch, fixed 24*10100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port), 4*10GE SFP+ ports, 2 pluggable power slots flexible configuration with AC/DC power module

Brand

Huawei

Part Number

98010716

Packing Box Specifications

45*44*45cm

Gross Weight

9kg

Condition

Original New

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Power:

AC power module

DC power module

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

S6720-32C-SI-DC Introduction

Fixed ports: 24*10100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port), 4*10GE SFP+ ports
2 pluggable power slots, 1+1 power backup

S6730-S Series Switches Overview

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and their hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

The S series fixed Ethernet switches are available in a variety of models for you to choose based on your network requirements.

S6700 Series Switches Characteristics
The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation.

The Huawei S6720-32C-SI-DC is a compact 10 Gigabit Ethernet switch in the Huawei S6720 series, powered by DC. Its core advantage is its compact DC-powered networking for small and medium-sized IDC/industrial scenarios—a hybrid configuration of 24 Gigabit Ethernet ports + 4 10 Gigabit optical ports + 4 Gigabit optical ports, adaptable to 2000-3000 terminals; DC input voltage supports a wide range of -48V to -60V, suitable for data center/industrial DC power supply systems, with a total switching capacity of ≥336Gbps and forwarding performance of up to 126Mpps; its compact design saves rack space, supports enterprise-level functions such as link aggregation, VRRP, and basic QoS, and features built-in 9KV surge protection and industrial-grade stability design, with an annual failure rate of <0.03%. It is the preferred choice for small and medium-sized IDCs, industrial data centers, and space-constrained scenarios that balance power supply adaptability, bandwidth, and deployment flexibility.

S6720-32C-SI-DC FAQ

Q1: What are the core advantages of DC power supply compared to AC power supply in IDC scenarios?

A1: DC power supply is directly compatible with IDC centralized DC power supply systems, eliminating the need for additional power conversion modules. It offers high power efficiency, low failure rate, and reduced electromagnetic interference, meeting the high stability requirements of data centers.

Q2: Will there be a bandwidth bottleneck when 24 ports simultaneously connect to gigabit devices + 4×10G uplinks?

A2: No. The total switching capacity is ≥336Gbps, with a forwarding performance of 126Mpps, easily handling concurrent transmission from 3000 terminals. The 10G uplink provides ample bandwidth to meet the needs of IDC data interaction and industrial control signal transmission.

Q3: Does the compact design affect device heat dissipation and long-term stability?

A3: No. Huawei has optimized the industrial-grade heat dissipation structure. The compact chassis still supports 24/7 continuous operation. Combined with 9KV surge protection and overvoltage/overcurrent protection, it is suitable for complex data center/industrial environments, ensuring stability and reliability.

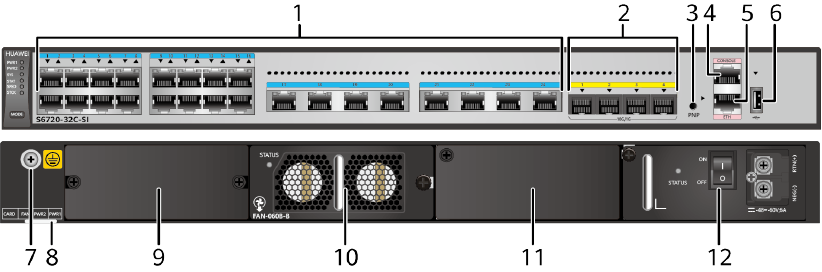

S6720-32C-SI-DC Appearance

1	Twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port)	2	Four 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, supported in V200R011C10 and later versions) NOTE: The four 10GE SFP+ ports on the front panel cannot be used simultaneously with ports on the rear card (except the 4-port 10GE rear card). If a rear card other than a 4-port 10GE rear card is installed in the switch, only the ports on the front panel can be used by default. V200R011 version: To use the port on the rear card, run the set device port-on-card enable command. Then the four 10GE SFP+ ports on the front panel cannot be used. V200R012 and later versions: To use the port on the rear card, run the undo set device port-config-mode port-on-board enable command. Then the four 10GE SFP+ ports on the front panel cannot be used.
3	One PNP button NOTICE: Applicable in V200R012C00 and later versions: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.	4	One console port
5	One ETH management port	6	One USB port
7	Ground screw NOTE: It is used with a ground cable.	8	ESN label NOTE: You can draw it out to view the ESN and MAC address of the switch.
9	Rear card slot NOTE: Cards supported: ES5D21Q02Q00 ES5D21X04S01	10	Fan slot NOTE: Applicable fan module: FAN-060B-B (Fan Box (B, Fan Panel Side Exhaust))
11	Power module slot 2 NOTE: Applicable power modules: 150 W AC power module 150 W DC power module	12	Power module slot 1 NOTE: Applicable power modules: 150 W AC power module 150 W DC power module

S6720-32C-SI-DCPort Description

100M/1000M/2.5GE/5GE/10GE BASE-T port (MultiGE port)

Attribute	Description
Connector type	RJ45
Standards compliance	IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3an, mgbase-t
Working Mode	100/1000/2500/5000/10000 Mbit/s auto-sensing

Cable Type (6-a-1 Bundle)	MultiGE Port (Different Rates)
Cable Type (6-a-1 Bundle)	24*100M/1000M	24x2.5GE	24x5GE	24x10GE
Category 5e unshielded twisted pair (Cat5e UTP)	100 m	100 m	55 m 100 m (6-a-1 bundle only for the first 30 m) Not recommended due to high risk	Not supported
Category 5e shielded twisted pair (Cat5e STP)	100 m	100 m	100 m	Not supported
Category 6 unshielded twisted pair (Cat6 UTP)	100 m	100 m	100 m Not recommended due to high risk	Not supported
Category 6 shielded twisted pair (Cat6 STP)	100 m	100 m	100 m	Not supported
Category 6A unshielded twisted pair (Cat6A U/UTP)	100 m	100 m	100 m Not recommended due to high risk	Not supported
Category 6A foiled/unshielded twisted pair (Cat6A F/UTP)	100 m	100 m	100 m	100 m
Category 6A shielded twisted pair (Cat6A STP)	100 m	100 m	100 m	100 m
Category 7 twisted pair (Cat7)	100 m	100 m	100 m	100 m

10GE SFP+ port

A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. Table 4-68 describes the attributes of a 10GE SFP+ Ethernet optical port.

Attribute	Description
Connector type	LC/PC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ae
Working mode	GE/10GE auto-sensing

Technical specifications of the S6720-32C-SI-D

Item	Description
Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	27.4 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)
Weight (including package)	8.7 kg (19.18 lb)
Stack ports	Any MultiGE, 10GE SFP+, or 40GE QSFP+ ports (a maximum of 16 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	117.62 W (without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	93 W (without card)
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Short-term operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 62.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010716

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
