Huawei CE6881-48S6CQ-K Switch

Huawei S6720-50L-HI-48S 48-port Switch

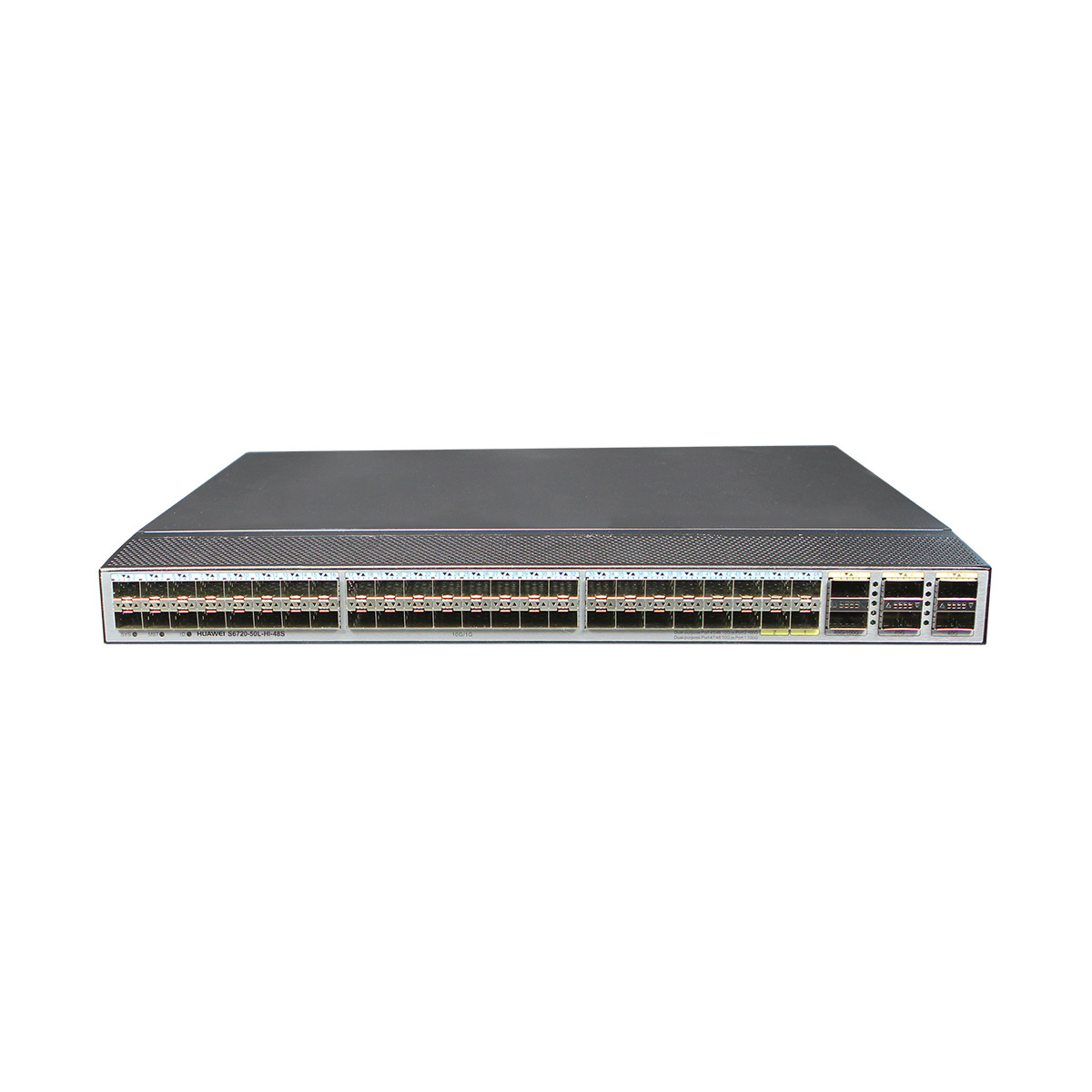

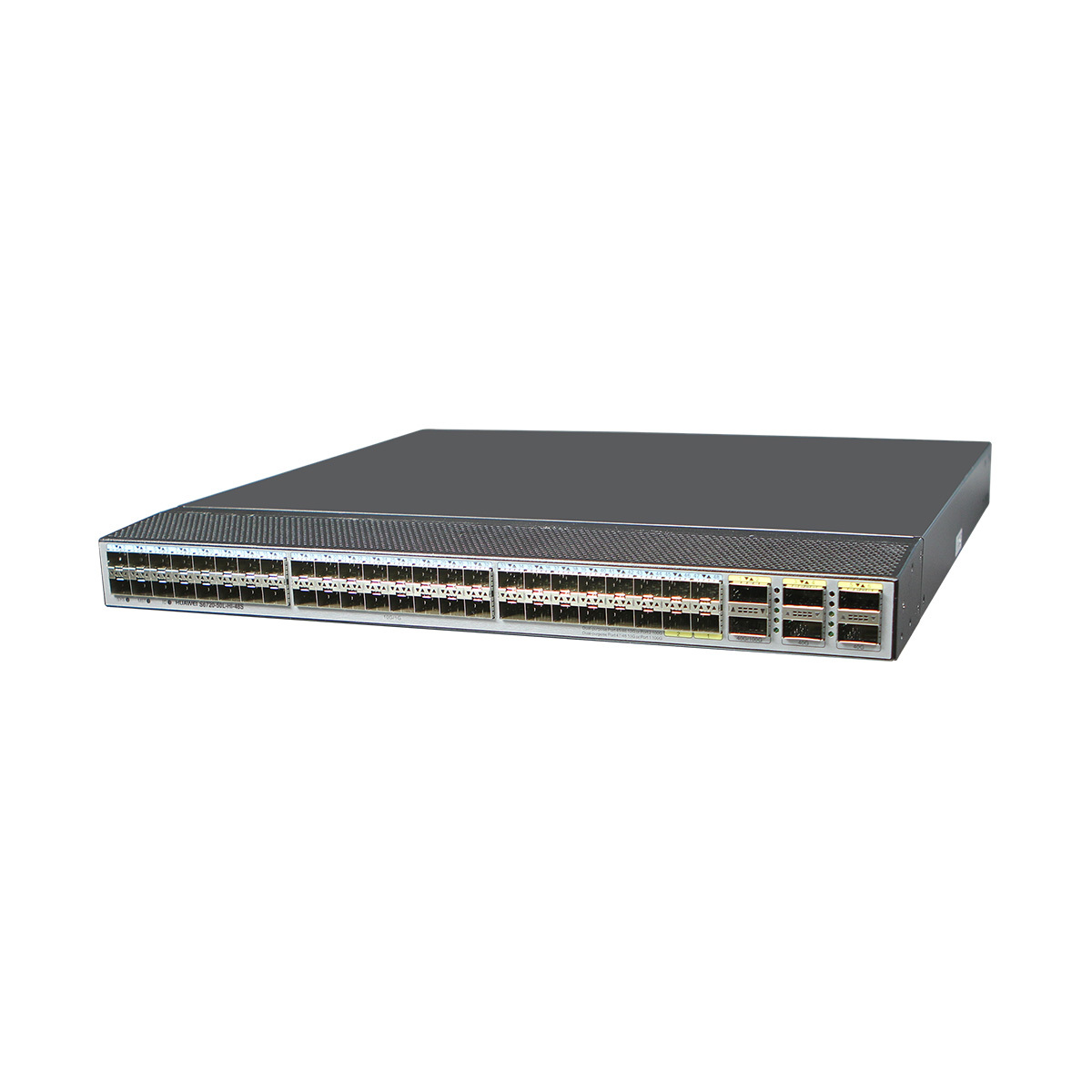

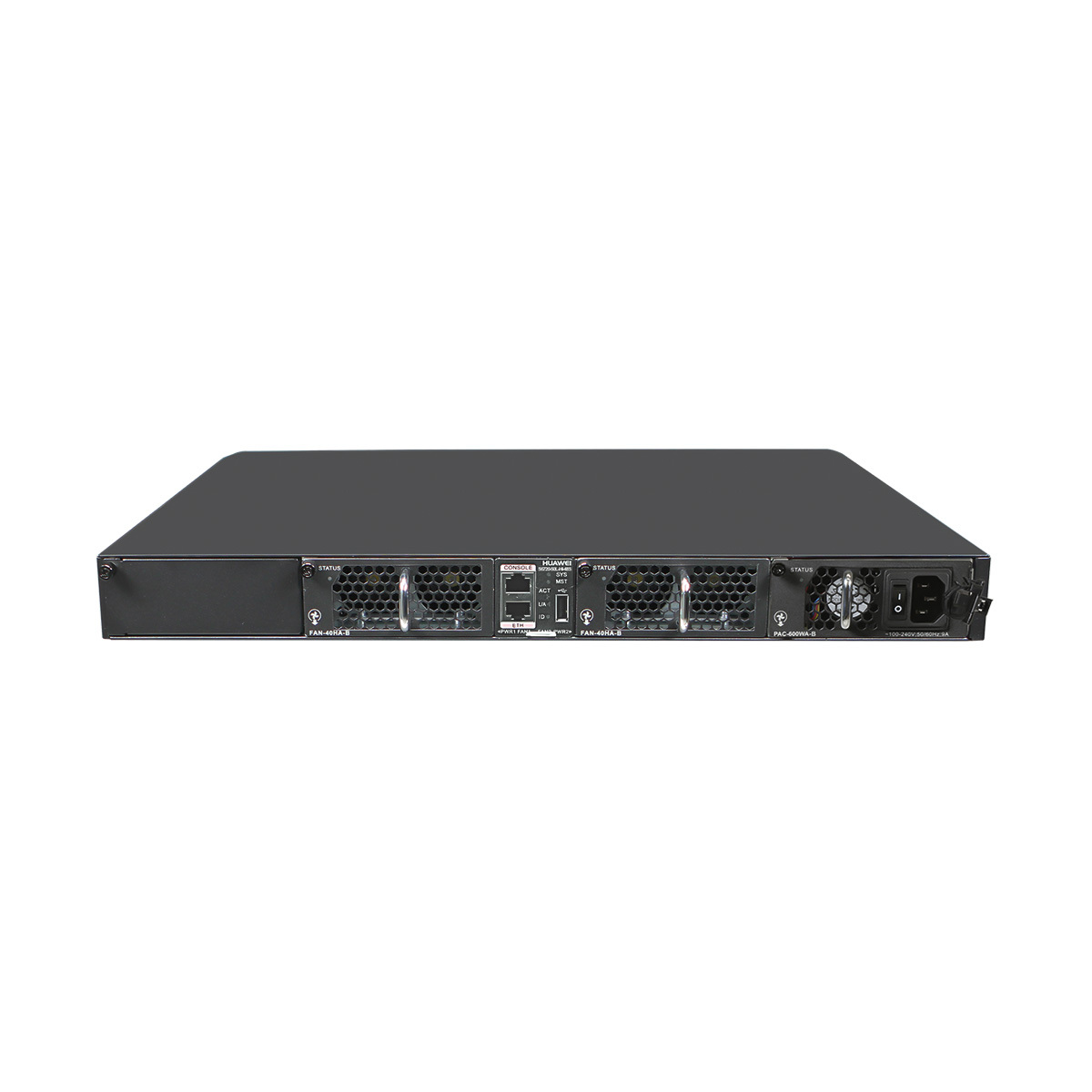

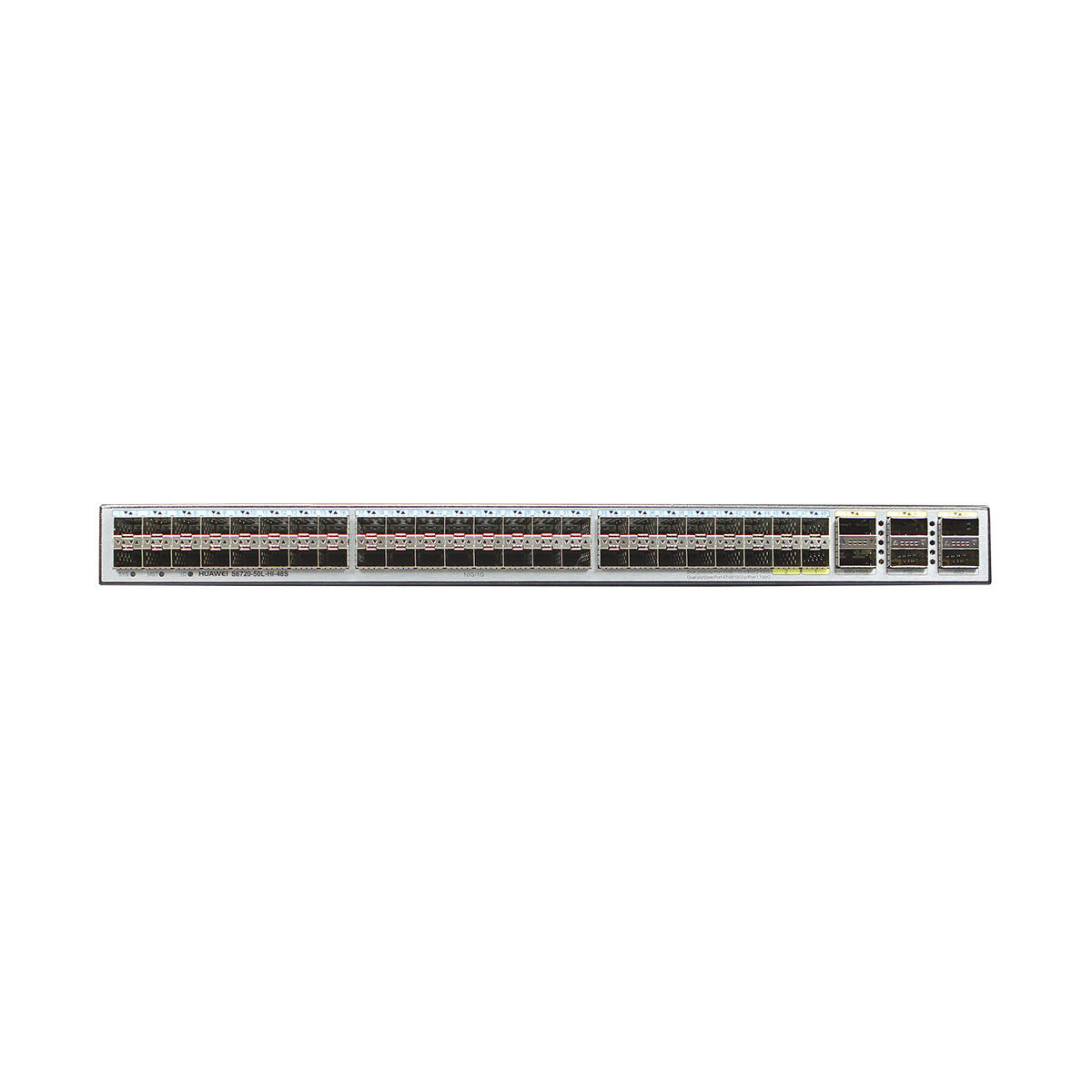

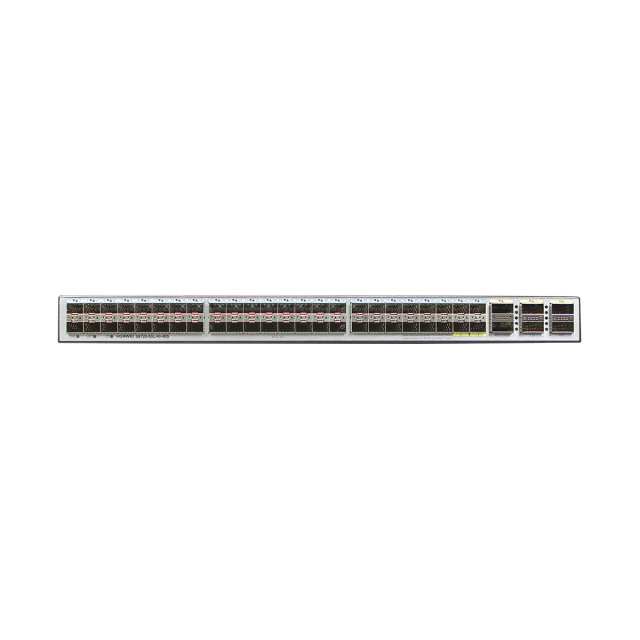

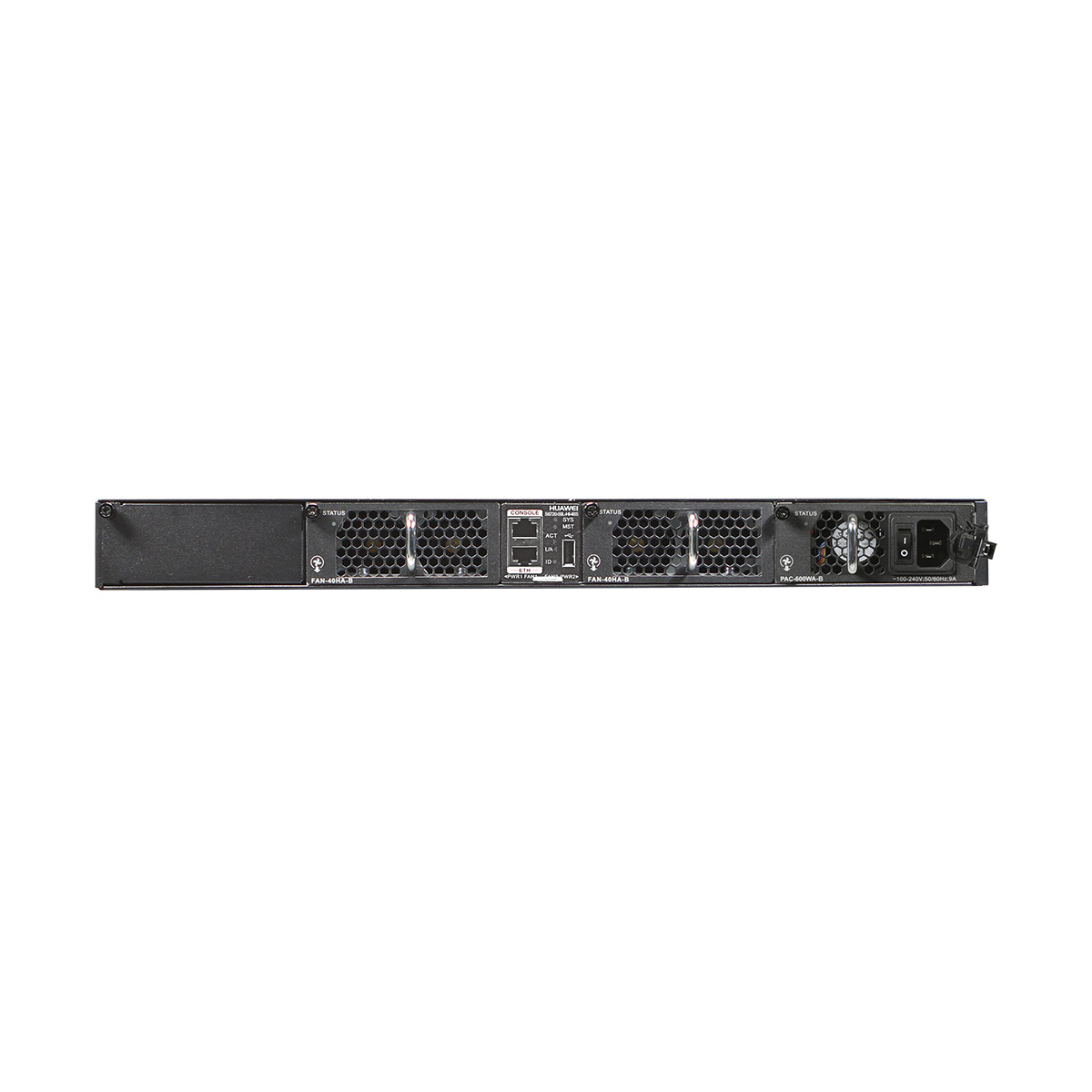

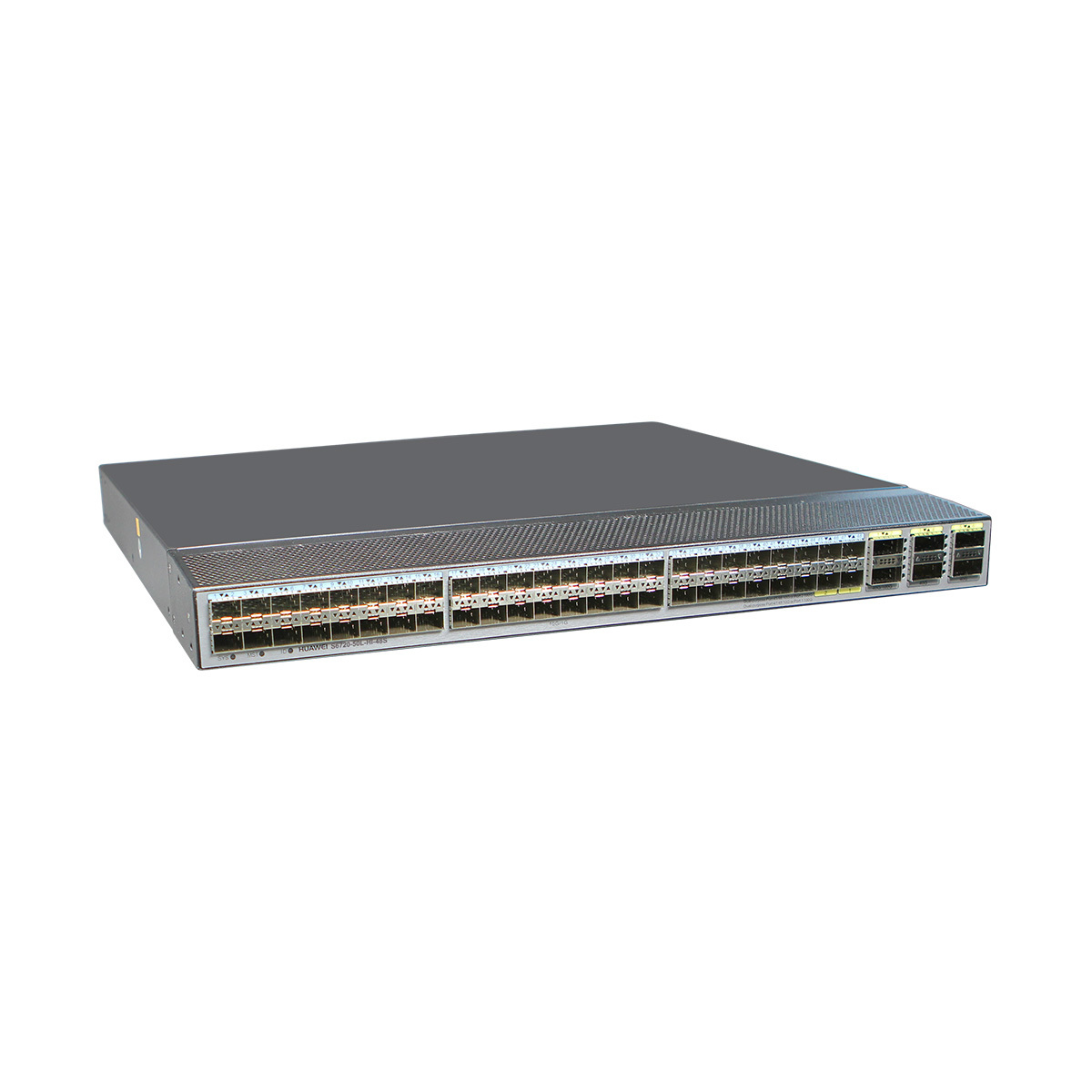

Name: Huawei S6720-50L-HI-48S 48-port Switch
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0198
Price: 2150.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0198

Huawei CloudEngine S6720-50L-HI-48S switch, fixed 48*10GE SFP+ ports, 2*100GE/40GE QSFP28 ports, 2 pluggable power slots flexible configuration with AC/DC power module

Brand

Huawei

Part Number

02351MXN

Packing Box Specifications

43*44*46cm

Gross Weight

10kg

Condition

Original New

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Power:

AC power module

DC power module

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

S6720-50L-HI-48S Introduction

Fixed ports: 48*10GE SFP+ ports, 2*100GE/40GE QSFP28 ports
2 pluggable power slots, 1+1 power backup

Note: All ports support 40GE by default. You can purchase right-to-use (RTU) licenses to upgrade the port rate from 40GE to 100GE
Huawei switches provided by MF-Telecom all come with N1 Basic Software, including Basic network functions: Layer 2 functions, IPv4, IPv6, MPLS, SVF, and others.
If you need N1 Foundation or N1 Advanced Software Package, Please contact us to upgrade.

S6730-S Series Switches Overview

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and their hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

The S series fixed Ethernet switches are available in a variety of models for you to choose based on your network requirements.

S6700 Series Switches Characteristics
The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation.

S6720-50L-HI-48S FAQ

Q1: Can the 48 1GE ports of this switch connect to FE (100Mbps) devices? Is adaptation possible without changing modules?

A1: Yes! The 1GE ports can automatically adapt to FE speed devices without changing modules. Simply insert the FE optical module or connect it to the electrical port device via an opto-converter, maximizing flexibility in adapting to older terminals.

Q2: What specific functions does "Intelligent O&M" include? Do SMEs require professional technicians to operate it?

A2: Core functions include real-time status monitoring, one-click fault location, and automatic configuration backup; it supports a web-based graphical interface, requiring no professional O&M personnel, and can be easily used by ordinary IT staff, lowering the technical barrier.

Q3: What are the core differences between this switch and the Huawei S6720S-26Q-EI-24S-AC (24-port 10GbE)? How to choose? A3: The core difference lies in the port specifications and positioning: the S6720-50L-HI-48S is a 48-port Gigabit (suitable for high-density access); the S6720S-26Q-EI-24S-AC is a 24-port 10 Gigabit (suitable for high-bandwidth backbones). Choose the 48-port Gigabit for a large number of terminals (>30), and choose the 24-port 10 Gigabit for high bandwidth requirements (such as 4K transmission).

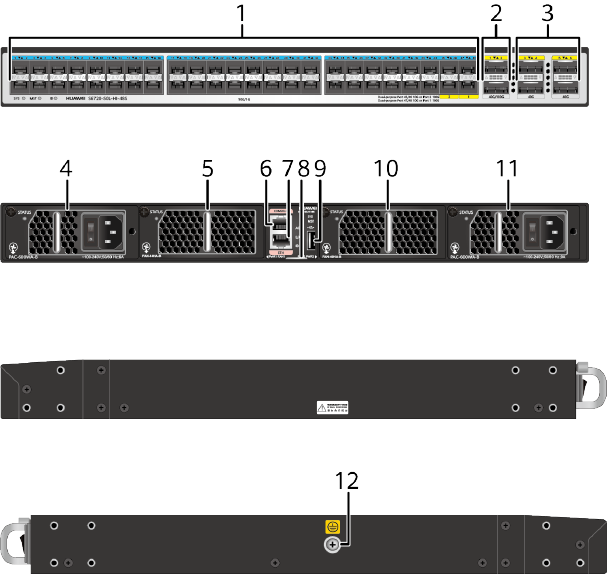

S6720-50L-HI-48S Appearance

1	Forty-eight 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack copper cables (the last 16 ports are supported, used for zero-configuration stacking)	2	Two 40GE/100GE QSFP28 ports Applicable modules and cables: QSFP+ optical module QSFP28 optical module (QSFP-100G-ER4 not supported) 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables 10 m QSFP+ to QSFP+ AOC cable 1 m, 3 m, and 5 m QSFP28 to QSFP28 high-speed copper cables 10 m QSFP28 to QSFP28 AOC cable NOTE: A QSFP28 optical port cannot be split into four 10GE ports. The default rate is 40 Gbit/s, and you can run the set device port-config-mode 100g-port enable command to change the rate to 100 Gbit/s. When you run the command on either of the ports, both ports are configured to work at the rate of 100 Gbit/s simultaneously. After the rate is changed from 40 Gbit/s to 100 Gbit/s, ports 10GE0/0/45 to 10GE0/0/48 become unavailable.
3	Four 40GE QSFP+ ports Applicable modules and cables: QSFP+ optical module 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables 10 m QSFP+ to QSFP+ AOC cable NOTE: A 40GE QSFP+ optical port cannot be split into four 10GE ports.	4	Power module slot 1 NOTE: Applicable power modules: PDC-350WA-B (350 W DC Power Module) PAC-600WA-B (600 W AC Power Module)
5	Fan slot 1 NOTE: Applicable fan module: FAN-40HA-B Fan Module	6	One console port
7	One ETH management port	8	ESN label NOTE: You can draw it out to view the ESN and MAC address of the switch.
9	One USB port	10	Fan slot 2 NOTE: Applicable fan module: FAN-40HA-B Fan Module
11	Power module slot 2 NOTE: Applicable power modules: PDC-350WA-B (350 W DC Power Module) PAC-600WA-B (600 W AC Power Module)	12	Ground screw NOTE: It is used with a ground cable.

S6720-50L-HI-48S Port Description

10GE SFP+ port

Attribute	Description
Connector type	LC/PC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ae
Working mode	GE/10GE auto-sensing

40GE/100GE QSFP28 port

Attribute	Description
Connector type	MPO/LC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ba

40GE QSFP+ port

Attribute	Description
Connector type	MPO/LC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ba

Technical specifications of the S6720-50L-HI-48S

Item	Description
Memory (RAM)	2 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	54.65 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	NA
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 445.6 mm (1.72 in. x 17.4 in. x 17.54 in.)
Weight (with packaging)	10.2 kg (22.49 lb)
Stack ports	The last 36 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE QSFP+ ports (a maximum of 6 physical ports) Any 100GE QSFP28 ports (a maximum of 2 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	279 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	194 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 65 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02351MXN

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
