Home > All Collections > Network Switches&Router > Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch

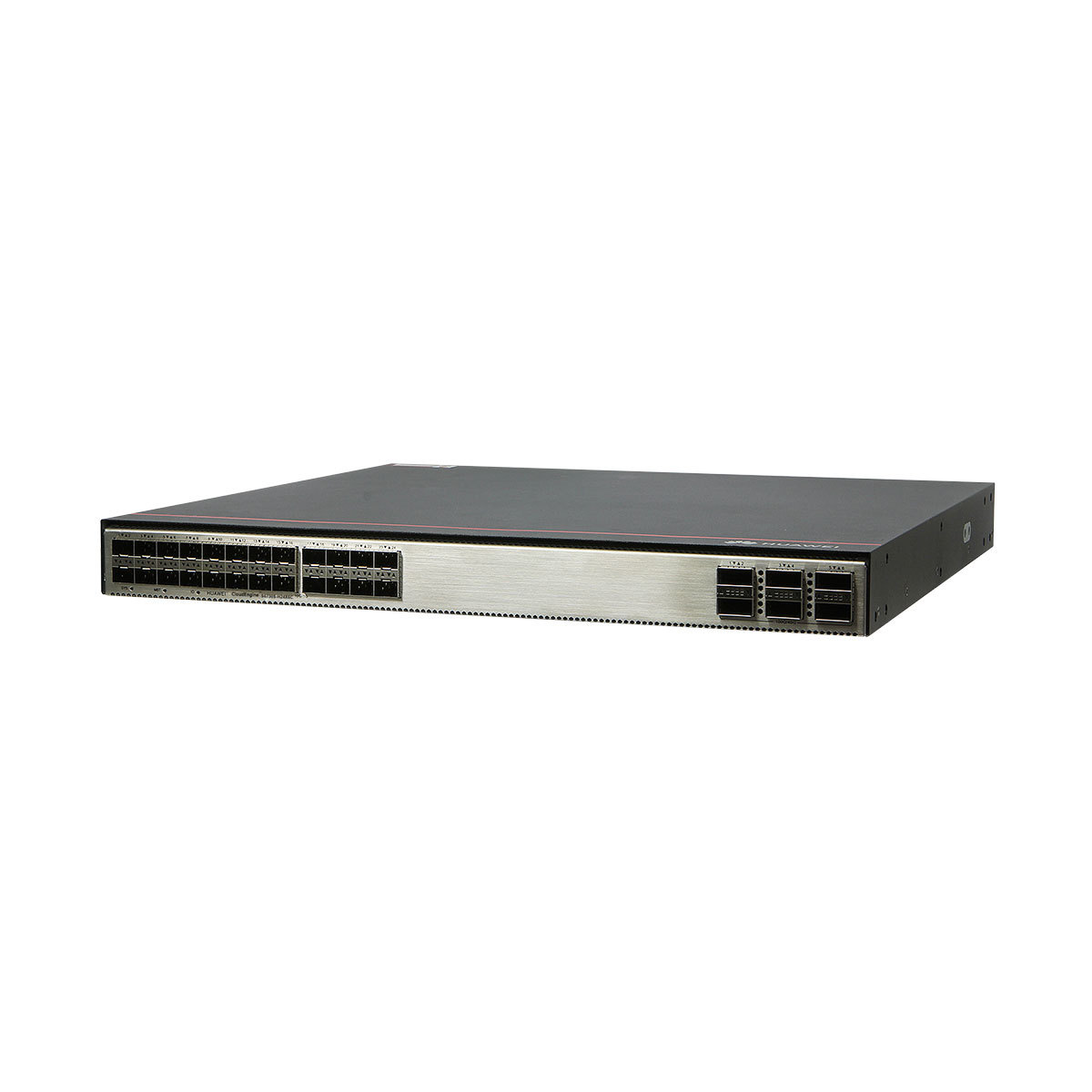

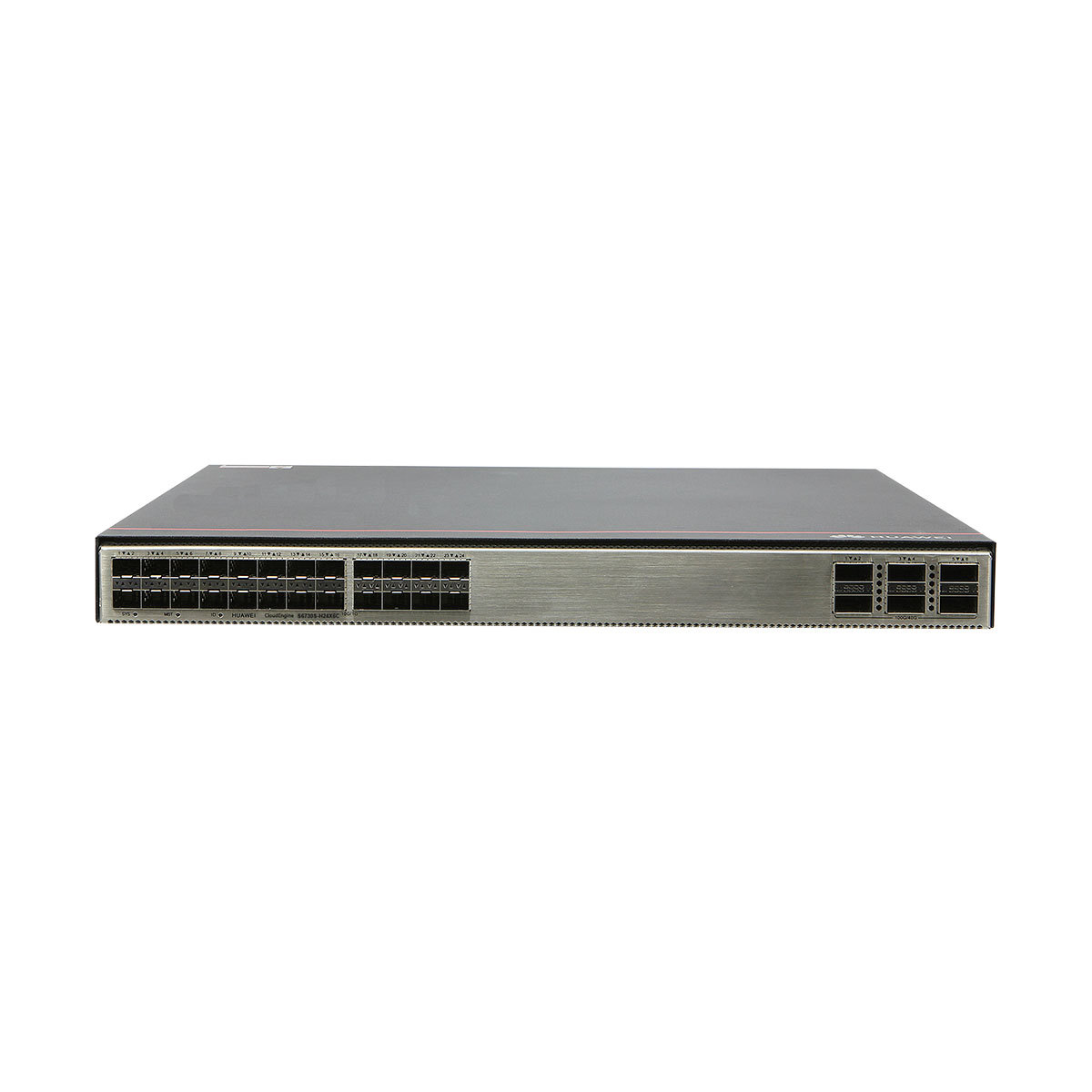

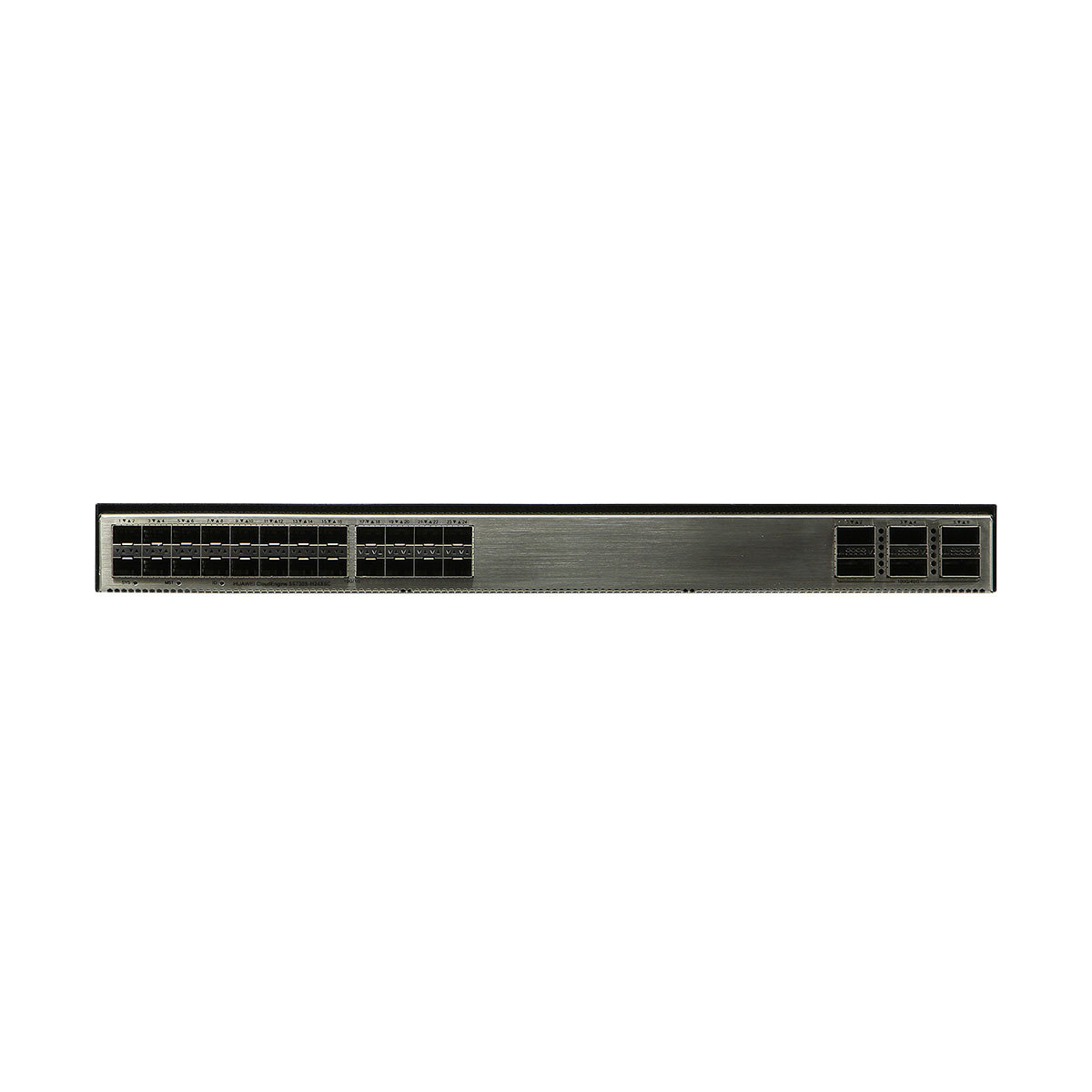

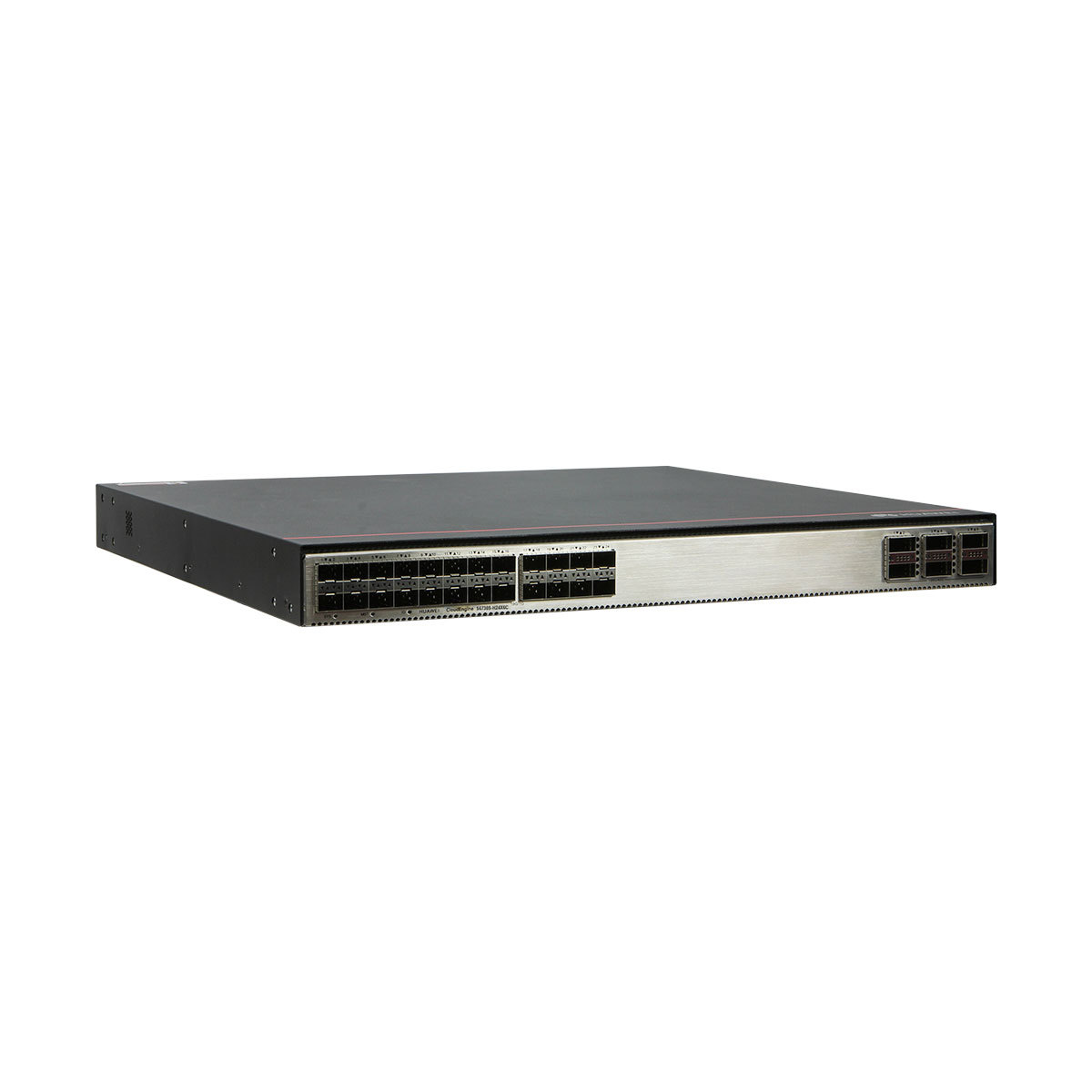

Huawei S6730S-H24X6C-A 24-port Switch

No.MF0192
Huawei CloudEngine S6730S-H24X6C-A switch, fixed 24*10GE SFP+ ports, 6*40GE/100GE QSFP28 optical ports, 2 pluggable power slots flexible configuration with AC/DC power module
Brand
Huawei
Part Number
02353HVK
Packing Box Specifications
43*44*45cm
Gross Weight
10kg
Condition
Original New
Lead Time
1-3 working days
Warranty
12 months
Shipping Method
DHL, UPS, FedEx, Sea/Air/Railway Freight
Payment Method
PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay
Power:
AC power module
DC power module
Get Price/Help
Bulk Quote View Quote List
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch
  • Huawei S6730S-H24X6C-A 24-port Switch

  • Description

  • Huawei Switch Module

S6730S-H24X6C-A Introduction

  • Fixed ports: 24*10GE SFP+ ports, 6*40GE/100GE QSFP28 optical ports
  • 2 pluggable power slots, 1+1 power backup

Note: All ports support 40GE by default. You can purchase right-to-use (RTU) licenses to upgrade the port rate from 40GE to 100GE
Huawei switches provided by MF-Telecom all come with N1 Basic Software, including Basic network functions: Layer 2 functions, IPv4, IPv6, MPLS, SVF, and others.
If you need N1 Foundation or N1 Advanced Software Package, Please contact us to upgrade.

S6730-S Series Switches Overview

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and their hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

The S series fixed Ethernet switches are available in a variety of models for you to choose based on your network requirements.

S6700 Series Switches Characteristics
The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation.

S6730S-H24X6C-A FAQ

Q1: How to switch between "optical port + electrical port" on the 6 100GE Combo ports? Does it support hot-switching?

A1: Automatic and hot-switching are supported! Inserting an optical module automatically activates the optical port, and inserting an electrical cable automatically switches to the electrical port. No manual configuration is required, and the hot-switching process does not interrupt services, making it seamless for maintenance.

Q2: Can the enhanced "wide temperature" feature adapt to the frigid outdoor data centers in northern regions (-30℃)? Is additional temperature control equipment required?

A2: Fully compatible! The operating temperature range is -40℃ to +65℃. It can start and run directly in environments as low as -30℃, without the need for additional heaters or air conditioning, reducing deployment costs by 30%.

Q3: What are the core differences between this and the Huawei S6730-H24X4Y4C (24×25GE + 4×100GE + 4×GE Combo)? How to choose? A3: The core difference lies in the high-end ports and reliability: The S6730S-H24X6C-A has 6 100GE Combo ports + wide-temperature surge protection (suitable for complex environments); the latter has 4 100GE ports + 4 GE Combo ports (suitable for ordinary hybrid networks). Choose the former for complex environments/high-speed requirements, and the latter for ordinary hybrid scenarios.

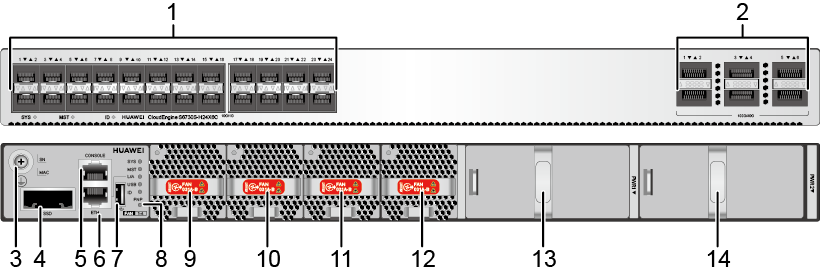

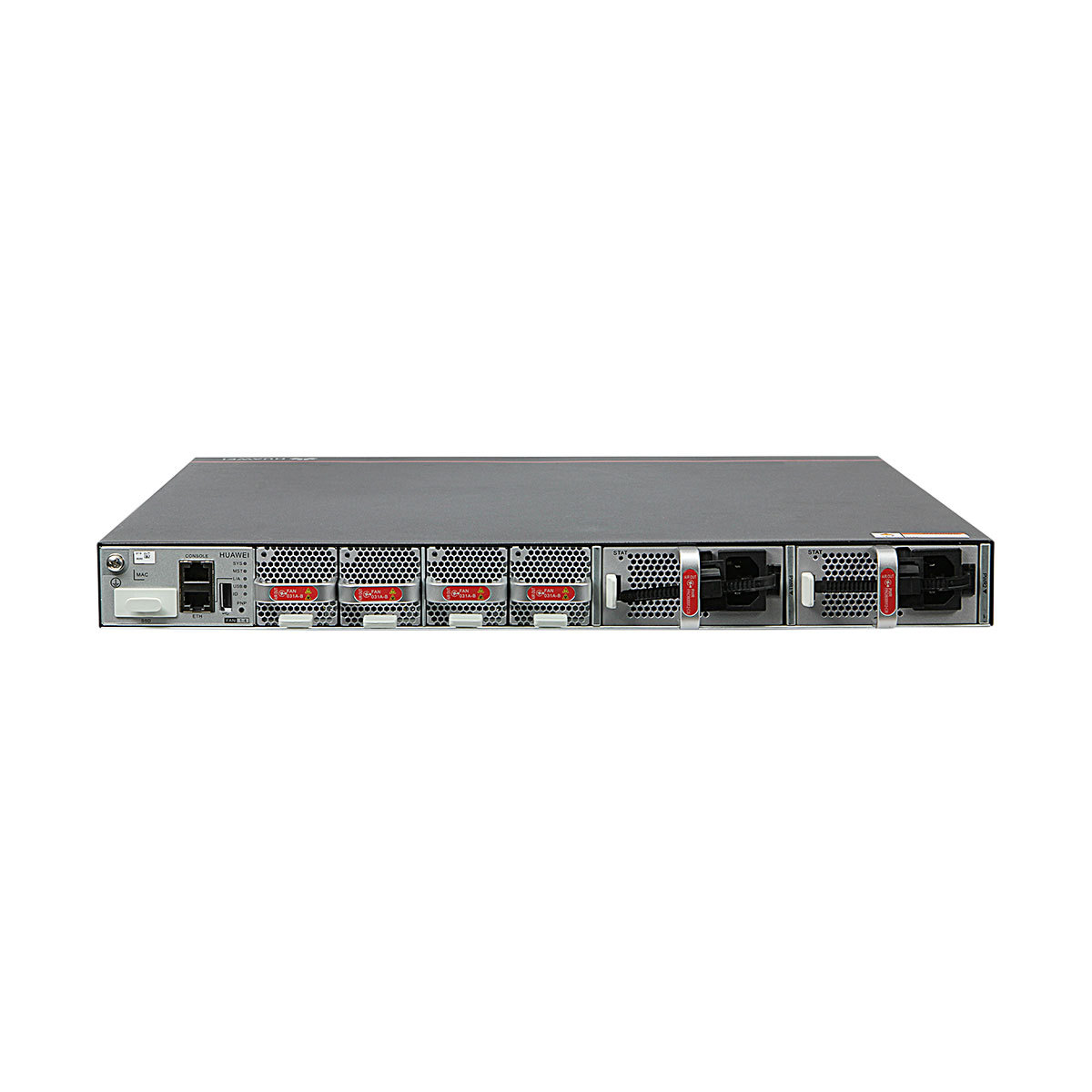

S6730S-H24X6C-A Appearance


1

Twenty-four 10GE SFP+ ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE SFP+ Copper Modules (supported in V200R023C10 and later versions)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking)

2

Six 40GE/100GE QSFP28 optical ports

Applicable modules and cables:
  • QSFP+ optical module
  • QSFP28 optical module
  • 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables
  • 10 m QSFP+ to QSFP+ AOC cable
  • 1 m QSFP28 to QSFP28 high-speed copper cable
  • 10 m QSFP28 to QSFP28 AOC cable
  • 2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions)
NOTE:

A QSFP28 optical port cannot be split into four 10GE ports, regardless of whether the port uses a QSFP28 or QSFP+ optical module.

The default rate is 100 Gbit/s.

3

Ground screw

NOTE:
It is used with a ground cable.

4

SSD card slot

NOTE:

This slot is reserved for future use.

5

One console port

6

One ETH management port

7

One USB port

8

One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

9

Fan module slot 1

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

10

Fan module slot 2

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

11

Fan module slot 3

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

12

Fan module slot 4

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

13

Power module slot 1

NOTE:

Applicable power module:

  • PAC600S12-CB (600 W AC&240 V DC Power Module)
  • PAC600S12-EB (600 W AC&240 V DC Power Module)
  • PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S12-DB (1000 W DC Power Module)

14

Power module slot 2

NOTE:

Applicable power module:

  • PAC600S12-CB (600 W AC&240 V DC Power Module)
  • PAC600S12-EB (600 W AC&240 V DC Power Module)
  • PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
  • PDC1000S12-DB (1000 W DC Power Module)

S6730S-H24X6C-A Port Description

10GE SFP+ optical port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ae

Working mode

GE/10GE auto-sensing

40GE/100GE QSFP28 optical port

Attribute

Description

Connector type

MPO/LC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ba


Technical specifications of the S6730S-H24X6C-A

Item

Description

Memory (RAM)

4 GB

Flash

2 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

62.27 years

Availability

> 0.99999

Service port surge protection

N/A

Power supply surge protection
  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)

Weight (with packaging)

9.84 kg (21.69 lb)

Stack ports
  • Any 10GE SFP+ ports (a maximum of 16 physical ports)
  • Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range
  • AC input: 100 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC
  • DC input: -48 V DC to -60 V DC

Maximum voltage range
  • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

254 W

Typical power consumption (30% of traffic load, tested according to ATIS standard)

149 W

Operating temperature
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 65 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

02353HVK

02353HVK-001

02353HVK-003

02353HVK-004
Optical Modules Supported by Huawei S Series Switches

Module Name Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310 2 km
eSFP-FE-LX-SM1310 15 km
S-SFP-FE-LH40-SM1310 40 km
S-SFP-FE-LH80-SM1550 80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module) 15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
  • Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310  10 km
S-SFP-GE-LH40-SM1310 40 km
S-SFP-GE-LH40-SM1550 40 km
S-SFP-GE-LH80-SM1550  80 km
eSFP-GE-ZX100-SM1550 100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module) 10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)  40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)  40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module) 80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)  80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module) 10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1 10 km
CSFP-GE-FE-BIDI2  20 km
CSFP-GE-FE-BIDI4 40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271 80 km
CWDM-SFPGE-1291 80 km
CWDM-SFPGE-1311 80 km
CWDM-SFPGE-1331 80 km
CWDM-SFPGE-1351 80 km
CWDM-SFPGE-1371 80 km
CWDM-SFPGE-1391 80 km
CWDM-SFPGE-1411 80 km
CWDM-SFPGE-1431 80 km
CWDM-SFPGE-1451 80 km
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61 120 km
10GE SFP+ Optical Modules
SFP-10G-USR 0.1 km
OSXD22N00
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km
  • Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
SFP-10G-iLR 1.4 km
OSX010000 10 km
OSX040N01 40 km
SFP-10G-ER-1310 40 km
SFP-10G-ZR 80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module) 40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module) 40 km
10GE XFP Optical Modules
XFP-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310 10 km
XFP-STM64-LH40-SM1550  40 km
XFP-STM64-SM1550-80km 80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471 70 km
SFP-10G-ZCW1491 70 km
SFP-10G-ZCW1511 70 km
SFP-10G-ZCW1531 70 km
SFP-10G-ZCW1551 70 km
SFP-10G-ZCW1571 70 km
SFP-10G-ZCW1591 70 km
SFP-10G-ZCW1611 70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471 70 km
CWDM-XFP10G-1491 70 km
CWDM-XFP10G-1511 70 km
CWDM-XFP10G-1531 70 km
CWDM-XFP10G-1551 70 km
CWDM-XFP10G-1571 70 km
CWDM-XFP10G-1591 70 km
CWDM-XFP10G-1611 70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT 60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47  80 km
DWDM-XFP10G-1534-25  80 km
DWDM-XFP10G-1535-04  80 km
DWDM-XFP10G-1552-52  80 km
DWDM-XFP10G-1553-33  80 km
DWDM-XFP10G-1554-13  80 km
DWDM-XFP10G-1530-33  80 km
DWDM-XFP10G-1549-32  80 km
DWDM-XFP10G-1531-12  80 km
DWDM-XFP10G-1531-90  80 km
DWDM-XFP10G-1550-12  80 km
DWDM-XFP10G-1550-92  80 km
DWDM-XFP10G-1532-68  80 km
DWDM-XFP10G-1551-72  80 km
DWDM-XFP10G-1529-55  80 km
DWDM-XFP10G-1548-51  80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4 1.4 km
QSFP-40G-eSM4 10 km
QSFP-40G-LX4

Single-mode fiber: 2 km

Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4 10 km
QSFP-40G-ER4 40 km
QSFP-40G-SR-BD
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-40G-LR4 10 km
CFP-40G-ER4 40 km
CFP-40G-ZR4 80 km
100GE CFP Optical Modules
CFP-100G-SR10
  • Multimode fiber (OM2): 0.03 km
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-100G-LR4 10 km
CFP-100G-ER4 40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4 10 km
QSFP28-100G-10KM 10 km
QSFP28-100G-PSM4 500 m
QSFP28-100G-SR4

  • Multimode fiber (OM3): 70 m

  • Multimode fiber (OM4): 100 m
QSFP-100G-eSR4
  • Multimode fiber (OM3): 200 m
  • Multimode fiber (OM4): 300 m
QSFP-100G-CLR4  2 km
QSFP-100G-CWDM4  2 km
QSFP-100G-ER4-Lite Single-mode fiber (G.652):
  • Disables the RS-FEC function: 30 km
  • Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2  20 km
Industrial Optical Modules
OGSM01880
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
OGSC10DD0 10 km
OGSC40DD0 40 km
SFP+10GE-LH10-SM1310  10 km
SFP-10G-SR 0.3 km
SFP-10G-iLR  1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module) 10 km

Download

MF-Telecom
About Us
Professional Certificates
Buy in Bulk
Contact Us
Cases
Blog
Featured Product
Access Network List
CATV Solution List
Switch List
Optical Module List
Service
Buyer Guide
Payments
Delivery & Shipping
Warranty & Return
Privacy Policy
Terms & Conditions
CONTACT
No.29 Second Road, Wanggang Industrial Zone, Guangzhou, China
Sales@mf-telecom.com
+86 13416664642
Leave a message
Your Name
Company Name
Contact Info(Email/WhatsApp)
Message
We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.
