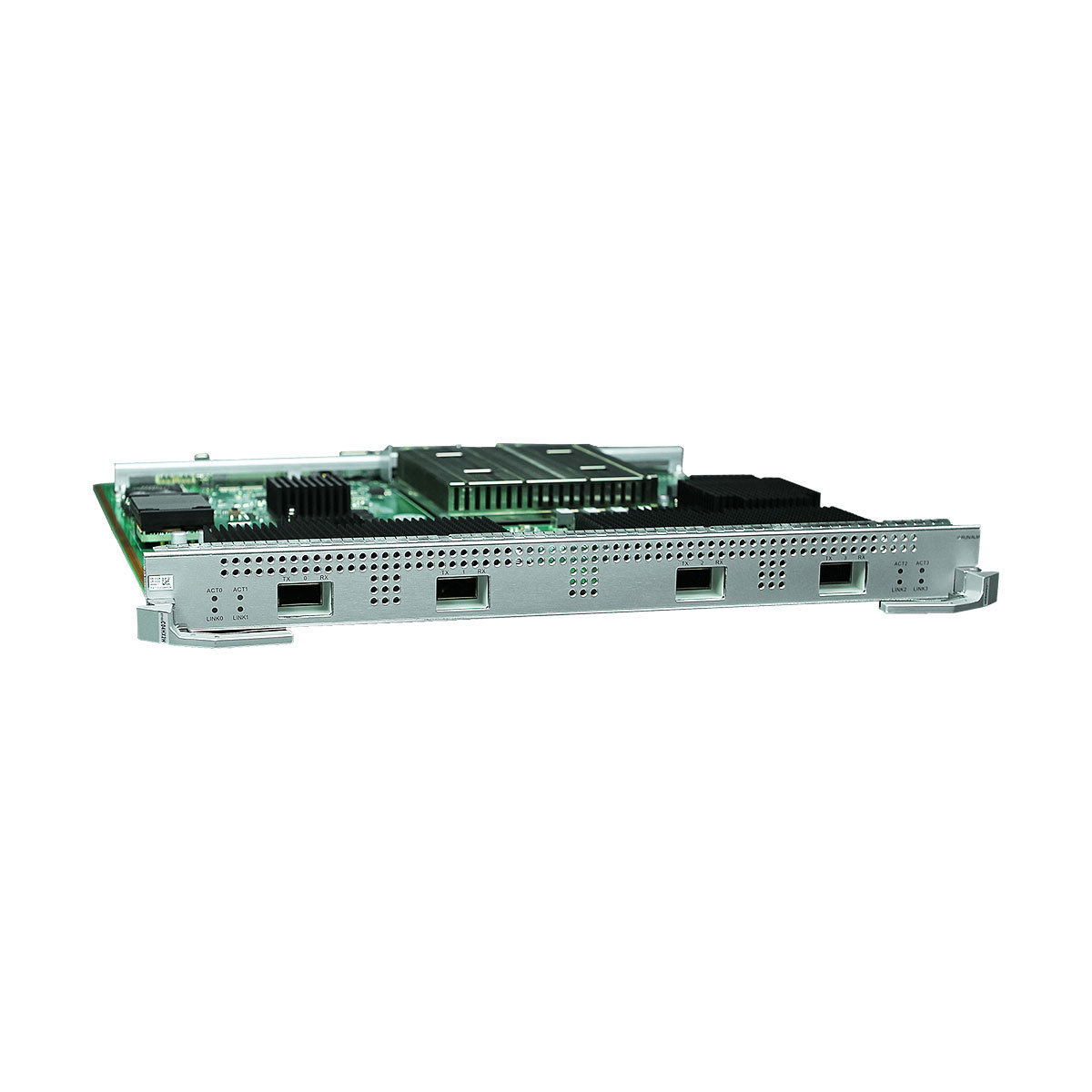

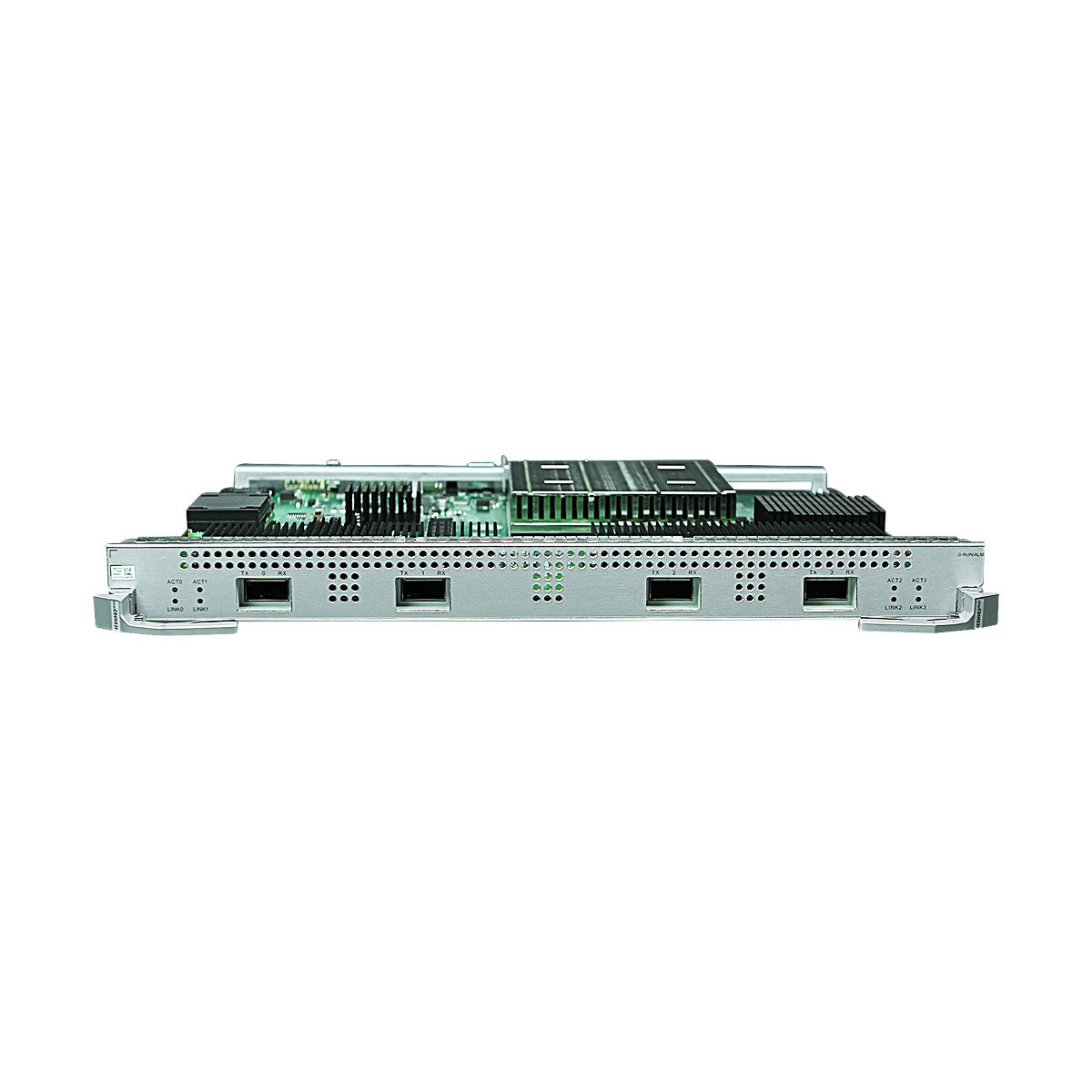

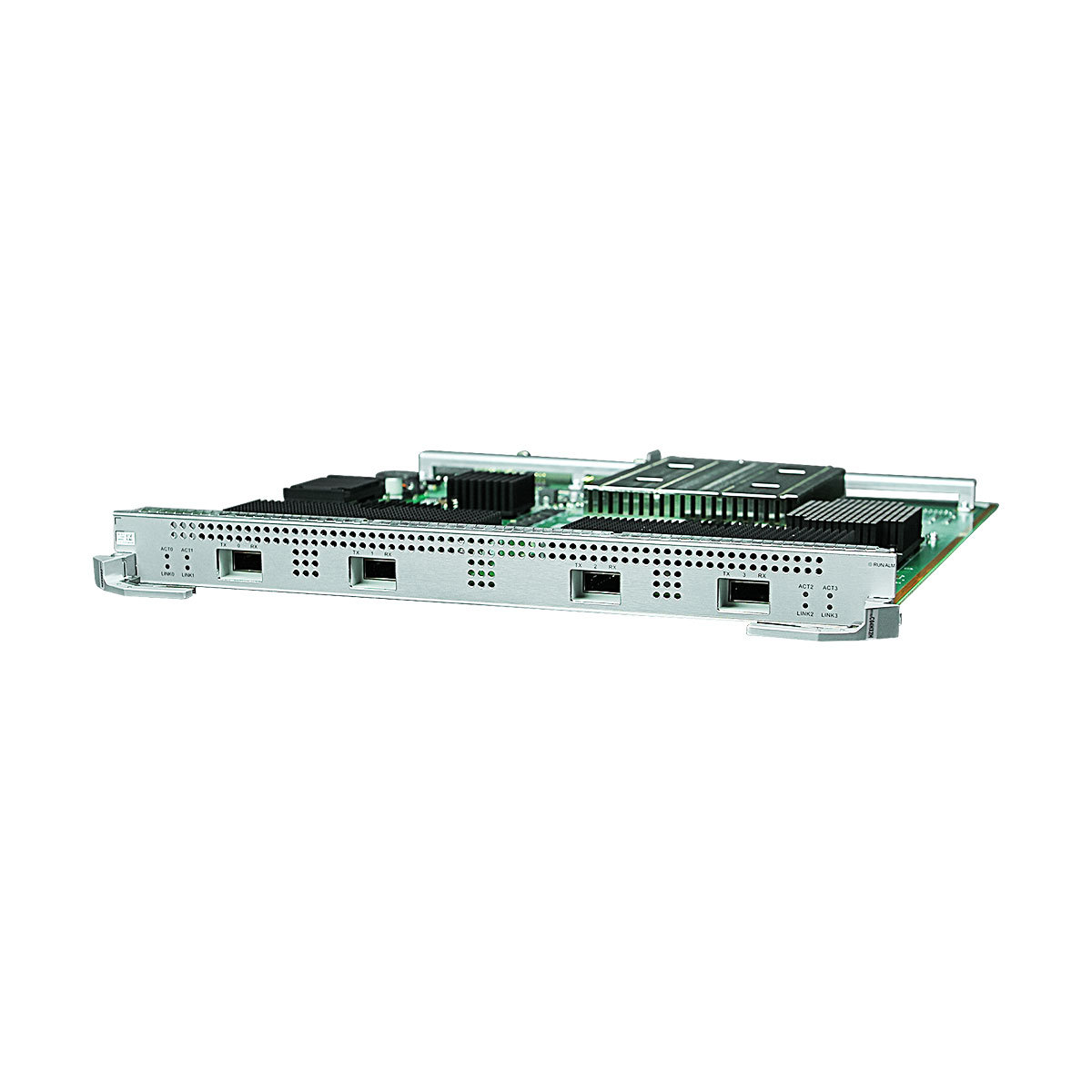

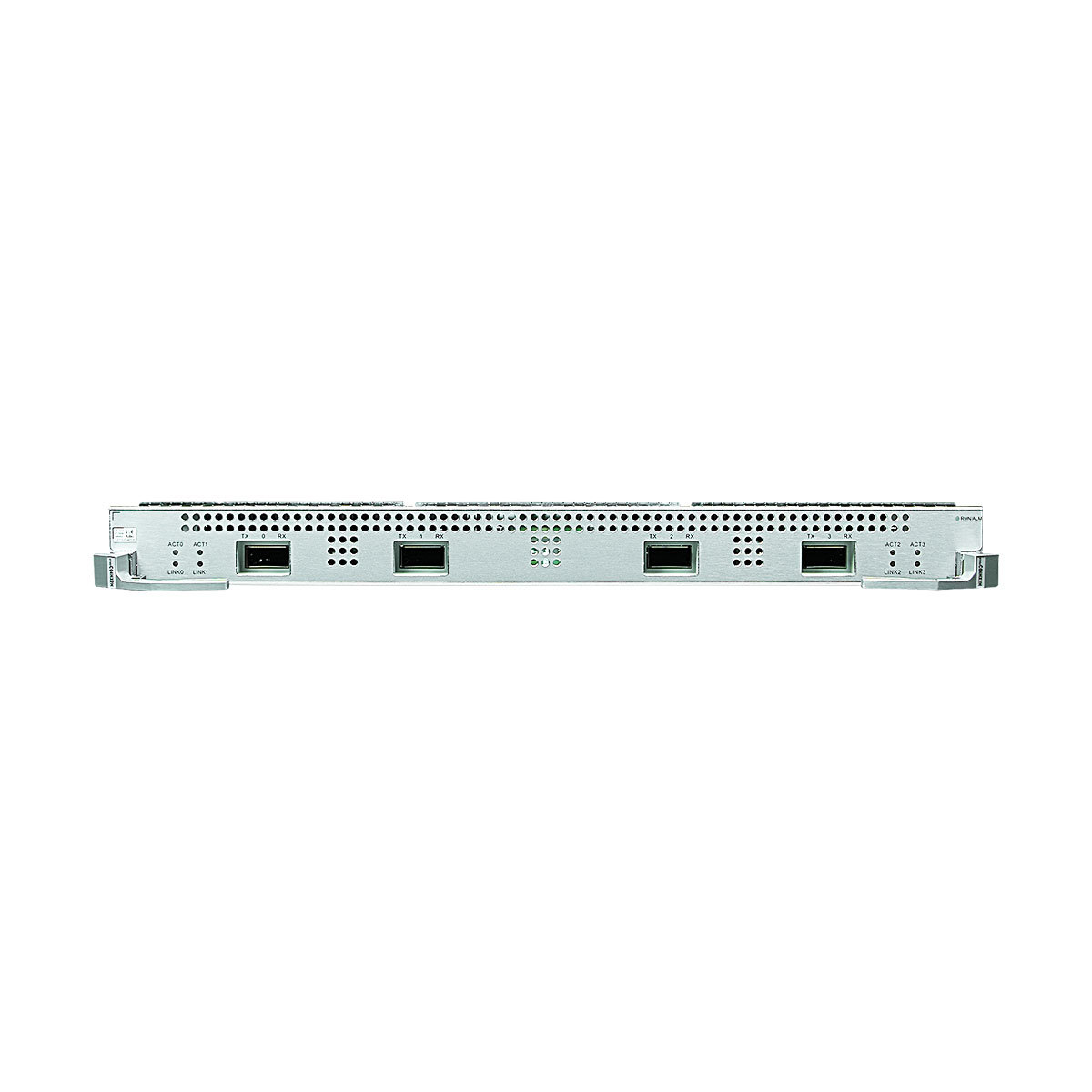

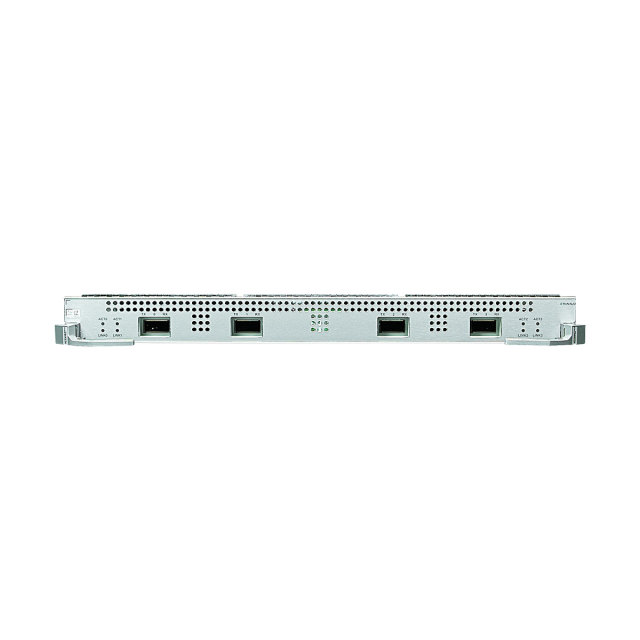

Provides four 100GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Ports on the ET1D2C04HX2H
Attribute
Description
Connector type
QSFP28
Optical port attributes
Depend on the QSFP28 high-speed cable (1 m, 3 m, 5 m), QSFP+ high-speed cable (1 m, 3 m, 5 m), 40GE QSFP+ Optical Modules, 100GE QSFP28 Optical Modules or QSFP+ or QSFP28 AOC cable used.
Applicable cable
QSFP+ optical module and LC optical fiber
QSFP+ optical module and MPO optical fiber (MPO to MPO or MPO to 4*DLC optical fiber)
QSFP+ high-speed copper cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
QSFP28 optical module and LC optical fiber
QSFP28 optical module and MPO optical fiber (MPO to MPO)
QSFP28 high-speed copper cable
QSFP28 AOC cable
Specifications of the ET1D2C04HX2H
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.15 kg (6.94 lb)
Maximum power consumption: 170.7 W
ET1D2C04HX2H FAQ
Q1: What are the core advantages of this service board? Is it suitable for small to medium-sized networks with limited budgets?
A1: The core advantages are high cost-effectiveness, dual-rate compatibility, low power consumption, and flexible expansion; precise configuration of 4 ports controls initial investment, and the dual-rate design reduces upgrade costs, making it very suitable for small to medium-sized networks with limited budgets.
Q2: Which optical modules does it support? Can it directly connect to existing 10G equipment?
A2: It supports Huawei standard QSFP+ 40G optical modules (SR4/LR4/ER4) and QSFP+ 10G optical modules; 40G/10G dual-rate adaptive, it can directly connect to existing 10G equipment without additional converter configuration.
Q3: How does its energy consumption and performance compare to other 4-port 40G boards of the same level?
A3: The overall power consumption is ≤80W, saving 30% more energy than comparable products; the forwarding capacity is ≥320Gbps, supporting full-load concurrent forwarding on all 4 ports without performance bottlenecks, making it suitable for small to medium-sized high-load scenarios.
Q4: What network sizes are suitable for? Is installation complex?
A4: Suitable for small and medium-sized data centers, medium-sized campuses, and county-level network aggregation by carriers; supports hot-swapping, installation requires no downtime, automatically identifies the speed after insertion into the switch, and configuration is simple.
