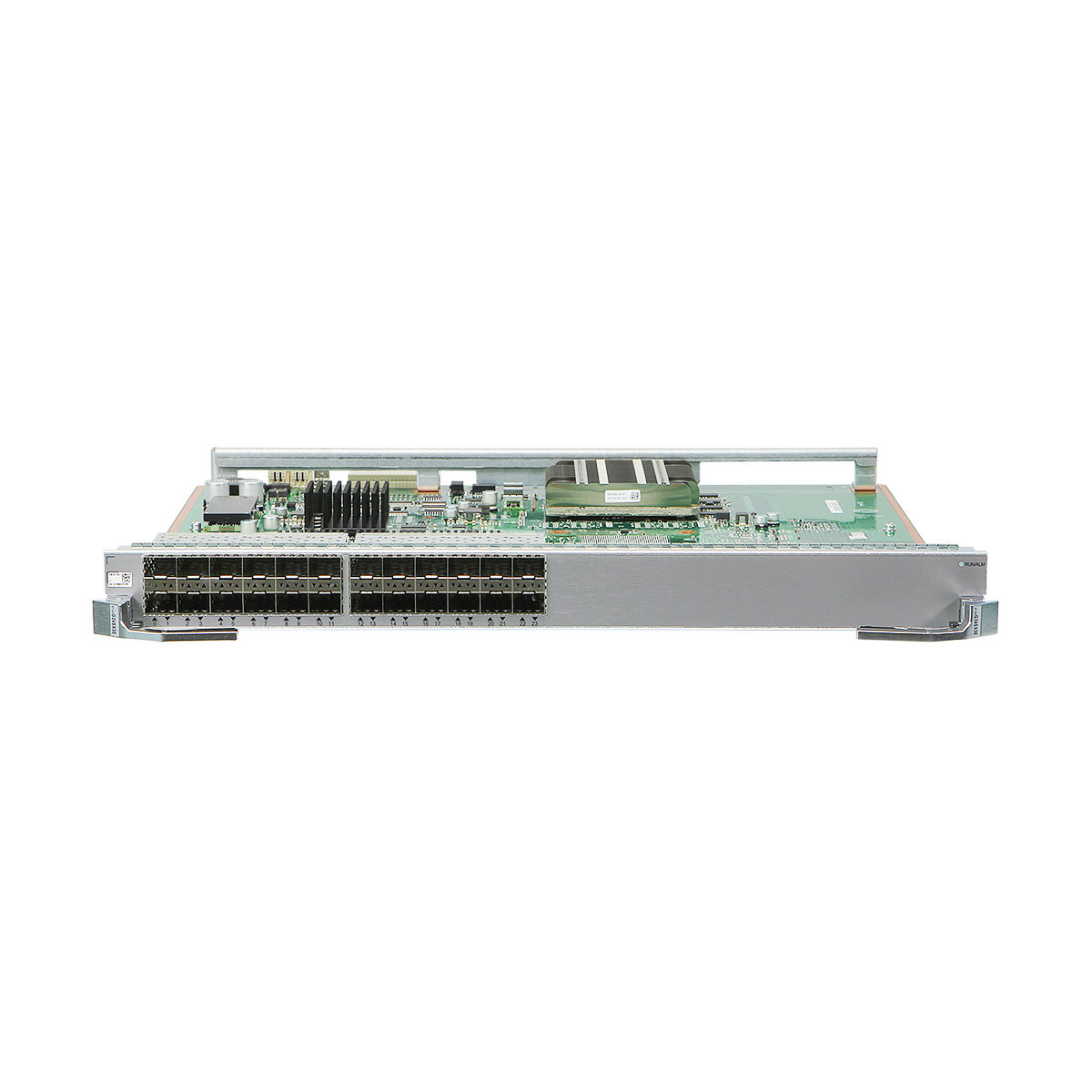

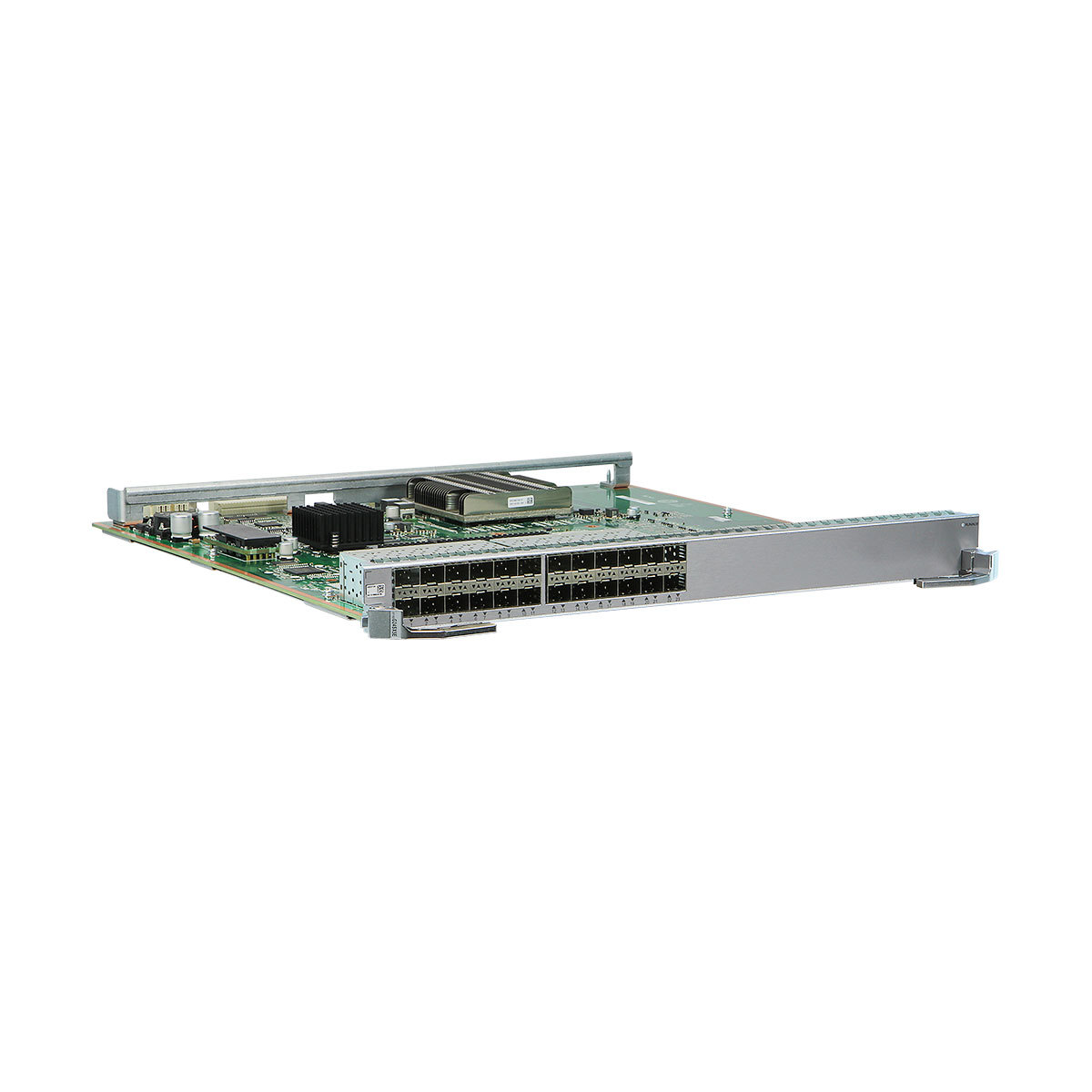

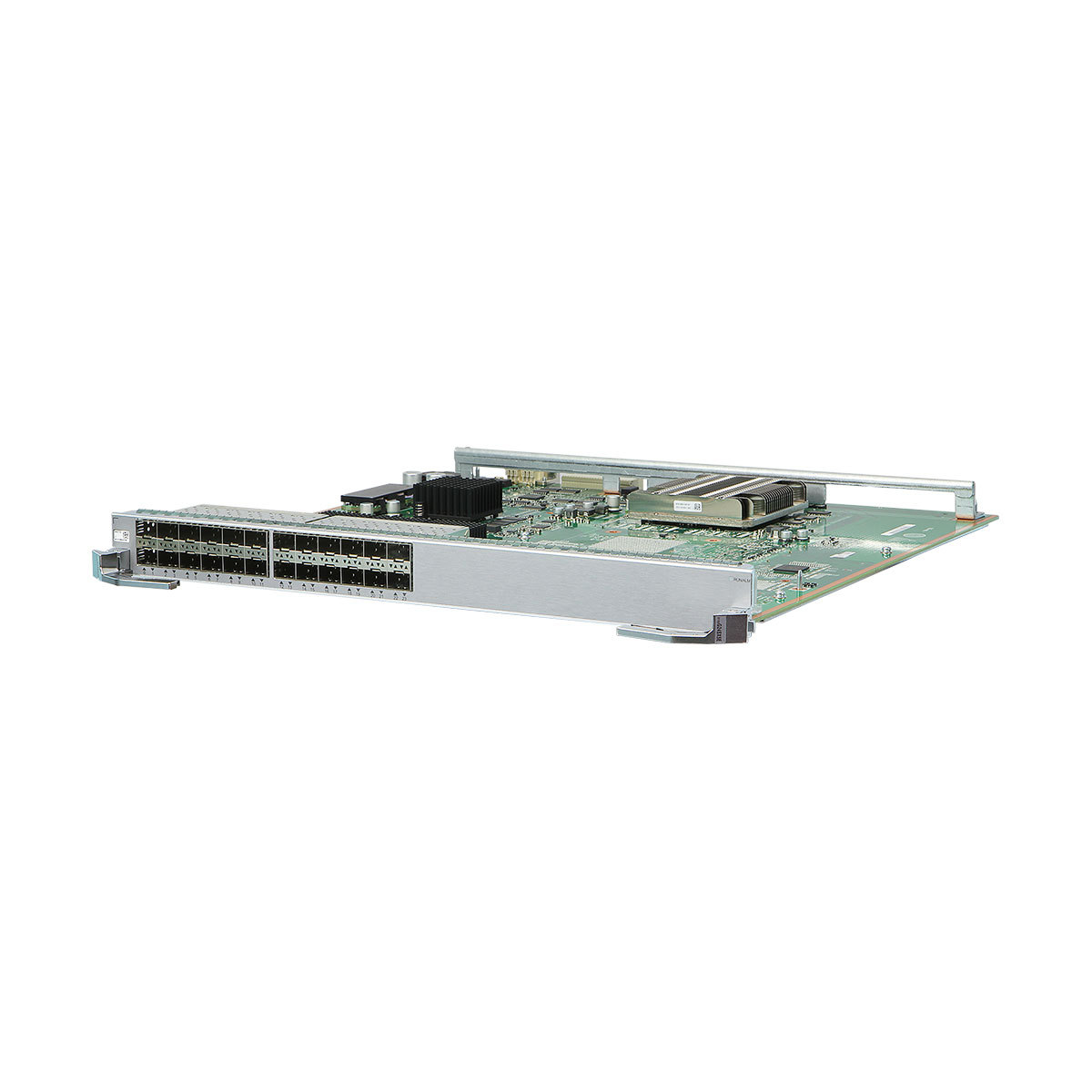

Provides twenty-four GE optical ports for data access and line-rate switching.
Forwarding speed
24 Gbit/s
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ET1D2G24SX5E is hot swappable.
Ports on the ET1D2G24SX5E
Optical port attributes (optical module)
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For optical modules supported by the ET1D2G24SX5E and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE 802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (copper module)
Attriute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (10 Mbit/s, 100 Mbit/s and 1000 Mbit/s rates).
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the ET1D2G24SX5E
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.82 kg (6.22 lb)
Maximum power consumption: 84 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2G24SX5E FAQ
Q1: What are the core functions of this service board? How are the advantages of dual-rate compatibility and pure optical port functionality reflected?
A1: It contains 24 pure SFP+ optical ports, supports 10G/1G dual-rate adaptive operation and stable distributed forwarding; no rate-specific deployment is required, it is compatible with both new and old pure optical port terminals, and has low power consumption ≤105W, making it the preferred choice for large-scale access in small and medium-sized pure optical port environments.
Q2: Compared with a regular 24-port 10GE optical port board, what are its core advantages?
A2: The advantages are dual-rate adaptive operation (compatible with 10G/1G), high density saving slots, and green low power consumption, while simultaneously solving the three major pain points of pure optical port scenarios: complex deployment, insufficient compatibility, and excessive power consumption.
Q3: Does it require specific optical modules? Which core protocols does it support?
A3: It is compatible with Huawei standard SFP+/SFP optical modules (including different transmission distances); it supports IPv4/IPv6 dual-stack, LACP, VRRP, and QoS, meeting the high reliability requirements of the backbone/access layer.
Q4: How do I determine if this service board needs to be deployed? Is the installation complicated?
A4: It is recommended for small to medium-sized networks that require 15-24 pure optical port 10 Gigabit terminals and are pursuing high-density deployment. It supports hot-swapping, requires no professional tools for installation, and automatically identifies the port speed, making it plug-and-play.
