Provides forty-eight GE electrical ports for data transmission and line-rate switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ET1D2G48TEA0 is hot swappable.

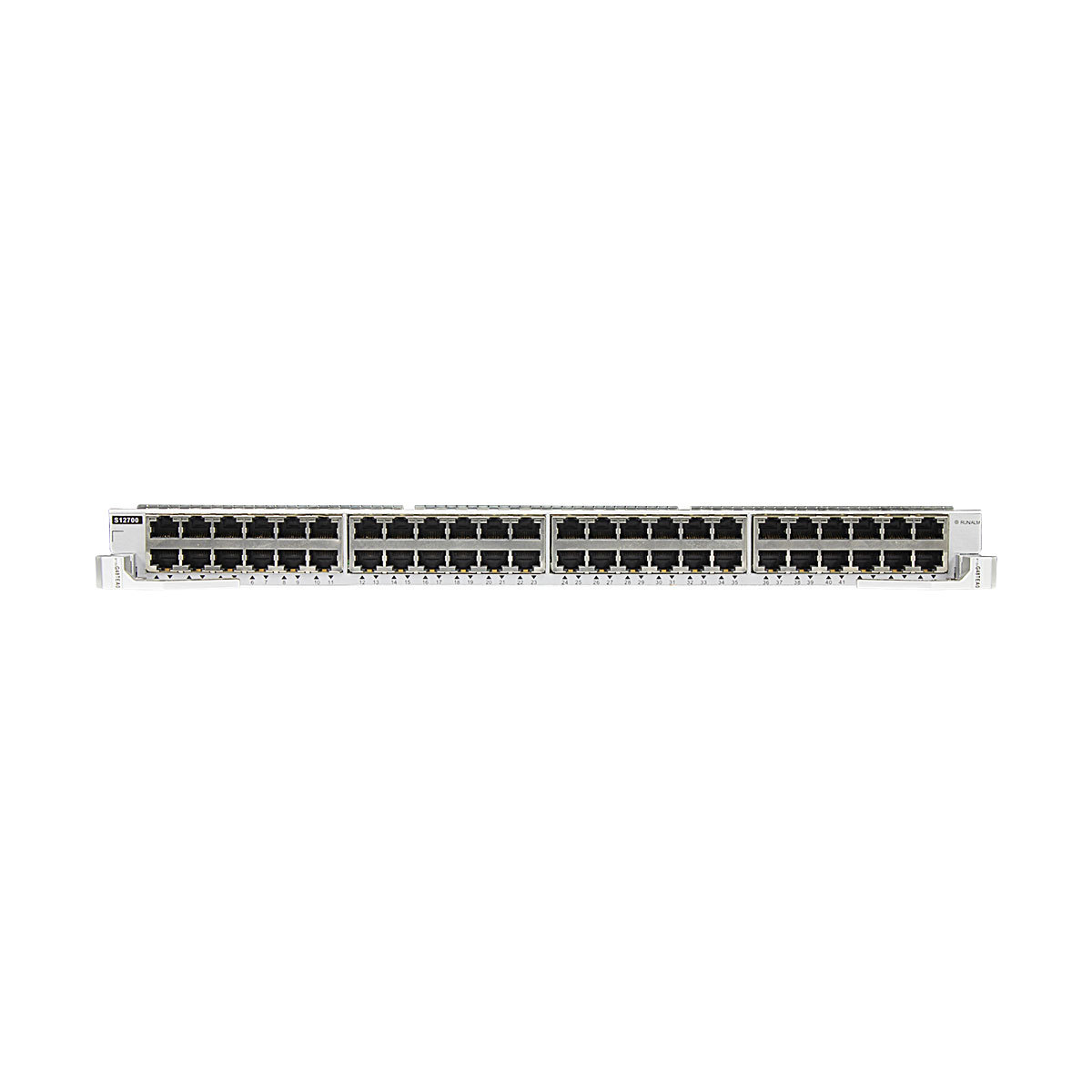

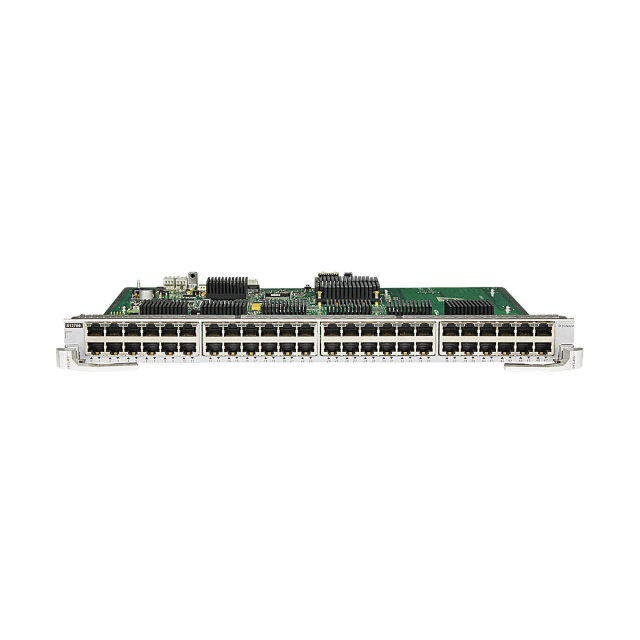

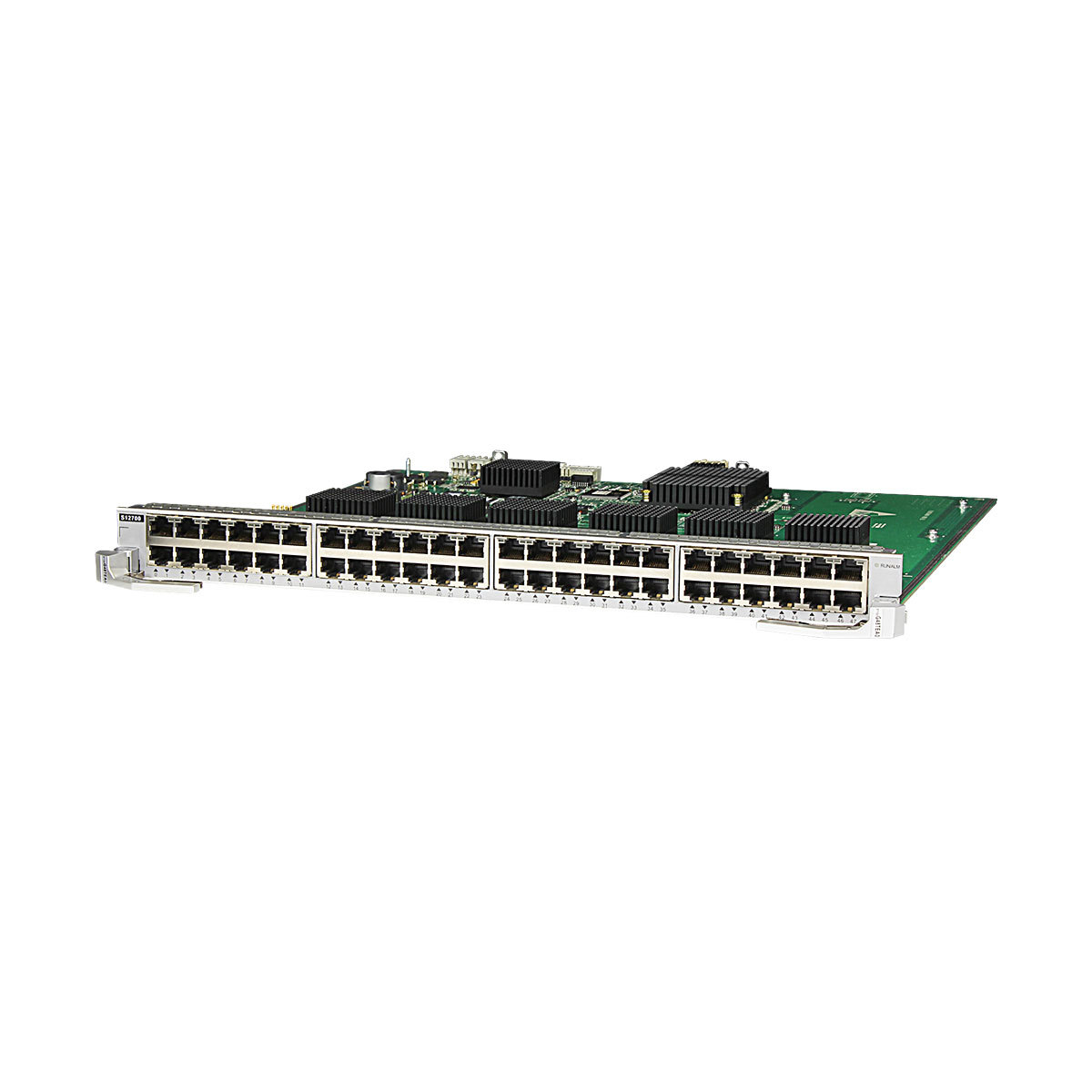

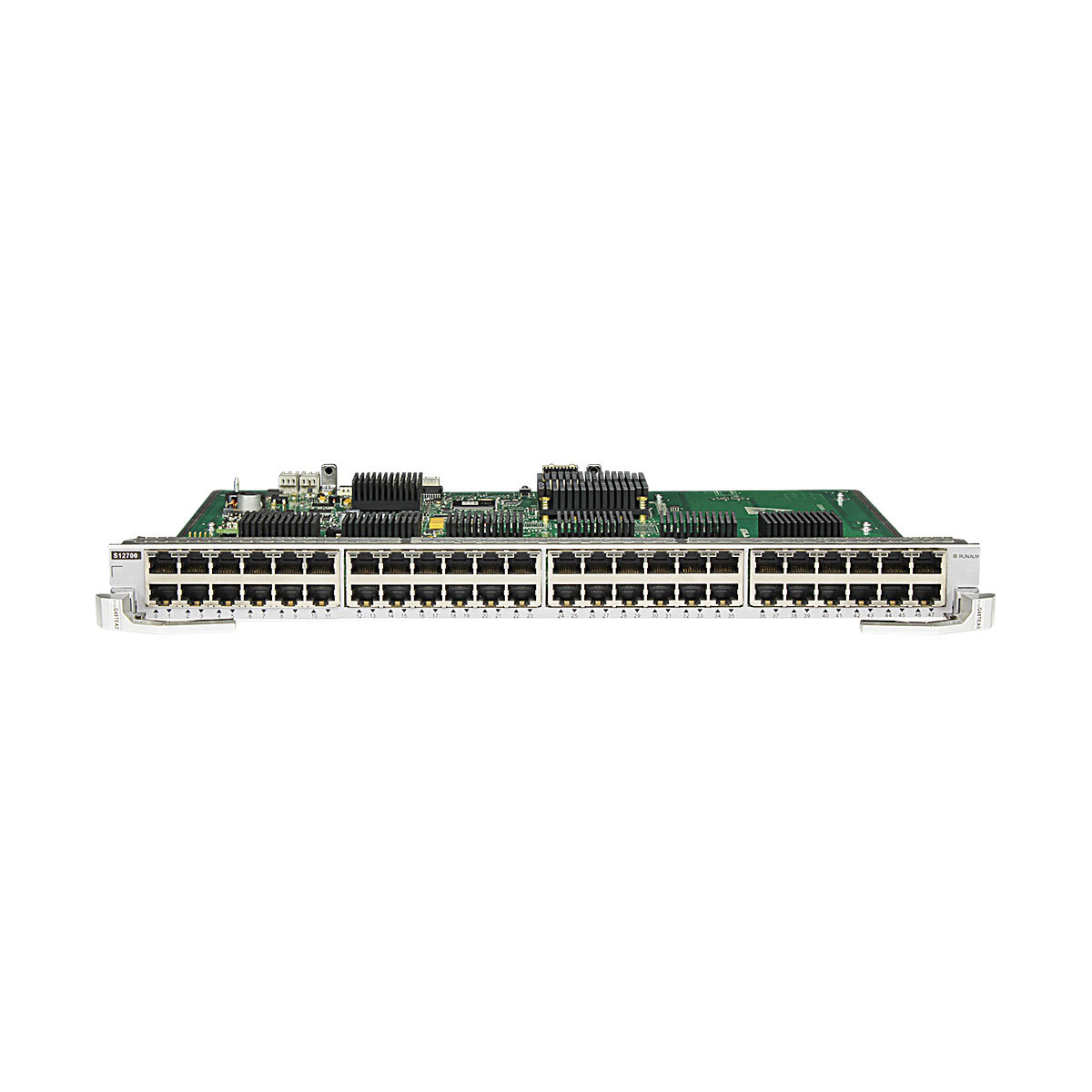

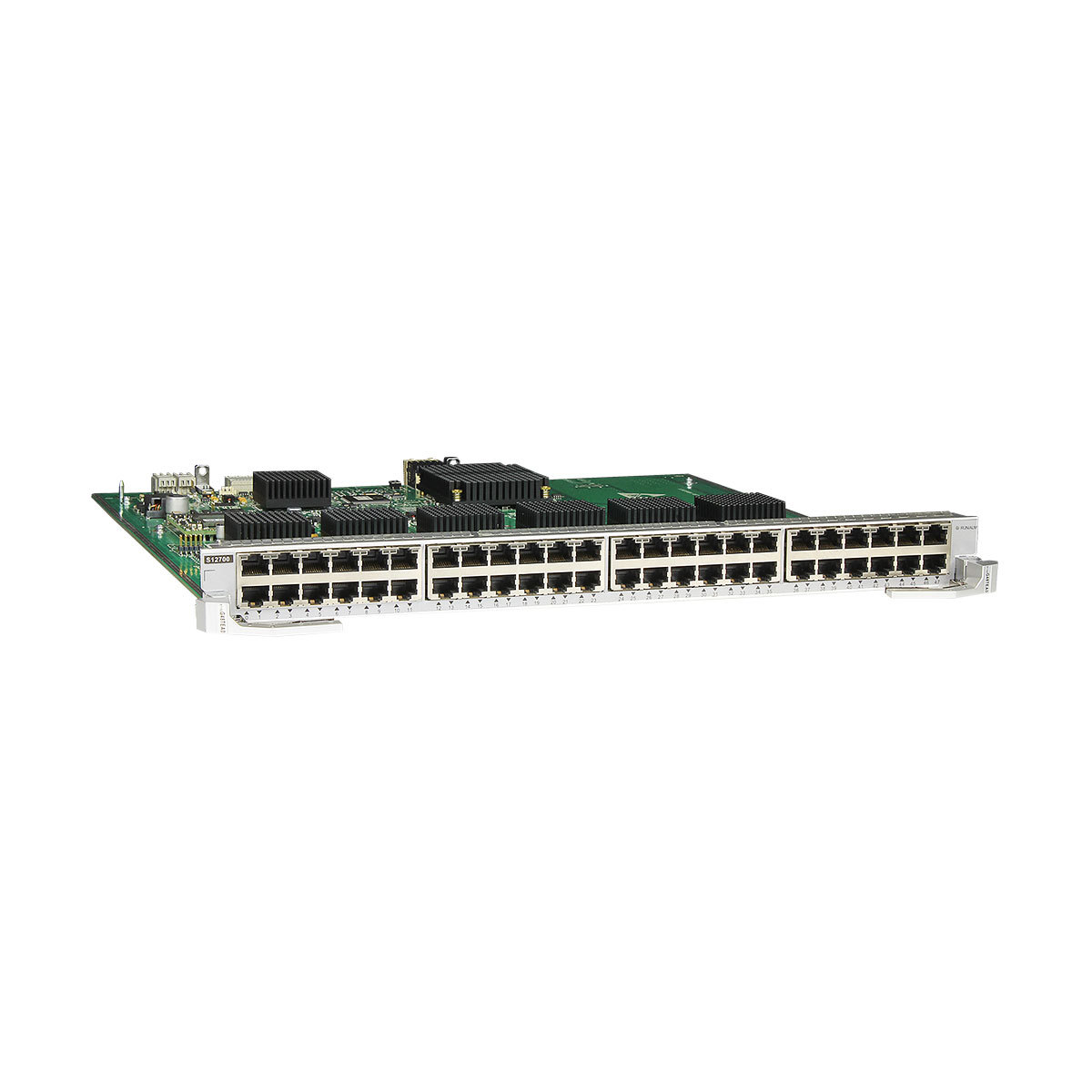

Ports on the ET1D2G48TEA0
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the ET1D2G48TEA0
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.50 kg (5.51 lb)
Maximum power consumption: 62 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2G48TEA0 FAQ
Q1: What are the core functions of this service board? How does it balance versatility and high concurrency?
A1: It includes 48 10GE hybrid optical/electrical ports (SFP+/RJ45 auto-sensing), supporting universal high-concurrency forwarding (≥9000PPS) and intelligent QoS scheduling; adaptable to multiple service scenarios, with no compromise on core performance, and low power consumption ≤207W, suitable for ultra-large-scale hybrid service access.
Q2: What are the core advantages compared to a regular 48-port hybrid optical/electrical board?
A2: The advantages are universal multi-service adaptation, high concurrency without bottlenecks, intelligent bandwidth scheduling, and green low power consumption, while solving the three major pain points of single adaptation, insufficient concurrency, and excessive power consumption in complex scenarios.
Q3: Does it require specific optical modules/network cables? Which core protocols does it support?
A3: Compatible with Huawei standard SFP+ optical modules and Cat6a/Cat7 network cables; supports IPv4/IPv6 dual-stack, LACP, VRRP, and ECMP, meeting the high reliability requirements of the core aggregation layer. Q4: How do I determine if this service board needs to be deployed? Is the installation complex?
A4: Deployment is recommended when a large network requires 40+ mixed interface terminals and involves mixed transmission of multiple services; it supports hot-swapping, installation requires no special tools, and it is automatically recognized when inserted into the slot, making it plug-and-play.
