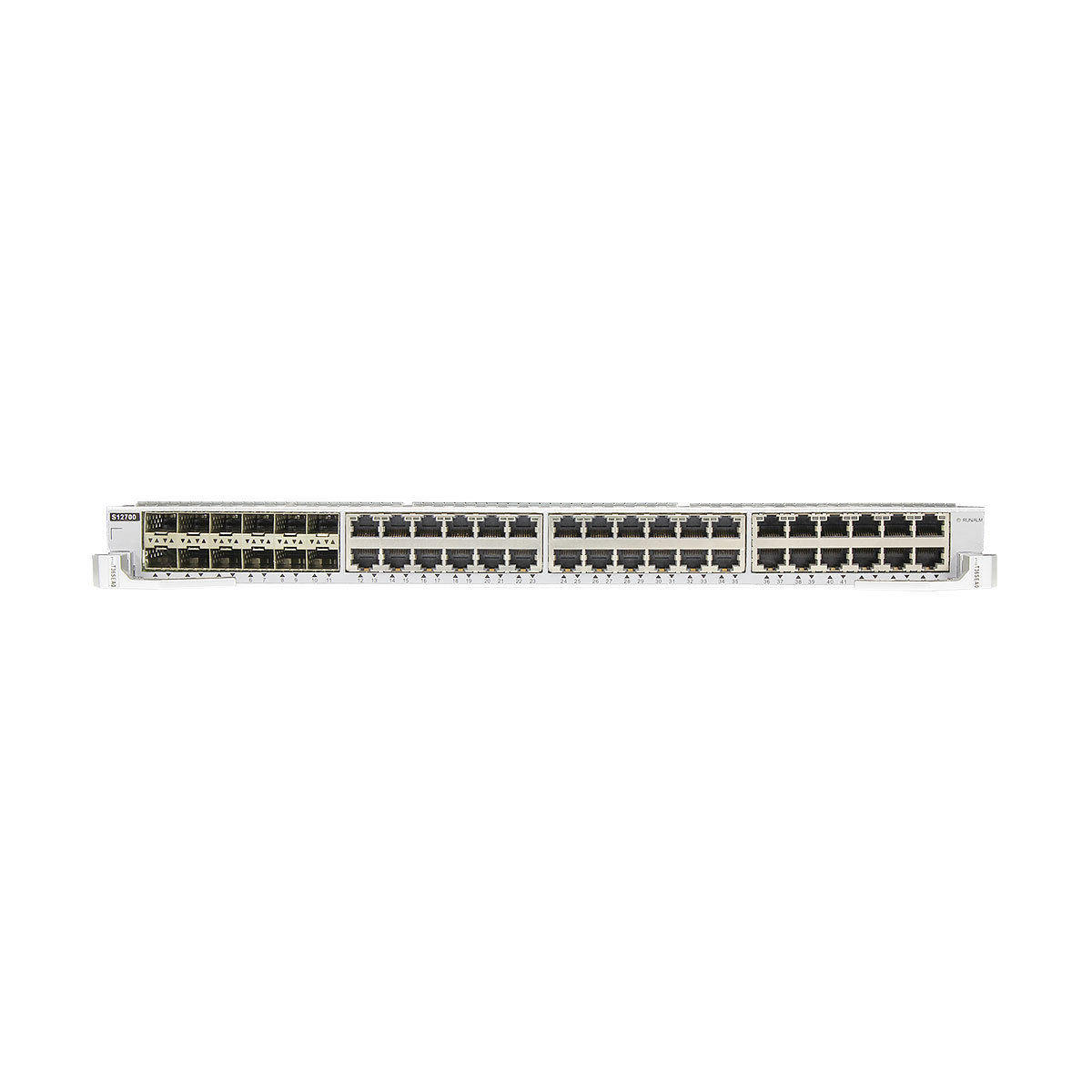

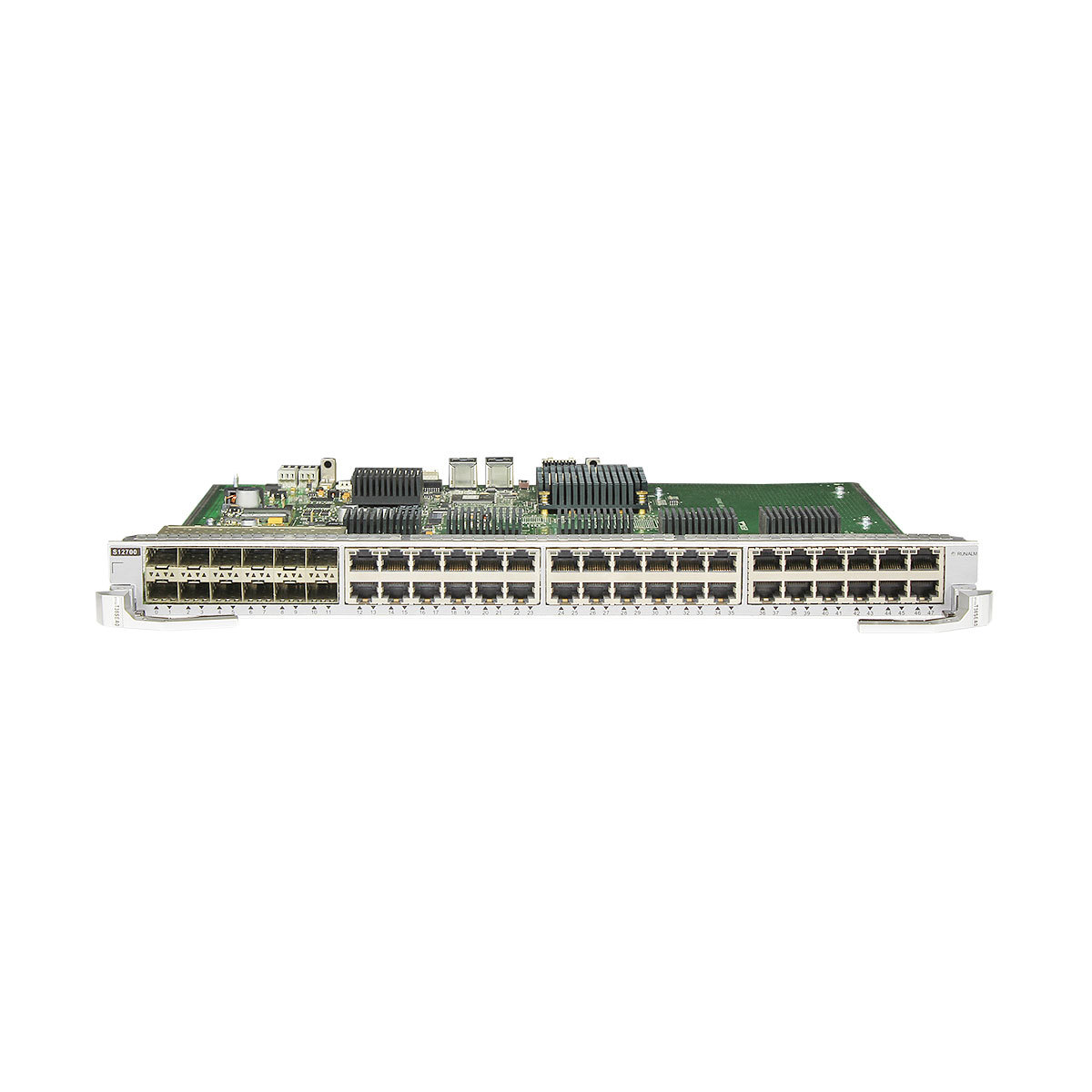

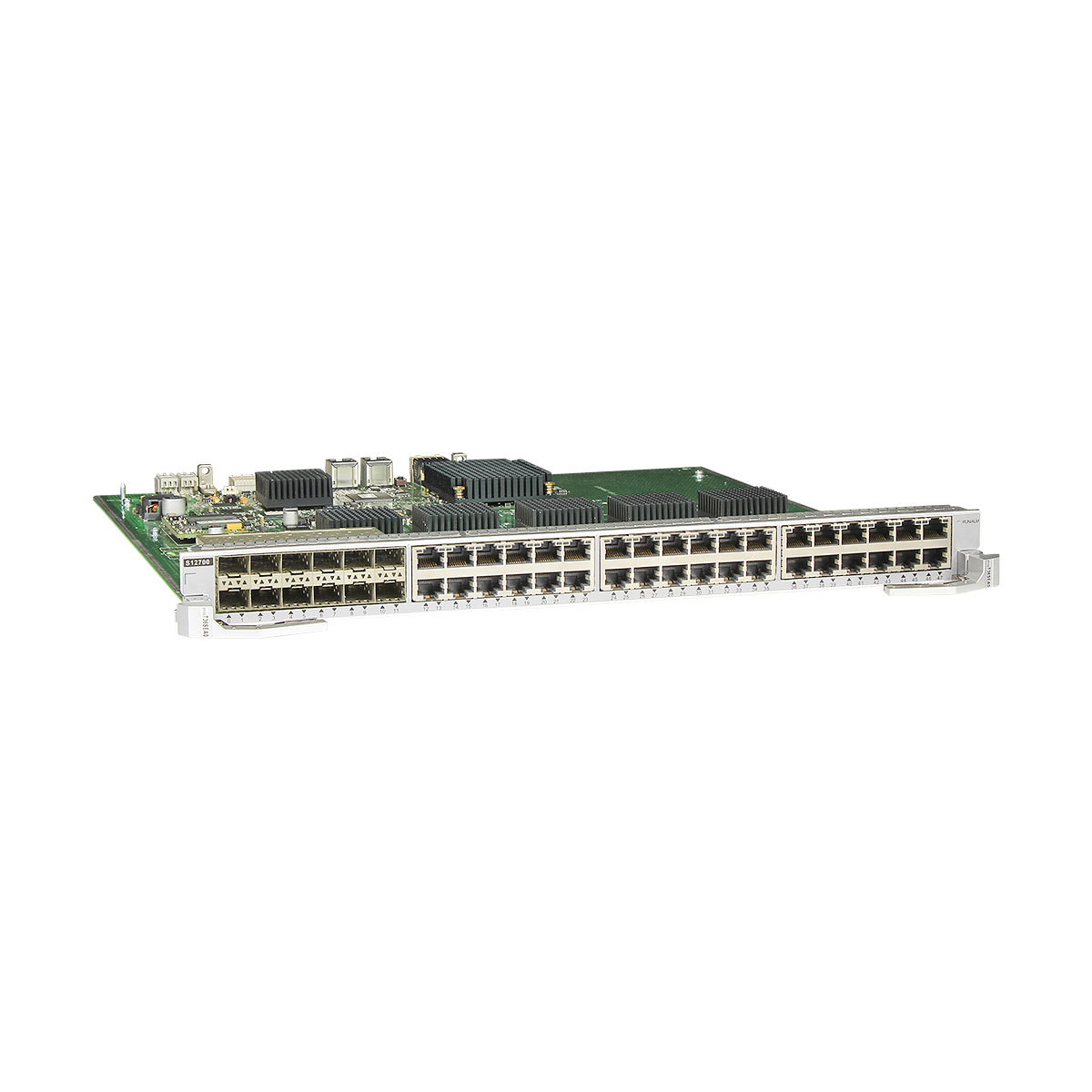

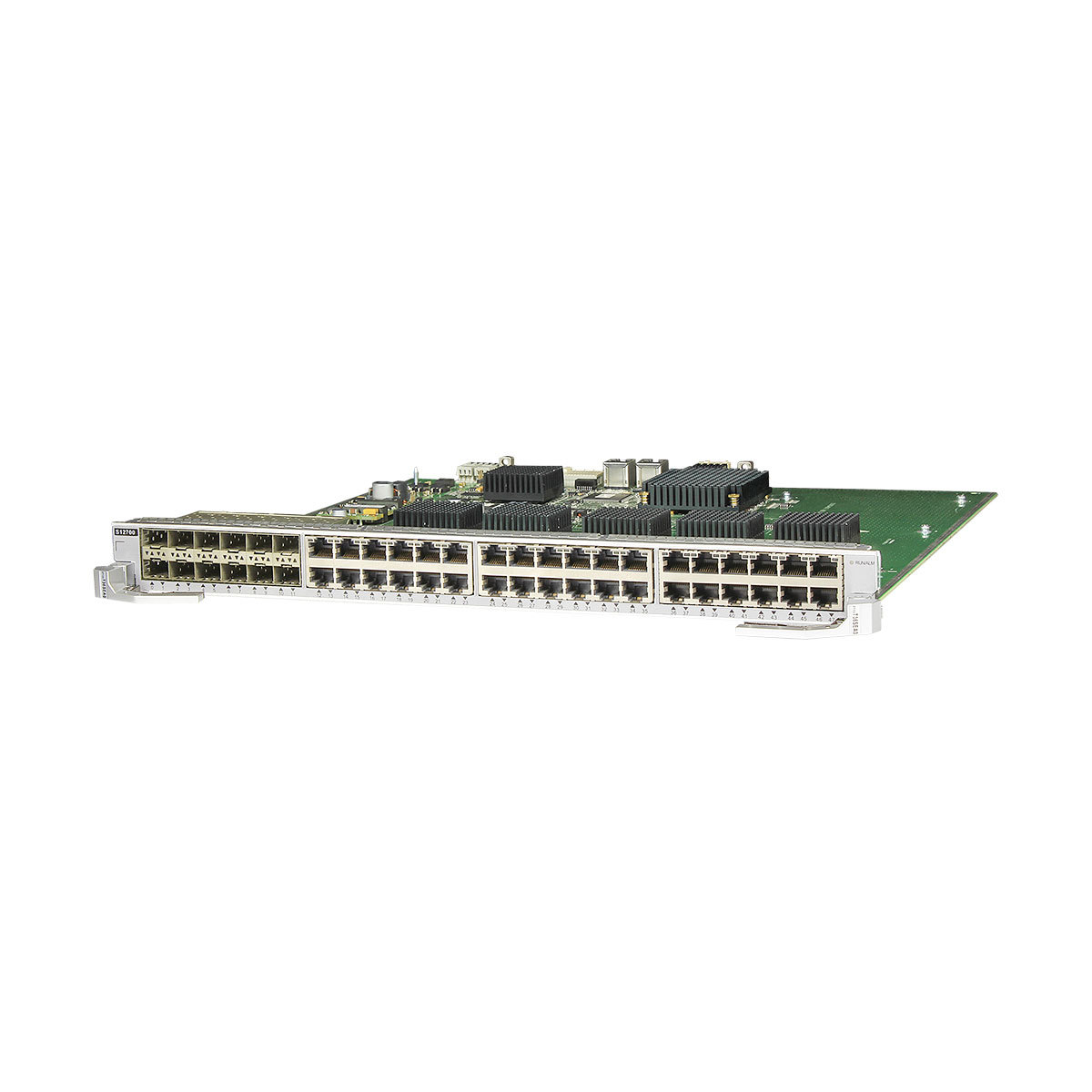

Provides thirty-six 10M/100M/1000M Ethernet electrical ports and twelve 100M/1000M Ethernet optical ports for data transmission and line-rate switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot Swap
The ET1D2T36SEA0 is hot swappable.
Ports on the ET1D2T36SEA0
Optical port attributes (optical module)
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For details about optical modules supported by the ET1D2T36SEA0 and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE 802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (copper module)
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (10 Mbit/s, 100 Mbit/s and 1000 Mbit/s rates).
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
10/100/1000BASE-T electrical ports
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the ET1D2T36SEA0
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.50 kg (5.51 lb)
Maximum power consumption: 62 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2T36SEA0 FAQ
Q1: What are the core functions of this service board? How does it balance versatility and high concurrency?
A1: It contains 36 pure RJ45 Ethernet ports, supports 10G/1G dual-rate, and general-purpose high-concurrency forwarding (≥8000PPS); adaptable to multiple service scenarios, with no compromise on core performance, and low power consumption ≤162W, suitable for large-scale high-load access using pure Ethernet ports.
Q2: What are the core advantages compared to a regular 36-port 10GE Ethernet board?
A2: The advantages are general-purpose multi-service adaptation, no peak bottleneck in high concurrency, intelligent bandwidth scheduling, and green low power consumption, while solving the three major pain points of insufficient concurrency, rate imbalance, and excessive power consumption in pure Ethernet port scenarios.
Q3: Does it require a specific network cable? Which core protocols does it support?
A3: Compatible with Cat6a/Cat7 network cables (10G transmission) and Cat5e/Cat6 network cables (1G transmission); supports IPv4/IPv6 dual-stack, LACP, and VRRP, meeting the high reliability requirements of the access layer.
Q4: How to determine if this service board needs to be deployed? Is the installation complex?
A4: Deployment is recommended for medium-sized networks requiring 25-36 pure electrical port terminals and in high-load scenarios; supports hot-swapping, installation requires no professional tools, ports automatically identify speed, and it's plug-and-play.
