Mappings between APD32-12-24 and product models
Product
Product Model
First Supported Version
S16700-4
EX1BS16704SA0 (02355HUL)
V600R022C10
S16700-4
EX1BS16704SA0 (02355HUL-001)
V600R024C10
S16700-8
EX1BS16708SA0 (02355HUN)
V600R022C10
S16700-8
EX1BS16708SA0 (02355HUN-001)
V600R024C10

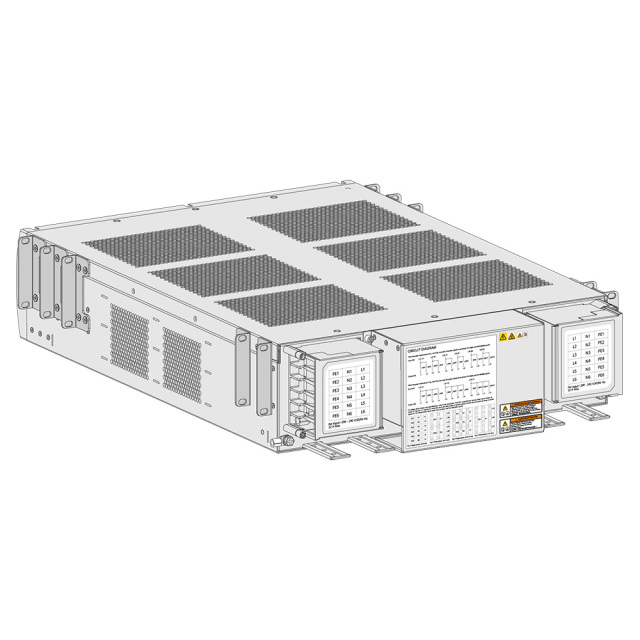

Functions and Features of the APD32-12-24
When the power distribution unit is used to supply power to the main equipment, the input current of each power distribution unit does not exceed 32 A and the output current of each power distribution unit does not exceed 16 A.
Technical specifications of the APD32-12-24
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
130.55 mm x 442 mm x 677 mm (5.14 in. x 17.4 in. x 26.65 in.)
Weight without packaging [kg(lb)]
17 kg (37.48 lb) (excluding the rear panel protective cover, which is removed before the installation)
Cabinet installation standards
IEC 60297-1 19-inch standard cabinet
Cabinet depth: ≥ 800 mm
Rated input voltage [V]
200 V AC to 240 V AC
Input voltage range [V]
176 V AC to 264 V AC
Rated output voltage [V]
200 V AC to 240 V AC
Maximum input current [A]
32 A
Maximum output current [A]
16 A
Number of inputs
6+6
Number of outputs
12+12
Front-end circuit breaker/fuse [A]
32 A
APD32-12-24 FAQ
Q1: Do the 12 inputs need to be connected to 12 different power supplies? What is the switching logic?
A1: It is recommended to connect at least 3 independent power supplies (e.g., different distribution cabinets, different power grids) to ensure redundancy effectiveness. The switching logic is "automatic removal of faulty lines and load balancing of normal lines," requiring no manual intervention.
Q2: Does intelligent monitoring require additional software configuration? Can I view the status of a single port?
A2: SNMP protocol is supported by default, allowing access to a unified monitoring system in the data center or the Huawei iMaster NCE platform without the need for additional software purchases. It supports viewing total load and input line status, and some models can be expanded to include single-port monitoring.
Q3: What is the difference between this model and the Huawei APD32-4-24?
A3: The core difference lies in the redundancy path (12 lines vs. 4 lines). This model has a higher redundancy level and is suitable for ultra-critical equipment; the APD32-4-24 is suitable for ordinary critical scenarios and offers better cost performance.
