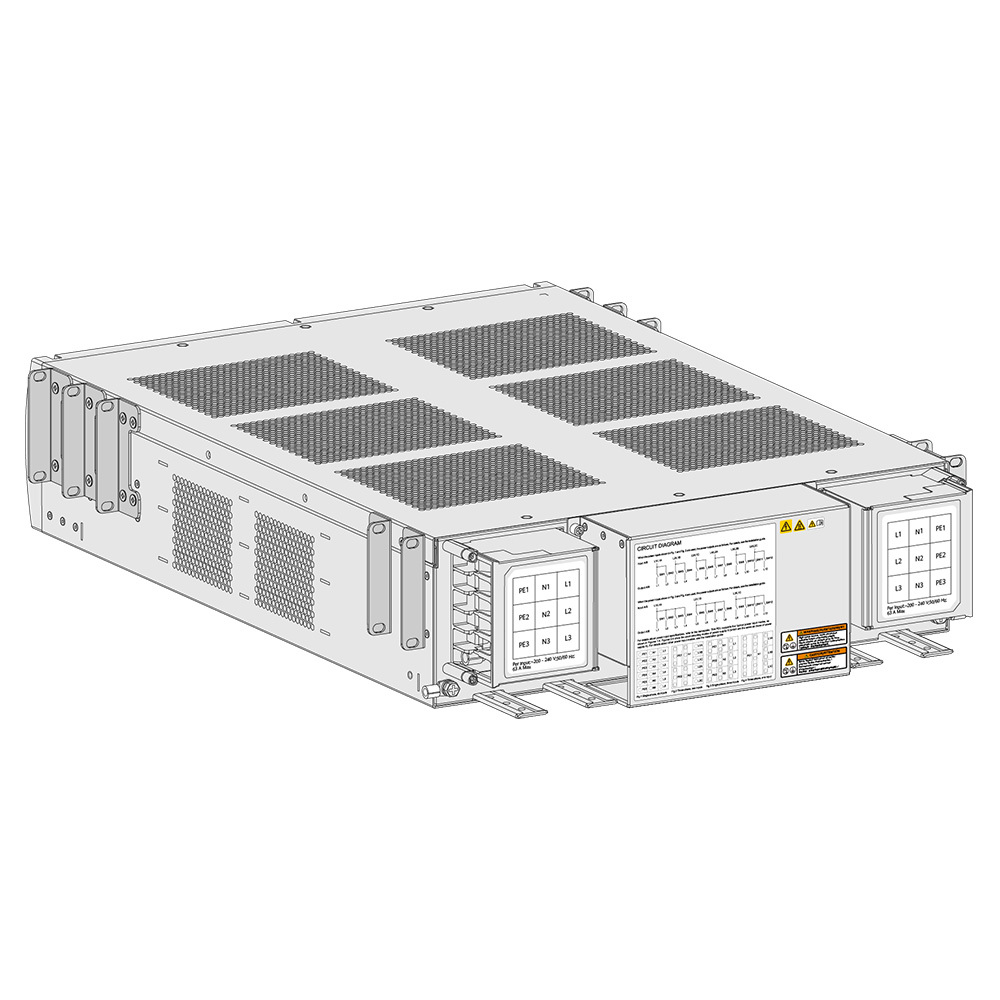

Huawei S16700 Series Switches APD63-6-24 AC Power Distribution Unit.
Mappings between APD63-6-24 and product models
Product
Product Model
First Supported Version
S16700-4
EX1BS16704SA0 (02355HUL)
V600R022C10
S16700-4
EX1BS16704SA0 (02355HUL-001)
V600R024C10
S16700-8
EX1BS16708SA0 (02355HUN)
V600R022C10
S16700-8
EX1BS16708SA0 (02355HUN-001)
V600R024C10
Functions and Features
When the power distribution unit is used to supply power to the main equipment, the input current of each power distribution unit does not exceed 63 A and the output current of each power distribution unit does not exceed 16 A.
Technical specifications of the APD63-6-24
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
130.55 mm x 442 mm x 677 mm(5.14 in. x 17.4 in. x 26.65 in.)
Weight without packaging [kg(lb)]
17 kg (37.49 lb) (The protective cover on the rear panel is not included. This cover has to be removed before the device is installed in the cabinet.)
Cabinet installation standards
IEC 60297-1 19-inch standard cabinet
Cabinet depth ≥ 800 mm
Rated input voltage [V]
200V to 240V AC
Input voltage range [V]
176V to 264V AC
Rated output voltage [V]
200V to 240V AC
Maximum input current [A]
63 A
Maximum output current [A]
16 A
Number of inputs
3+3
Number of outputs
12+12
Front-end circuit breaker/fuse [A]
63 A
APD63-6-24 FAQ
Q1: What is the maximum power supported by a single port? Can it power high-power servers?
A1: The rated power of a single port is ≥16A, supporting most network devices and small servers (power ≤350W). For powering high-power devices, it is recommended to distribute the ports to avoid overloading a single port.
Q2: Does it support rack mounting? Is the installation method complicated?
A2: It supports standard 19-inch rack mounting. It comes with mounting brackets and screws, and the installation process is simple, requiring no professional tools and can be completed by one person.
Q3: What are the differences between this model and other Huawei PDUs (such as the CR5MDPD12500)?
A3: This model focuses on high-density centralized power supply, with many ports (24 ports) but no redundancy design, suitable for general scenarios; the CR5MDPD12500 emphasizes redundant power supply, suitable for core equipment. The two have different positioning.
