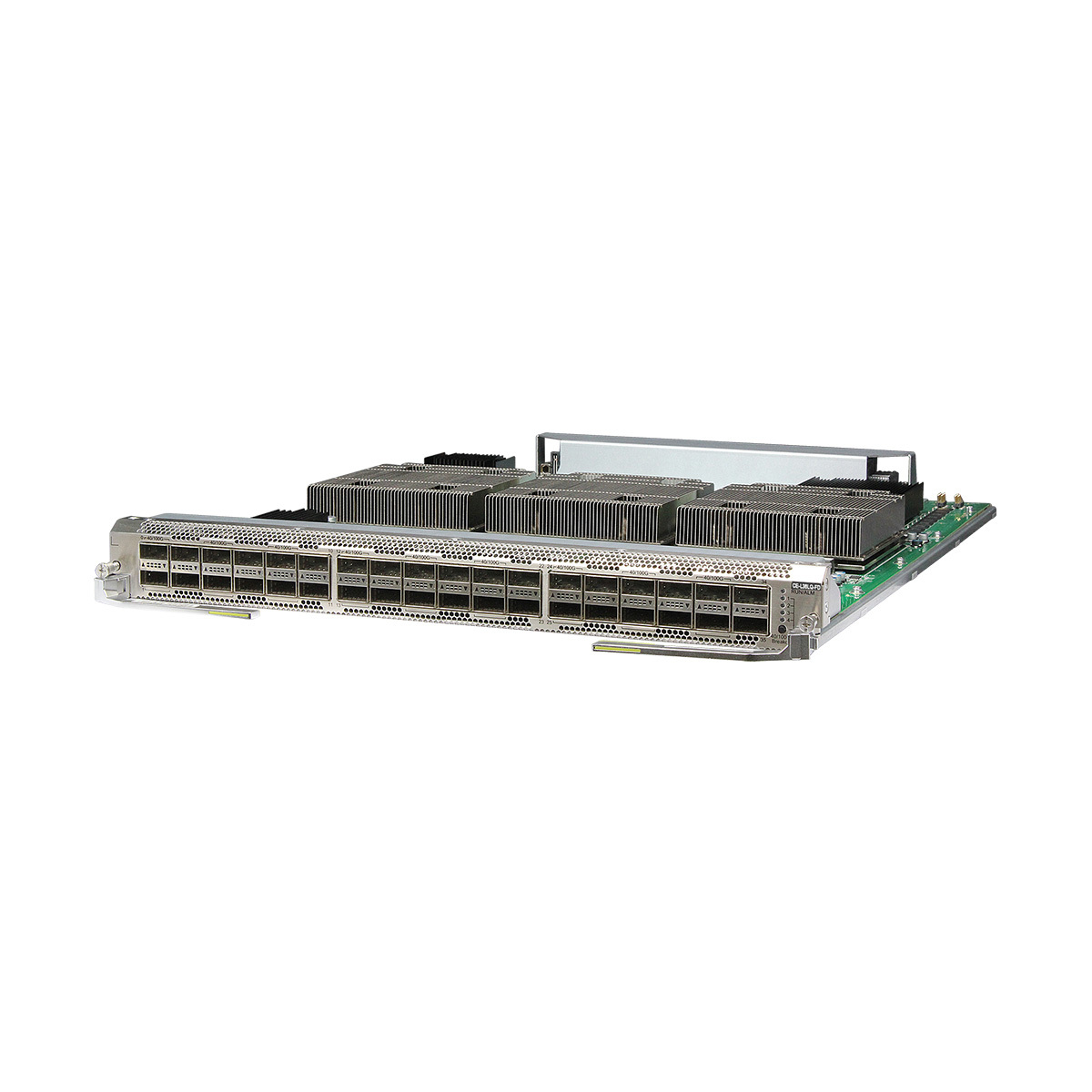

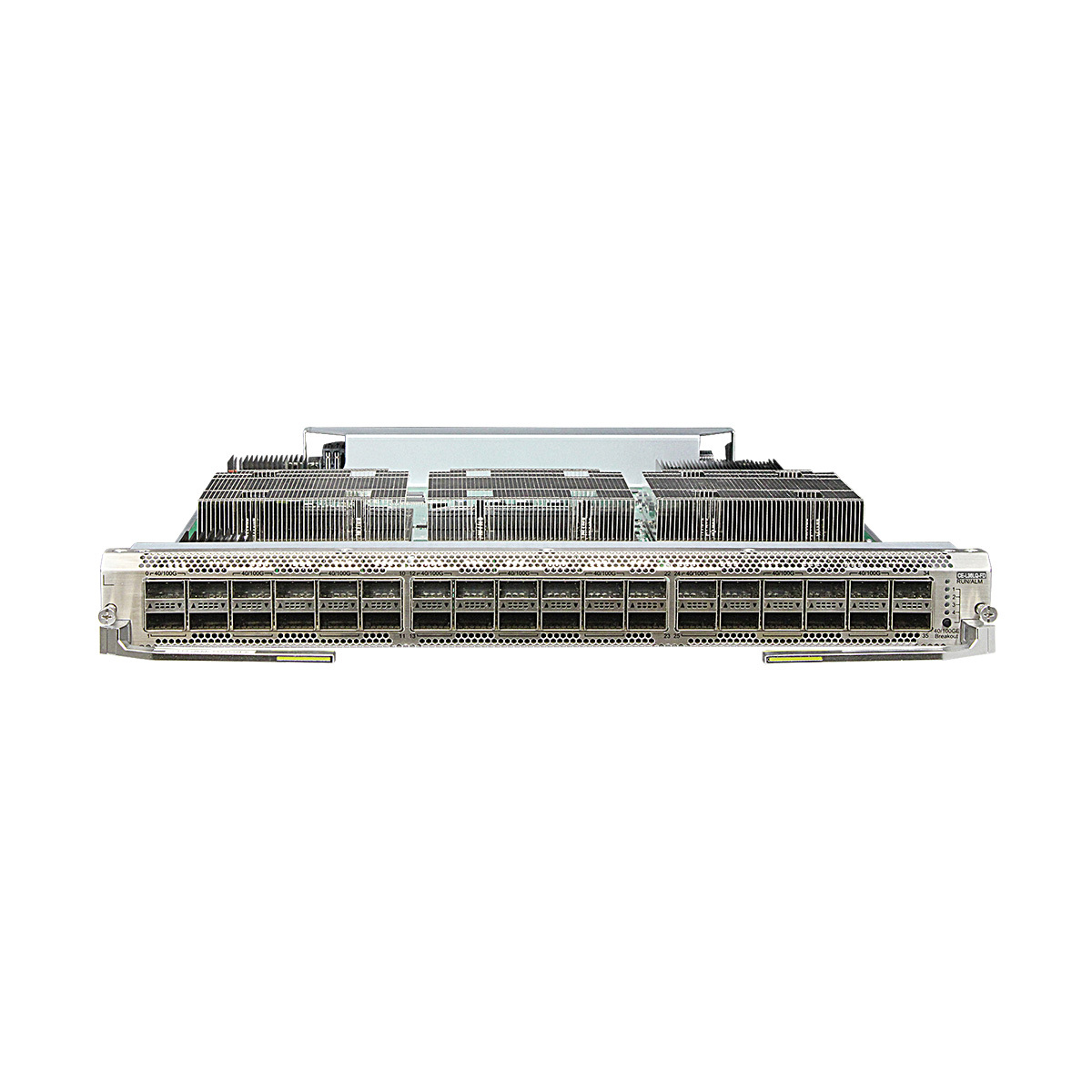

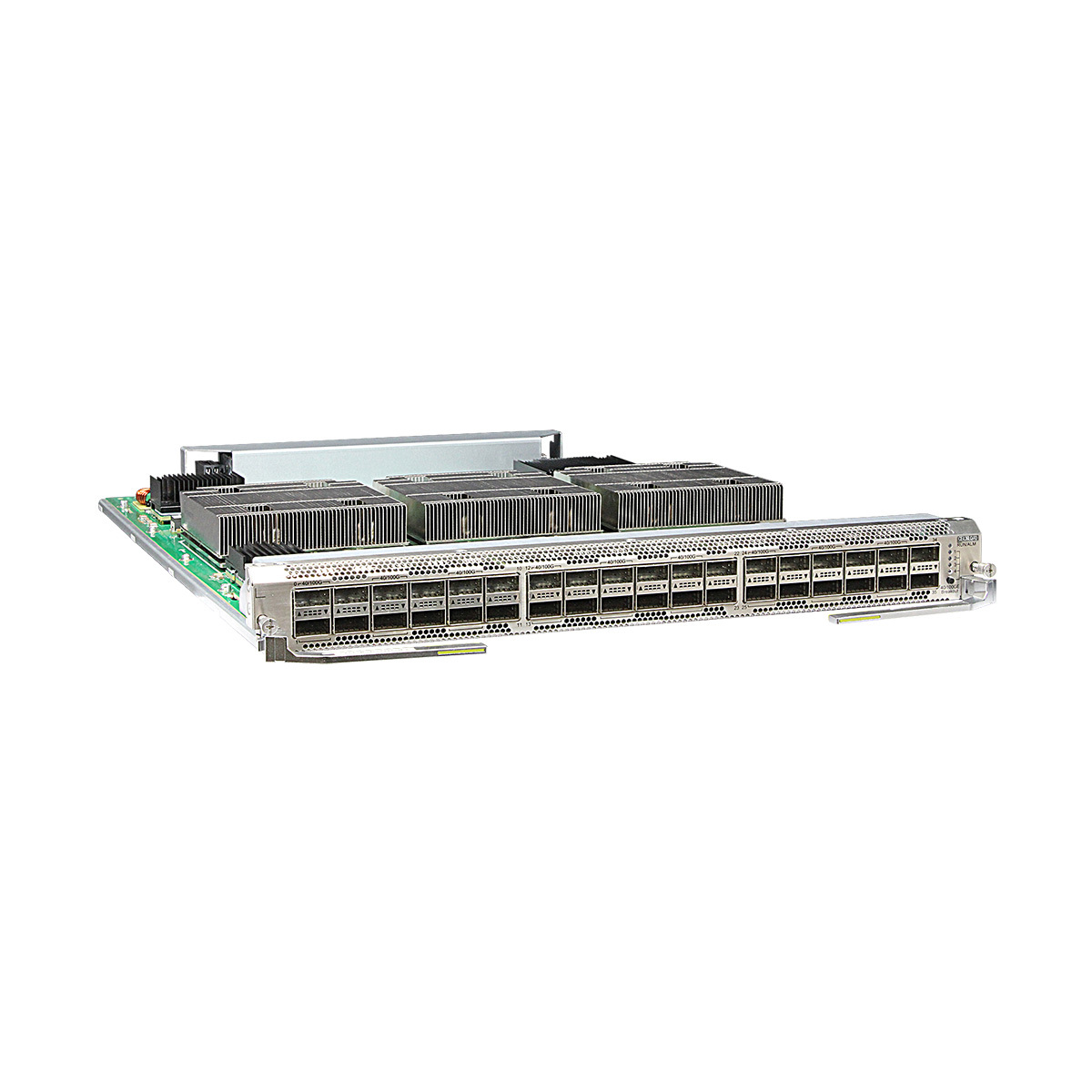

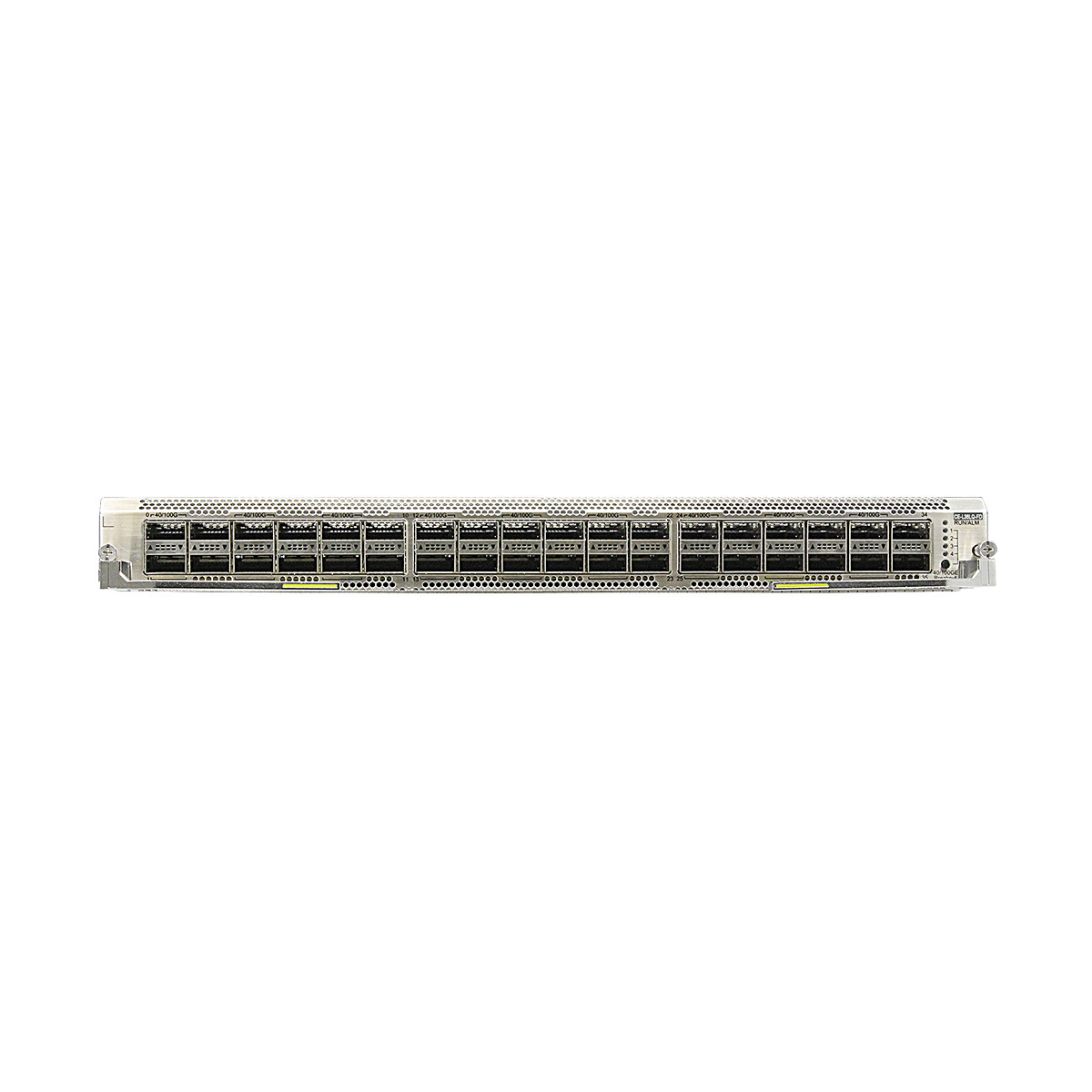

Provides data packet processing and traffic management on 36 40GE optical ports, which can be split into 144 10GE optical ports.
Maximum port density
If all LPUs are CE-L36LQ-FD cards:
The CE12804/CE12804S chassis provides a maximum of 144 40GE ports. The chassis also provides a maximum of 72 100GE ports.
The CE12808/CE12808S chassis provides a maximum of 288 40GE ports. The chassis also provides a maximum of 144 100GE ports.
The CE12812 chassis provides a maximum of 432 40GE ports. The chassis also provides a maximum of 216 100GE ports.
The CE12816 chassis provides a maximum of 576 40GE ports. The chassis also provides a maximum of 288 100GE ports.
40GE ports
On the CE-L36LQ-FD, each 40GE port can be split into four 10GE ports. That is, the CE-L36LQ-FD cards can provide a maximum port density of 144x10GE.
On a CE-L36LQ-FD card, 18 40GE ports can be used as 100GE ports, and each of them can be split into four 25GE ports. Their IDs are: 0, 1, 4, 5, 8, 9, 12, 13, 16, 17, 20, 21, 24, 25, 28, 29, 32, 33. These port IDs are represented by (0, 1, 4, 5…) in the following descriptions.
Limitations and Descriptions
When 18 ports on the CE-L36LQ-FD card are configured to work at 100 Gbit/s, the other 18 ports are configured to work at 40 Gbit/s, and all these 36 ports work at the same time, data cannot be forwarded at the line rate.
Ports on the CE-L36LQ-FD card are divided into three groups. Ports 0 to 11 belong to one group, ports 12 to 23 belong to one group, and ports 24 to 35 belong to one group.
When the total port bandwidth of each group does not exceed 480 Gbit/s, SFUs can forward data at the line rate in the 4+1 backup mode.
When the total port bandwidth of each group does not exceed 600 Gbit/s, SFUs can forward data at the line rate in the 5+1 backup mode.
When the total port bandwidth of each group does not exceed 720 Gbit/s, SFUs can forward data at the line rate in the 6+0 backup mode.
Technical specifications
Item
CE-L36LQ-FD
CPU
Eight-core, 1.5 GHz clock speed
DDR3
Standard 4 GB
Flash
Standard 128 MB
Physical specifications
Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
Weight: 6.7 kg (14.77 lb)
Typical power consumption: 401 W
Max. power consumption: 609 W
Typical heat dissipation: 1370 BTU/hour
Maximum heat dissipation: 2080 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-L36LQ-FD FAQ
Q1: Which Huawei switch models does the CE-L36LQ-FD support? How compatible is it?
A1: It mainly adapts to mid-to-high-end Huawei switches such as the CE8800 series (CE8850, CE8860, CE8868) and CE7800 series (CE7850, CE7855). It is fully compatible in both hardware and software, with 100% compatibility and no additional debugging required.
Q2: Will the 36 high-density ports affect heat dissipation and signal stability? Is there any performance loss due to multi-rate compatibility?
A2: It adopts an optimized heat dissipation structure and shielding design. The high-density layout does not affect the stable operation of the device. Multi-rate adaptive operation is implemented at the hardware level without any performance loss, and it can seamlessly switch between 40G/10G modes.
Q3: What are the differences between the CE-L36LQ-FD and ordinary 40GE and 100GE interface cards? How should the aggregation layer be selected?
A3: Compared to ordinary 40GE interface cards, it has higher port density and saves more space; compared to 100GE interface cards, it has lower cost and is suitable for scenarios where 40G/10G devices are the primary components. When the data center aggregation layer mainly consists of 40G/10G devices, the CE-L36LQ-FD offers better cost performance.
