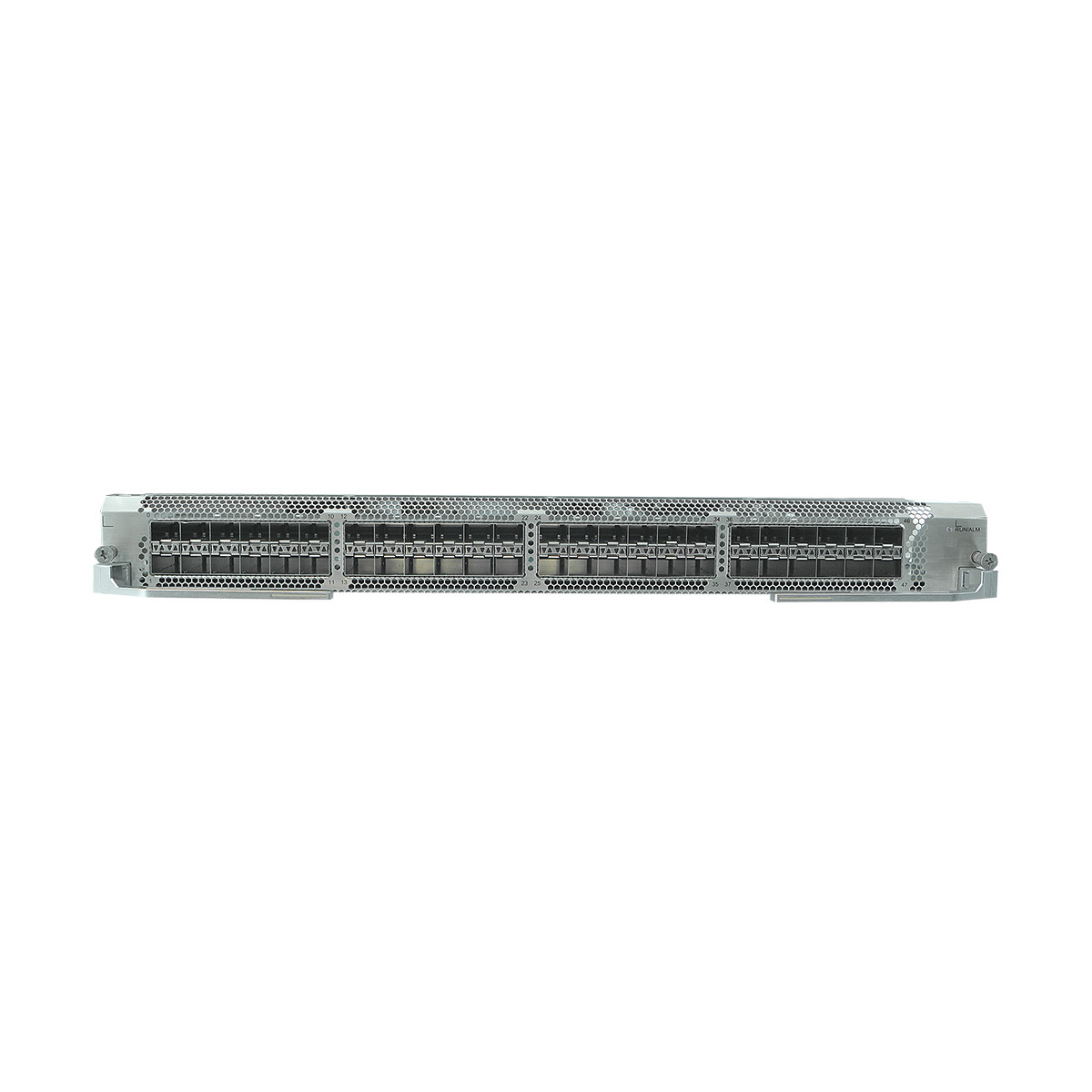

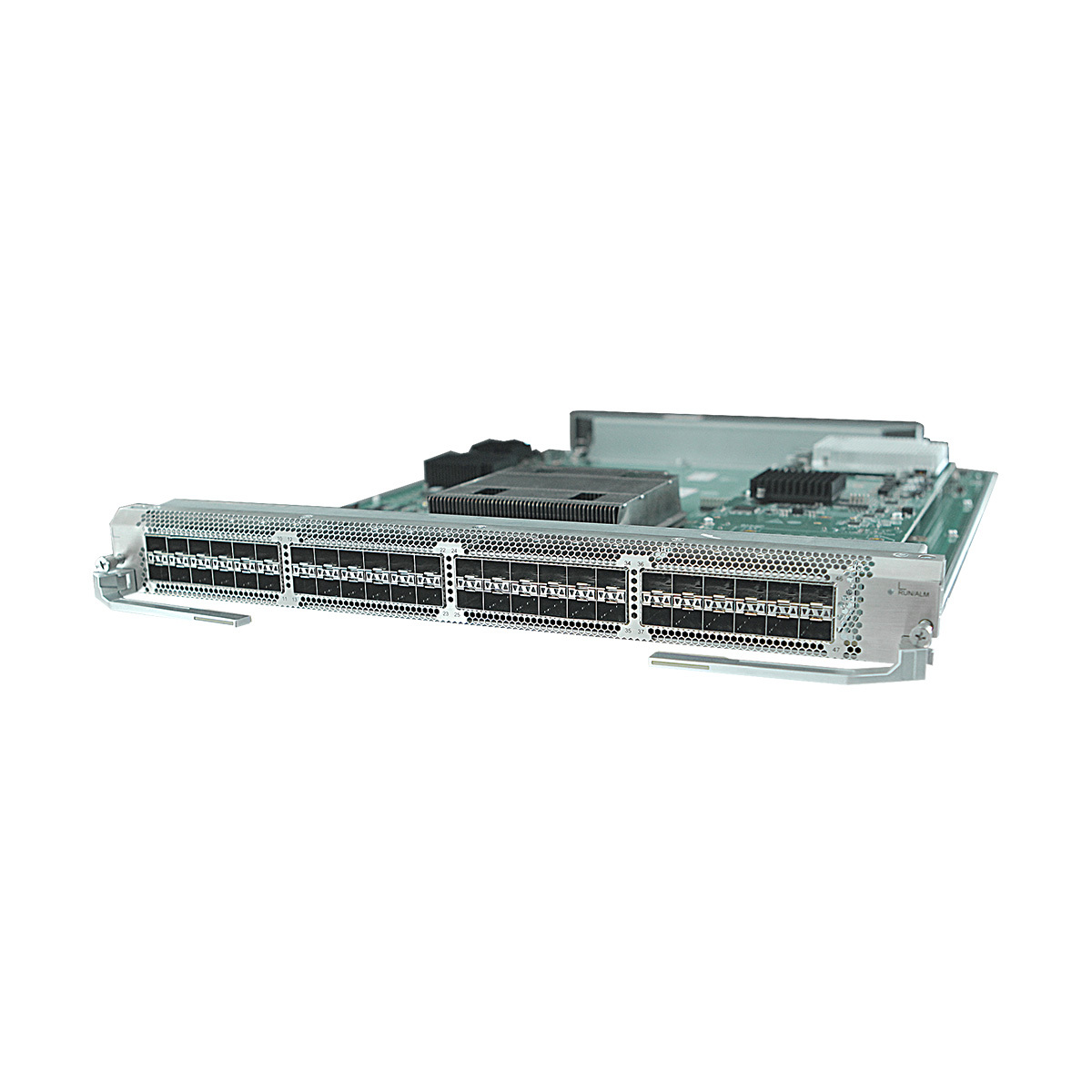

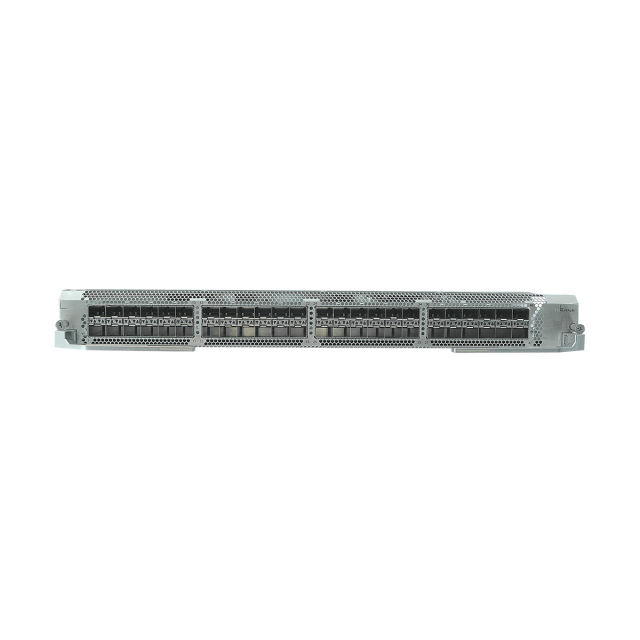

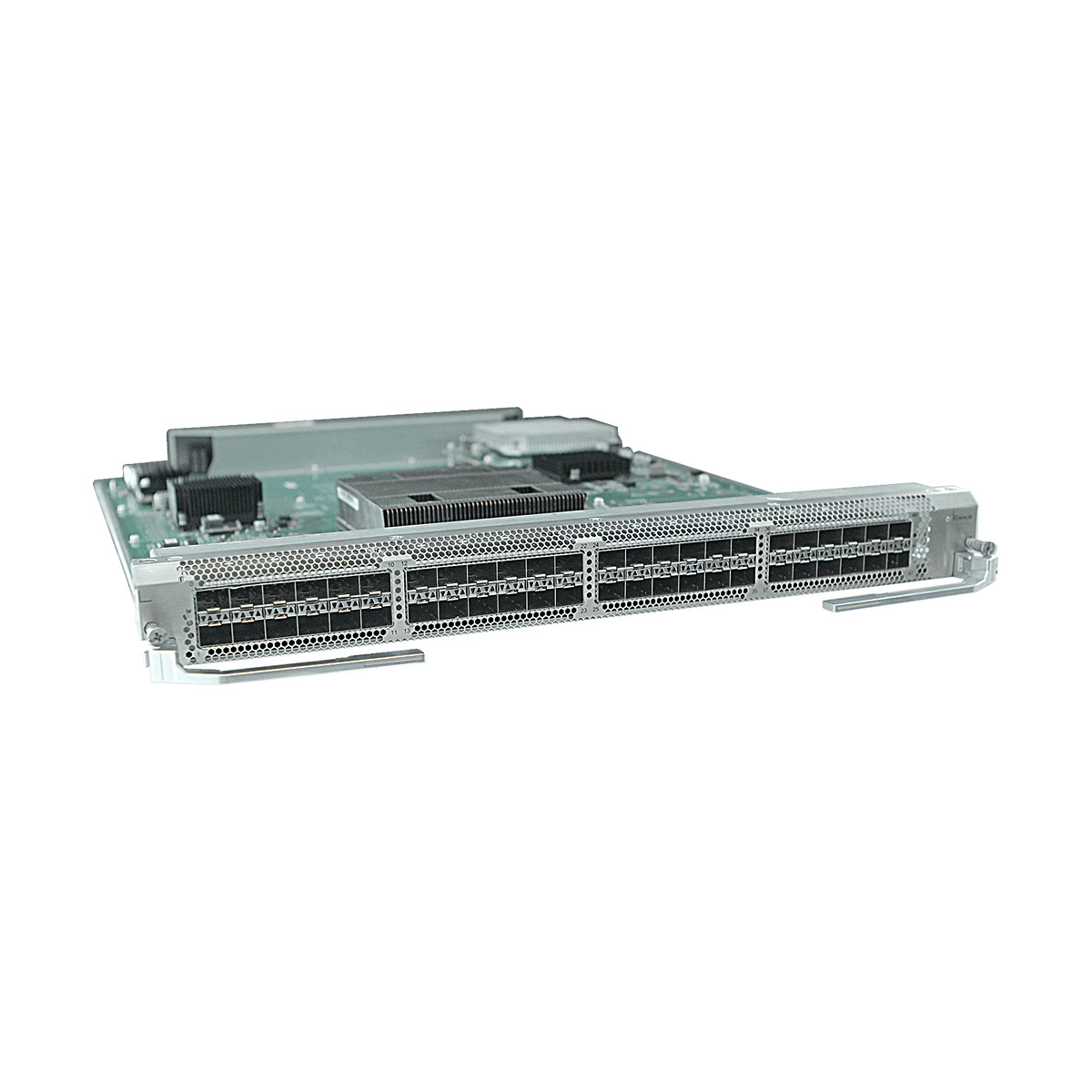

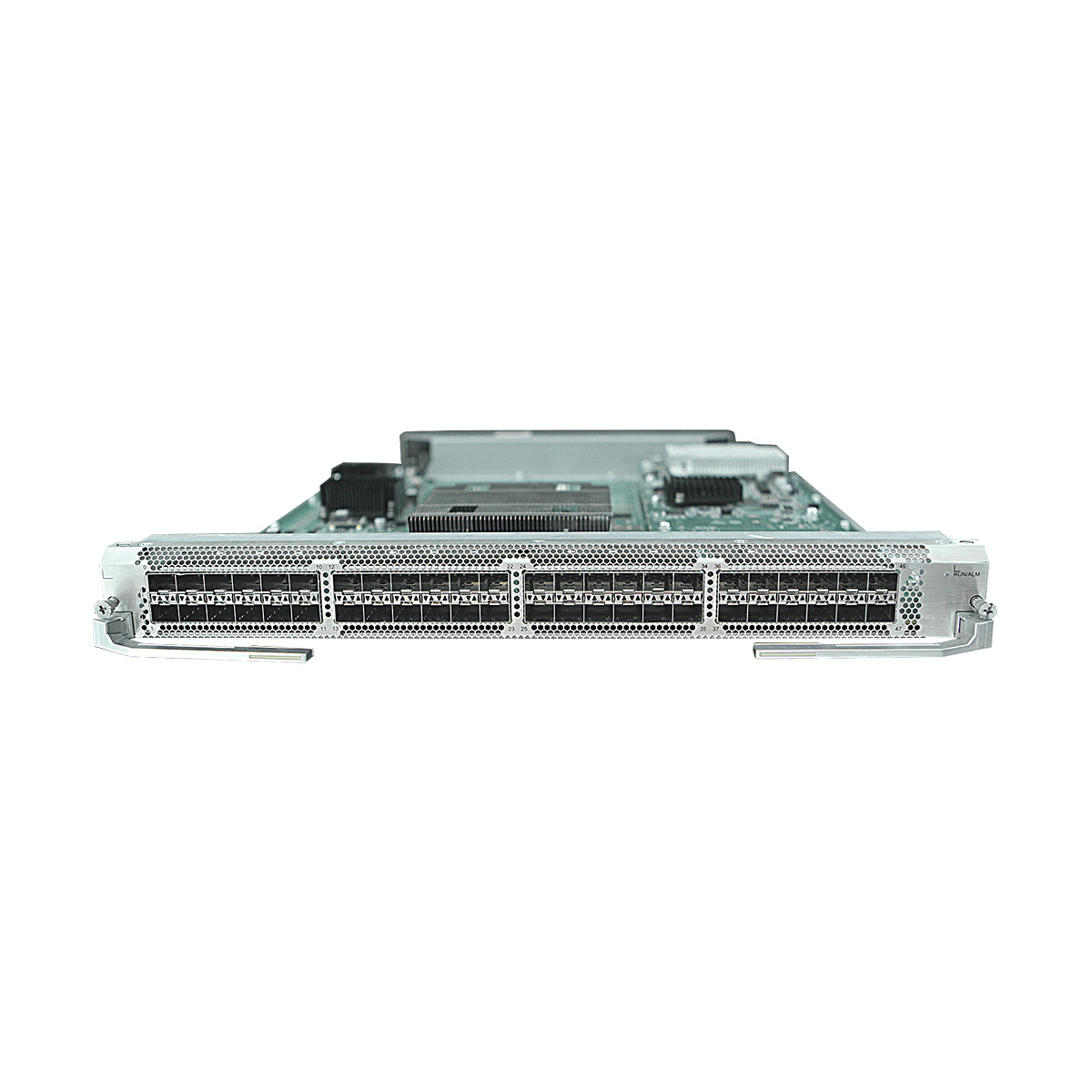

The CE-L48XS-FG provide data packet processing and traffic management on 48 10GE optical ports.
Maximum port density
If all LPUs are CE-L48XS-FG cards:
The CE12804/CE12804S chassis provides a maximum of 192 10GE optical ports.
The CE12808/CE12808S chassis provides a maximum of 384 10GEoptical ports.
The CE12812 chassis provides a maximum of 576 10GE optical ports.
The CE12816 chassis provides a maximum of 768 10GEGE optical ports.
High 10GE/GE port density (48x10GE/GE)
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, and can work with 10GE Twinax high-speed cables or AOC cables.
The CE-L48XS-FG card, optical ports card cannot work in GE mode.
Technical specifications
Item
CE-L48XS-FG
CPU
Eight-core, 1.5 GHz clock speed
DDR3/DDR4
DDR4, standard 8 GB
Flash
Standard 128 MB
Physical specifications
Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
Weight: 6.3 kg (13.89 lb)
Typical power consumption: 249 W
Maximum power consumption: 322 W
Typical heat dissipation:852 BTU/hour
Maximum heat dissipation: 1099 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-L48XS-FG FAQ
Q1: Which Huawei switch models does the CE-L48XS-FG support? How compatible is it?
A1: It mainly adapts to Huawei CE8800, CE7800, and CE6800 series mid-to-high-end switches. It is fully compatible in both hardware and software, with 100% compatibility, requiring no additional debugging.
Q2: Does the energy-saving design affect the transmission performance of the 25G/10G ports? How effective is multi-rate compatibility?
A2: Energy saving is achieved through hardware optimization and does not affect forwarding performance, port speed, or stability. Multi-rate adaptive switching allows seamless integration with 25G/10G devices without compatibility issues, meeting the needs of both new and old devices.
Q3: Do the 48 high-density ports meet the access requirements of small and medium-sized data centers? Is multi-card expansion complex?
A3: A single card can meet the basic access layer requirements of small and medium-sized data centers. Multi-card expansion can be directly inserted into the switch slot without additional configuration, making operation simple and efficient.
