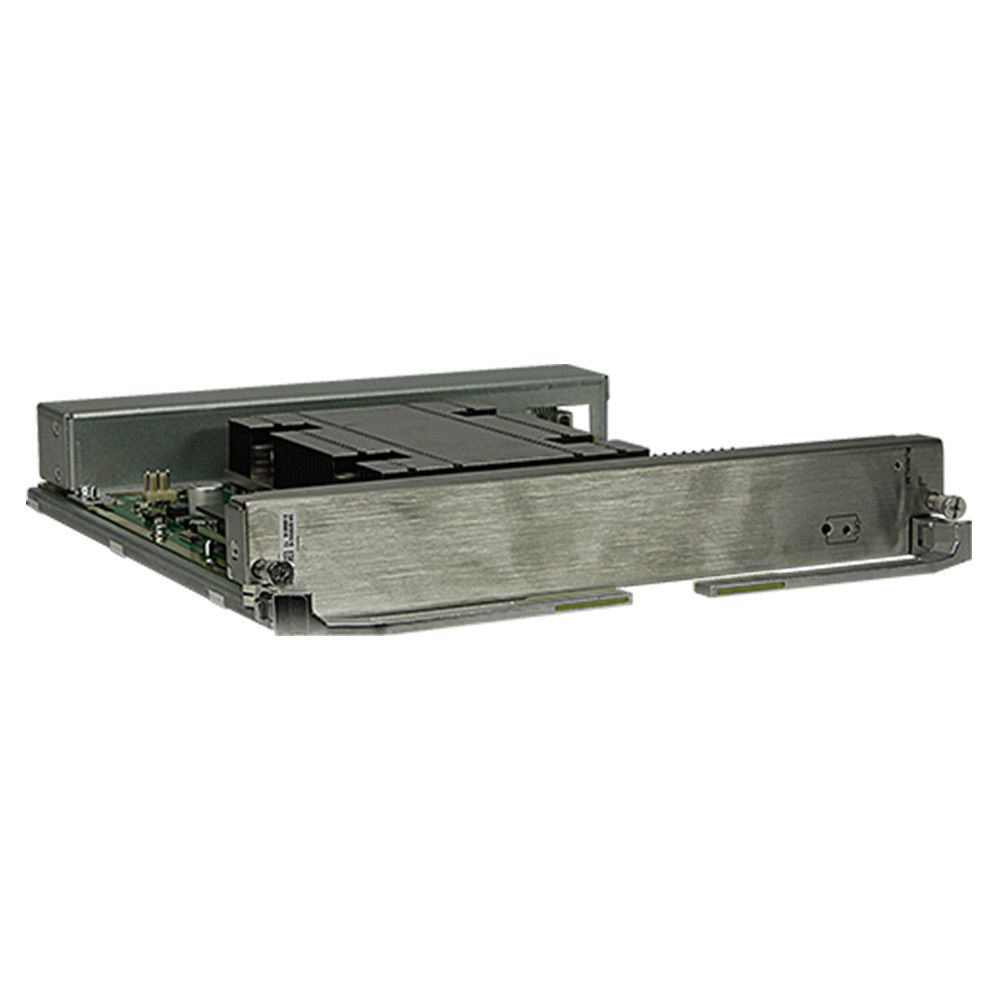

Huawei CE128000 Series Switch CE-SFU04G1 Switch Fabric Unit.
Functions and features
Function and Feature
Description
Line-speed data switching
Six CE-SFU04G1s constitute the switching core of the data plane and provide high-speed Serdes channels for LPUs.
Reliability
The CE-SFU04G1 uses a single-stage multi-plane switch fabric to expand the switching capacity. The system has six switching planes, which work in load balancing and redundancy mode to ensure nonstop service data switching.
Technical specifications
Item
Description
Reliability
Load balancing and redundancy design
Physical specifications
Dimensions (W x D x H): 257.4 mm x 271.4 mm x 40.1 mm (10.13 in. x 10.69 in. x 1.58 in.)
Weight: 2.24 kg (4.94 lb)
Typical power consumption: 111 W
Maximum power consumption: 145 W
Typical heat dissipation: 379 BTU/hour
Maximum heat dissipation: 495 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-SFU04G1 FAQ
Q1: Which Huawei switch models does the CE-SFU04G1 support? How compatible is it?
A1: It mainly supports entry-level Huawei switches such as the CE5810 mini and CE6810 mini, with full hardware and software compatibility (100%), requiring no additional debugging.
Q2: Is 4Tbps bandwidth sufficient for micro-branch access needs? Is dual-board deployment required?
A2: A single 4Tbps board fully meets the low-concurrency requirements of hundreds of terminals in a micro-branch. For scenarios with high stability requirements (such as store POS), dual-board redundant deployment can be selected; for ordinary scenarios, a single board is sufficient.
Q3: What are the differences between the CE-SFU04G1 and the higher-specification CE-SFU08G? How should one choose for micro-scenarios?
A3: The CE-SFU04G1 focuses on the ultimate cost-effectiveness in ultra-small and micro scenarios, while the CE-SFU08G has a higher capacity. When there are no large-scale expansion plans for micro branches and small stores, the CE-SFU04G1 offers better cost-effectiveness and does not require excessive investment.
