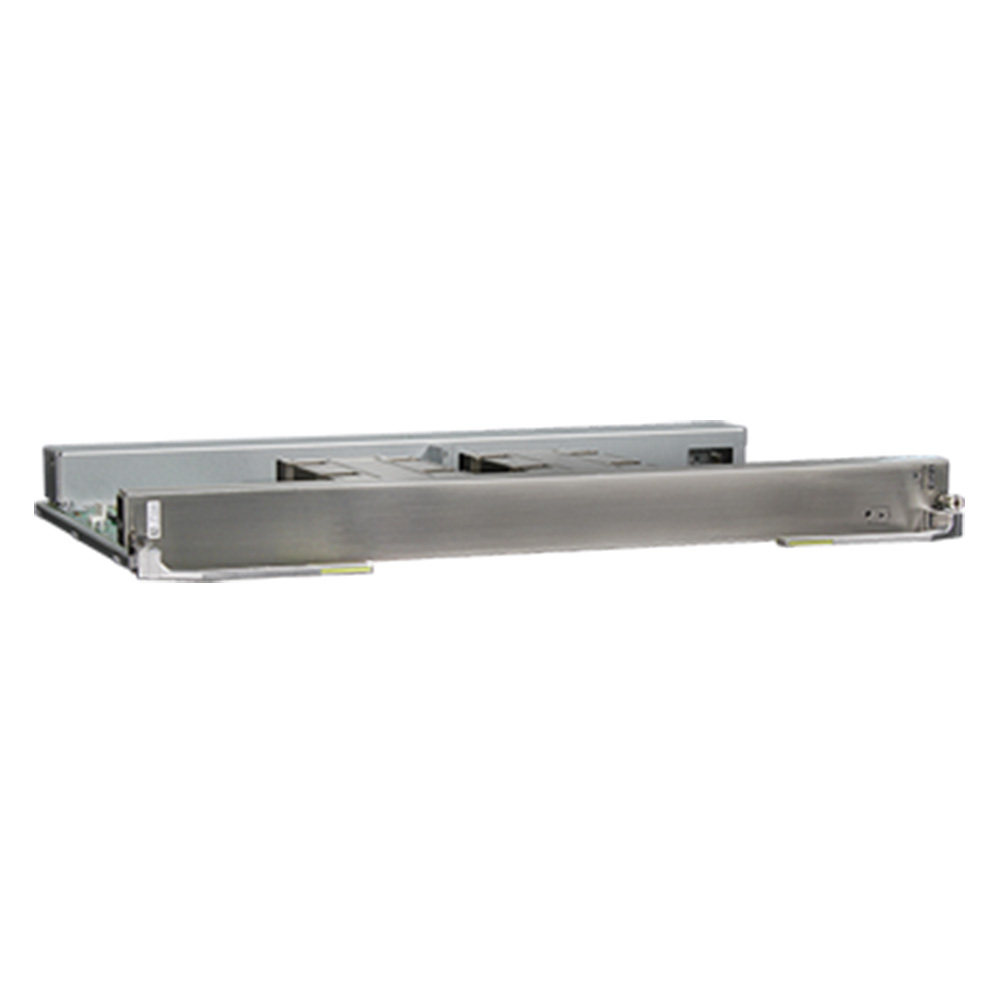

Huawei CE128000 Series Switch CE-SFU08G Switch Fabric Unit.
Functions and features
Function and Feature
Description
Line-speed data switching
Six CE-SFU08Gs constitute the switching core of the data plane and provide high-speed Serdes channels for LPUs.
Reliability
The CE-SFU08G uses a single-stage multi-plane switch fabric to expand the switching capacity. The system has six switching planes, which work in load balancing and redundancy mode to ensure nonstop service data switching.
Technical specifications
Item
Description
Reliability
Load balancing and redundancy design
Physical specifications
Dimensions (W x D x H): 452.8 mm x 271.4 mm x 40.1 mm (17.83 in. x 10.69 in. x 1.58 in.)
Weight: 4.1 kg (9.04 lb)
Typical power consumption: 180 W
Maximum power consumption: 251 W
Typical heat dissipation: 614 BTU/hour
Maximum heat dissipation: 857 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-SFU08G FAQ
Q1: Which Huawei switch models does the CE-SFU08G support? How compatible is it?
A1: It mainly adapts to entry-level Huawei switches such as the CE5810 basic model and CE6810 basic model. It is fully compatible with both hardware and software, with 100% compatibility and no additional debugging required.
Q2: Does the 8Tbps bandwidth meet the access requirements of edge data centers? What is the effect after dual-board expansion?
A2: A single 8Tbps switch can meet the low-concurrency requirements of edge access; after dual-board expansion, the total capacity is ≥16Tbps, with non-blocking forwarding, fully supporting traffic scheduling after business growth, without the need to replace equipment.
Q3: What are the differences between the CE-SFU08G and the CE-SFU08G1 of the same specifications? How should I choose?
A3: The core parameters and adapted scenarios of both are the same, with only differences in hardware process details. Both focus on the ultimate cost-effectiveness for small and micro/edge scenarios; you can flexibly choose according to the adapted switch model and procurement budget, with no difference in functional experience.
