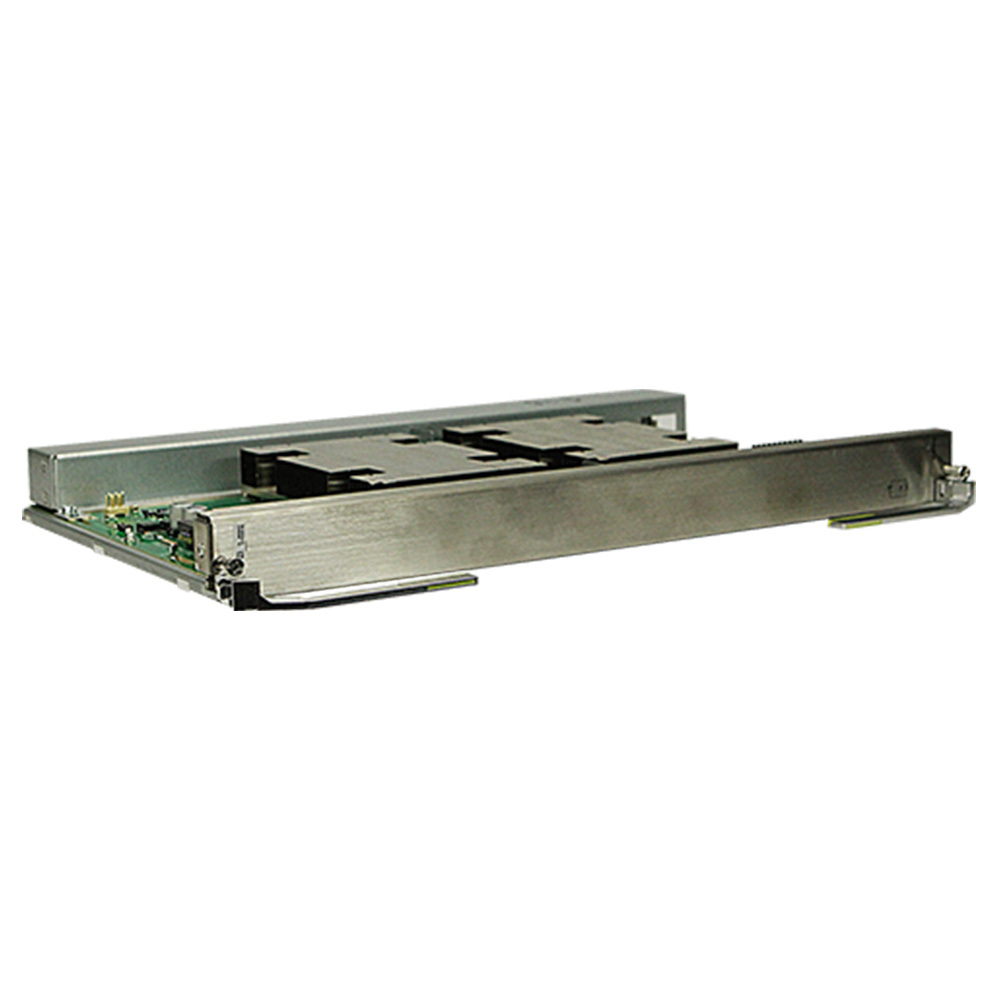

Huawei CE128000 Series Switch CE-SFU08G1 Switch Fabric Unit.
Functions and features
Function and Feature
Description
Line-speed data switching
Six CE-SFU08G1s constitute the switching core of the data plane and provide high-speed Serdes channels for LPUs.
Reliability
The CE-SFU08G1 uses a single-stage multi-plane switch fabric to expand the switching capacity. The system has six switching planes, which work in load balancing and redundancy mode to ensure nonstop service data switching.
Technical specifications
Item
Description
Reliability
Load balancing and redundancy design
Physical specifications
Dimensions (W x D x H): 452.8 mm x 271.4 mm x 40.1 mm (17.83 in. x 10.69 in. x 1.58 in.)
Weight: 4.14 kg (9.13 lb)
Typical power consumption: 186 W
Maximum power consumption: 266 W
Typical heat dissipation: 635 BTU/hour
Maximum heat dissipation: 908 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-SFU08G1 FAQ
Q1: Which Huawei switch models does the CE-SFU08G1 support? How compatible is it?
A1: It mainly supports entry-level Huawei switches such as the CE5810 basic model and CE6810 basic model, with full hardware and software compatibility (100%).
Q2: Does the 8Tbps bandwidth meet the access requirements of edge data centers? What is the effect after dual-board expansion?
A2: A single 8Tbps switch can meet the low-concurrency requirements of edge access; after dual-board expansion, the total capacity is ≥16Tbps, with non-blocking forwarding, supporting traffic scheduling after business growth.
Q3: What are the differences between the CE-SFU08G1 and the higher-specification CE-SFU12G? How should one choose for edge scenarios?
A3: The CE-SFU08G1 focuses on extreme cost-effectiveness and small-scale scenarios, while the CE-SFU12G has higher capacity; when there are no large-scale expansion plans for edge scenarios, the CE-SFU08G1 offers better cost-effectiveness and does not require excessive investment.
