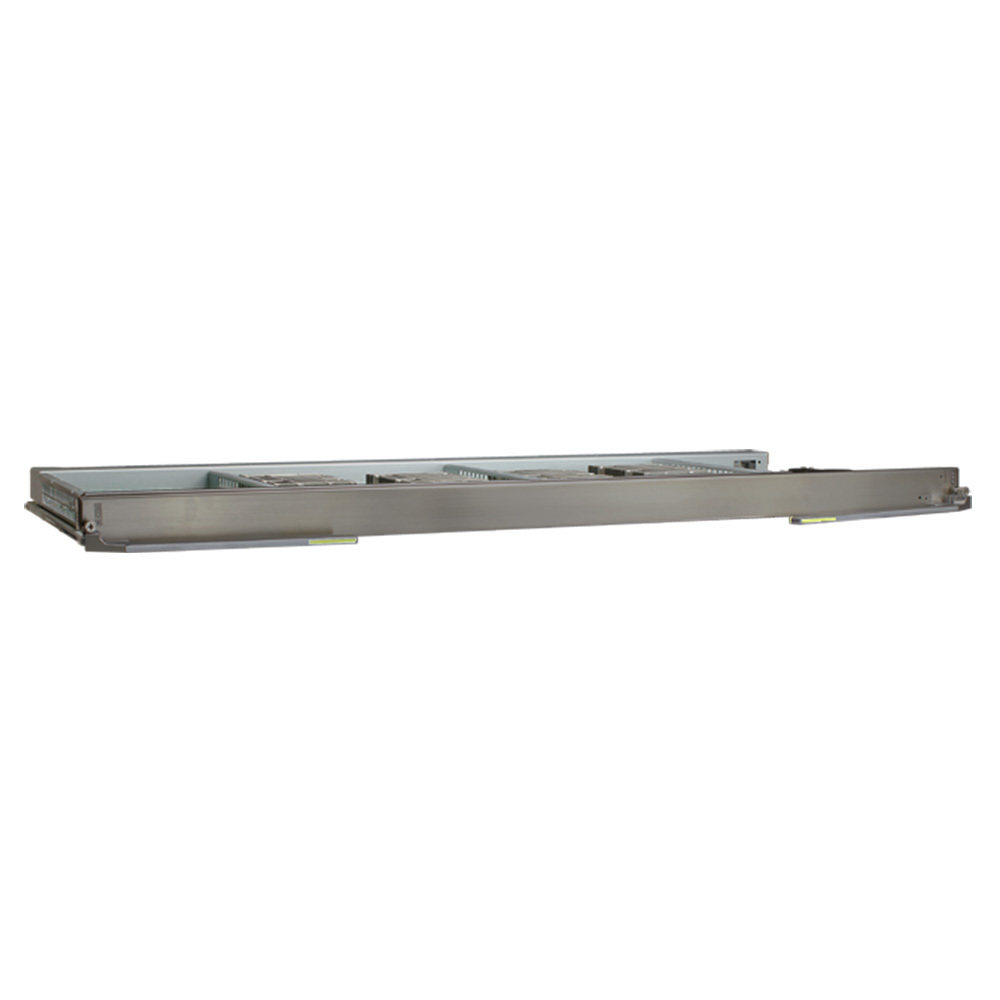

Huawei CE128000 Series Switch CE-SFU16F Switch Fabric Unit.
Functions and features
Function and Feature
Description
Line-speed data switching
Six CE-SFU16Fs constitute the switching core of the data plane and provide high-speed Serdes channels for LPUs.
Reliability
The CE-SFU16F uses a single-stage multi-plane switch fabric to expand the switching capacity. The system has six switching planes, which work in load balancing and redundancy mode to ensure nonstop service data switching.
Technical specifications
Item
Description
Reliability
Load balancing and redundancy design
Physical specifications
Dimensions (W x D x H): 843.6 mm x 363.4 mm x 40.1 mm (33.21 in. x 14.31 in. x 1.58 in.)
Weight: 8.6 kg (18.96 lb)
Typical power consumption: 175 W
Maximum power consumption: 261 W
Typical heat dissipation: 598 BTU/hour
Maximum heat dissipation: 892 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-SFU16F FAQ
Q1: Which Huawei switch models does the CE-SFU16F switching board support? How compatible is it?
A1: It mainly supports Huawei CE6800 series (CE6850, CE6855, CE6860, etc.) and CE5800 series (CE5810, CE5850, CE5855, etc.) mid-to-low-end switches, with full hardware and software compatibility (100%).
Q2: Does the bandwidth of a single switching board meet the core needs of small and medium-sized enterprises? Is multi-board expansion complicated?
A2: A single board with ≥16Tbps bandwidth can meet the core/aggregation basic needs of small and medium-sized enterprises; multi-board expansion uses a modular design, is simple to install, and can improve capacity and redundancy without additional configuration.
Q3: What are the differences between the CE-SFU16F and the CE-SFU16G of the same specifications? How to choose? A3: The core parameters and applicable scenarios of both are the same, with only differences in hardware process details. Both focus on the needs of mid-to-low-end high cost performance. You can choose according to the specific model of the switch you are using and your purchase budget. There is no difference in functionality and experience.
