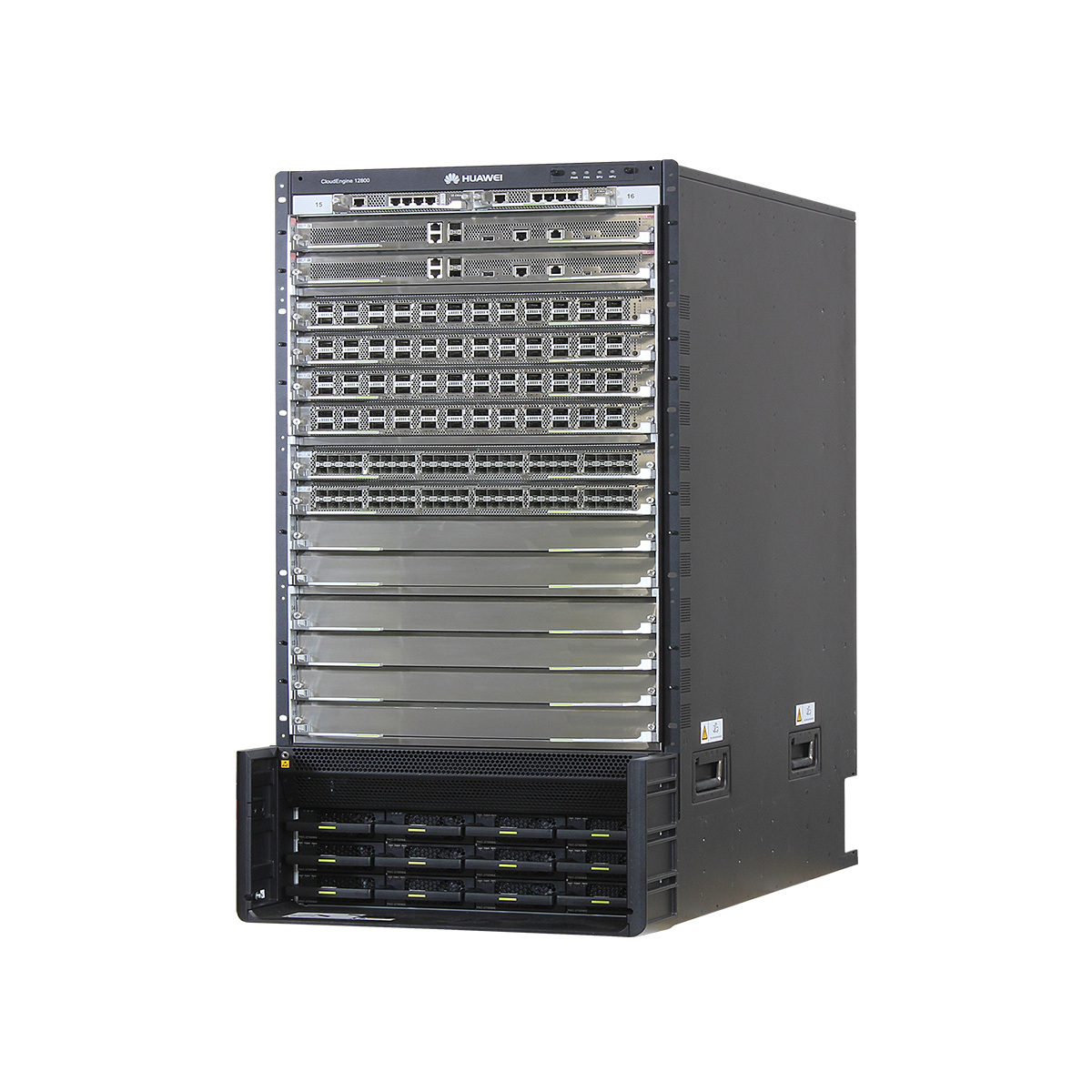

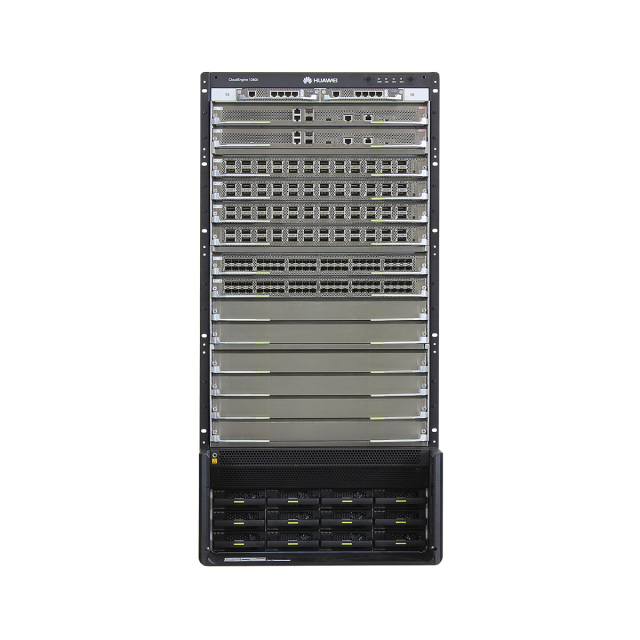

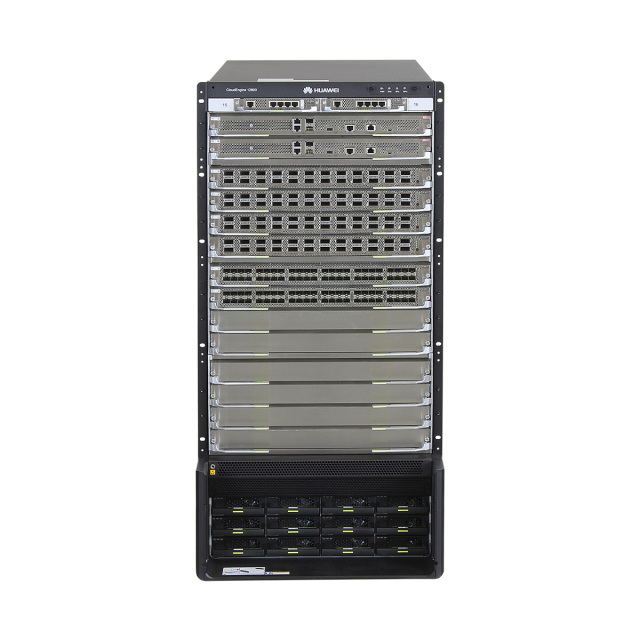

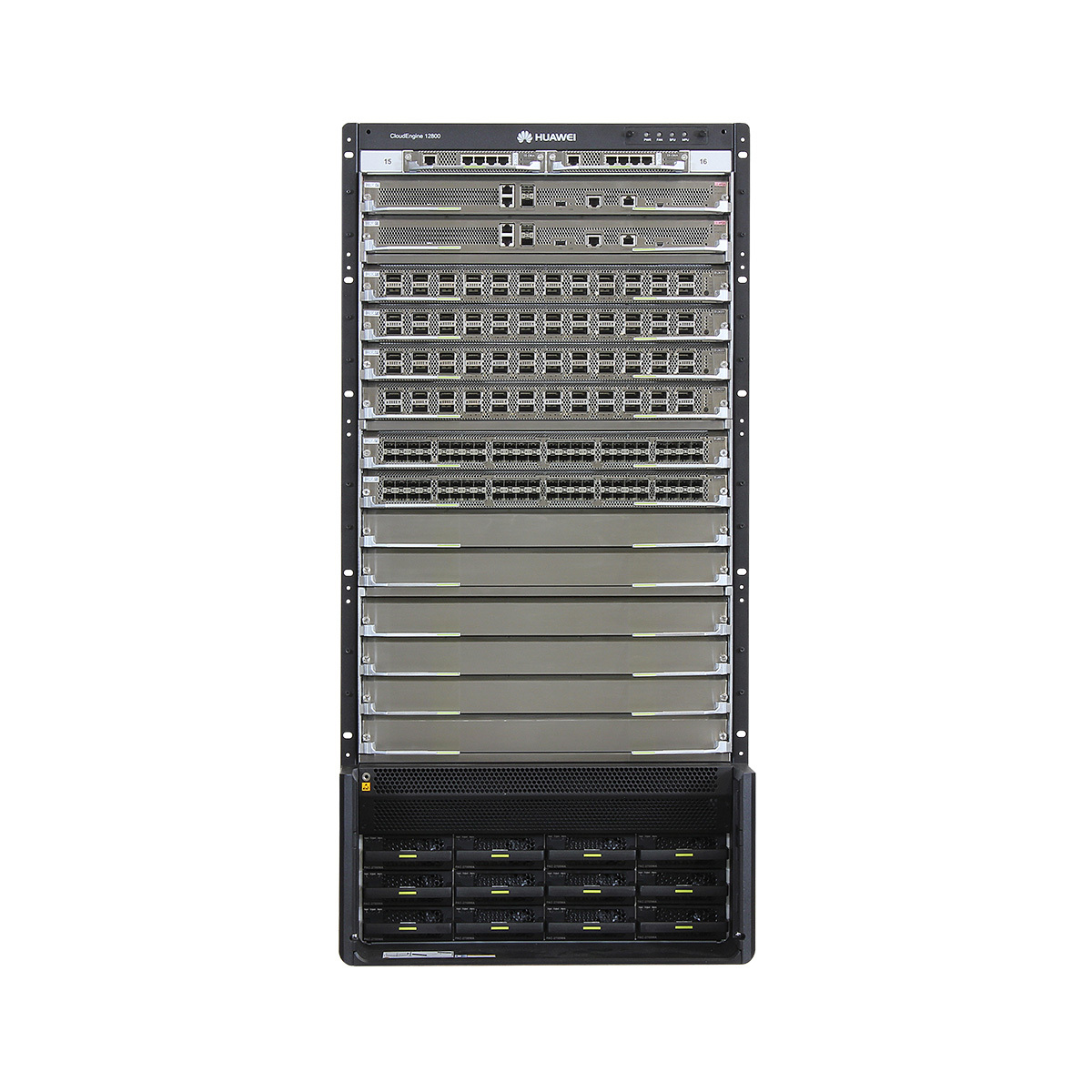

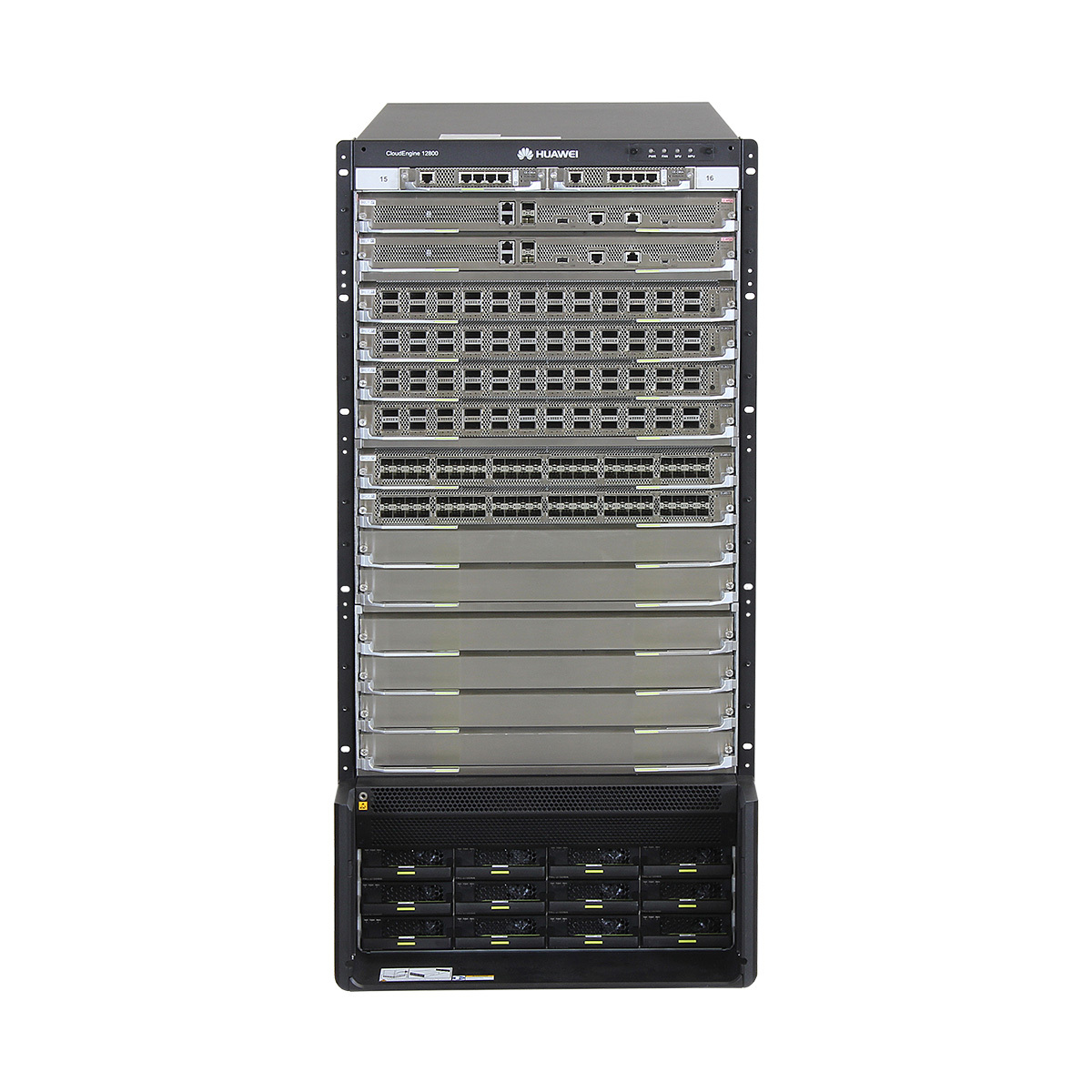

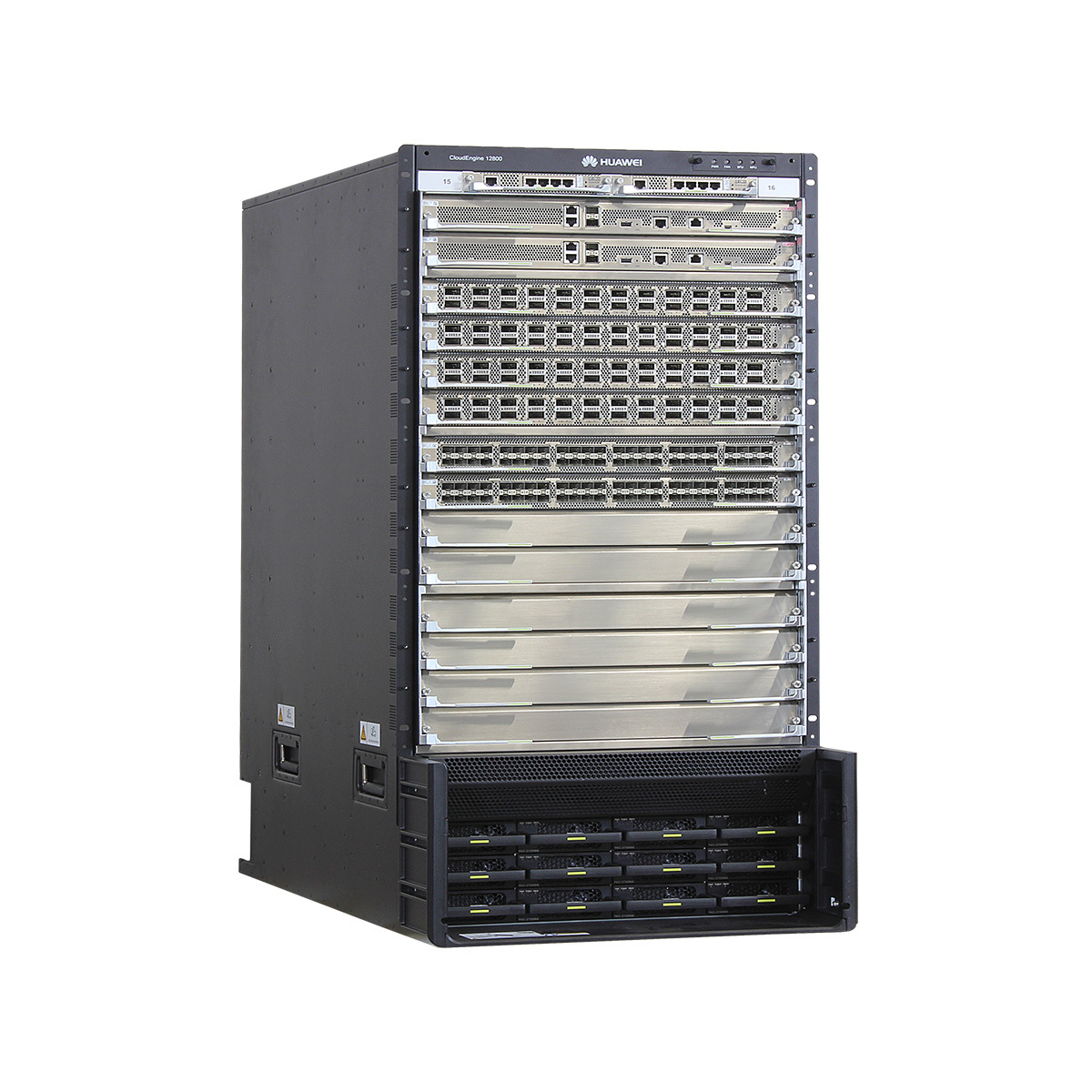

Huawei CE12812 Switch

No.MF0986
Huawei CE12812 switch with 2 MPU slots, 2 CMU slots, 12 LPU slots, and 12 power module slots, 6 SFU slots, 17 fan module slots, and a PDU
Brand
Huawei
Part Number
2008998
Packing Box Specifications
44*97*97cm
Gross Weight
326kg
Condition
Original New
Lead Time
1-3 working days
Warranty
12 months
Shipping Method
DHL, UPS, FedEx, Sea/Air/Railway Freight
Payment Method
PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay
Power:
  • Huawei CE12812 Switch
  • Huawei CE12812 Switch
  • Huawei CE12812 Switch
  • Huawei CE12812 Switch
  • Huawei CE12812 Switch
  • Description

  • Huawei Switch Module


CE12812 Overview

Huawei CE12812 switch with 2 MPU slots, 2 CMU slots, 12 LPU slots, and 12 power module slots, 6 SFU slots, 17 fan module slots, and a PDU.

CloudEngine 12800 (CE12800 for short) series switches are next-generation, high-performance core switches designed for data center networks and high-end campus networks. Using Huawei’s next-generation VRP8 operating system, CE12800 series switches provide stable, reliable, and secure high-performance Layer 2/Layer 3 switching capabilities to help build an elastic, virtualized, and high-quality network.

CE12800 series switches use an advanced hardware architecture design and provide 100GE/40GE/10GE/GE line cards with various port densities. The switches support high-density access of high-speed servers and aggregation of TOR switches, providing high performance and large capacity for data center networks.


CE12800 series switches use an industry-leading Clos architecture and a strict front-to-back airflow design to provide industrial-grade reliability. The switches also provide comprehensive virtualization capabilities and extensive data center service features. Moreover, they adopt multiple innovative energy-saving technologies to greatly reduce power consumption.


CE12812 Appearance

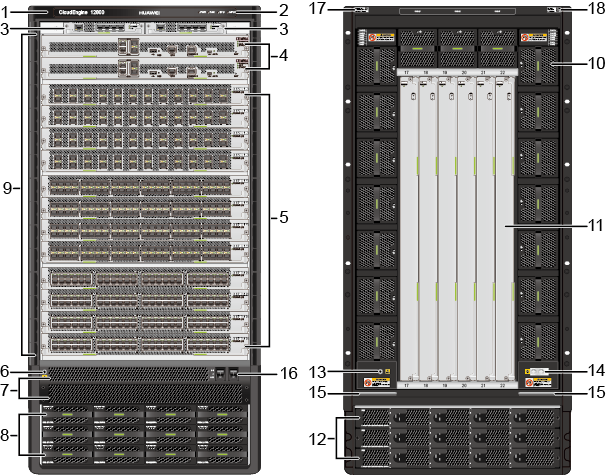

1. CE12800 series switches chassis header, showing the following:

  • Product series name:For the CE12812 chassis, the series name is CloudEngine 12800.
  • Huawei Logo
  • PWR, FAN, SFU, and MPU indicators
2. Indicators 3. CMU

  • The CE12812 chassis supports two CMUs.
4. MPU

  • The CE12812 chassis supports two MPUs.
5. LPU

  • The CE12812 chassis supports 12 LPUs.
6. Front ESD jack

NOTE:

When maintaining components at the front of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

7. Air intake area for SFUs in the CE12812 chassis (See Airflow for heat dissipation of the SFUs (side view) for the heat dissipation mechanism.) 8. Power modules

The CE12812 chassis supports 12 power modules.

  • The CE12812 AC chassis uses the 2700 W AC Power Module and 3000 W AC&high-Voltage DC Power Module.
  • The CE12812 DC chassis uses the 2200 W DC Power Module.
  • The CE12812 AC&high-voltage chassis uses the 2700 W AC Power Module and 3000 W AC&high-Voltage DC Power Module.
9. Cable management frame

NOTE:

Cable management frames are installed on the left and right sides of a chassis to route cables in each slot.

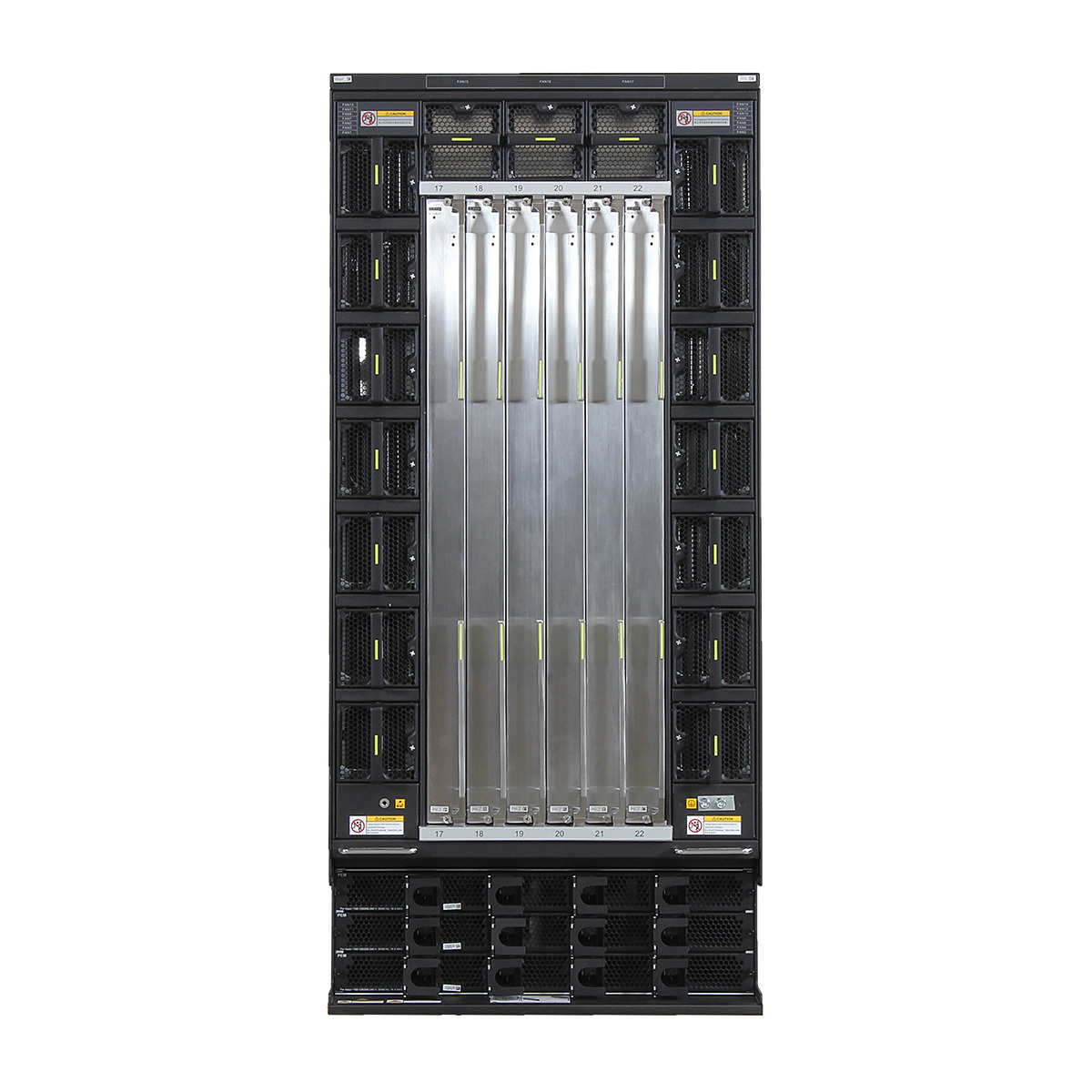

10. Fan modules

  • The CE12812 chassis uses the FAN-12C Fan Module.
  • CE12812 chassis: supports 17 fan modules, 7 on the left, 7 on the right, and 3 on the top
11. SFU

  • The CE12812 chassis supports six SFU cards.
12. Power distribution unit 13. Rear ESD jack

NOTE:

When maintaining components at the rear of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

14. Two ground points for a dual-hole ground lug, with a yellow grounding label attached

NOTE:

To protect a chassis from lightning and electromagnetic interference, use Ground Cable to ground the chassis.

15. Handle

NOTE:

When installing a chassis into a cabinet/rack, you can drag the chassis by the handle at the rear of the chassis.

16. Two power switches

NOTE:

It is recommended to turn on both switches to power on the device. Both switches must be turned off to power off the device.

17. Serial number label 18. MAC address label

CE12812 Datasheet

Item CE12812
Physical specifications
  • Dimensions (W x D x H): 442 mm x 970 mm x 975.1 mm (17.40 in. x 38.19 in. x 38.39 in. (22U))
  • Depth from fan module handles to the lower enclosure frame: 970 mm (38.19 in.)
  • Depth from fan module handles to the air filter door: 986.5 mm (38.84 in.)
  • Weight
  • Empty: 153.8 kg (339.07 lb)
  • Fully loaded: 326.7 kg (720.25 lb)
Environment parameters Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at an altitude between 0 m and 1800 m (0 ft. and 5906 ft.) NOTE: When the altitude is between 1800 m and 4000 m (5906 ft. and 13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 85% RH, noncondensing
Altitude < 4000 m (13123 ft.)
Noise (27°C) ≤ 78 dBA
Power specifications Power port The power modules are plug-and-play. Power cables are connected to sockets on the power distribution unit at the rear of the chassis.
AC power input
  • Rated voltage: 110 V AC/220 V AC; 50 Hz/60 Hz
  • Rated voltage range: 100 V AC to 120 V AC/200 V AC to 240 V AC
  • Maximum voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz (PAC-2700WA)/47 Hz to 63 Hz (PHD-3000WA)
  • Maximum input current
  • Using PAC-2700WA power modules: 16 A
  • Using PHD-3000WA power modules: 18.5 A
DC power input
  • Rated voltage: -48 V DC/-60 V DC
  • Maximum voltage range: -40 V DC to -72 V DC
  • Rated input current: 50 A @ -48 V DC
  • Maximum input current: 62 A @ -40 V DC
High-voltage DC power input
  • Rated voltage: 240 V DC
  • Rated voltage range: 188 V DC to 288 V DC
Maximum output power of AC power modules Using PAC-2700WA power modules:
  • 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 2700 W x 6 = 16200 W
  • 110 V single-live-wire AC input:
  • N+1 backup (N ≤ 11): 1200 W x 11 = 13200 W
  • N+0 mode (N ≤ 12): 1200 W x 12 = 14400 W
Using PHD-3000WA power modules:
  • 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 3000 W x 6 = 18000 W
  • 110 V single-live-wire AC input:
  • N+1 backup (N ≤ 11): 1500 W x 11 = 16500 W
  • N+0 mode (N ≤ 12): 1500 W x 12 = 18000 W
NOTE: If the power modules use a 110 V power source, follow these suggestions:
  1. Use double live wires. In this case, the output power of a power module is 2700 W/3000 W.
  2. If only one live wire is used, the output power of a power module is 1200 W/1500 W. In this case, it is recommended that you use more power modules or change the power module backup mode to increase the output power.
Maximum output power of DC power modules
  • N+N backupc (N ≤ 6): 2200 W x 6 = 13200 W
  • N+1 backup and N+0 mode (N ≤ 8): 2200 W x 8 = 17600 W
Maximum output power of high-voltage DC power modules N+N backup, N+1 backup, and N+0 mode (N ≤ 6): 3000 W x 6 = 18000 W
Heat dissipation The power modules have their own fans, which cool the power modules through front-to-back airflow.
Hot swap The power modules are hot swappable.
Reliability and availability Modules Power module:
  • If double external power supply systems are used, the N+N backup mode is recommended.
  • If a single external power supply system is used, you can use more power modules or change the power module backup mode to increase the output power. To enhance system reliably, you are advised to use the N+1 backup mode.
Fan module: Fan modules work in hot backup mode. At normal temperature range, the system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
MPU: 1:1 hot standby
CMU: 1:1 hot standby
Hot swap: All the power modules, fan modules, and cards support hot swap.
Chassis
  • Mean Time Between Failures (MTBF): 33.52 years
  • Mean time to repair (MTtr): 1 hour
  • Availability: 0.9999966
NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules configured in the equipment.
Technical specifications Maximum port density
  • V100R001C00: 288x40GE or 1152x10GEa
  • V100R002C00: 288x40GE, 1152x10GEa, or 576xGE
  • V100R003C00 and V100R003C10: 48x100GE, 288x40GE, 1152x10GEa, or 576xGE
  • V100R005C00 and V100R005C10: 144x100GE, 288x40GE, 1152x10GEa, or 576xGE
  • V100R006C00: 144x100GE, 432x40GE, 1728x10GEa, or 576xGE
  • V200R001C00, V200R002C50, and V200R003C00: 432x100GE, 432x40GE, 1728x25GEb, 1728x10GEa, or 576xGE
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance

CE12812 FAQ

Q1: What are the port expansion capabilities of the CE12812? What are the differences between it and the CE12816/CE12808S?

A1: A single device can be expanded to dozens of service boards, supporting full-speed expansion up to 400G. The CE12816 focuses on ultra-large-scale scenarios with extreme 800G performance, the CE12808S focuses on medium to large-scale general needs, and the CE12812 balances capacity and cost-effectiveness, suitable for medium to large-scale flagship scenarios.

Q2: Is the deployment cost of a fully redundant configuration controllable? What size data center is it suitable for?

A2: The initial investment in a fully redundant design is reasonable and can avoid huge losses caused by business interruption; it is suitable for medium to large-scale cloud data centers, provincial industry clouds, and large group headquarters data centers with 50,000 to 500,000 servers and tens of millions of terminals.

Q3: Does the CE12812 support future technology upgrades, such as 800G ports or new protocols?

A3: Supports hardware board upgrades and software iterations. It can expand to 800G ports by replacing the board, and the software is continuously compatible with new protocols and new services, protecting the initial investment.

Optical Modules Supported by Huawei S Series Switches

Module Name Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310 2 km
eSFP-FE-LX-SM1310 15 km
S-SFP-FE-LH40-SM1310 40 km
S-SFP-FE-LH80-SM1550 80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module) 15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
  • Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310  10 km
S-SFP-GE-LH40-SM1310 40 km
S-SFP-GE-LH40-SM1550 40 km
S-SFP-GE-LH80-SM1550  80 km
eSFP-GE-ZX100-SM1550 100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module) 10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)  40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)  40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module) 80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)  80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module) 10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1 10 km
CSFP-GE-FE-BIDI2  20 km
CSFP-GE-FE-BIDI4 40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271 80 km
CWDM-SFPGE-1291 80 km
CWDM-SFPGE-1311 80 km
CWDM-SFPGE-1331 80 km
CWDM-SFPGE-1351 80 km
CWDM-SFPGE-1371 80 km
CWDM-SFPGE-1391 80 km
CWDM-SFPGE-1411 80 km
CWDM-SFPGE-1431 80 km
CWDM-SFPGE-1451 80 km
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61 120 km
10GE SFP+ Optical Modules
SFP-10G-USR 0.1 km
OSXD22N00
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km
  • Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
SFP-10G-iLR 1.4 km
OSX010000 10 km
OSX040N01 40 km
SFP-10G-ER-1310 40 km
SFP-10G-ZR 80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module) 40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module) 40 km
10GE XFP Optical Modules
XFP-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310 10 km
XFP-STM64-LH40-SM1550  40 km
XFP-STM64-SM1550-80km 80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471 70 km
SFP-10G-ZCW1491 70 km
SFP-10G-ZCW1511 70 km
SFP-10G-ZCW1531 70 km
SFP-10G-ZCW1551 70 km
SFP-10G-ZCW1571 70 km
SFP-10G-ZCW1591 70 km
SFP-10G-ZCW1611 70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471 70 km
CWDM-XFP10G-1491 70 km
CWDM-XFP10G-1511 70 km
CWDM-XFP10G-1531 70 km
CWDM-XFP10G-1551 70 km
CWDM-XFP10G-1571 70 km
CWDM-XFP10G-1591 70 km
CWDM-XFP10G-1611 70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT 60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47  80 km
DWDM-XFP10G-1534-25  80 km
DWDM-XFP10G-1535-04  80 km
DWDM-XFP10G-1552-52  80 km
DWDM-XFP10G-1553-33  80 km
DWDM-XFP10G-1554-13  80 km
DWDM-XFP10G-1530-33  80 km
DWDM-XFP10G-1549-32  80 km
DWDM-XFP10G-1531-12  80 km
DWDM-XFP10G-1531-90  80 km
DWDM-XFP10G-1550-12  80 km
DWDM-XFP10G-1550-92  80 km
DWDM-XFP10G-1532-68  80 km
DWDM-XFP10G-1551-72  80 km
DWDM-XFP10G-1529-55  80 km
DWDM-XFP10G-1548-51  80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4 1.4 km
QSFP-40G-eSM4 10 km
QSFP-40G-LX4

Single-mode fiber: 2 km

Multimode fiber (OM3): 0.15 km

QSFP-40G-LR4 10 km
QSFP-40G-ER4 40 km
QSFP-40G-SR-BD
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-40G-LR4 10 km
CFP-40G-ER4 40 km
CFP-40G-ZR4 80 km
100GE CFP Optical Modules
CFP-100G-SR10
  • Multimode fiber (OM2): 0.03 km
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-100G-LR4 10 km
CFP-100G-ER4 40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4 10 km
QSFP28-100G-10KM 10 km
QSFP28-100G-PSM4 500 m
QSFP28-100G-SR4
  • Multimode fiber (OM3): 70 m

  • Multimode fiber (OM4): 100 m

QSFP-100G-eSR4
  • Multimode fiber (OM3): 200 m
  • Multimode fiber (OM4): 300 m
QSFP-100G-CLR4  2 km
QSFP-100G-CWDM4  2 km
QSFP-100G-ER4-Lite Single-mode fiber (G.652):
  • Disables the RS-FEC function: 30 km
  • Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2  20 km
Industrial Optical Modules
OGSM01880
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
OGSC10DD0 10 km
OGSC40DD0 40 km
SFP+10GE-LH10-SM1310  10 km
SFP-10G-SR 0.3 km
SFP-10G-iLR  1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module) 10 km
