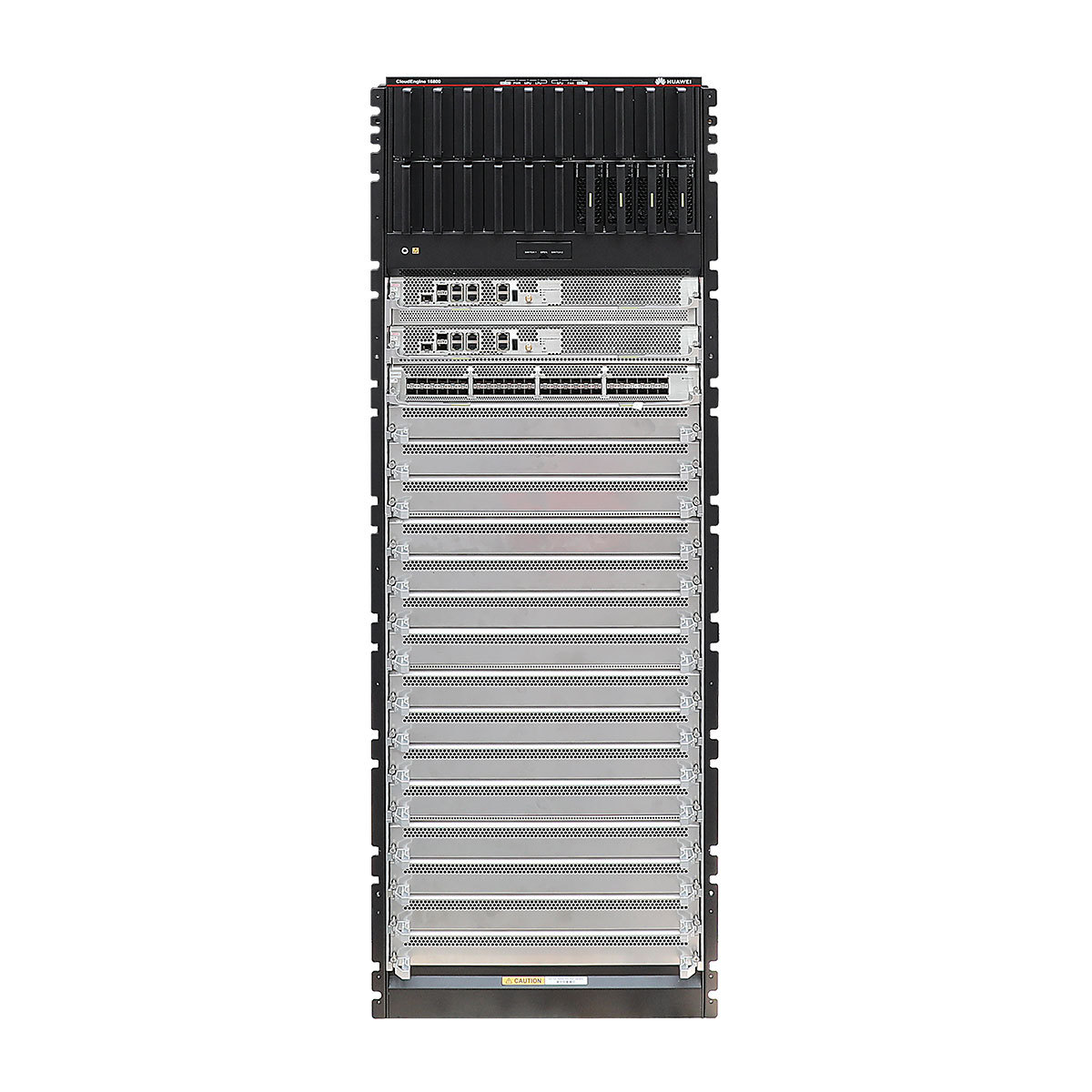

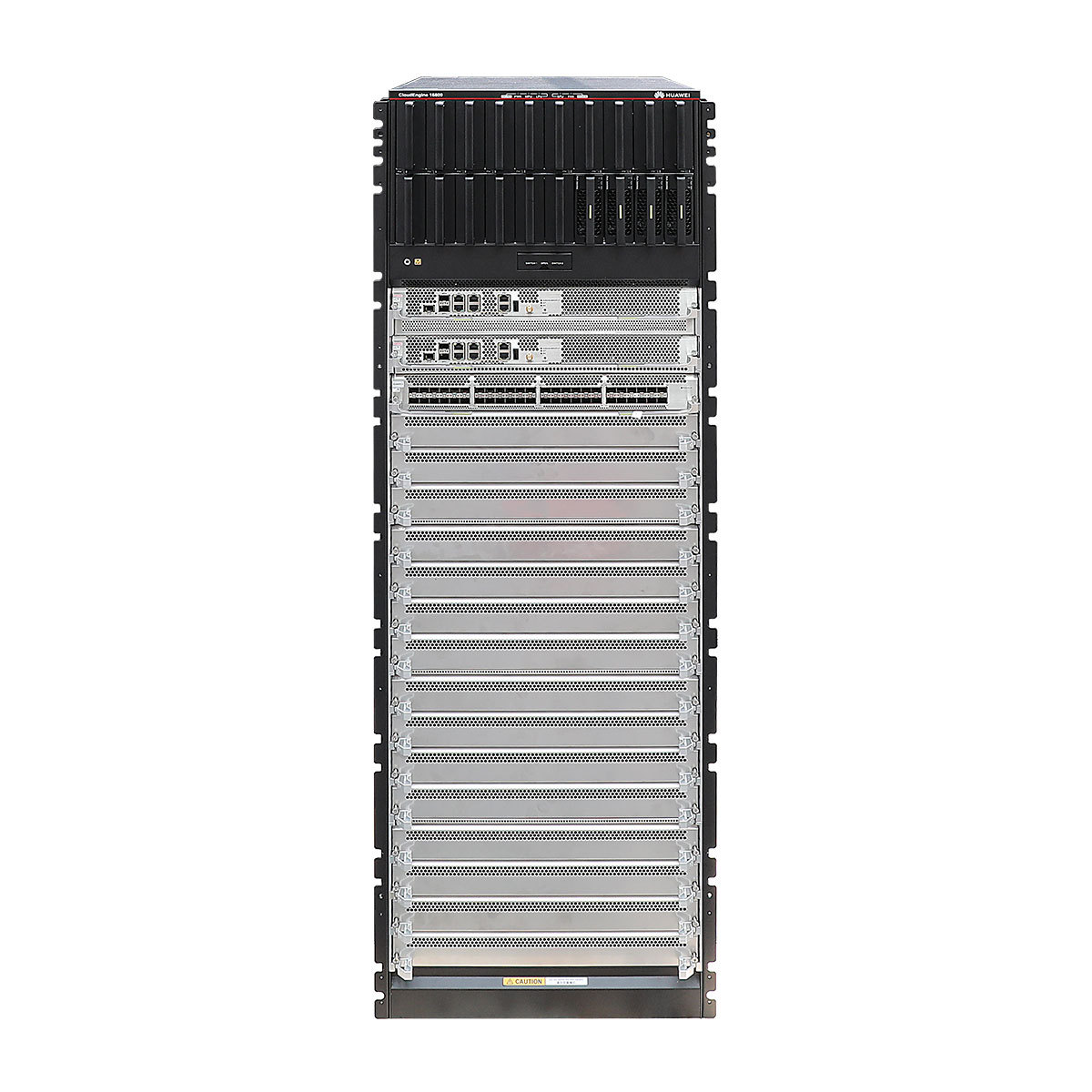

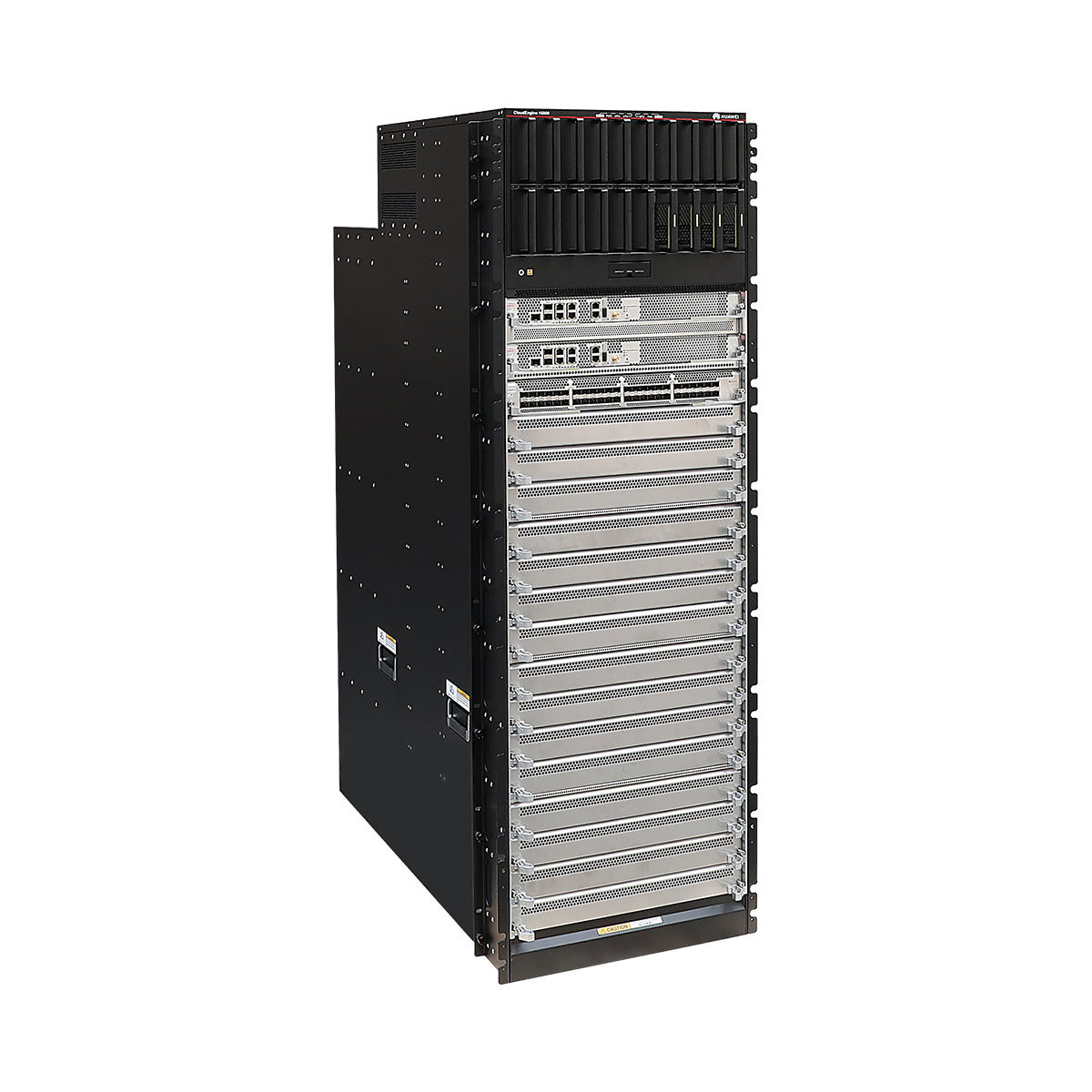

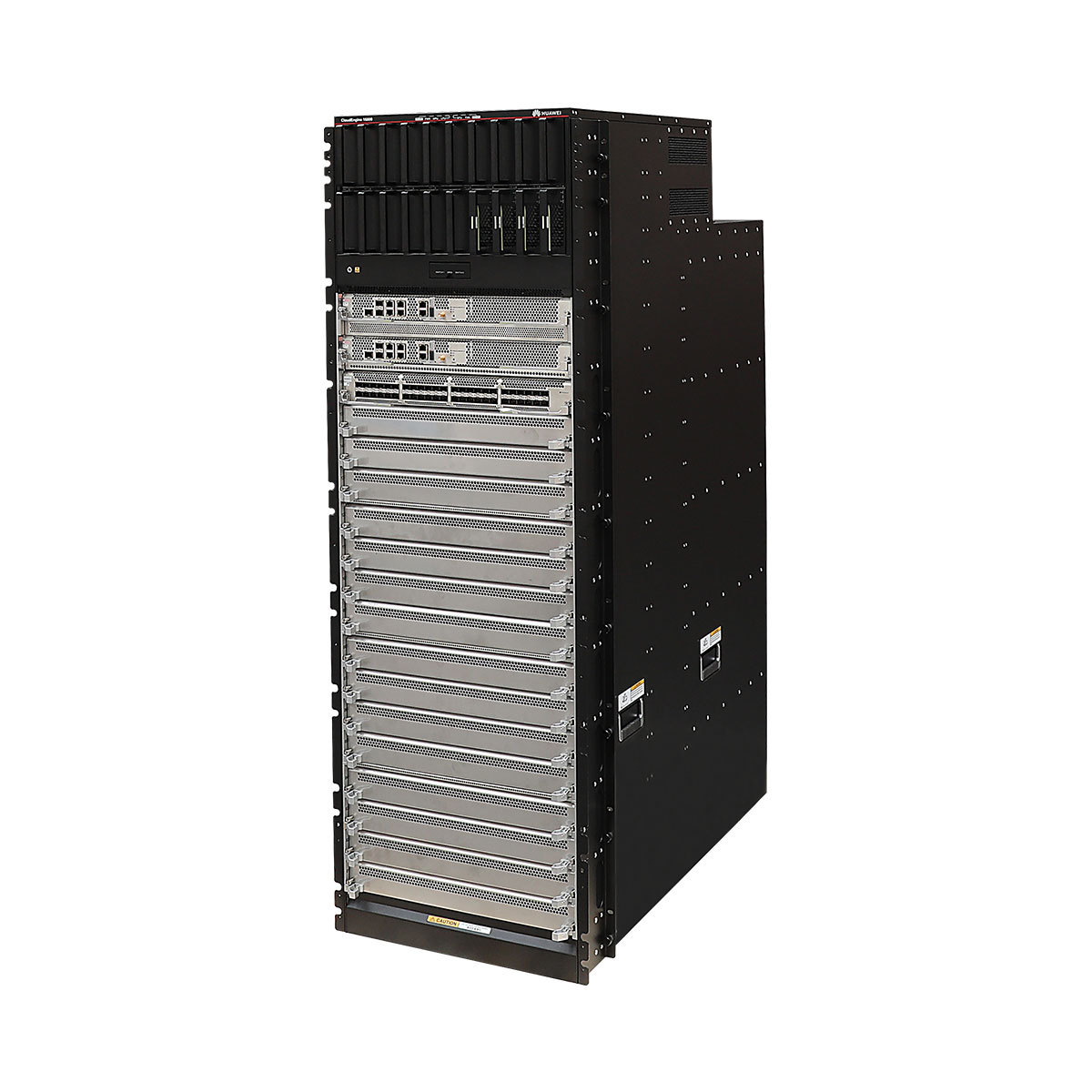

Name: Huawei CE12816 Switch
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0987
Price: 400.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0987

Huawei CE12816 switch with 2 MPU slots, 2 CMU slots, 16 LPU slots, 6 SFU slots, 20 Power Module slots, 23 Fan Module slots

Brand

Huawei

Part Number

2008999

Packing Box Specifications

44*111*160cm

Gross Weight

470kg

Condition

Original New

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Power:

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

CE12816 Overview

Huawei CE12816 switch with 2 MPU slots, 2 CMU slots, 16 LPU slots, 6 SFU slots, 20 Power Module slots, 23 Fan Module slots.

CloudEngine 12800 (CE12800 for short) series switches are next-generation, high-performance core switches designed for data center networks and high-end campus networks. Using Huawei’s next-generation VRP8 operating system, CE12800 series switches provide stable, reliable, and secure high-performance Layer 2/Layer 3 switching capabilities to help build an elastic, virtualized, and high-quality network.

CE12800 series switches use an advanced hardware architecture design and provide 100GE/40GE/10GE/GE line cards with various port densities. The switches support high-density access of high-speed servers and aggregation of TOR switches, providing high performance and large capacity for data center networks.

CE12800 series switches use an industry-leading Clos architecture and a strict front-to-back airflow design to provide industrial-grade reliability. The switches also provide comprehensive virtualization capabilities and extensive data center service features. Moreover, they adopt multiple innovative energy-saving technologies to greatly reduce power consumption.

CE12816 Appearance

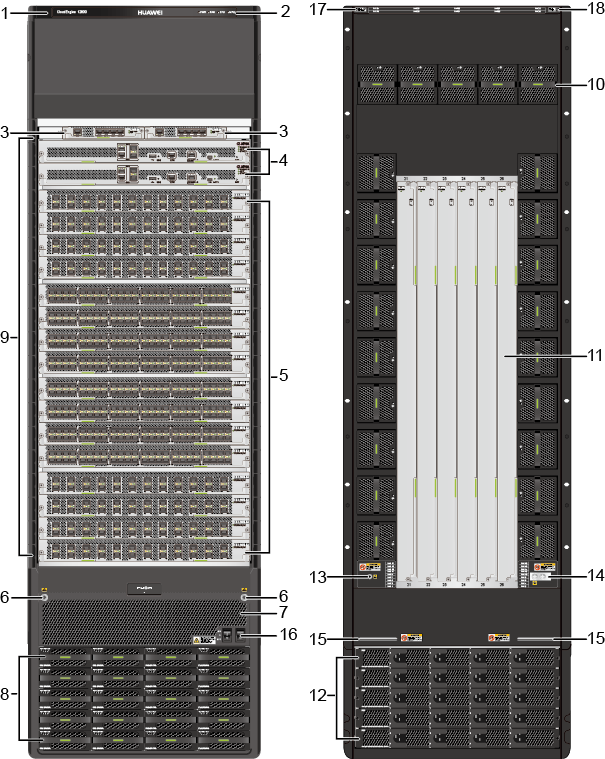

1. CE12800 series switches chassis header, showing the following: Product series name:For the CE12816 chassis, the series name is CloudEngine 12800. Huawei Logo PWR, FAN, SFU, and MPU indicators	2. Indicators	3. CMU The CE12816 chassis supports two CMUs	4. MPU The CE12812 chassis supports two MPUs.	5. LPUs The CE12816 chassis supports 16 LPUs.
6. Front ESD jack NOTE: When maintaining components at the front of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.	7. Air intake area for SFUs in the CE12816 chassis (See Airflow for heat dissipation of the SFUs (side view) for the heat dissipation mechanism.)	8. Power modules The CE12816 chassis supports 20 power modules. The CE12816 AC chassis uses the 2700 W AC Power Module and 3000 W AC&high-Voltage DC Power Module. The CE12816 DC chassis uses the 2200 W DC Power Module. The CE12816 AC&high-voltage chassis uses the 2700 W AC Power Module and 3000 W AC&high-Voltage DC Power Module.	9. Cable management frame NOTE: Cable management frames are installed on the left and right sides of a chassis to route cables in each slot.	10. Fan modules The CE12816 chassis uses the FAN-16A Fan Module. CE12816 chassis: supports 23 fan modules, 9 on the left, 9 on the right, and 5 on the top.

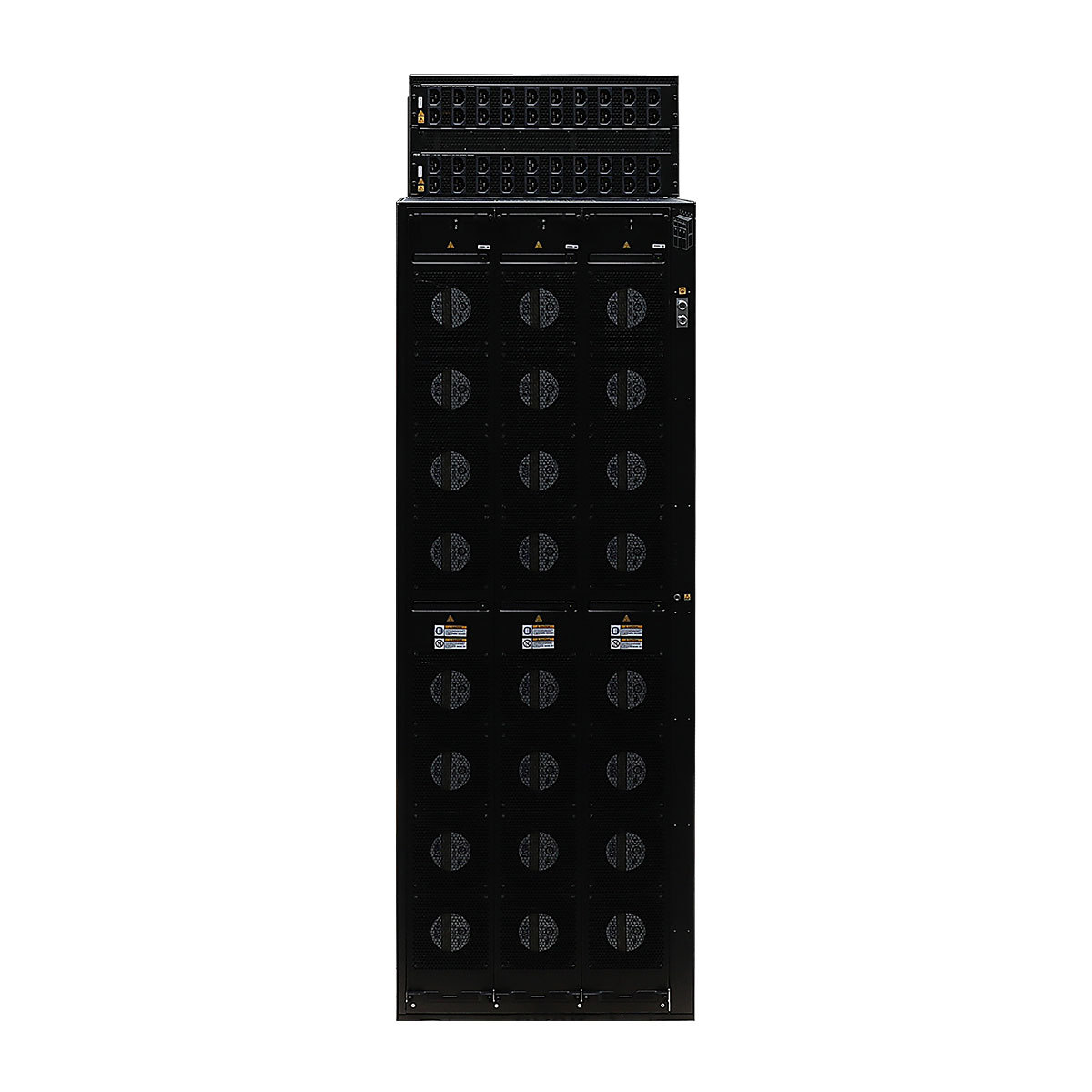

11. SFU The CE12816 chassis supports six SFU cards.	12. Power distribution unit	13. Rear ESD jack NOTE: When maintaining components at the rear of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.	14. Two ground points for a dual-hole ground lug, with a yellow grounding label attached NOTE: To protect a chassis from lightning and electromagnetic interference, use Ground Cable to ground the chassis.	15. Handle NOTE: When installing a chassis into a cabinet/rack, you can drag the chassis by the handle at the rear of the chassis.
16. Two power switches NOTE: It is recommended to turn on both switches to power on the device. Both switches must be turned off to power off the device.	17. Serial number label	18. MAC address label

CE12816 Datasheet

Item		CE12816
Physical specifications		Dimensions (W x D x H): 442 mm x 1065 mm x 1597.4 mm (17.40 in. x 41.93 in. x 62.89 in. (36U)) Depth from fan module handles to the lower enclosure frame: 1065 mm (41.93 in.) Depth from fan module handles to the air filter door: 1085 mm (42.72 in.) Weight Empty: 221.6 kg (488.54 lb) Fully loaded: 474 kg (1044.99 lb)
Environment parameters	Temperature	Operating temperature: 0°C to 40°C (32°F to 104°F) at an altitude between 0 m and 1800 m (0 ft. and 5906 ft.) *NOTE:* When the altitude is between 1800 m and 4000 m (5906 ft. and 13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Relative humidity	5% RH to 85% RH, noncondensing
	Altitude	< 4000 m (13123 ft.)
	Noise (27°C)	≤ 78 dBA
Power specifications	Power port	The power modules are plug-and-play. Power cables are connected to sockets on the power distribution unit at the rear of the chassis.
	AC power input	Rated voltage: 110 V AC/220 V AC; 50 Hz/60 Hz Rated voltage range: 100 V AC to 120 V AC/200 V AC to 240 V AC Maximum voltage range: 90 V AC to 290 V AC; 45 Hz to 65 Hz (PAC-2700WA)/47 Hz to 63 Hz (PHD-3000WA) Maximum input current Using PAC-2700WA power modules: 16 A Using PHD-3000WA power modules: 18.5 A
	DC power input	Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -40 V DC to -72 V DC Rated input current: 50 A @ -48 V DC Maximum input current: 62 A @ -40 V DC
	High-voltage DC power input	Rated voltage: 240 V DC Rated voltage range: 188 V DC to 288 V DC
	Maximum output power of AC power modules	Using PAC-2700WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backupc (N ≤ 10): 2700 W x 10 = 27000 W N+1 backup and N+0 mode (N ≤ 11): 2700 W x 11 = 29700 W 110 V single-live-wire AC input: N+1 backup (N ≤ 19): 1200 W x 19 = 22800 W N+0 mode (N ≤ 20): 1200 W x 20 = 24000 W Using PHD-3000WA power modules: 380 V three-phase AC input, 220 V single-phase AC input, or 110 V dual-live-wire AC input: N+N backup, N+1 backup, and N+0 mode (N ≤ 10): 3000 W x 10 = 30000 W 110 V single-live-wire AC input: N+1 backup (N ≤ 19): 1500 W x 19 = 28500 W N+0 mode (N ≤ 20): 1500 W x 20 = 30000 W *NOTE:* If the power modules use a 110 V power source, follow these suggestions: 1. Use double live wires. In this case, the output power of a power module is 2700 W/3000 W. 2. If only one live wire is used, the output power of a power module is 1200 W/1500 W. In this case, it is recommended that you use more power modules or change the power module backup mode to increase the output power.
	Maximum output power of DC power modules	N+N backupc (N ≤ 10): 2200 W x 10 = 22000 W N+1 backup and N+0 mode (N ≤13): 2200 W x 13 = 28600 W
	Maximum output power of high-voltage DC power modules	N+N backup, N+1 backup, and N+0 mode (N ≤ 10): 3000 W x 10 = 30000 W
	Heat dissipation	The power modules have their own fans, which cool the power modules through front-to-back airflow.
	Hot swap	The power modules are hot swappable.
Reliability and availability	Modules	Power module:If double external power supply systems are used, the N+N backup mode is recommended. If a single external power supply system is used, you can use more power modules or change the power module backup mode to increase the output power. To enhance system reliably, you are advised to use the N+1 backup mode.
		Fan module: Fan modules work in hot backup mode. At normal temperature range, the system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
		MPU: 1:1 hot standby
		CMU: 1:1 hot standby
		Hot swap: All the power modules, fan modules, and cards support hot swap.
	Chassis	Mean Time Between Failures (MTBF): 32.00 years Mean time to repair (MTTR): 1 hour Availability: 0.9999964326 *NOTE:* The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules configured in the equipment.
Technical specifications	Maximum port density	V100R003C00 and V100R003C10: 64x100GE, 384x40GE, 1536x10GEa, or 768xGE V100R005C00 and V100R005C10: 192x100GE, 384x40GE, 1536x10GEa, or 768xGE V100R006C00: 192x100GE, 576x40GE, 2304x10GEa, or 768xGE V200R001C00, V200R002C50, and V200R003C00: 576x100GE, 576x40GE, 2304x25GEb, 2304x10GEa, or 768xGE
Certification		Safety standards compliance EMC standards compliance Environmental standards compliance

CE12816 FAQ

Q1: What are the port expansion capabilities and 800G port deployment advantages of the CE12816?

A1: A single device can be expanded to support up to a thousand high-speed ports, supporting mixed 800G/400G connections; 800G ports significantly reduce the number of ports and link complexity, lowering deployment and maintenance costs for ultra-large-scale scenarios.

Q2: Will full-dimensional redundancy increase deployment complexity? What scale of scenarios is it suitable for?

A2: Redundancy configuration requires no complex operations and supports one-click activation; suitable for ultra-large cloud data centers and national-level industry clouds with over 100,000 servers, hundreds of millions of terminals, and extremely high availability requirements.

Q3: What are the differences between the CE12816 and other flagship switches? Why is it the first choice for ultra-large-scale scenarios?

A3: The CE12816 focuses on ultra-large-scale scheduling and ultimate 800G performance, with more comprehensive redundancy and stronger expansion capabilities; choosing it for ultra-large-scale scenarios avoids multiple expansions and upgrades, resulting in higher long-term cost-effectiveness.
