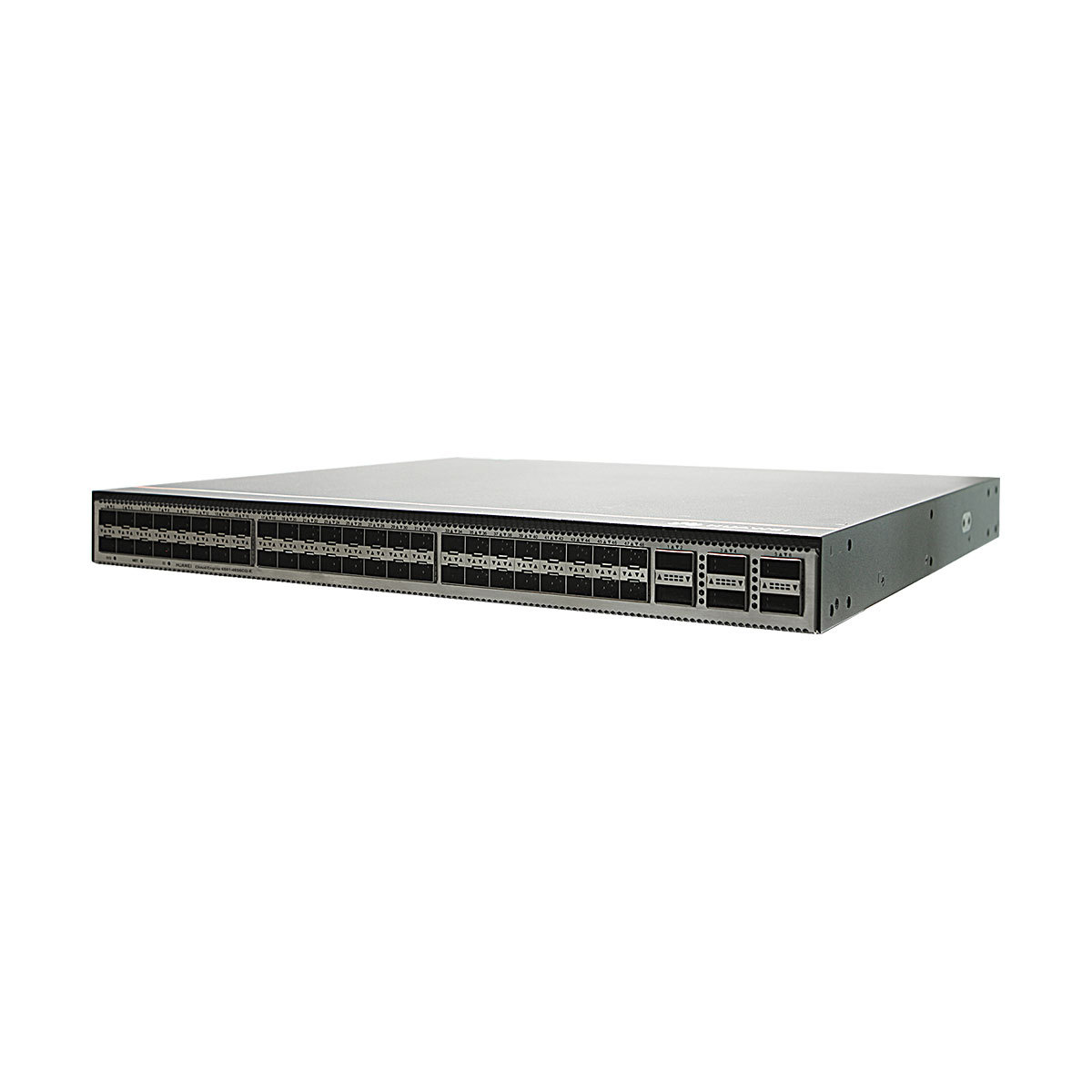

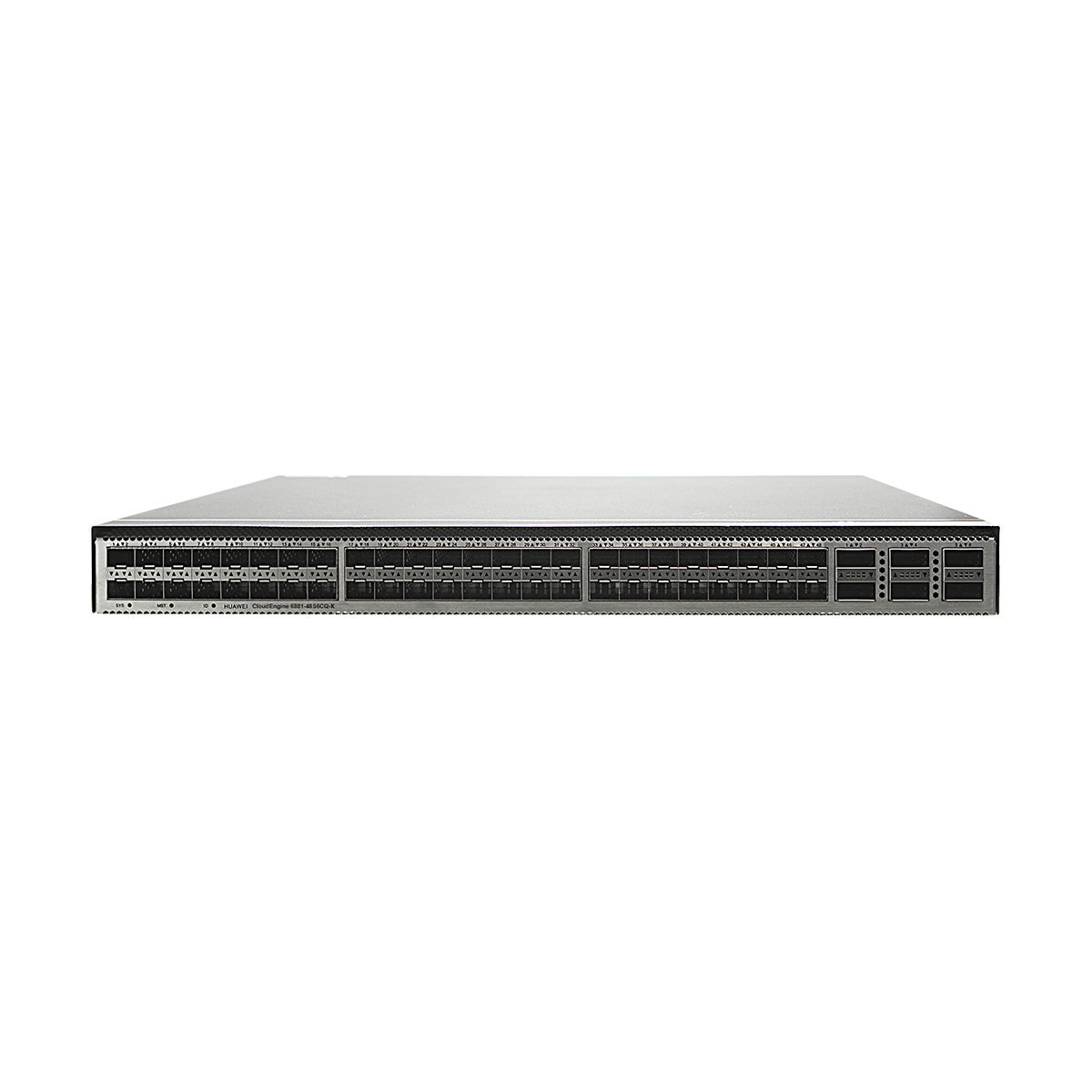

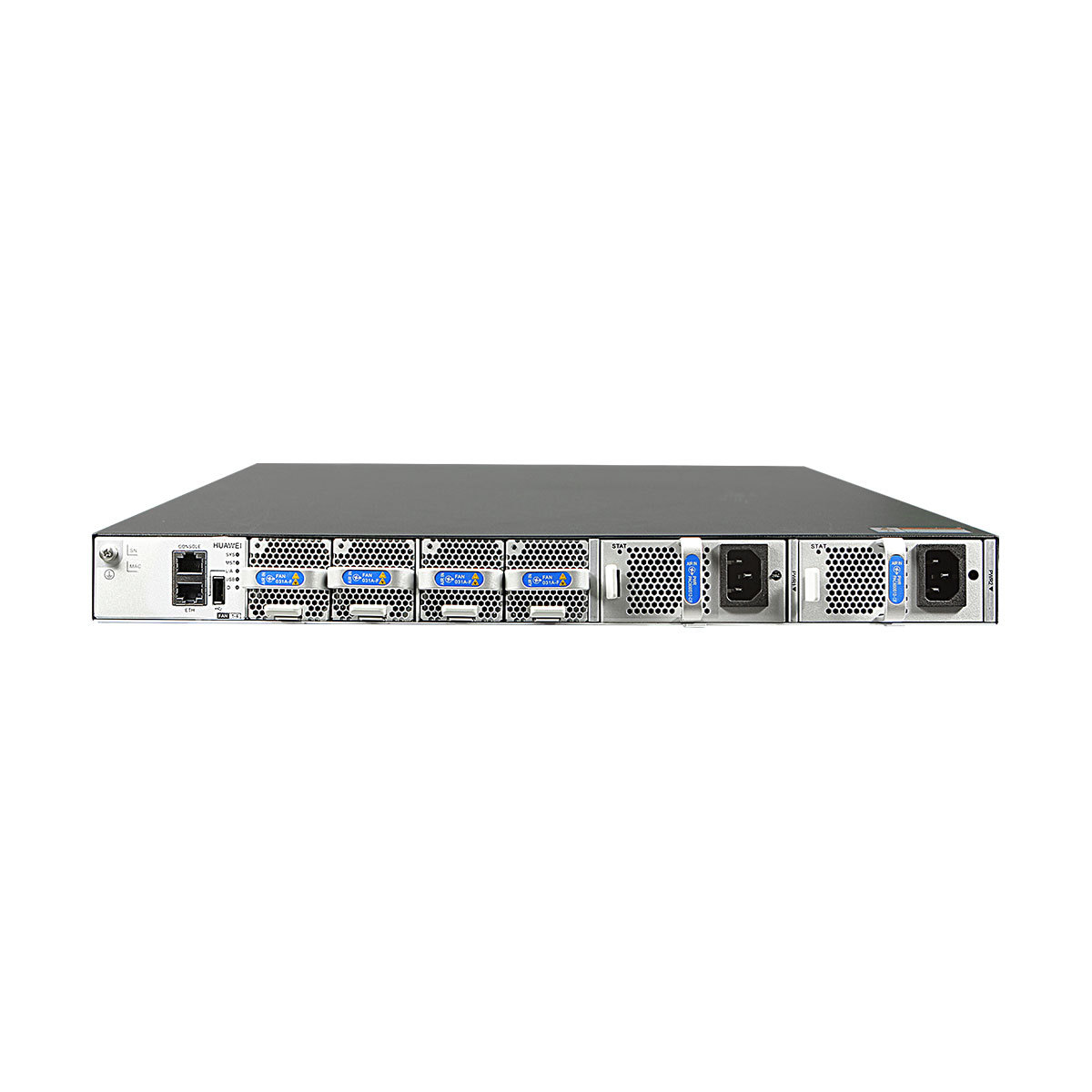

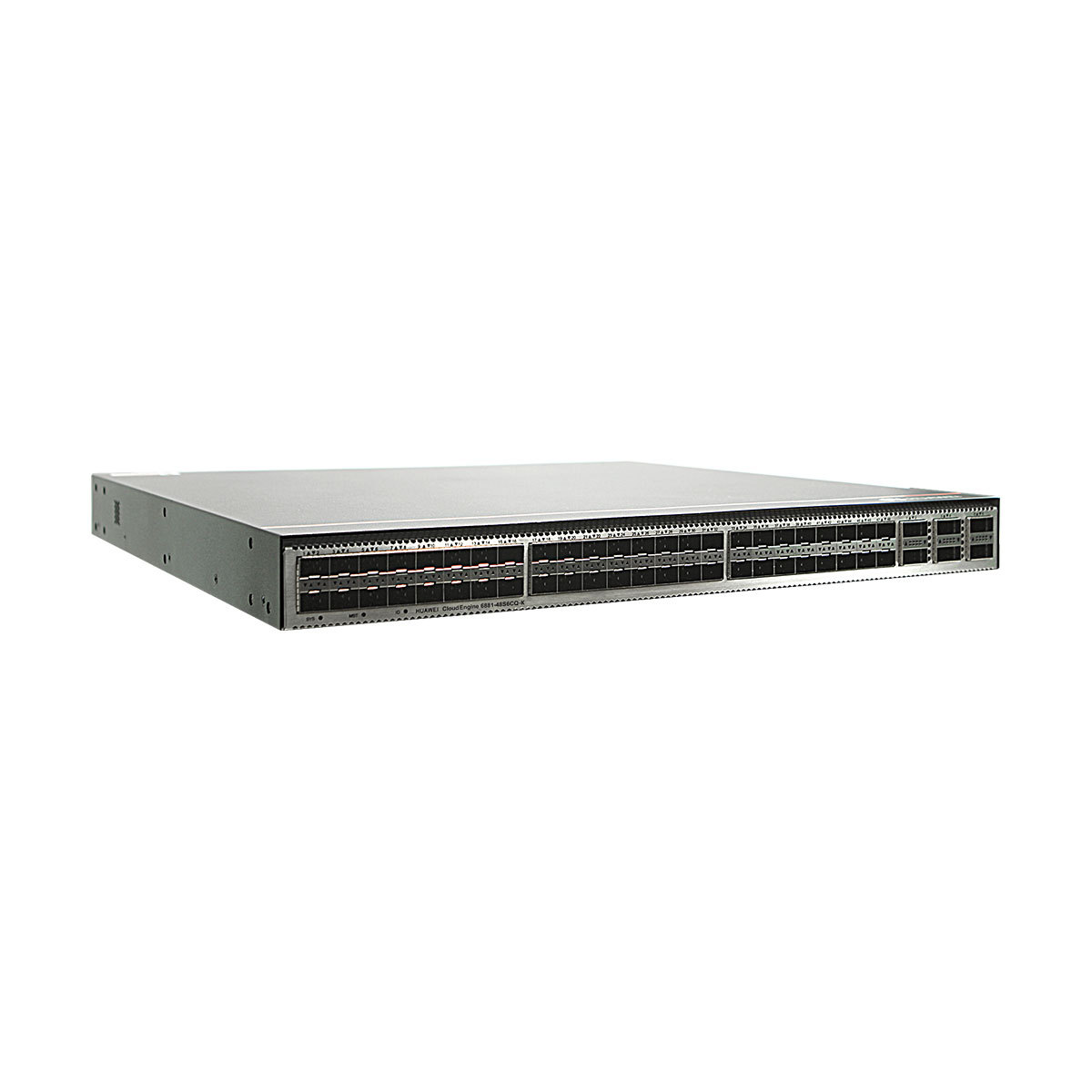

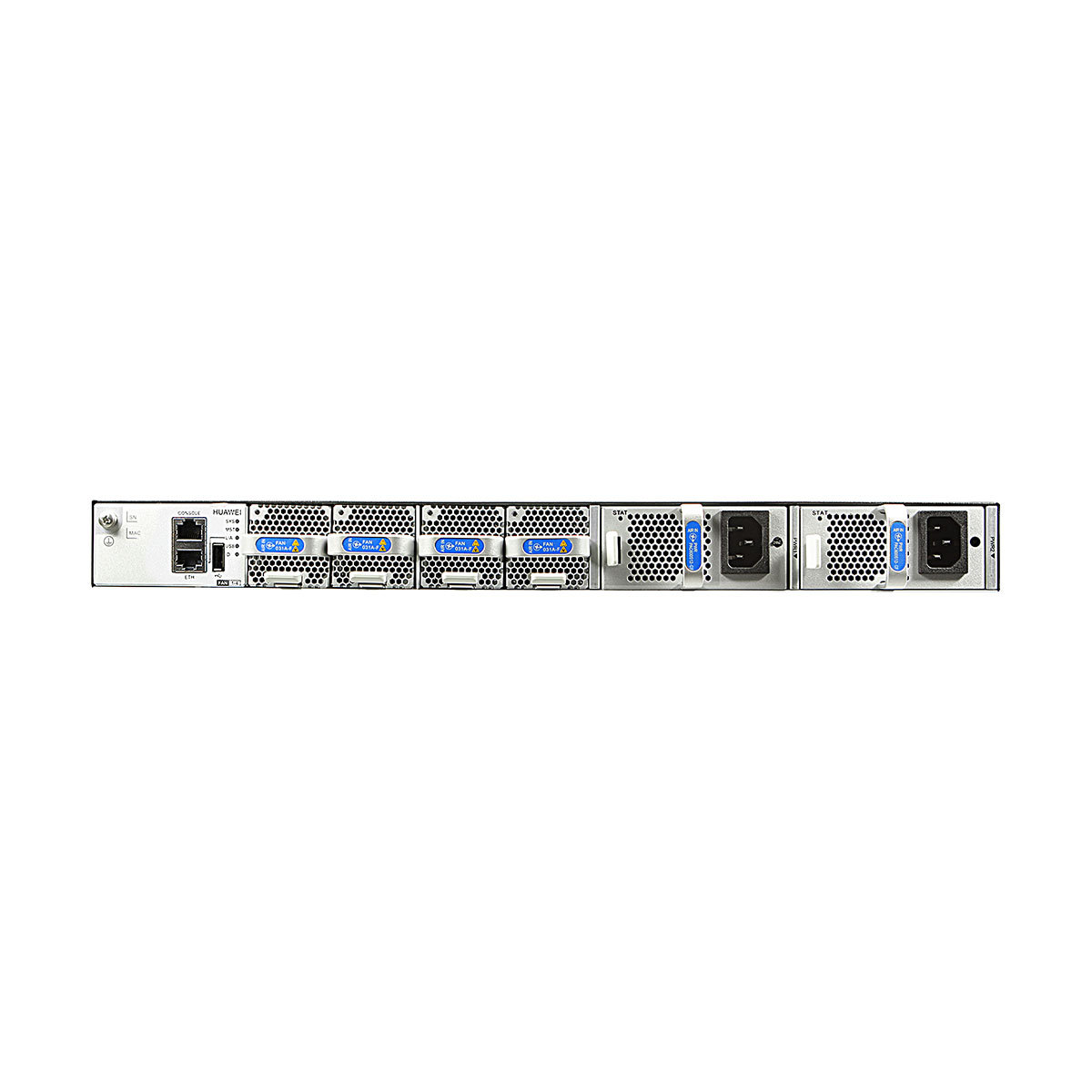

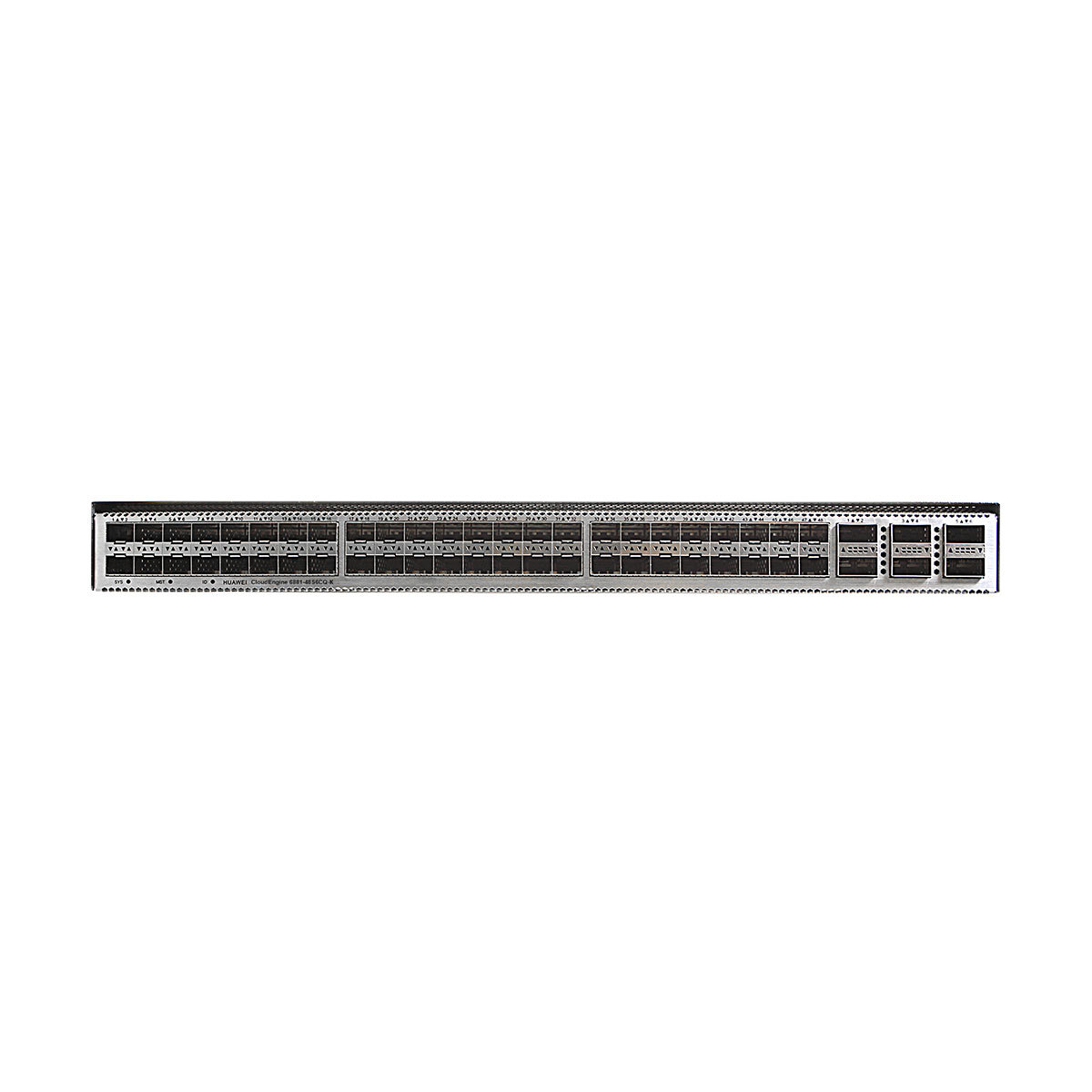

Huawei CE6881-48S6CQ-K Switch

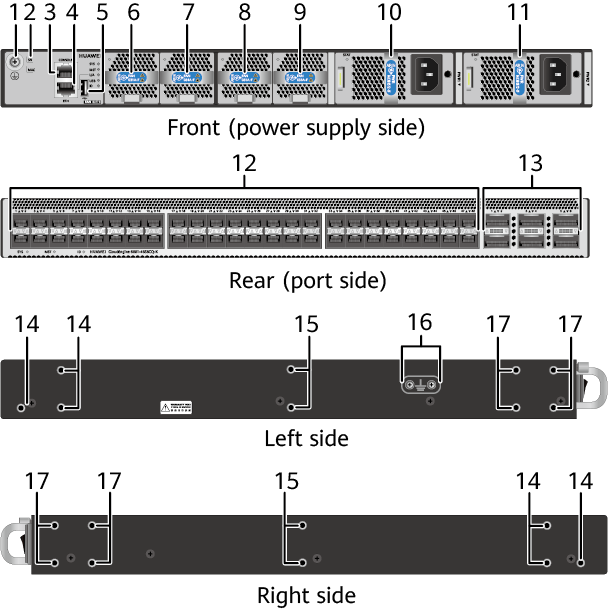

1

Ground screw

2

3

Console port

4

ETH management port (RJ45)

5

USB port

6

Fan slot 1

7

Fan slot 2

8

Fan slot 3

9

Fan slot 4

10

Power supply slot 1

Applicable power modules:

• 600 W AC&240 V DC Power Module (PAC600S12)
• 1000 W DC Power Module (PDC1000S12)
• 1200 W High-Voltage DC Power Module (PHD1K2S12-DB)

11

Power supply slot 2

12

Forty-eight 10GE SFP+ Ethernet optical ports

Applicable modules and cables:

• GE optical module
• GE copper module (works at 100 Mbit/s or 1000 Mbit/s)
• 10GE optical module (OSXD22N00 and LE2MXSC80FF0 not supported)

• SFP+ AOC cable
• SFP+ high-speed cable

13

Six 40GE/100GE QSFP28 Ethernet optical ports

• QSFP+ to QSFP+ AOC cable
• QSFP+ to QSFP+ high-speed cable (The cable can only be used as a stack cable or be used to connect peer-link interfaces in an M-LAG.)
• QSFP28 to QSFP28 AOC cable
• QSFP28 to QSFP28 high-speed cable (The cable can only be used as a stack cable or be used to connect peer-link interfaces in an M-LAG.)
  NOTE:

  When a QSFP28 high-speed cable is installed on a 100GE port that works at the rate of 100 Gbit/s, the port supports only the 1 m QSFP28 high-speed cable.

  When a QSFP28 high-speed cable is installed on a 100GE port and the speed 40000 command is run to set the rate to 40 Gbit/s, the port supports 1 m, 3 m, and 5 m QSFP28 high-speed cables.

14

Three port-side mounting holes for mounting brackets

15

Two middle mounting holes for mounting brackets

16

Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

17

Four power-supply-side mounting holes for mounting brackets

-

-

Connector type

LC

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ae

Working mode

Supported rate: 1000 Mbit/s and 10 Gbit/s auto-sensing

Full-duplex

Connector type

Depending on the optical module

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ba

Working mode

Full-duplex

Physical specifications

• Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
• Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 7.8 kg (17.20 lb)

Environment parameters

Temperature

• Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  NOTE:

  When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

• Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)

• Back-to-front airflow: < 57 dBA
• Front-to-back airflow: < 58 dBA

Power specifications

Power source type

AC/DC/HVDC

AC power input

• Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
• Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input

• Rated voltage range: -48 V DC to -60 V DC
• Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

• Rated voltage range: 240 V DC
• Maximum voltage range: 190 V DC to 290 V DC

Rated input current

• 600 W AC&240 V DC power module (PAC600S12 series):
  • 8 A (100 V AC to 240 V AC)
  • 4 A (240V DC)
• 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)

Chassis power consumption

Maximum power consumption

349 W

Typical power consumption

• 194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
• 240 W (100% throughput, short-distance optical modules on all optical ports, double power modules)

Chassis heat dissipation

Maximum heat dissipation

1191 BTU/hr

Typical heat dissipation

• 662 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
• 819 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)

Surge protection

Heat dissipation

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability and availability

Power module backup

1+1 backup

Fan module backup

The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

45.9 years

Mean time to repair (MTTR)

1.57 hours

Availability

0.9999960856

Technical specifications

Processor

1.4 GHz, four-core

DRAM memory

4 GB

NOR Flash

64 MB

NAND Flash

4 GB

Stack

Service port supporting the stacking function

10GE optical ports and 100GE optical ports

Certification

• Safety standards compliance
• EMC standards compliance
• Environmental standards compliance
