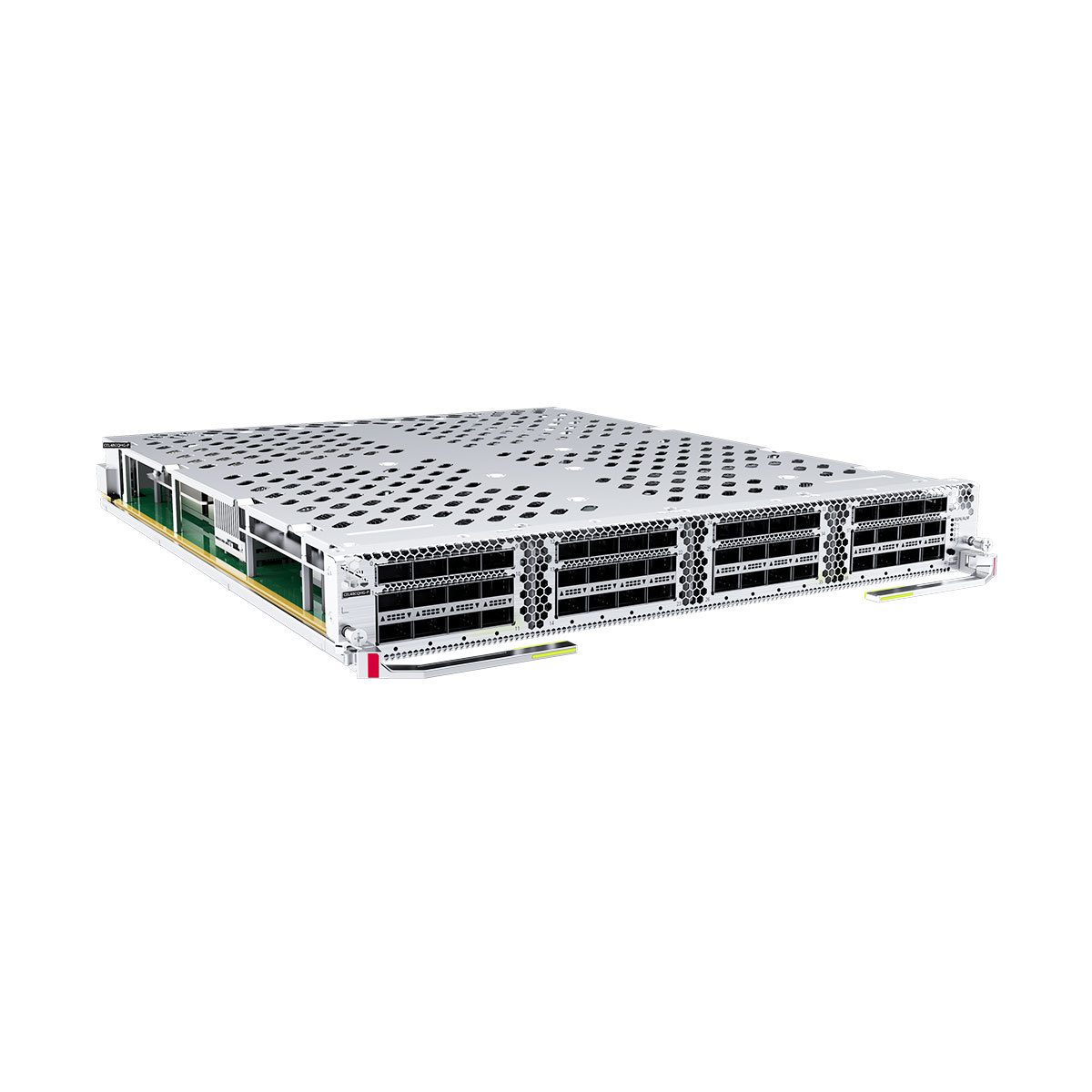

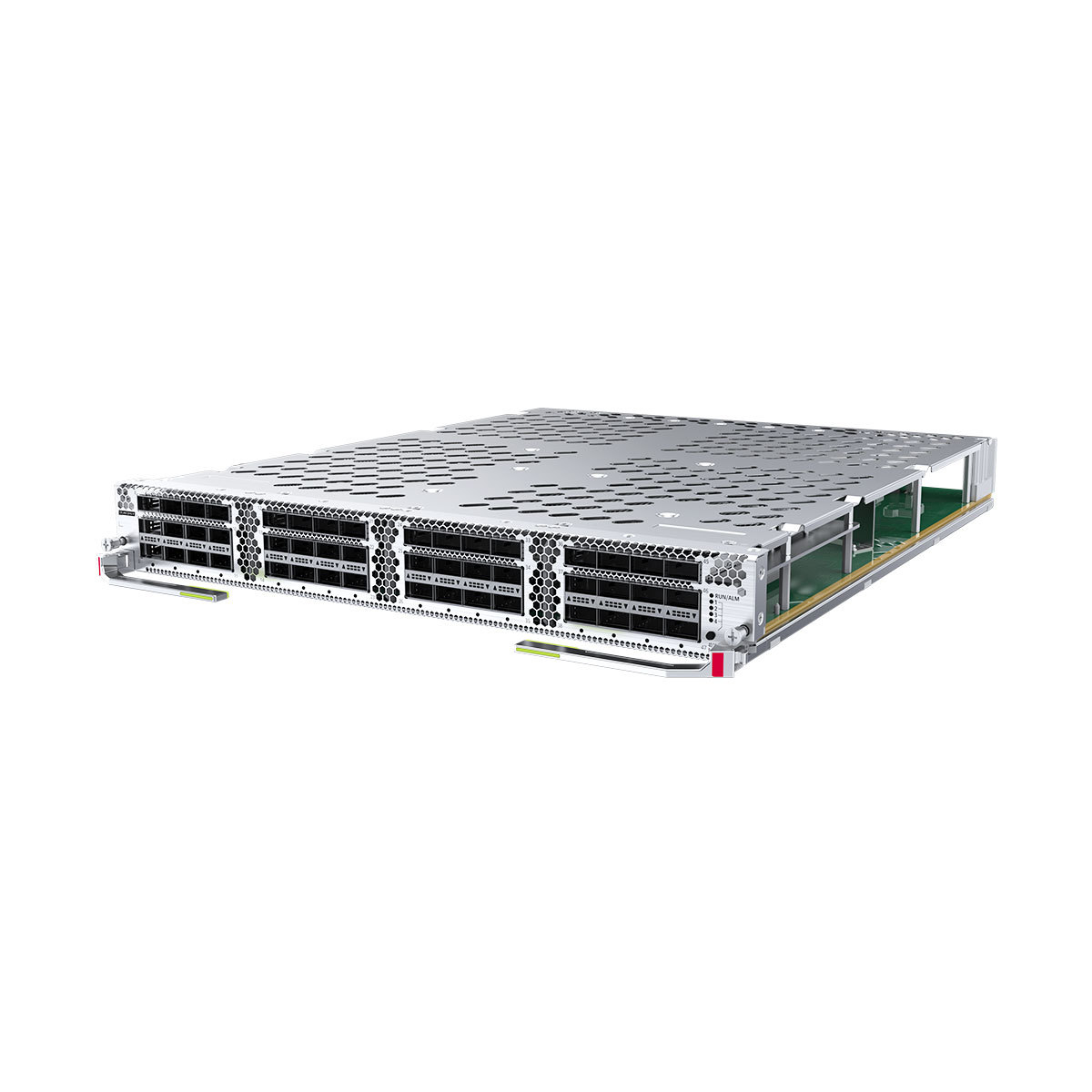

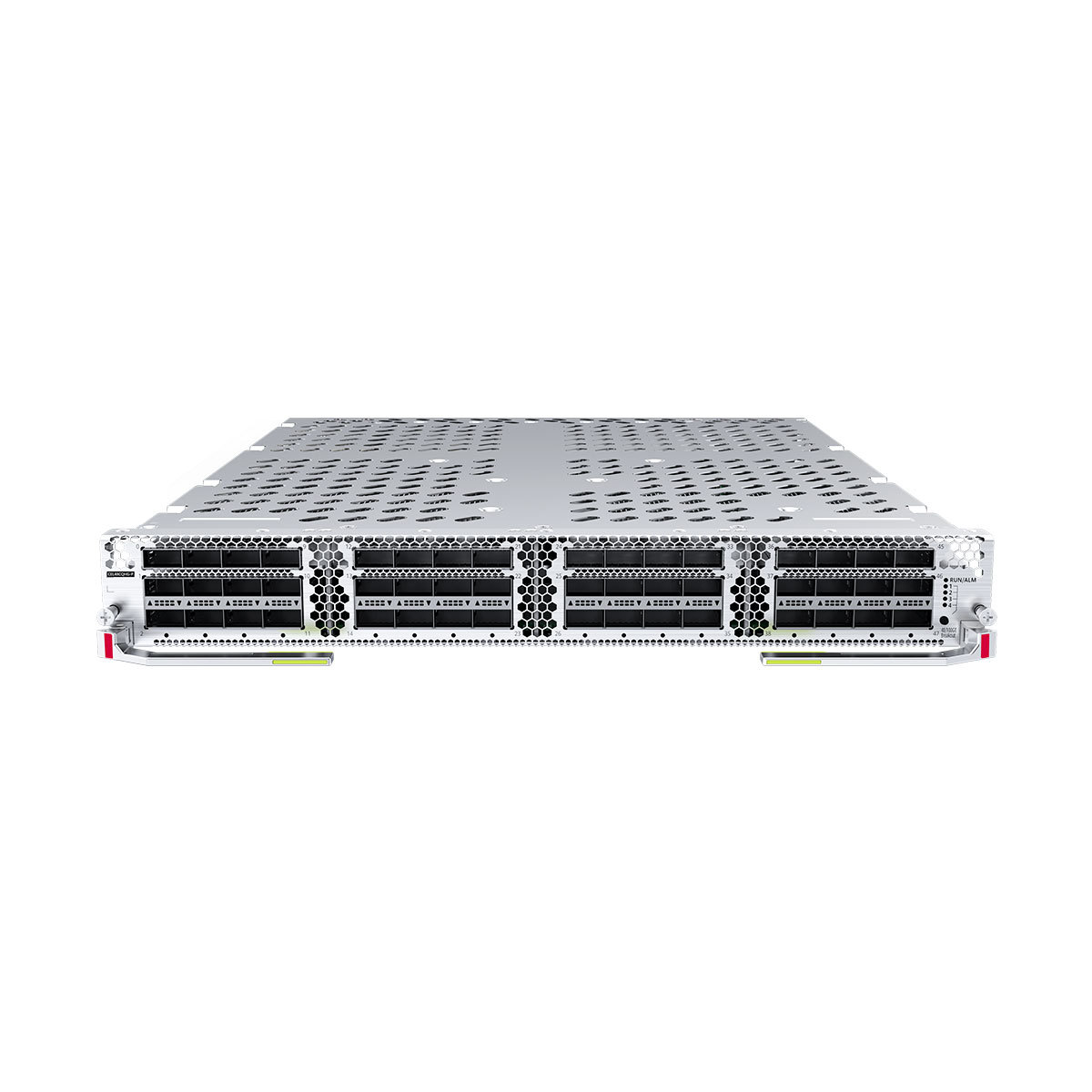

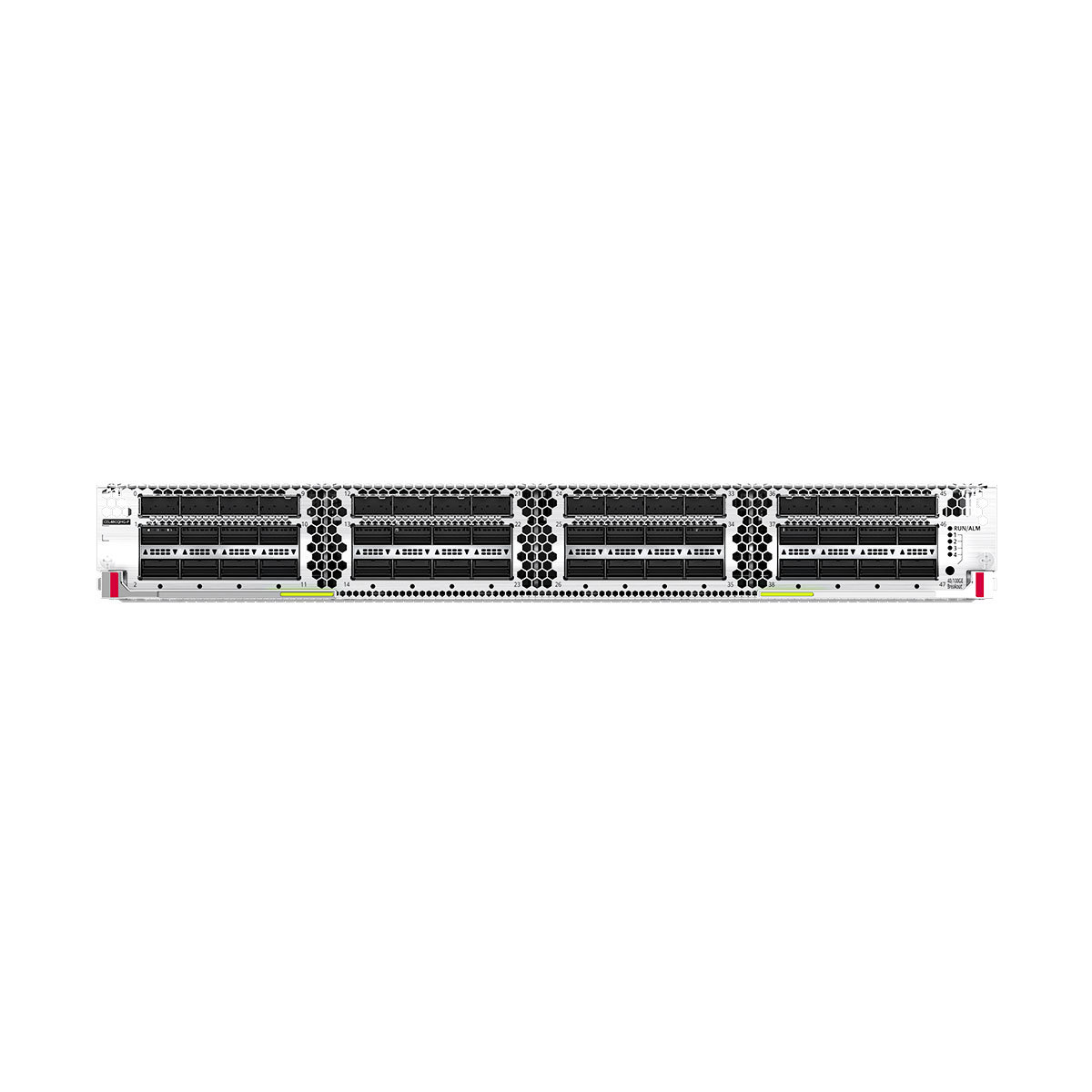

TheHuawei CEL48CQHG-P is a high-density 48-port 100GE interface card designed for the CloudEngine 16800 series data center switches.Utilizing QSFP28 interfaces, it supports flexible port configurations and high-throughput switching, making it ideal for large-scale data centers, cloud computing, and enterprise core networks.
Basic information about the CEL48CQHG-P
Item
Details
Description
48-port 100GE interface card (HG-P, QSFP28) (CM)
Part Number
03059453
Model
CEL48CQHG-P
Silkscreen
CEL48CQHG-P
Card Type
Interface Card
Ports on the CEL48CQHG-P
Port
Connector Type
Description
Available Components
48 x 100GE optical ports
QSFP28/QSFP+
Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules
100GE QSFP28 optical modules
QSFP+ to QSFP+ AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP28 to QSFP28 AOC cable
QSFP+ to QSFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable
QSFP28 to QSFP28 high-speed cable
QSFP28 to 4*SFP28 high-speed cable
CEL48CQHG-P Datasheet
Item
Description
Product Model
CEL48CQHG-P
Interface Type
48 × 100GE QSFP28 (Supports breakout: 4×25GE or 4×10GE)
Switching Capacity
Up to 4.8 Tbps
Compatible Chassis
Huawei CloudEngine CE16804 / CE16808 / CE16816
Protocol Support
L2/L3, VXLAN, EVPN, BGP, OSPF, IS-IS, MPLS, etc.
Operating Temperature
0°C to 40°C
Power Consumption
Approx. 730W (typical), up to 949W (maximum)
Installation Type
Line card, plug-in module
Typical Applications
Data center core, SAN networking, cloud infrastructure
CEL48CQHG-P FAQ
Q1: Which Huawei switch models does the CEL48CQHG-P support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches (such as CE12804/CE12808), CE8800 series high-end switches (such as CE8868-4C-EI), CE7800 series high-end switches, and some models of the CE9800 series. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use.
Q2: Can 48 ports simultaneously use both 25G and 10G optical modules? Is additional configuration required?
A2: It supports independent port rate auto-negotiation and can simultaneously use both 25G and 10G optical modules. Different ports flexibly adapt to different access scenarios without additional configuration, offering extremely strong compatibility.
Q3: How are the power consumption and heat dissipation performance of this interface card? Will it place an additional burden on the switch?
A3: It adopts a low-power design, and the power consumption of a single card is at a low level compared to similar ultra-dense interface cards in the industry. It is compatible with the redundant heat dissipation system of the switch, so there is no need to add additional heat dissipation equipment and it will not put extra pressure on the heat dissipation of the switch.
