Port for inputting and outputting 10GE/GE optical signals
GE eSFP optical modules GE SFP copper modules 10GE SFP+ optical modules SFP+ to SFP+ AOC cable SFP+ to SFP+ high-speed cable

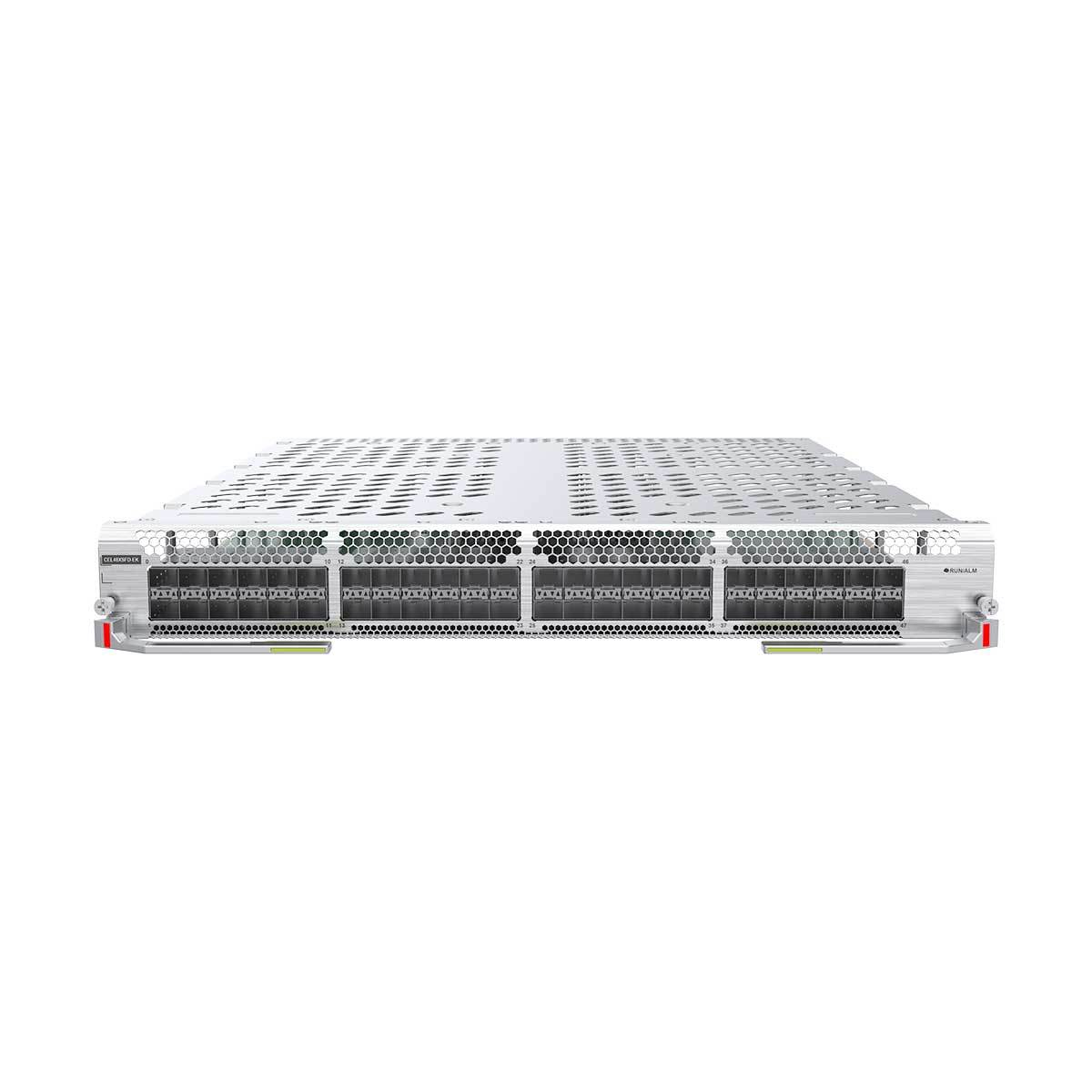

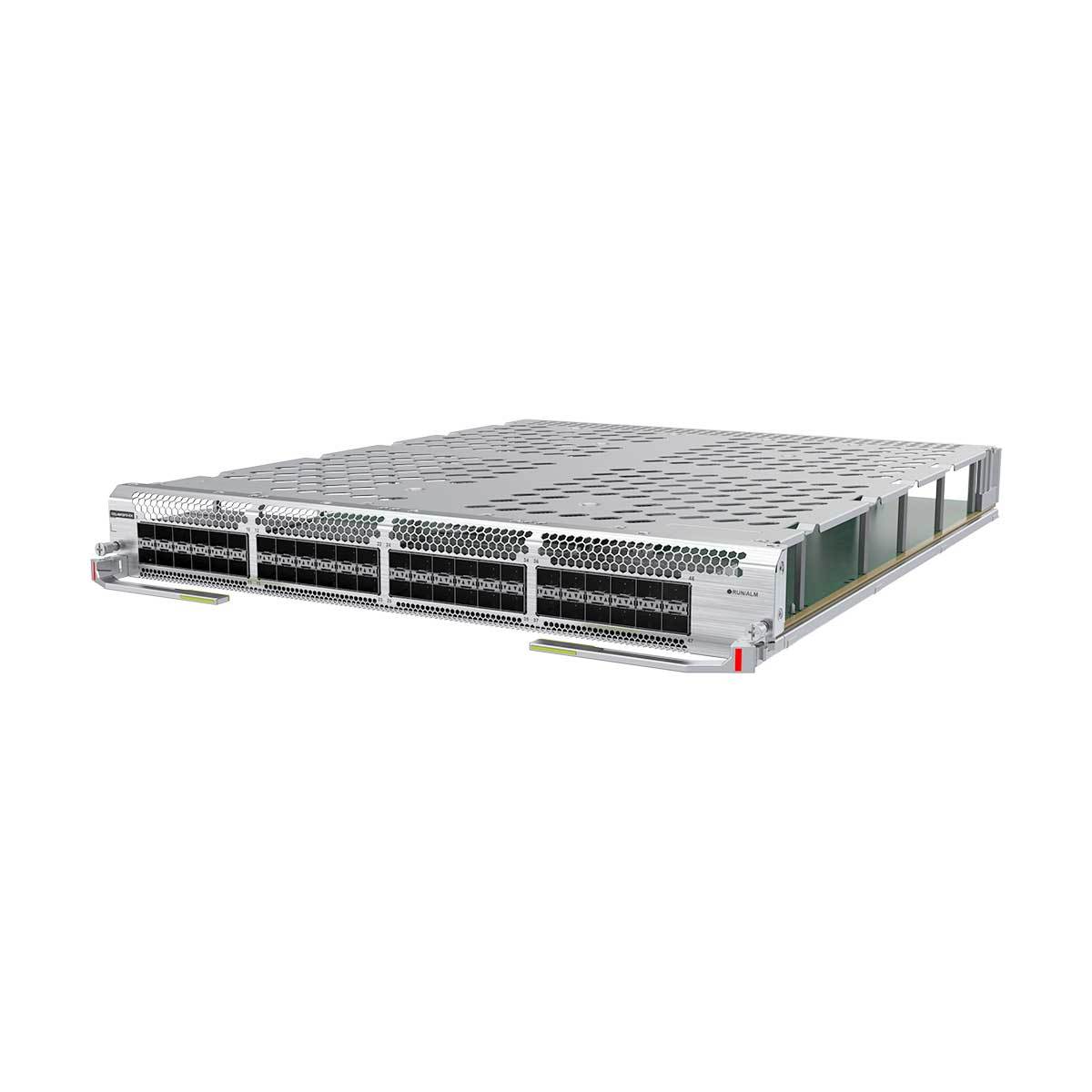

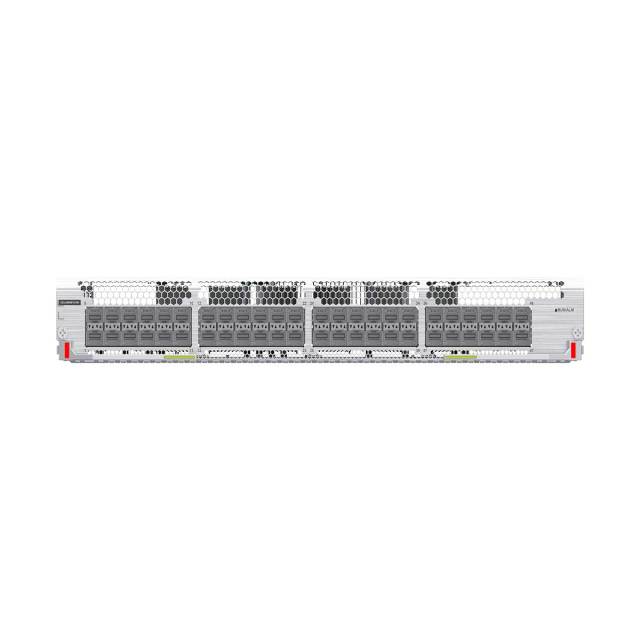

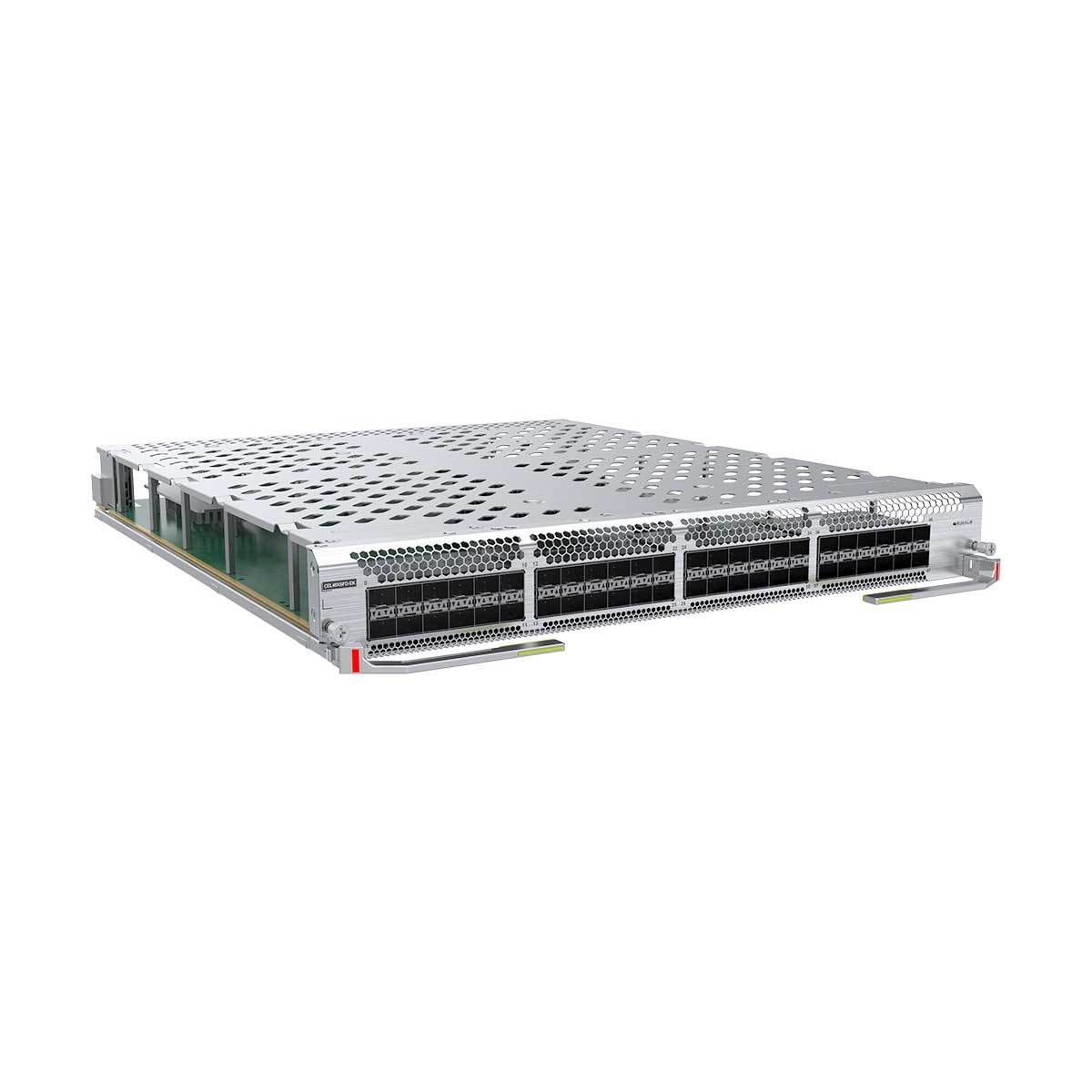

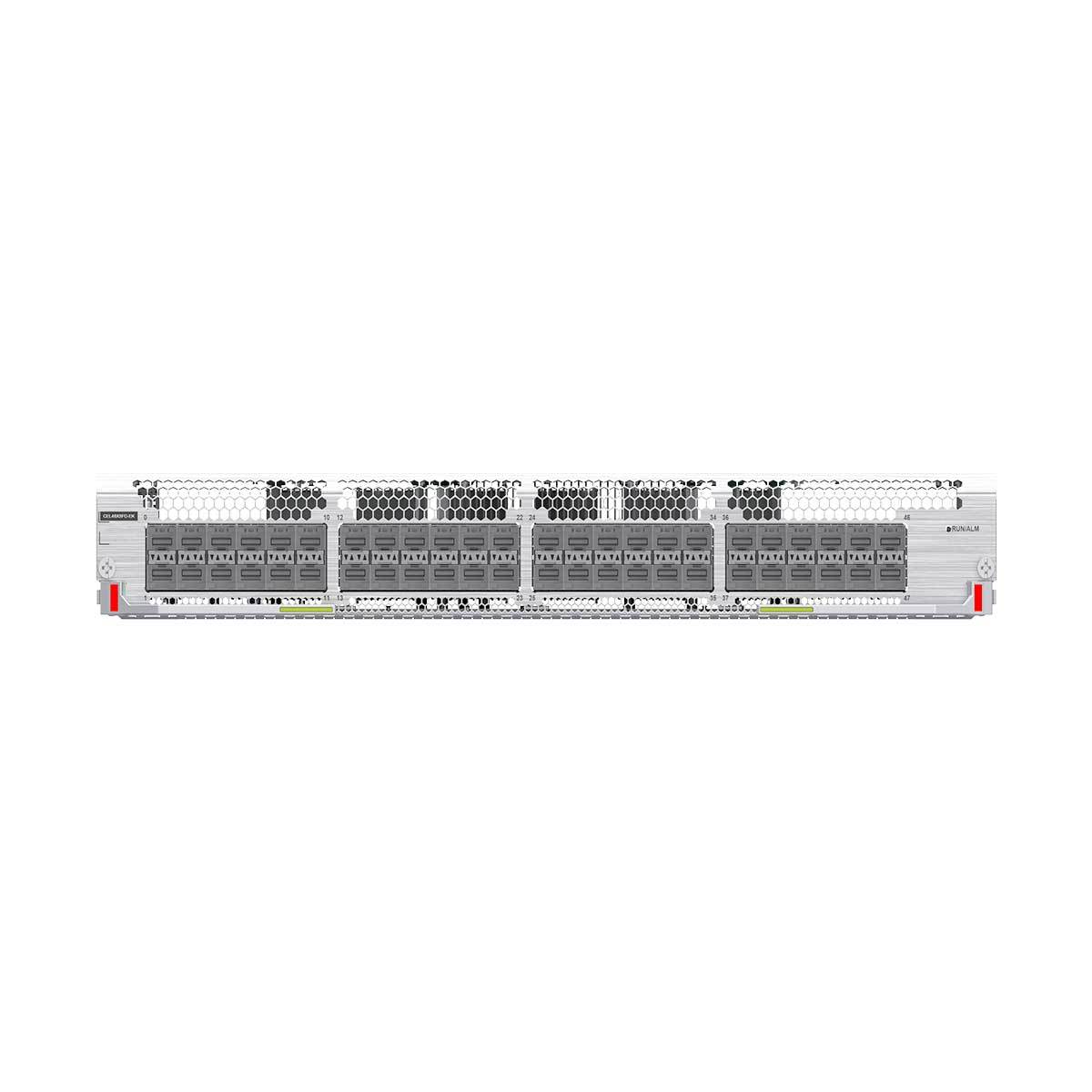

CEL48XSFD-EK Datasheet
Item
CEL48XSFD-EK
Typical power consumption [W]
103 W
Typical heat dissipation [BTU/hour]
352 BTU/hour
Static power consumption [W]
85 W
Static heat dissipation [BTU/hour]
290 BTU/hour
Maximum power consumption [W]
193 W
Maximum heat dissipation [BTU/hour]
659 BTU/hour
CPU
Quad-core, 1.4 GHz clock speed
Memory
Standard 4 GB
NOR Flash
Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]
6.7 kg (14.77 lb)
Weight with packaging [kg (lb)]
11.6 kg (25.58 lb)
CEL48XSFD-EK FAQ
Q1: Which Huawei switch models does the CEL48XSFD-EK support? How compatible is it?
A1: It mainly supports Huawei CE12800 series flagship switches (such as CE12816/CE12812) and CE9800 series high-end switches (such as CE9866-128DQ). The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use.
Q2: Can 100G and 25G optical modules be used simultaneously on the 48 ports? What is the long-distance transmission range?
A2: It supports independent port rate auto-negotiation and can use 100G and 25G optical modules simultaneously. With corresponding long-distance optical modules, it can achieve transmission distances from 10km (LR) to 40km (ER), flexibly adapting to different cross-regional distance requirements.
Q3: How are the power consumption and heat dissipation performance of this interface card? Is stability affected under ultra-dense long-distance transmission?
A3: Adopting a low-power optimized design, the power consumption of a single card is controlled at a low level compared to other flagship ultra-dense long-distance interface cards in the industry, and it is compatible with the redundant heat dissipation system of the switch; long-distance transmission supports FEC error correction and anti-interference optimization, and its stability is not affected by ultra-dense access and distance.
