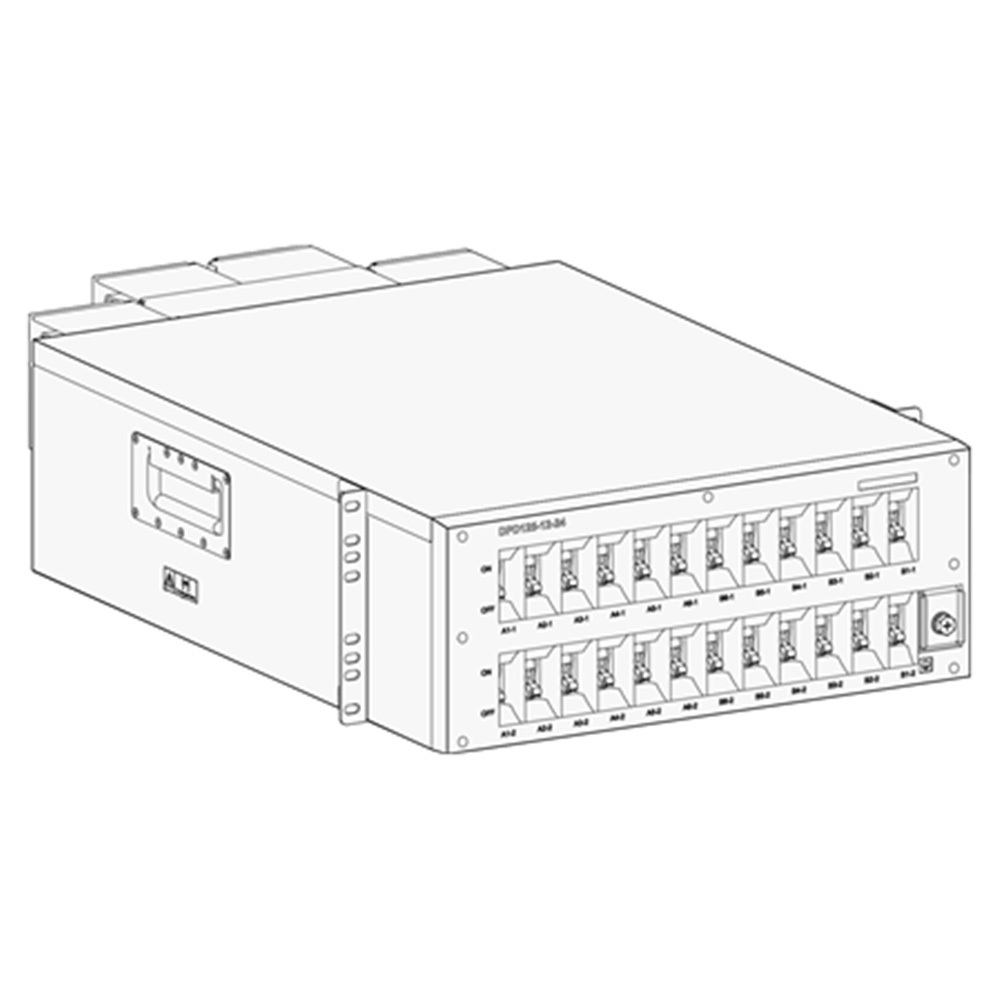

Huawei S16700 Series Switches CR5MDPD12500 DC Power Distribution Box.
Mappings between CR5MDPD12500 and product models
Product
Product Model
First Supported Version
S16700-4
EX1BS16704SD0 (02355HUM)
V600R022C10
S16700-8
EX1BS16708SD0 (02355HUP)
V600R022C10
Functions and Features
The power distribution box can convert 6 or 12 DC input lines into 24 output lines. It can be used in equipment room that cannot provide enough power lines.
Technical specifications of the CR5MDPD12500
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
175 mm x 442 mm x 740 mm (6.89 in. x 17.4 in. x 29.13 in.)
Weight without packaging [kg(lb)]
30kg (66.14 lb)
Rated input voltage [V]
-48 V/-60 V
Input voltage range [V]
–72 V DC to –40 V DC
Rated output voltage [V]
-48 V/-60 V
Maximum input current [A]
No copper fitting: 6 x 125 A + 6 x 125 A
With copper fittings: 3 x 250 A + 3 x 250 A
Maximum output current [A]
12 x 60 A + 12 x 60 A
Number of inputs
No copper fitting: 12
With copper fittings: 6
Number of outputs
24
CR5MDPD12500 FAQ
Q1: Which Huawei device models are specifically compatible? Can it directly replace an old PDU?
A1: Compatible with Huawei S5700 (S5720/S5730, etc.), S6700 (S6720/S6730, etc.), and S7700 (S7703/S7706, etc.) series switches; the installation dimensions and interface specifications are consistent, and it can directly replace old PDUs without additional configuration.
Q2: What is the wide voltage compatibility range? Can it be used in remote areas with unstable voltage?
A2: The input voltage supports AC 100-240V, and it is compatible with voltage fluctuations of ±20%, fully adapting to remote areas and environments with unstable power grids.
Q3: How many of these PDUs are needed per device? Does it support remote monitoring?
A3: One PDU is sufficient for a single switch/small server cluster to meet redundant power supply requirements; it supports remote monitoring, requiring connection to the data center's SNMP monitoring system, but no additional software purchase is required.
