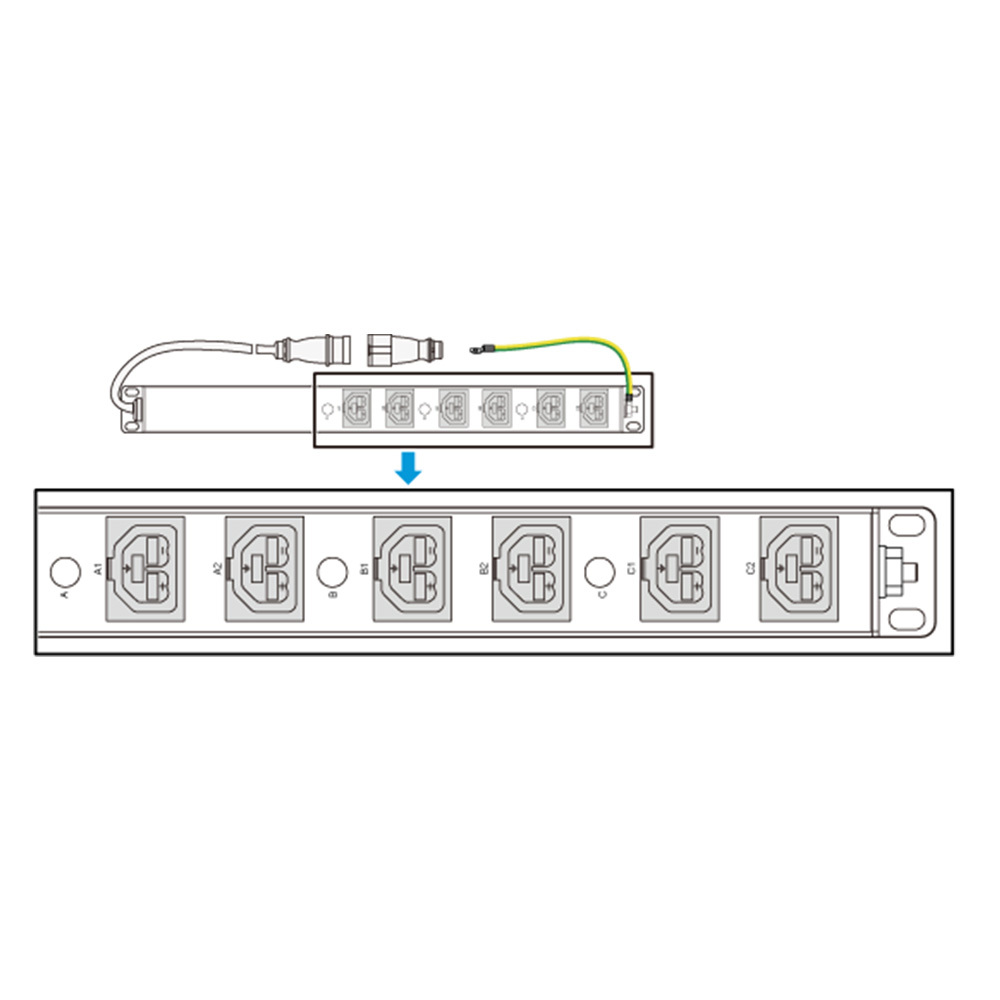

Huawei S16700 Series Switches CR8MP2K3PHC0 Three-phase AC Power Distribution Unit.
Mappings between CR8MP2K3PHC0 and product models
Product
Product Model
First Supported Version
S16700-4
EX1BS16704SA0 (02355HUL)
V600R022C10
S16700-4
EX1BS16704SA0 (02355HUL-001)
V600R024C10
S16700-8
EX1BS16708SA0 (02355HUN)
V600R022C10
S16700-8
EX1BS16708SA0 (02355HUN-001)
V600R024C10
Functions and Features
A 380 V three-phase PDU supports three-phase 346 V to 415 V AC power input and provides three groups of power outputs A, B, and C. Each group controls two HVDC-3Z-03 sockets. When the groups are connected to a chassis, the total current of all sockets in each group cannot exceed 32 A.
Technical specifications of the CR8MP2K3PHC0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
With mounting brackets: 43.6 mm x 484 mm x 60 mm (1.72 in. x 19.06 in. x 2.36 in.)
Without mounting brackets: 43.6 mm x 442 mm x 60 mm (1.72 in. x 17.4 in. x 2.36 in.)
Weight without packaging [kg(lb)]
3.58 kg (7.89 lb)
Rated input voltage [V]
380 V AC
Input voltage range [V]
346 V AC to 415 V AC, 50/60 Hz
Rated output voltage [V]
220 V
Maximum input current [A]
32 A
Maximum output current [A]
16 A
Number of inputs
One three-phase five-core industrial plug (IEC 60309/250 V AC/32 A)
Number of outputs
Six HVDC-3Z-03 sockets for power output
Front-end circuit breaker/fuse [A]
32 A
CR8MP2K3PHC0 FAQ
Q1: Which Huawei switch models are specifically compatible? What is the difference between this and a single-phase PDU?
A1: Compatible with Huawei S9700 (S9706/S9712) and S12700 (S12708/S12710/S12712) series high-end switches. Compared to single-phase PDUs, three-phase power supply offers stronger load capacity and higher stability, making it suitable for high-power switches.
Q2: Does intelligent monitoring require additional configuration? How can I check the power supply status?
A2: No additional configuration is required. It supports the SNMP protocol by default and can be connected to the unified monitoring system of the data center or the Huawei iMaster NCE platform to remotely view voltage, current, load rate, and fault warnings.
Q3: How many of these PDUs are needed per switch?
A3: It is recommended to equip each high-end switch with 1-2 PDUs. One PDU provides basic redundant power supply, and two PDUs provide dual backup (suitable for ultra-core scenarios). The specific configuration depends on the switch's power requirements and the data center's redundancy standards.
