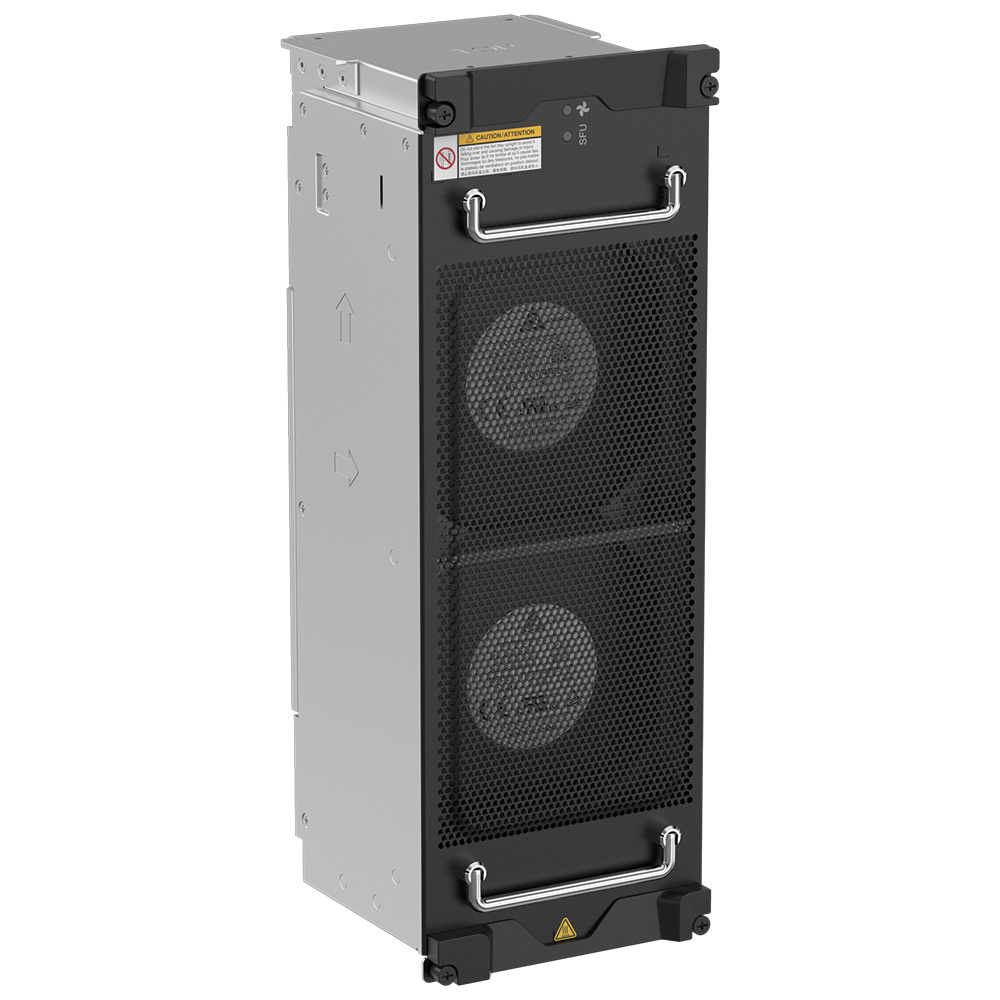

Huawei S16700 Series Switches FAN-240SA-B Fan Module.
Functions and features of the FAN-240SA-B
Functions and Features
Description
Basic function
The fan module dissipates heat for the chassis so that the chassis can work properly and efficiently within the operating temperature range.
Noise reduction
When the fan module is powered on, it rotates at 48% of the full speed for at most 5 minutes. After the fan module communicates with the MPU normally, the MPU controls running of the fan module.
Automatic fan speed adjustment
After the fan module communicates with the MPU normally, the MPU controls the speed of the fan module according to temperature of cards in the chassis.
Alarm report
The fan module can report alarms on fan module failures and communication failures.
Electronic label
The MPU reads and loads the electronic label of the fan module through RS485.
Hot swapping
Supported
Technical specifications of the FAN-240SA-B
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
361 mm x 129 mm x 143 mm (14.21 in. x 5.08 in. x 5.63 in.)
Weight without packaging [kg(lb)]
3.3 kg (7.28 lb)
Number of fans
2
Maximum power consumption [W]
180 W
Maximum airflow [CFM]
580 CFM
Maximum wind pressure [Pa]
652.8 Pa
