The fan module dissipates heat for the chassis so that the chassis can work properly and efficiently within the operating temperature range.
Noise reduction
When the fan module is powered on, it rotates at 48% of the full speed for at most 5 minutes. After the fan module communicates with the MPU normally, the MPU controls running of the fan module.
Automatic fan speed adjustment
After the fan module communicates with the MPU normally, the MPU controls the speed of the fan module according to temperature of cards in the chassis.
Alarm report
The fan module can report alarms on fan module failures and communication failures.
Electronic label
The MPU reads and loads the electronic label of the fan module through RS485.
Hot swapping
Supported

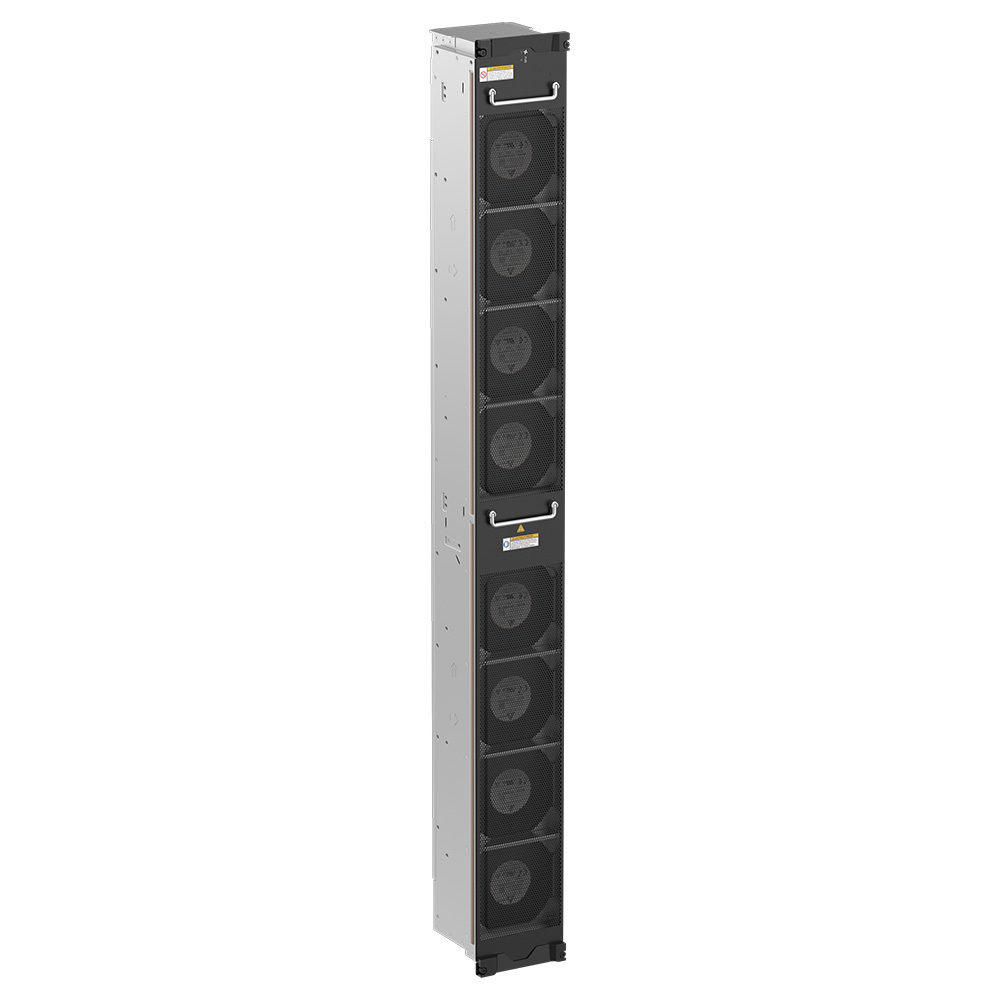

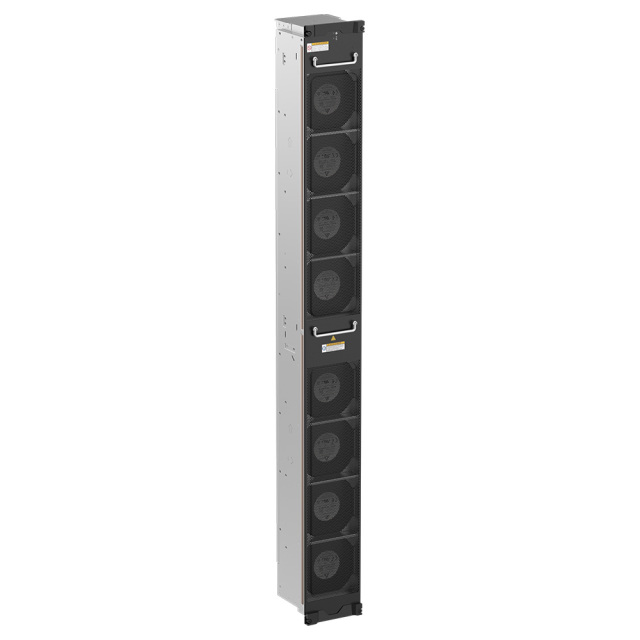

Technical specifications of the FAN-960SA-B
Item
Specification
Dimensions without packaging (H x W x D) [mm (in.)]
1193 mm x 129 mm x 143 mm (46.97 in. x 5.08 in. x 5.63 in.)
Weight without packaging [kg (lb)]
10.4 kg (22.93 lb)
Number of fans
8
Typical power consumption [W]
72 W
Maximum power consumption [W]
720 W
Maximum airflow [CFM]
2320 CFM
Maximum wind pressure [Pa]
652.8 Pa
Airflow direction
FAN panel side exhaust
FAN-960SA-B FAQ
Q1: Which Huawei switch models does the FAN-960SA-B support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches, CE8800 series high-end switches, and some models of the CE9800 series. The size and interfaces are fully matched, with 100% compatibility; it can be used simply by plugging and unplugging.
Q2: Will efficient heat dissipation increase energy consumption? Can the noise level meet the requirements of the data center?
A2: It adopts intelligent speed control technology, and energy consumption is dynamically adjusted according to the equipment temperature, with no redundant waste; the operating noise is ≤56dB, which meets the acoustic standards of medium and large data centers and enterprise core data centers, and does not affect the environment.
Q3: How is redundant deployment achieved? Will a single module failure affect equipment operation?
A3: It supports parallel redundant deployment of 2-3 modules. The switch system monitors the status of each module in real time; after a single module fails, the remaining modules automatically speed up to compensate, the heat dissipation capacity is not affected, and the equipment continues to operate normally.
