When a QSFP+ to QSFP+ high-speed cable is installed on a port, the cable can only be used as a cable of an M-LAG peer-link interface.

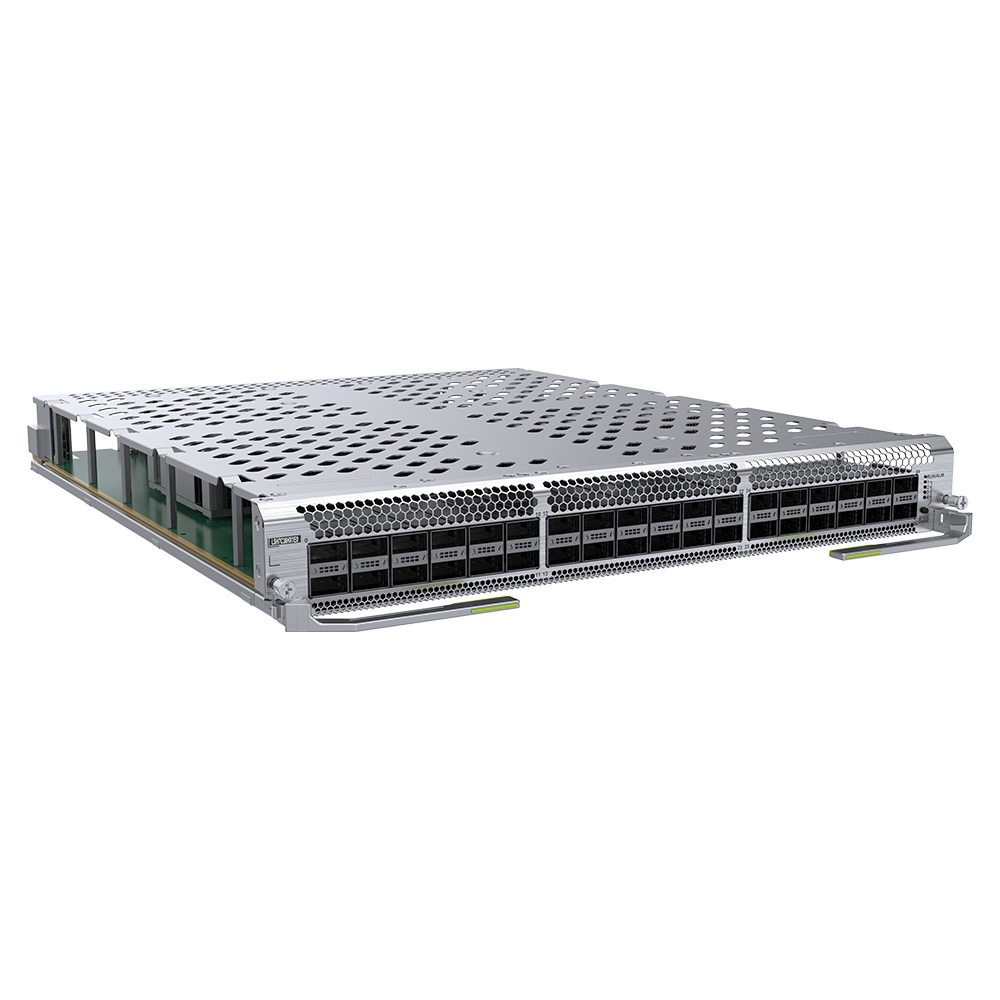

Functions and Features of the LSH7C36HX1E0
Functions and Features
Description
Basic function
The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density
All LPUs are of this model:
The S16700-4 chassis provides a maximum of 144 100GE ports.
The S16700-8 chassis provides a maximum of 288 100GE ports.
100GE port
Supports QSFP28 and QSFP+ optical modules. 100GE ports can work as 40GE ports through auto-sensing or be split into four 25GE or 10GE ports.
Provides up to 36 x 100GE, 36 x 40GE, 144 x 25GE, or 144 x 10GE ports.
The 36 optical ports are independent, and each can work as a 40GE port or be split into four 25GE or 10GE ports.
Hot swapping
Supported
Restrictions and remarks
When the LSH7C36HX1E0 works with the LSH7SFUAX100 or LSH7SFUGX100, the LSH7C36HX1E0 cannot forward packets at the line rate. You are advised to use the LSH7C36HX1E0 together with the LSH7SFUBX100 or LSH7SFUHX100 SFU.
When 100GE optical modules with a transmission distance of 80 km or longer are used, three fan modules need to be configured. When 100GE optical modules with a transmission distance of 10 km or shorter or 40GE optical modules are used, two fan modules can be configured. When 100GE optical modules with a transmission distance of 40 km are fully configured and two fan modules are used, the online maintenance time of fan modules and SFUs cannot exceed 5 minutes.
Technical Specifications of the LSH7C36HX1E0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg(lb)]
8.4 kg (18.52 lb)
Weight with packaging [kg(lb)]
13.3 kg (29.32 lb)
Typical power consumption [W]
525 W
Typical heat dissipation [BTU/hour]
1793 BTU/hour
Maximum power consumption [W]
764 W
Maximum heat dissipation [BTU/hour]
2609 BTU/hour
Memory
8 GB (standard configuration)
LSH7C36HX1E0 FAQ
Q1: Which optical modules are supported? Can existing 1G optical modules be reused?
A1: Supports Huawei SFP+/SFP series optical modules. 10G uses SFP+ (SR/LR) modules, and 1G uses SFP modules. Existing 1G optical modules can be directly reused, reducing upgrade costs.
Q2: What is the maximum number of terminals supported by a single service board?
A2: A single port can stably connect 30-40 terminals. A total of 36 ports can support 1000-1400 terminals, meeting the needs of large-scale aggregation scenarios.
Q3: What are the differences between this model and the Huawei LSH7C36HX2E0?
A3: The core performance (number of ports, capacity) is the same. This model focuses more on high cost-effectiveness, offering a more competitive price, making it suitable for large-scale projects with tight budgets.
