Port for inputting and outputting 100GE/40GE optical signals
100GE QSFP28 optical modules
40GE QSFP+ optical modules
QSFP28 to QSFP28 AOC cable
QSFP+ to QSFP+ AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP28 to QSFP28 high-speed cable
QSFP+ to QSFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable

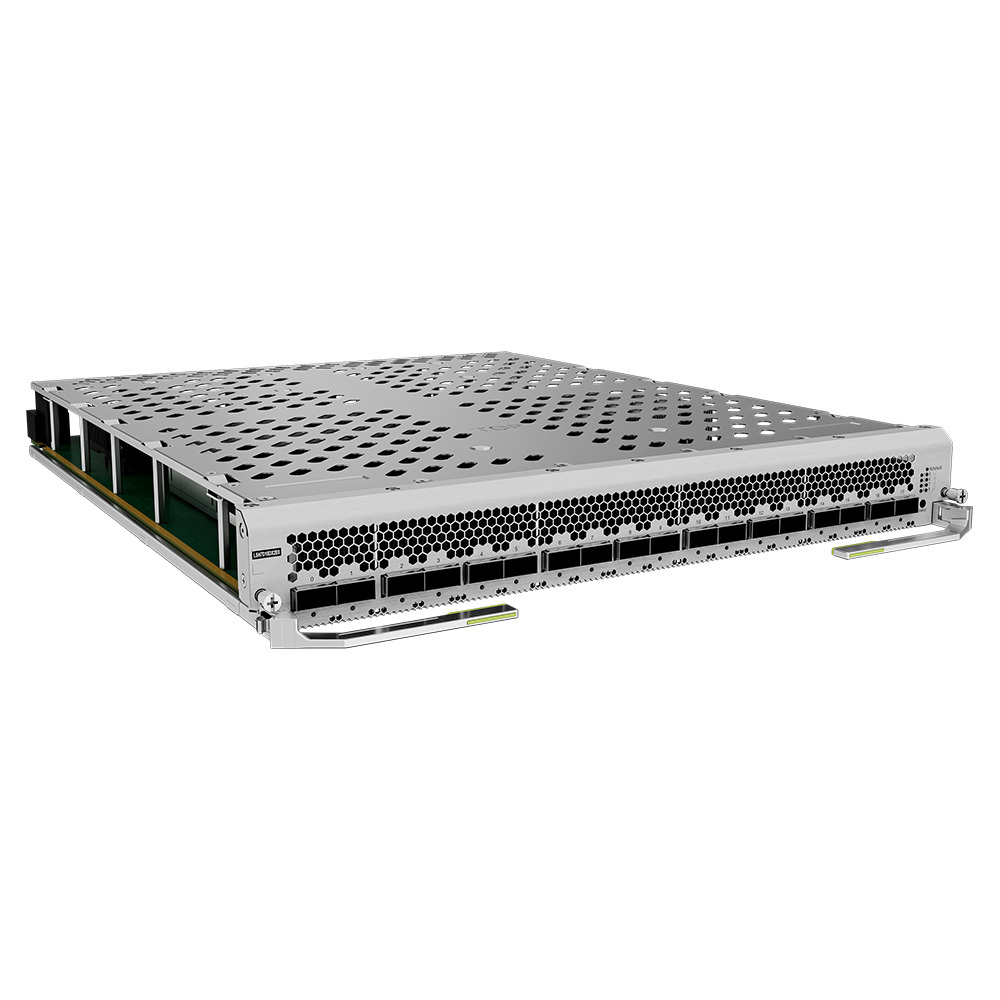

Functions and Features of the LSH7C36HX2E0
Functions and Features
Description
Basic function
The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density
If all LPUs are these cards:
The S16700-4 chassis provides a maximum of 144 100GE ports.
The S16700-8 chassis provides a maximum of 288 100GE ports.
100GE port
100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into 4 x 25GE or 4 x 10GE ports.
The card can provide a maximum port density of 36 x 100GE, 36 x 40GE, 144 x 25GE, or 144 x 10GE.
Each 100GE port can be used as a 40GE port through auto-sensing.
Every two ports (0-1, 2-3, 4-5, 6-7, 8-9, 10-11, 12-13, 14-15, 16-17, 18-19, 20-21, 22-23, 24-25, 26-27, 28-29, 30-31, 32-33, and 34-35) form a group. The two ports in a group need to be split together, and each port can be split into 4 x 25GE or 4 x 10GE ports.
Hot swapping
Supported
MACsec
Ports 0 to 7, 12 to 19, and 24 to 31 support MACsec. When these ports are configured to work at 40 Gbit/s or are split, MACsec is still supported. Other ports do not support MACsec.
Technical Specifications of the LSH7C36HX2E0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg(lb)]
7.32 kg (16.14 lb)
Weight with packaging [kg(lb)]
11.70 kg (25.79 lb)
Typical power consumption [W]
352 W
Typical heat dissipation [BTU/hour]
1200 BTU/hour
Maximum power consumption [W]
558 W
Maximum heat dissipation [BTU/hour]
1903 BTU/hour
Memory
8 GB (standard configuration)
LSH7C36HX2E0 FAQ
Q1: Which optical modules are supported? Can existing 1G optical modules be reused?
A1: Supports Huawei SFP+/SFP series optical modules. SFP+ (SR/LR) modules are used for 10G, and SFP modules are used for 1G. Existing 1G optical modules can be directly reused, reducing upgrade costs.
Q2: What is the maximum number of terminals supported by a single service board?
A2: A single port can stably connect 30-40 terminals. A total of 36 ports can support 1000-1400 terminals, meeting the needs of large-scale aggregation scenarios.
Q3: What are the differences between this and the Huawei LSH7D18DX2E0?
A3: Higher port density (36 ports vs. 18 ports), larger capacity (720G vs. 360G), suitable for ultra-large-scale 10G access, and offering better cost-effectiveness.
