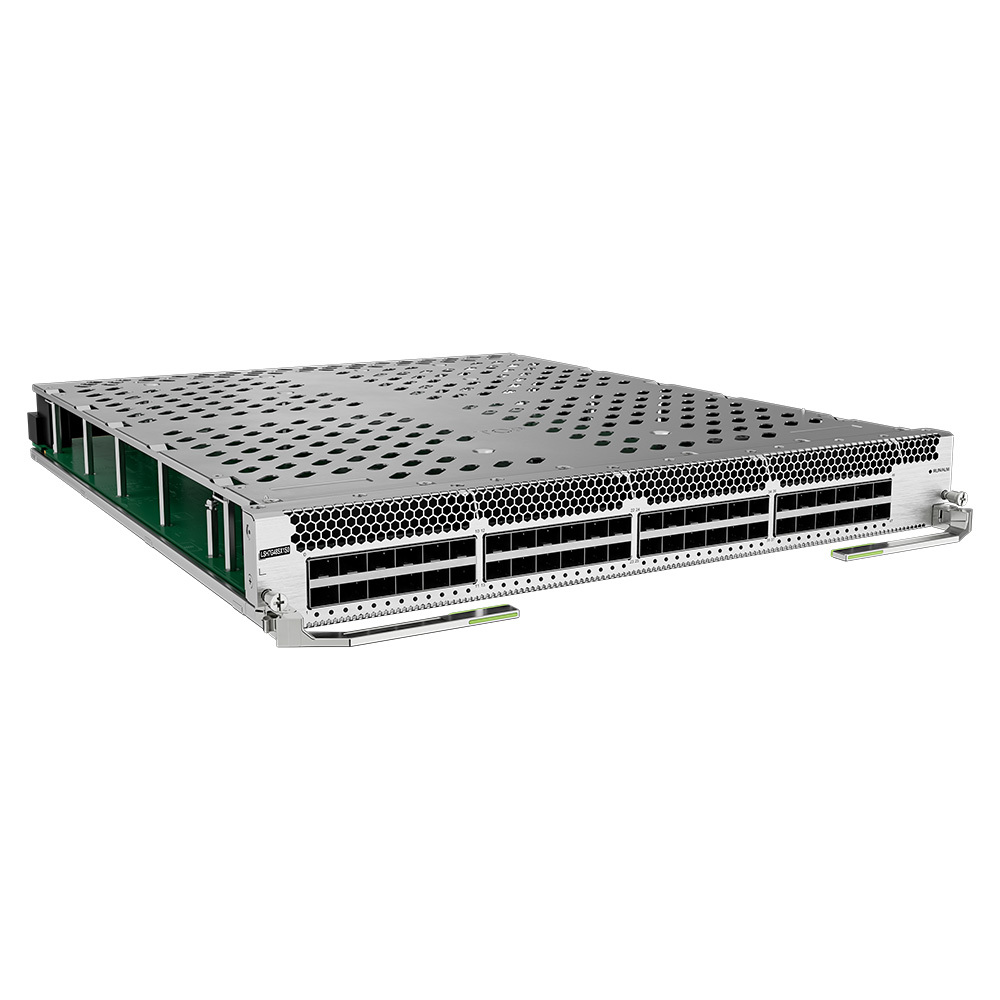

Huawei S16700 Series Switches LSH7G48SX1S0 48-Port GE Optical Interface Card (X1S, SFP).
Ports on the LSH7G48SX1S0
Port
Connector Type
Description
Available Components
48 x GE optical ports
SFP
Receives and transmits GE services.
GE eSFP optical modules
GE SFP copper modules
Functions and features of the LSH7G48SX1S0
Functions and Features
Description
Basic function
The card provides data packet processing and traffic management on 48 GE optical ports.
Maximum port density
If all LPUs are such cards:
The S16700-4 chassis provides up to 192 x GE ports.
The S16700-8 chassis provides up to 384 x GE ports.
GE port
When the GE ports work in GE mode, they support SFP GE optical modules and 1000BASE-T copper modules. When using a 1000BASE-T copper module, a port supports 100M/1000M auto-sensing.
Hot swapping
Supported
Restrictions and remarks
Only the four-SFU mode is supported when the switch blade is used.
Technical specifications of the LSH7G48SX1S0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg(lb)]
6.22 kg (13.71 lb)
Weight with packaging [kg(lb)]
9.90 kg (21.83 lb)
Typical power consumption [W]
103 W
Typical heat dissipation [BTU/hour]
352 BTU/hour
Maximum power consumption [W]
139 W
Maximum heat dissipation [BTU/hour]
474 BTU/hour
Memory
4 GB (standard configuration)
LSH7G48SX1S0 FAQ
Q1: Which optical modules are supported? Can existing 1GE SFP optical modules be reused?
A1: Supports Huawei SFP series 1GE optical modules (SR/LR). Existing 1GE optical modules can be directly reused, eliminating the need for additional purchases and reducing networking costs.
Q2: What is the maximum number of terminals supported by a single service board?
A2: A single port can stably connect 20-30 terminals, and a total of 900-1400 terminals can be supported across 48 ports, meeting the needs of small to medium-sized access scenarios.
Q3: What are the differences between this model and Huawei's 48-port 1GE board (such as LSH7X48SX1S0)?
A3: The core performance is the same. This model is optimized in terms of compatibility and deployment convenience, adapting to more Huawei core switch models, and offering a more balanced cost-performance ratio.
