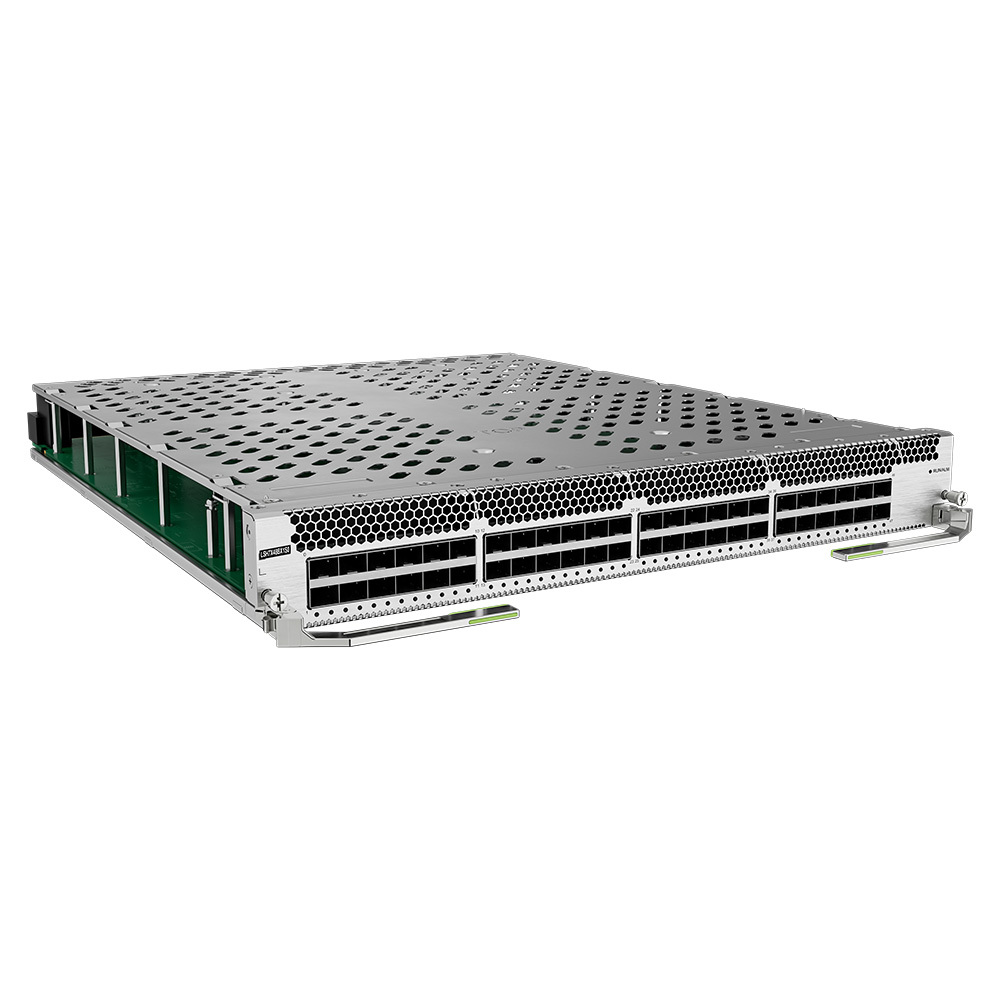

Huawei S16700 Series Switches LSH7G48SX1S0 24-Port 10G Optical Interface and 24-Port GE Optical Interface Card (X1S, SFP+/SFP).
Ports on the LSH7X48BX1S0
Port
Connector Type
Description
Available Components
24 x GE optical ports
SFP
Receives and transmits GE services.
GE eSFP optical modules
GE SFP copper modules
24 x 10GE optical ports
SFP+
Receives and transmits 10GE/2.5GE/GE services.
GE eSFP optical modules
GE SFP copper modules
2.5GE eSFP optical modules
10GE SFP+ copper modules
10GE SFP+ optical modules
SFP+ to SFP+ AOC cable
SFP+ to SFP+ high-speed cable
Functions and features of the LSH7X48BX1S0
Functions and Features
Description
Basic function
The card provides data packet processing and traffic management on 24 10GE optical ports and 24 GE optical ports.
Maximum port density
If all LPUs are such cards:
The S16700-4 chassis provides up to 96 x 10GE ports and 96 x GE ports.
The S16700-8 chassis provides up to 192 x 10GE ports and 192 x GE ports.
10GE port
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, 10GE high-speed cables, 10GE AOC cables, and 10GBASE-T copper modules. When using a 10GBASE-T copper module, a port supports 100M/1000M/2.5G/5G auto-sensing.When the 10GE ports work in 2.5GE mode, they support SFP 2.5GE optical modules.When the 10GE ports work in GE mode, they support SFP GE optical modules and 1000BASE-T copper modules. When using a 1000BASE-T copper module, a port supports 100M/1000M auto-sensing.
GE port
When the GE ports work in GE mode, they support SFP GE optical modules and 1000BASE-T copper modules. When using a 1000BASE-T copper module, a port supports 100M/1000M auto-sensing.
Hot swapping
Supported
Restrictions and remarks
Only the four-SFU mode is supported when the switch blade is used.
Technical specifications of the LSH7X48BX1S0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg(lb)]
6.22 kg (13.71 lb)
Weight with packaging [kg(lb)]
9.90 kg (21.83 lb)
Typical power consumption [W]
125 W
Typical heat dissipation [BTU/hour]
427 BTU/hour
Maximum power consumption [W]
155 W
Maximum heat dissipation [BTU/hour]
529 BTU/hour
Memory
4 GB (standard configuration)
LSH7X48BX1S0 FAQ
Q1: Which optical modules are supported? Can existing 1GE SFP optical modules be reused?
A1: Supports Huawei SFP series 1GE optical modules (SR/LR). Existing 1GE optical modules can be directly reused, reducing networking costs.
Q2: What is the maximum number of terminals supported by a single service board?
A2: A single port can stably connect 20-30 terminals. A total of 48 ports can support 900-1400 terminals, meeting the needs of small to medium-sized access scenarios.
Q3: Does it support port aggregation? Can bandwidth be expanded?
A3: Supports LACP port aggregation, which can bind multiple ports as logical ports, improving link bandwidth and reliability without additional configuration.
