10GE SFP+ copper modules are supported in V600R023C10 and later versions.

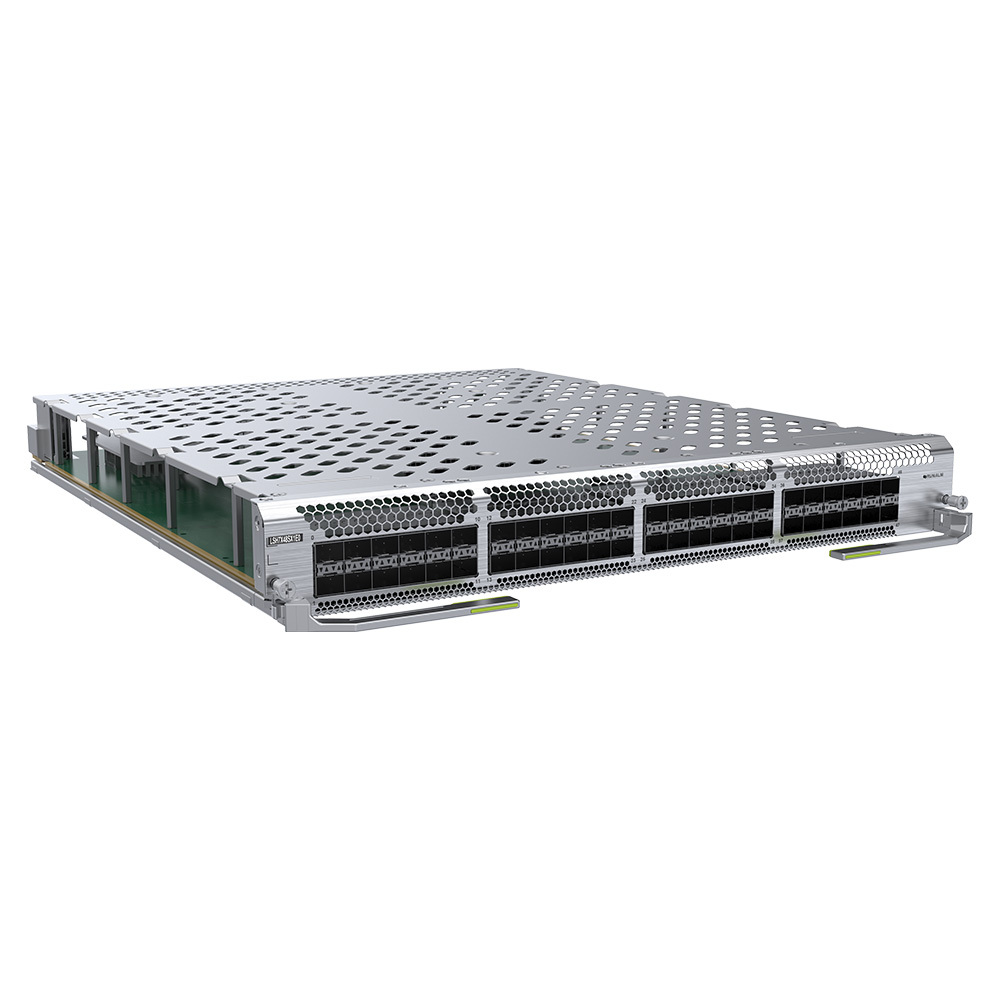

Functions and Features of the LSH7X48SX1E0
Functions and Features
Description
Basic function
The card provides data packet processing and traffic management on 48 10GE optical ports.
Maximum port density
If all LPUs are such cards:
The S16700-4 chassis provides up to 192 x 10GE ports.
The S16700-8 chassis provides up to 384 x 10GE ports.
10GE port
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules and copper modules, 10GE high-speed cables, and AOC cables.
When the 10GE ports work in GE mode, they support SFP GE optical modules and 1000BASE-T copper modules. When using a 1000BASE-T copper module, a port supports 100M/1000M auto-sensing.
Hot swapping
Supported
Technical Specifications of the LSH7X48SX1E0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg(lb)]
6.7 kg (14.77 lb)
Weight with packaging [kg(lb)]
11.6 kg (25.57 lb)
Typical power consumption [W]
103 W
Typical heat dissipation [BTU/hour]
352 BTU/hour
Maximum power consumption [W]
193 W
Maximum heat dissipation [BTU/hour]
659 BTU/hour
Memory
4 GB (standard configuration)
LSH7X48SX1E0 FAQ
Q1: Which optical modules are supported? Can existing 1GE SFP optical modules be reused?
A1: Supports Huawei SFP series 1GE optical modules (SR/LR). Existing 1GE optical modules can be directly reused, reducing networking costs.
Q2: What is the maximum number of terminals supported by a single service board?
A2: A single port can stably connect 20-30 terminals, and a total of 900-1400 terminals can be supported across 48 ports, meeting the needs of small to medium-sized access scenarios.
Q3: What are the differences between this model and the Huawei LSH7X48SX1S0?
A3: The core performance is the same. This model features enhanced stability design, adding storm suppression, lightning protection, and other protection functions, making it more suitable for scenarios with high operational stability requirements.
