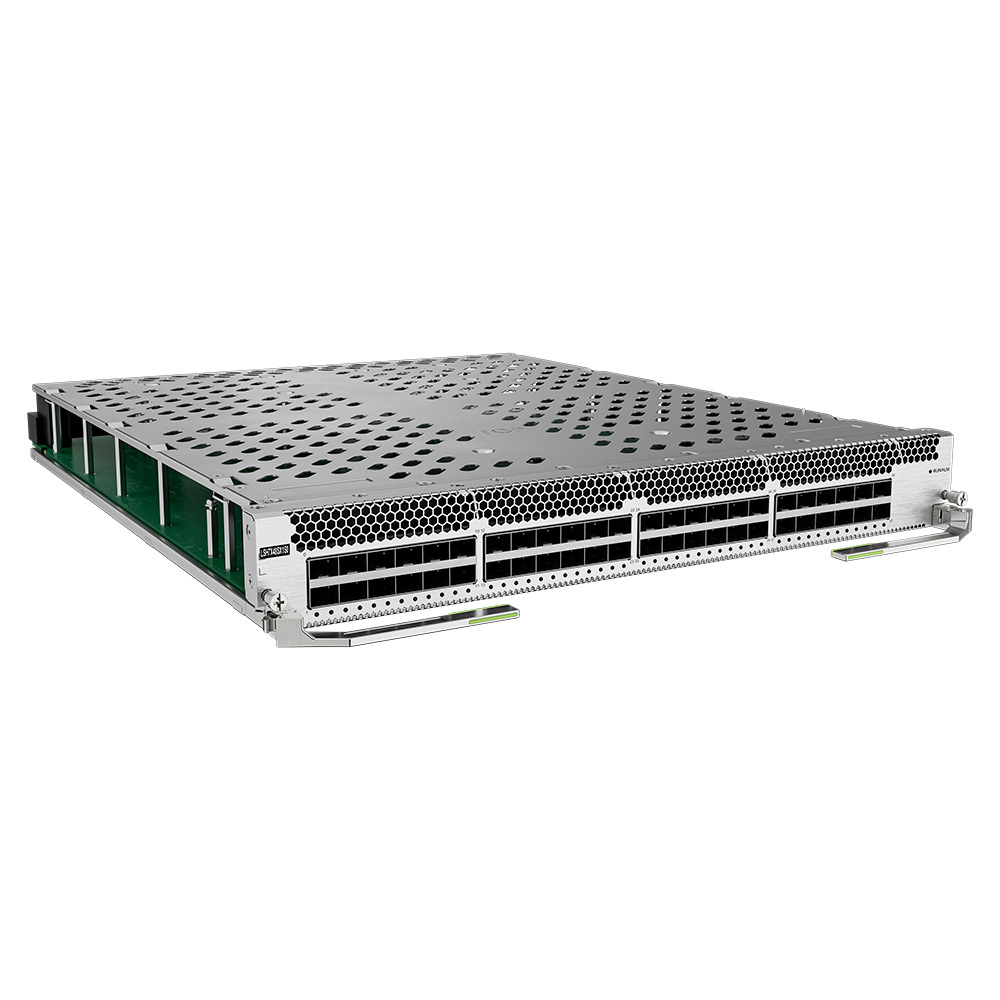

The card provides data packet processing and traffic management on 48 10GE optical ports.
Maximum port density
If all LPUs are such cards:
The S16700-4 chassis provides up to 192 x 10GE ports.
The S16700-8 chassis provides up to 384 x 10GE ports.
10GE port
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules and 10GE copper modules, 10GE high-speed cables, and AOC cables.
When the 10GE ports work in 2.5GE mode, they support SFP 2.5GE optical modules.
When the 10GE ports work in GE mode, they support SFP GE optical modules and 1000BASE-T copper modules. When using a 1000BASE-T copper module, a port supports 100M/1000M auto-sensing.
Hot swapping
Supported
Restrictions and remarks
Only the four-SFU mode is supported when the switch blade is used.
Technical Specifications of the LSH7X48SX1S0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg(lb)]
6.22 kg (13.71 lb)
Weight with packaging [kg(lb)]
9.90 kg (21.83 lb)
Typical power consumption [W]
131 W
Typical heat dissipation [BTU/hour]
447 BTU/hour
Maximum power consumption [W]
171 W
Maximum heat dissipation [BTU/hour]
583 BTU/hour
Memory
4 GB (standard configuration)
LSH7X48SX1S0 FAQ
Q1: Which optical modules are supported? Can existing 1GE SFP optical modules be used?
A1: Huawei SFP series 1GE optical modules (SR/LR) are supported. Existing 1GE optical modules can be directly reused, reducing networking costs.
Q2: What is the maximum number of terminals supported by a single service board?
A2: A single port can stably connect 20-30 terminals. A total of 48 ports can support 900-1400 terminals, meeting the needs of small to medium-sized access scenarios.
Q3: Does it support port aggregation and mirroring functions?
A3: LACP port aggregation and local port mirroring are supported, meeting bandwidth expansion and network monitoring needs without additional configuration.
