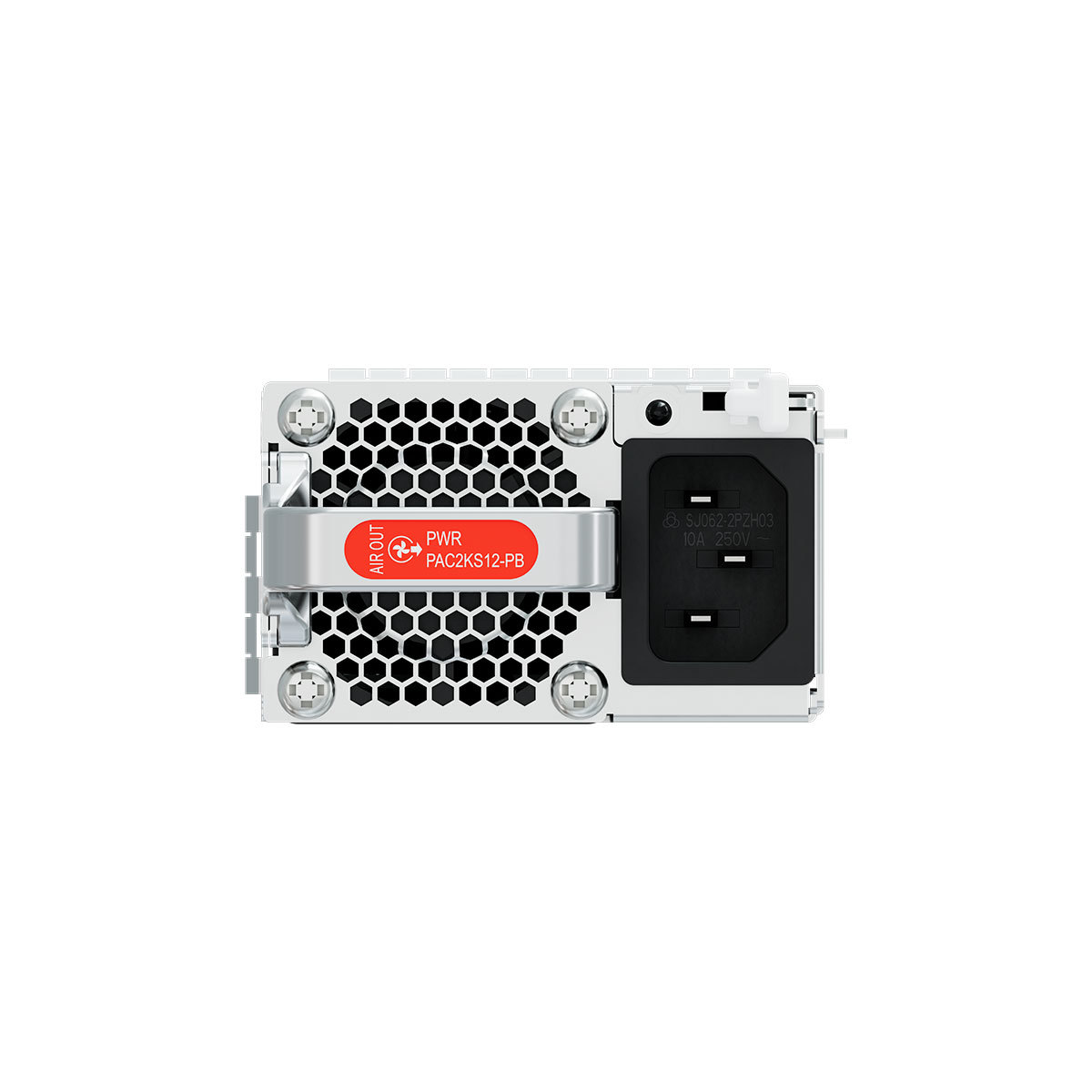

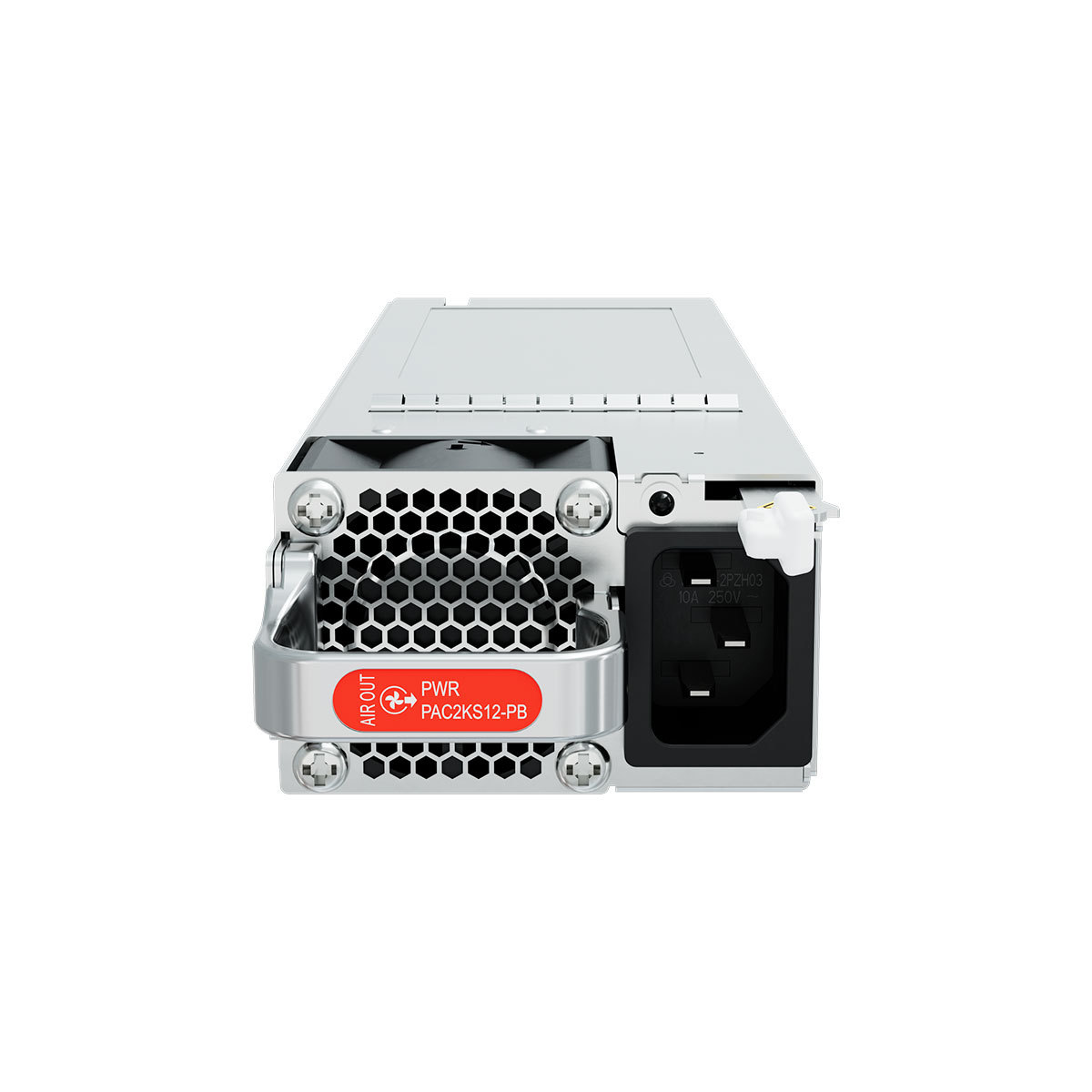

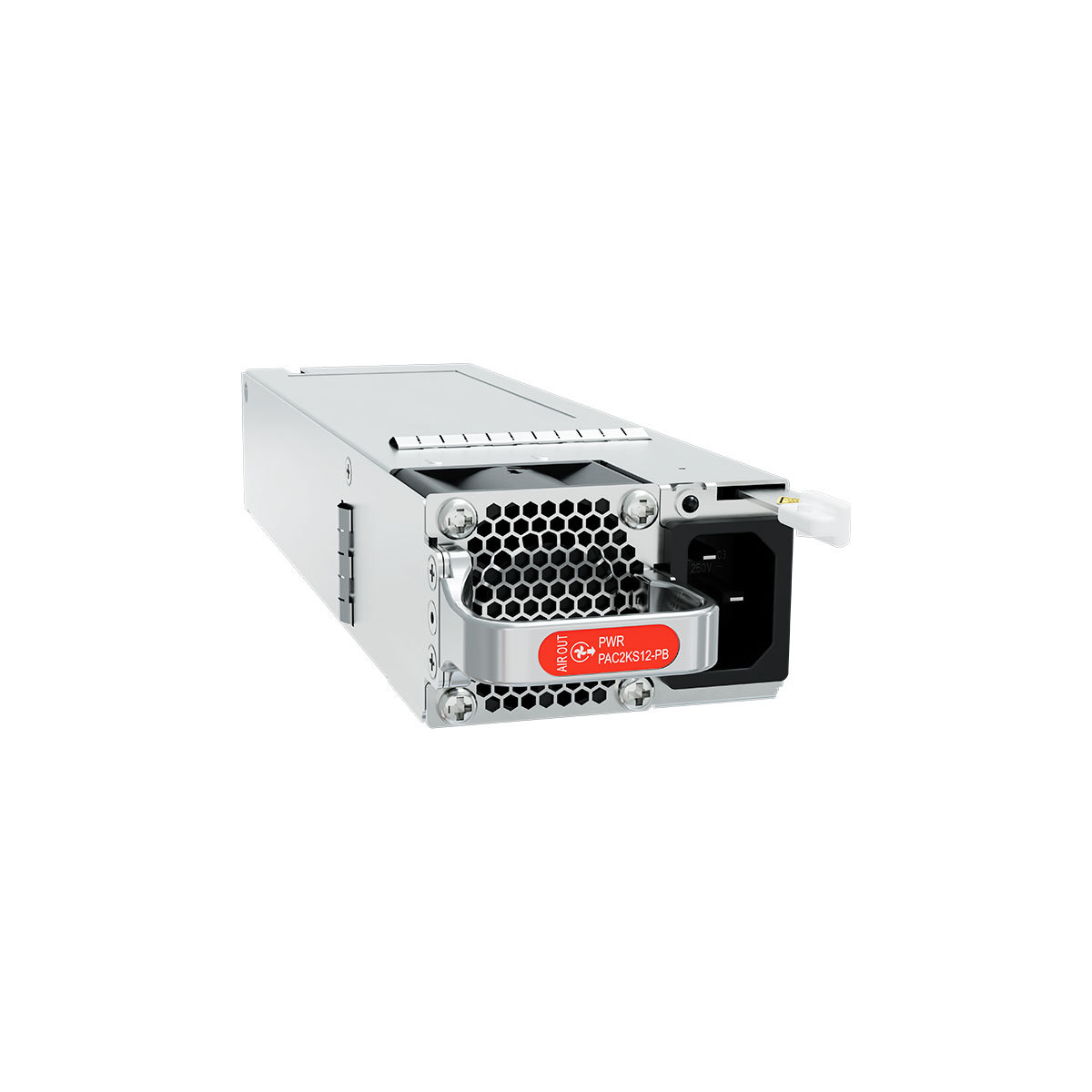

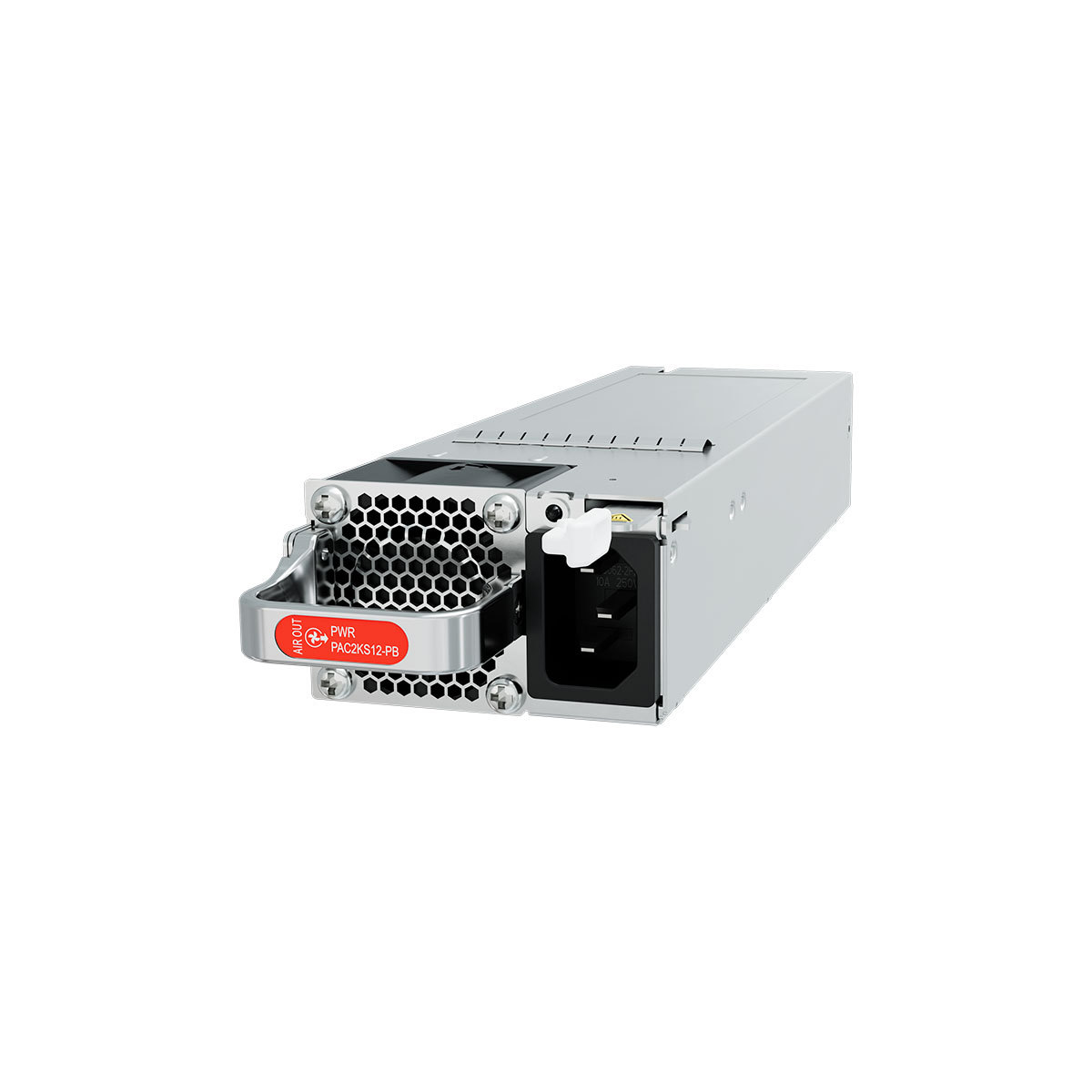

Huawei PAC2KS12-PB with 2000W AC&240V DC Power Module (Back to Front, Power panel side exhaust) apply to CloudEngine XH9000 and XH8000 Series Switches.
| Product | Product Model | First Supported Version |
|---|---|---|
| CloudEngine XH8000 | XH8210-32DQ (02355YSQ) | V300R023C11 |
| CloudEngine XH8000 | XH8210-32DQ (02355YSR) | V300R023C11 |
| CloudEngine XH9000 | XH9210-32DQ (02355YST) | V300R023C11 |
| CloudEngine XH9000 | XH9210-32DQ (02355YSU) | V300R023C11 |
| 1. Handle | 2. Airflow flag | 3. Air vent | 4. Indicator |
|
5. Power socket |
6. Lock |
– |
– |
| Functions | Description |
|---|---|
| Input overvoltage protection and undervoltage protection | In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply. |
| Output overvoltage protection | In this protection state, the power module stops supplying power intermittently. When the system recovers from output overvoltage, the power module cannot automatically resume power supply. |
| Output overcurrent protection | In this protection state, the power module supplies power intermittently. When the output current is limited within a range, the power module cannot automatically resume power supply. |
| Output short-circuit protection | In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module cannot automatically resume power supply. |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
| Heat dissipation | Back-to-front airflow |
| Hot swapping | The power module is hot swappable. |
| Item | PAC2KS12-PB |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC |
| Maximum Input voltage [V] | 90 V AC to 290 V AC; 45 Hz to 66 Hz 190 V DC to 290 V DC |
| Rated input current [A] | 10 A (100 V AC to 240 V AC) 10 A (240 V DC) |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 166.7 A (220 V AC to 240 V AC&240 V DC) 150 A (200 V AC to 220 V AC) 75 A (100 V AC to 130 V AC) |
| Rated output power [W] | 2000 W (220 V AC to 240 V AC&240 V DC) 1800 W (200 V AC to 220 V AC) 900 W (100 V AC to 130 V AC) |
| Dimensions without packaging (H x W x D) [mm (in.)] | 39.6 mm x 66.0 mm x 215.0 mm (1.56 in. x 2.6 in. x 8.46 in.) |
| Weight without packaging [kg (lb)] | 1 kg (2.20 lb) |
