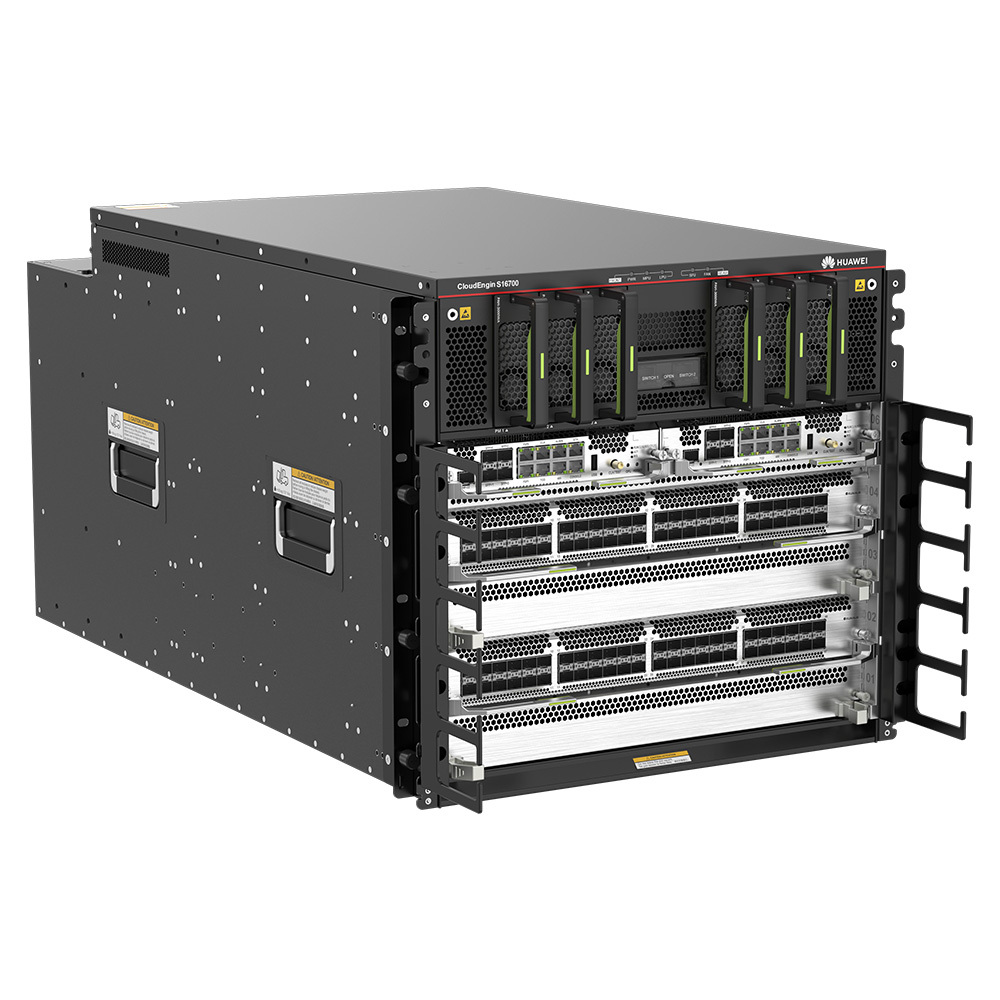

Series switches CloudEngine S16700 is an advanced core device with exceptional performance designed for efficient 10-Gigabit enterprise networks. This series features ultra-high throughput at the level of 14,4 Tbit/with in every slot, unrivaled switching hardware and wide access to terminals. One of the key features CloudEngine S16700 is pioneering the use of channel grouping technology between chassis (M-LAG) in corporate networks, providing a level of reliability at an amazing level 99,9999%.

In addition, this series has other attractive features such as virtual advanced local area networks (VXLAN), providing flexibility and scalability, free mobility for uninterrupted connectivity, quality of service management (QoS) to optimize data transfer, the algorithm for storing packets for the Internet ( iPCA), providing efficient use of network resources. Users can enjoy the ability to deploy a service in one click and quickly localize failures at the level of minutes.

With these advanced features, CloudEngine S16700 becomes the ideal choice for global customers preparing for a new era of corporate networks with astonishing throughput at the level 400 Gbit/with. This device goes beyond a simple switch to provide comprehensive solutions for today's networking requirements.

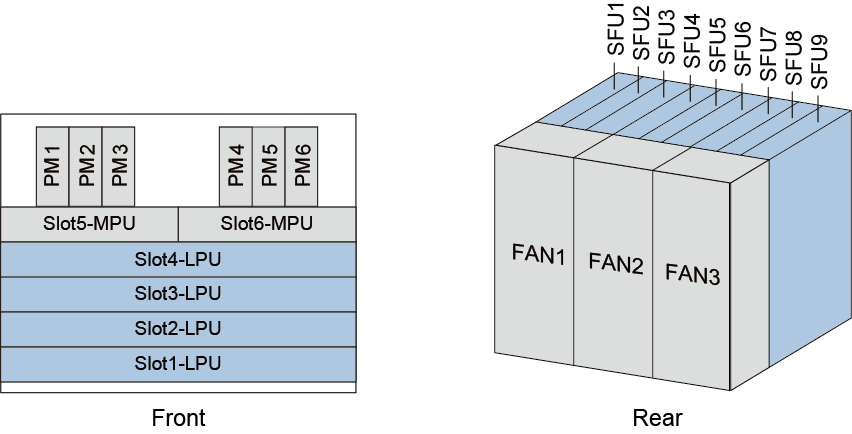

Slots on the S16700-4

Slot Type	Slot ID	Slot Direction	Remarks
LPU slot	Slots 1 to 4	The top of the board faces upwards	Different types of LPUs can be installed in the same chassis.
MPU slot	Slots 5 and 6	The top of the board faces upwards	Two MPUs work in active/standby mode for 1:1 hot standby. By default, the MPU with a smaller slot ID is the active MPU, and the MPU with a larger slot ID is the standby MPU.
SFU slot	Slots 1 to 9 Note: For the slots in which SFUs can be installed, see the "IDs of Available Slots" column in "Version Mapping" under "Cards > SFU".	The right side of the board faces upwards	SFUs work in load balancing and redundancy mode. SFUs in the same chassis must be the same model. That is, SFUs of different models cannot be installed in the same chassis.
PM slot	Slots 1 to 6	The indicator light end upwards	PMs are plug-and-play. PM4 to PM6 in the chassis with the part number 02355HUL-001 are reserved.
Fan module slot	Slots 1 to 3	The indicator light end upwards	At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.

Technical specifications of the S16700-4

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	438 mm x 442 mm x 874 mm (17.24 in. x 17.4 in. x 34.41 in.), dimensions of the chassis body 438 mm x 483 mm x 985 mm (17.24 in. x 19.02 in. x 38.78 in.), including mounting brackets and cable management frames
Dimensions with packaging (H x W x D) [mm(in.)]	730 mm x 770 mm x 1150 mm (28.74 in. x 30.31 in. x 45.28 in.)
Chassis height [U]	9.8 U
Cabinet installation standards	A610 A612
Chassis material	Metal
Weight without packaging [kg(lb)]	EX1BS16704SA0 (02355HUL): 94.1 kg (207.45 lb) EX1BS16704SA0 (02355HUL-001): 94.1 kg (207.45 lb) EX1BS16704SD0 (02355HUM): 98.1 kg (216.27 lb)
Weight without packaging (full configuration) [kg(lb)]	EX1BS16704SA0 (02355HUL): 162 kg (357.15 lb) EX1BS16704SA0 (02355HUL-001): 162 kg (357.15 lb) EX1BS16704SD0 (02355HUM): 163.6 kg (360.67 lb)
Weight with packaging [kg(lb)]	EX1BS16704SA0 (02355HUL): 138 kg (304.23 lb) EX1BS16704SA0 (02355HUL-001): 138 kg (304.23 lb) EX1BS16704SD0 (02355HUM): 142 kg (313.05 lb)
Maximum power consumption [W]	4664 W
Maximum heat dissipation [BTU/hour]	15914 BTU/hour
MTBF [years]	34.93 years
Availability	0.9999971695
Number of MPU slots	2
Number of SFU slots	9
Number of service board slots	4
Number of power slots	6
Number of fans modules	3
LPU slot direction	Horizontal
Redundant MPUs	1:1
Redundant Switch fabrics	N+M
Redundant power supply	Dual-input power supply system: N+1 backup is recommended. Single-input power supply system: N+1 backup Dual-input power supply is recommended to ensure reliability.
Redundant fans	Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800 m to 5000 m (5905.44 ft. to 16404.00 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Storage altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Rated input voltage [V]	EX1BS16704SA0 (02355HUL): AC input: 220 V AC; 50 Hz/60 Hz High-voltage DC input: 240 V DC/380 V DC EX1BS16704SA0 (02355HUL-001): AC input: 220 V AC; 50 Hz/60 Hz High-voltage DC input: 240 V DC/380 V DC EX1BS16704SD0 (02355HUM): –48 V DC/–60 V DC
Input voltage range [V]	EX1BS16704SA0 (02355HUL): AC input: 176 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 188 V DC to 288 V DC/260 V DC to 400 V DC EX1BS16704SA0 (02355HUL-001): AC input: 176 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 188 V DC to 288 V DC/260 V DC to 400 V DC EX1BS16704SD0 (02355HUM): –40 V DC to –72 V DC
Heat dissipation mode	Drawing air for heat dissipation
Airflow direction	Front-to-rear airflow
PoE	Not supported
Maximum power output capability [W]	EX1BS16704SA0 (02355HUL): 5+1 backup: 3000 W x 5 = 15000 W 6+0 backup: 3000 W x 6 = 18000 W EX1BS16704SA0 (02355HUL-001): 2+1 backup: 6000 W (3000 W x 2) 3+0 backup: 9000 W (3000 W x 3) EX1BS16704SD0 (02355HUM): 5+1 backup: 2200 W x 5 = 11000 W 6+0 backup: 2200 W x 6 = 13200 W
Certification	EMC certification Safety certification Manufacturing certification

S16700-4 FAQ

Q1: What is the maximum number of ports that can be expanded? Which line card models are supported?

A1: It supports a maximum of 32 10GE ports, 16 25GE/40GE ports, or 8 100GE ports; it is compatible with the entire series of Huawei line cards, including the LE0DX16XSA00 (16-port 10GE) and LE0DX8X25SA00 (8-port 25GE), offering flexible expansion.

Q2: What are the differences between it and the Huawei S16700-8? What scenarios is it suitable for?

A2: The core difference lies in the number of slots (4 slots vs. 8 slots). The S16700-4 has moderate expansion capabilities and a lower price, suitable for small to medium-sized cores/large aggregations; the S16700-8 is suitable for medium to large-sized cores, and both have the same performance.

Q3: Does it support stacked deployment? How does it improve network reliability? A3: Supports IRF2 stacking, allowing up to 4 devices to be stacked into 1 logical device, improving port scalability and redundancy; it can also achieve dual-core backup via VRRP, enabling seamless service switching in the event of a single device failure.

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
