| Item | Details |
|---|---|

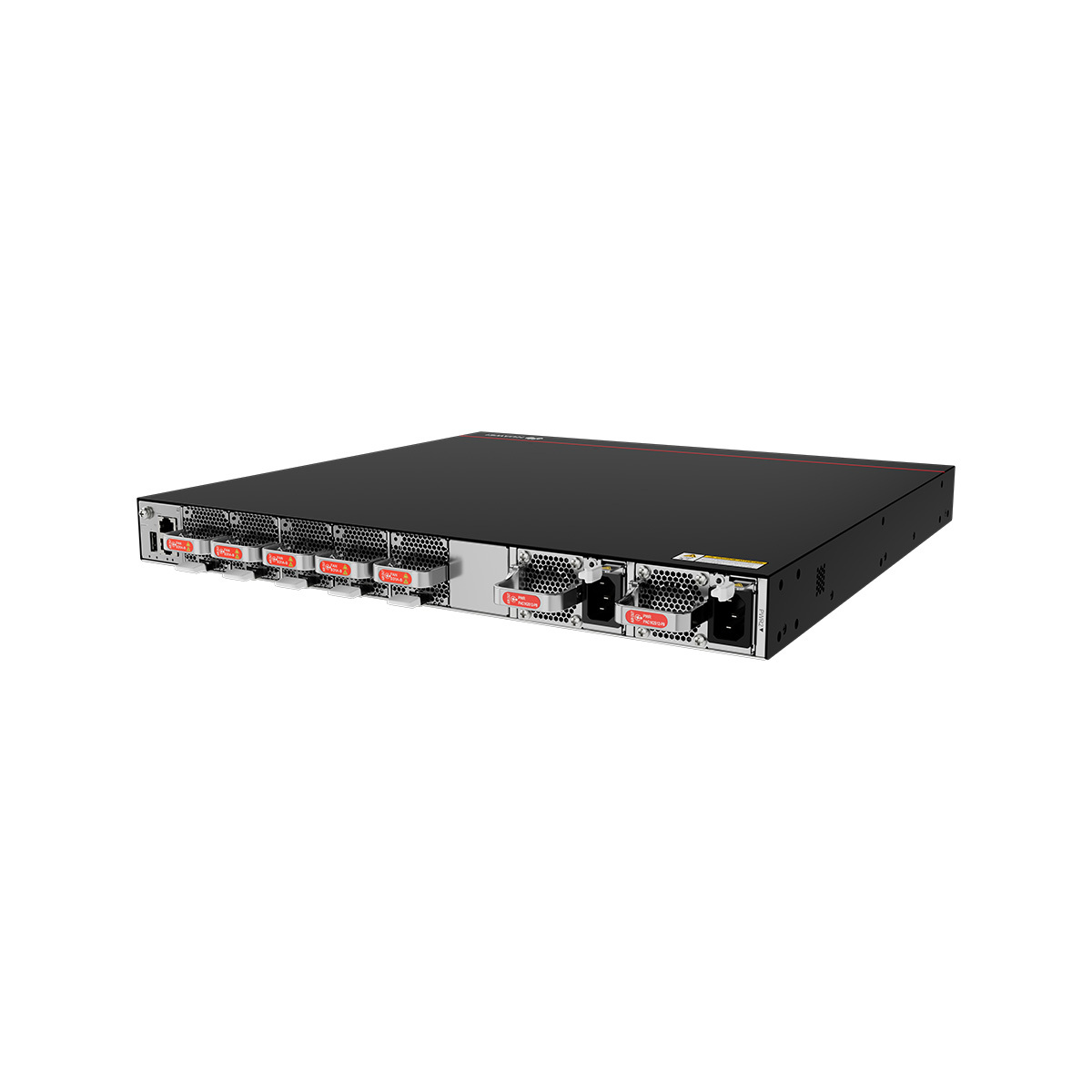

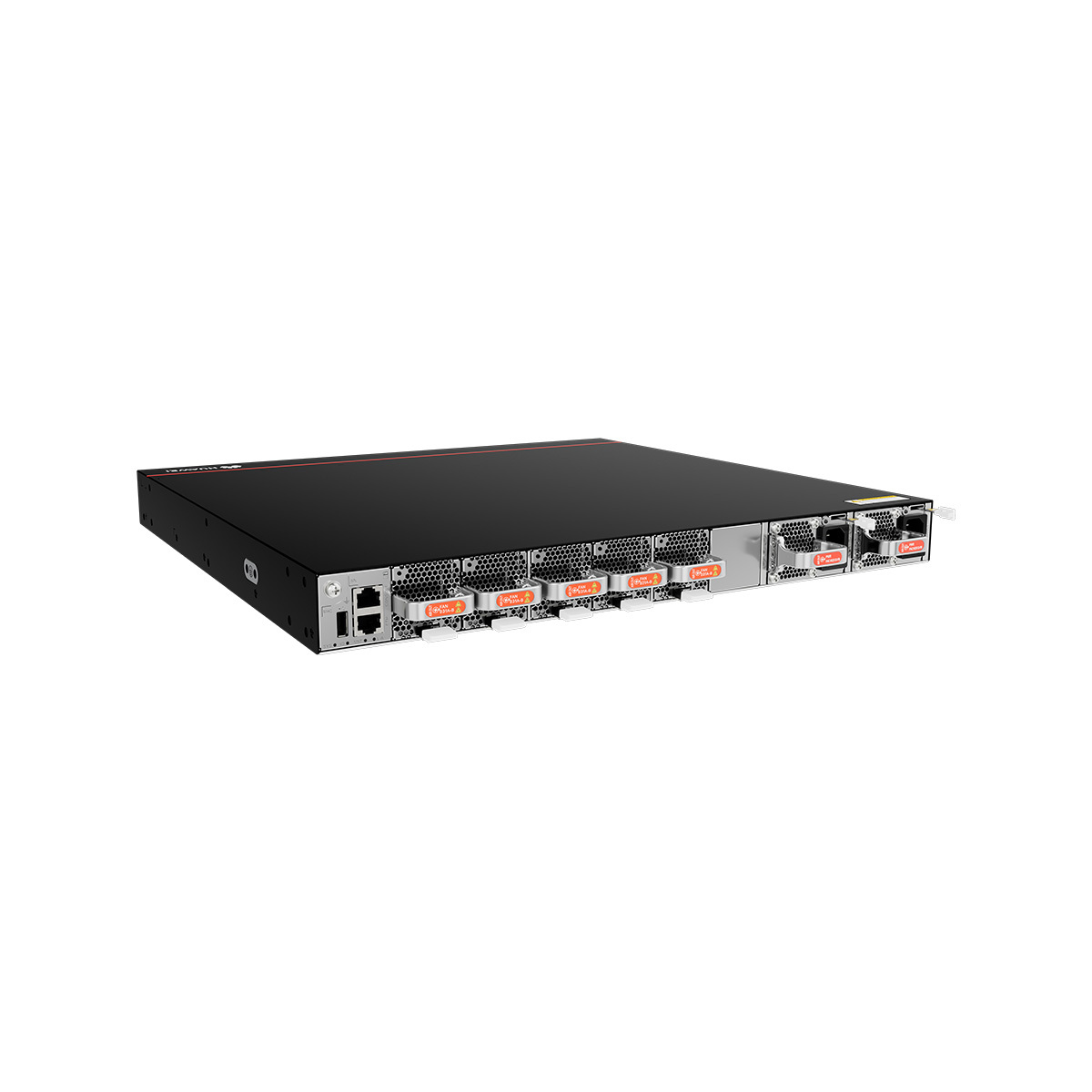

| Description | XH9010-32CQ4BQ Switch(32*100GE QSFP28, 4*200GE QSFP56, Without Fan and Power Modules) |
| Part Number | 02356KCA |
| Model | XH9010-32CQ4BQ |
| First supported version | V300R024C00 |
| Other part numbers |
02356KCB (XH9010-32CQ4BQ Switch(32*100GE QSFP28, 4*200GE QSFP56, 2*AC Power Modules, 5*Fans, Port-side Intake)) 02356KCC (XH9010-32CQ4BQ Switch(32*100GE QSFP28, 4*200GE QSFP56, 2*AC Power Modules, 5*Fans, Port-side Exhaust)) |
| Short Name | XH9010 |
|

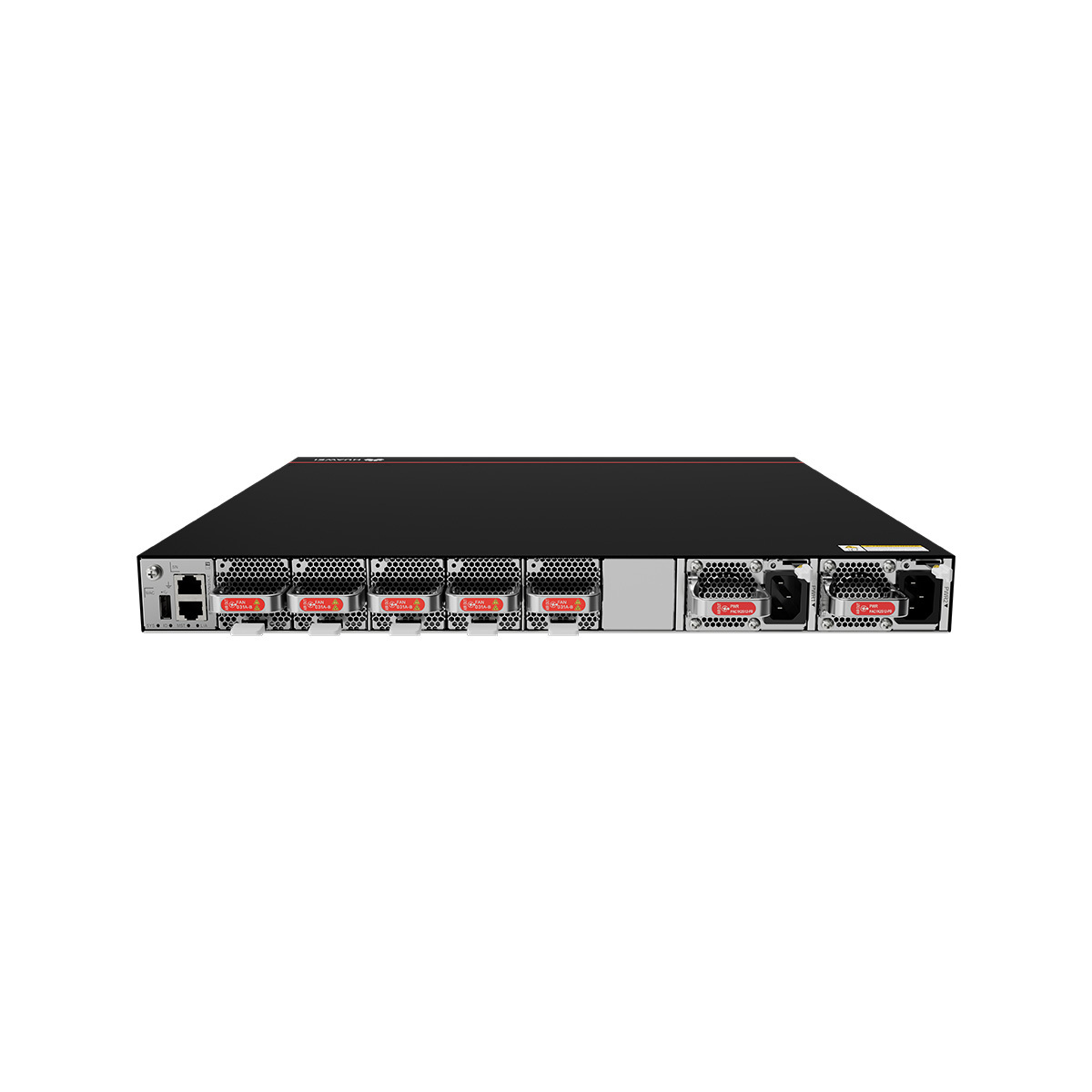

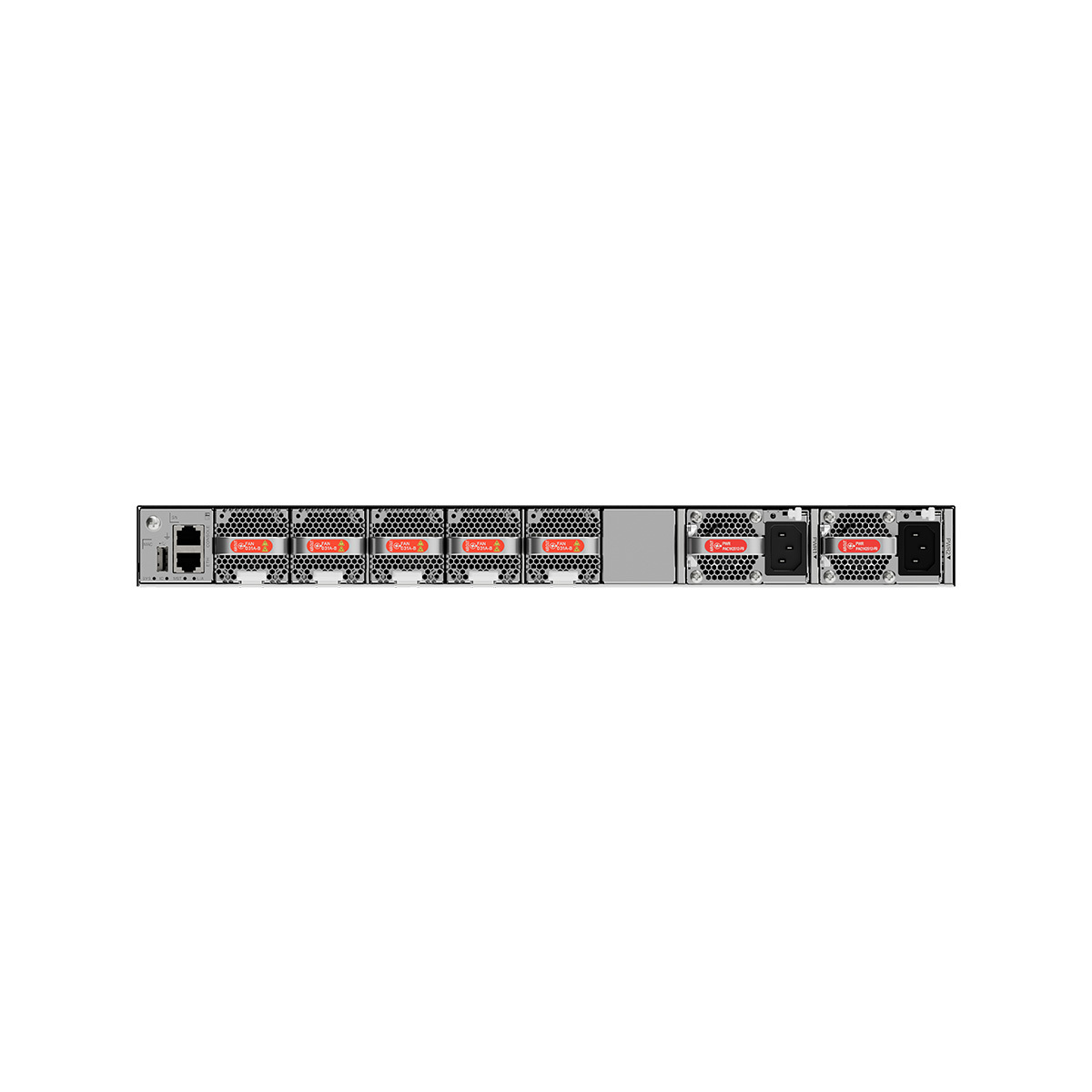

1. Ground screw |
2. Equipment serial number (ESN) and MAC address NOTE: You can scan the code to view the ESN and MAC address of the switch. |
3. Console port |
4. ETH management port (RJ45) |
5. USB port |
|
6. Five Fan slots Applicable fan modules:
|
7. Two Power supply slots Applicable power modules:
|
8. Thirty-two 100GE QSFP28 Ethernet optical ports |
9. Four 200GE QSFP56 Ethernet optical ports |
10. Three port-side mounting holes for mounting brackets |
|
11. Two middle mounting holes for mounting brackets |
12. Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal |
13. Four power-supply-side mounting holes for mounting brackets |
– |
– |
| Item | XH9010-32CQ4BQ |
|---|---|
| Chassis height [U] | 1 U |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| SSD Flash | 4GB SSD |
| USB |
It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode |
|
| Console port | RJ45 |
| Downlink Service interface | 32 x 100G QSFP28 + 4 x 200G QSFP56 |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] |
378 W (100% traffic load, copper cables on 16 x 100GE + 2 x 200GE ports, normal temperature, dual AC power modules) 417 W (100% traffic load, short-distance optical modules on 16 x 100GE + 2 x 200GE ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 331 W |
| Static heat dissipation [BTU/hour] | 1129 BTU/hour |
| Maximum power consumption [W] |
541 W (100% traffic load, short-distance optical modules on 32 x 100GE + 4 x 200GE ports, normal temperature, dual AC power modules) 648 W (100% traffic load, long-distance optical modules on 32 x 100GE + 4 x 200GE ports, high temperature, dual AC power modules) |
| Maximum heat dissipation [BTU/hour] |
|
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] |
|
| Rated output power [W] |
|
| Certification |
|
| Power supply surge protection [kV] |
AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fan modules | 5 |
| Redundant fans | The device supports 4+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.999991779 |
| MTBF [year] | 27.77 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] |
Front-to-back airflow: 52.6 dB(A) on average; maximum: 57.2 dB(A) Back-to-front airflow: 53.6 dB(A) on average; maximum: 59.0 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] |
Front-to-back airflow: 71.5 dB(A) on average; maximum: 77.3 dB(A) Back-to-front airflow: 69.7 dB(A) on average; maximum: 75.6 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] |
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] |
|
| Weight without packaging [kg (lb)] | 6.12 kg (13.49 lb), excluding optical modules, power modules, and fan modules |
| Weight without packaging (full configuration) [kg (lb)] | 8.31 kg (18.32 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 10.39 kg (22.91 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 12.58 kg (27.73 lb) |
| Module Name | Maximum Transmission Distance |
| FE SFP/eSFP Optical Modules | |
| SFP-FE-SX-MM1310 | 2 km |
| eSFP-FE-LX-SM1310 | 15 km |
| S-SFP-FE-LH40-SM1310 | 40 km |
| S-SFP-FE-LH80-SM1550 | 80 km |
| SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) | 15 km |
| SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module) | 15 km |
| GE eSFP Optical Modules | |
| eSFP-GE-SX-MM850 |
|
| SFP-GE-LX-SM1310 | 10 km |
| S-SFP-GE-LH40-SM1310 | 40 km |
| S-SFP-GE-LH40-SM1550 | 40 km |
| S-SFP-GE-LH80-SM1550 | 80 km |
| eSFP-GE-ZX100-SM1550 | 100 km |
| SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) | 10 km |
| SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module) | 10 km |
| LE2MGSC40DE0 (Single-Fiber-Bidirectional Module) | 40 km |
| LE2MGSC40ED0 (Single-Fiber-Bidirectional Module) | 40 km |
| SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module) | 80 km |
| SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module) | 80 km |
| SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module) | 10 km |
| GE CSFP Optical Modules | |
| CSFP-GE-FE-BXD1 | 10 km |
| CSFP-GE-FE-BIDI2 | 20 km |
| CSFP-GE-FE-BIDI4 | 40 km |
| GE-CWDM eSFP Optical Modules | |
| CWDM-SFPGE-1471 | 80 km |
| CWDM-SFPGE-1491 | 80 km |
| CWDM-SFPGE-1511 | 80 km |
| CWDM-SFPGE-1531 | 80 km |
| CWDM-SFPGE-1551 | 80 km |
| CWDM-SFPGE-1571 | 80 km |
| CWDM-SFPGE-1591 | 80 km |
| CWDM-SFPGE-1611 | 80 km |
| GE-CWDM eSFP Optical Modules | |
| CWDM-SFPGE-1271 | 80 km |
| CWDM-SFPGE-1291 | 80 km |
| CWDM-SFPGE-1311 | 80 km |
| CWDM-SFPGE-1331 | 80 km |
| CWDM-SFPGE-1351 | 80 km |
| CWDM-SFPGE-1371 | 80 km |
| CWDM-SFPGE-1391 | 80 km |
| CWDM-SFPGE-1411 | 80 km |
| CWDM-SFPGE-1431 | 80 km |
| CWDM-SFPGE-1451 | 80 km |
| CWDM-SFPGE-1471 | 80 km |
| CWDM-SFPGE-1491 | 80 km |
| CWDM-SFPGE-1511 | 80 km |
| CWDM-SFPGE-1531 | 80 km |
| CWDM-SFPGE-1551 | 80 km |
| CWDM-SFPGE-1571 | 80 km |
| CWDM-SFPGE-1591 | 80 km |
| CWDM-SFPGE-1611 | 80 km |
| GE-DWDM eSFP Optical Modules | |
| DWDM-SFPGE-1560-61 | 120 km |
| 10GE SFP+ Optical Modules | |
| SFP-10G-USR | 0.1 km |
| OSXD22N00 |
|
| OMXD30000 |
|
| SFP-10G-iLR | 1.4 km |
| OSX010000 | 10 km |
| OSX040N01 | 40 km |
| SFP-10G-ER-1310 | 40 km |
| SFP-10G-ZR | 80 km |
| SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) | 10 km |
| SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) | 10 km |
| SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module) | 40 km |
| SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module) | 40 km |
| 10GE XFP Optical Modules | |
| XFP-SX-MM850 |
|
| XFP-STM64-LX-SM1310 | 10 km |
| XFP-STM64-LH40-SM1550 | 40 km |
| XFP-STM64-SM1550-80km | 80 km |
| 10GE-CWDM SFP+ Optical Modules | |
| SFP-10G-ZCW1471 | 70 km |
| SFP-10G-ZCW1491 | 70 km |
| SFP-10G-ZCW1511 | 70 km |
| SFP-10G-ZCW1531 | 70 km |
| SFP-10G-ZCW1551 | 70 km |
| SFP-10G-ZCW1571 | 70 km |
| SFP-10G-ZCW1591 | 70 km |
| SFP-10G-ZCW1611 | 70 km |
| 10GE-CWDM XFP Optical Modules | |
| CWDM-XFP10G-1471 | 70 km |
| CWDM-XFP10G-1491 | 70 km |
| CWDM-XFP10G-1511 | 70 km |
| CWDM-XFP10G-1531 | 70 km |
| CWDM-XFP10G-1551 | 70 km |
| CWDM-XFP10G-1571 | 70 km |
| CWDM-XFP10G-1591 | 70 km |
| CWDM-XFP10G-1611 | 70 km |
| 10GE-DWDM SFP+ Optical Modules | |
| SFP-10G-ZDWT | 60 km |
| 10GE-DWDM XFP Optical Modules | |
| DWDM-XFP10G-1533-47 | 80 km |
| DWDM-XFP10G-1534-25 | 80 km |
| DWDM-XFP10G-1535-04 | 80 km |
| DWDM-XFP10G-1552-52 | 80 km |
| DWDM-XFP10G-1553-33 | 80 km |
| DWDM-XFP10G-1554-13 | 80 km |
| DWDM-XFP10G-1530-33 | 80 km |
| DWDM-XFP10G-1549-32 | 80 km |
| DWDM-XFP10G-1531-12 | 80 km |
| DWDM-XFP10G-1531-90 | 80 km |
| DWDM-XFP10G-1550-12 | 80 km |
| DWDM-XFP10G-1550-92 | 80 km |
| DWDM-XFP10G-1532-68 | 80 km |
| DWDM-XFP10G-1551-72 | 80 km |
| DWDM-XFP10G-1529-55 | 80 km |
| DWDM-XFP10G-1548-51 | 80 km |
| 40GE QSFP+ Optical Modules | |
| QSFP-40G-SR4 |
|
| QSFP-40G-iSR4 |
|
| QSFP-40G-eSR4 |
|
| QSFP-40G-iSM4 | 1.4 km |
| QSFP-40G-eSM4 | 10 km |
| QSFP-40G-LX4 |
Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km |
| QSFP-40G-LR4 | 10 km |
| QSFP-40G-ER4 | 40 km |
| QSFP-40G-SR-BD |
|
| QSFP-40G-SDLC-PAM |
|
| QSFP-40G-eSDLC-PAM |
|
| 40GE CFP Optical Modules | |
| CFP-40G-SR4 |
|
| CFP-40G-LR4 | 10 km |
| CFP-40G-ER4 | 40 km |
| CFP-40G-ZR4 | 80 km |
| 100GE CFP Optical Modules | |
| CFP-100G-SR10 |
|
| CFP-100G-LR4 | 10 km |
| CFP-100G-ER4 | 40 km |
| 100GE QSFP28 Optical Modules | |
| QSFP28-100G-LR4 | 10 km |
| QSFP28-100G-10KM | 10 km |
| QSFP28-100G-PSM4 | 500 m |
| QSFP28-100G-SR4 |
|
| QSFP-100G-eSR4 |
|
| QSFP-100G-CLR4 | 2 km |
| QSFP-100G-CWDM4 | 2 km |
| QSFP-100G-ER4-Lite | Single-mode fiber (G.652):
|
| GPON Optical Modules | |
| H87MMA5671A2 | 20 km |
| Industrial Optical Modules | |
| OGSM01880 |
|
| OGSC10DD0 | 10 km |
| OGSC40DD0 | 40 km |
| SFP+10GE-LH10-SM1310 | 10 km |
| SFP-10G-SR | 0.3 km |
| SFP-10G-iLR | 1.4 km |
| SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) | 10 km |
| SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) | 10 km |
| SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module) | 10 km |
| SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module) | 10 km |
