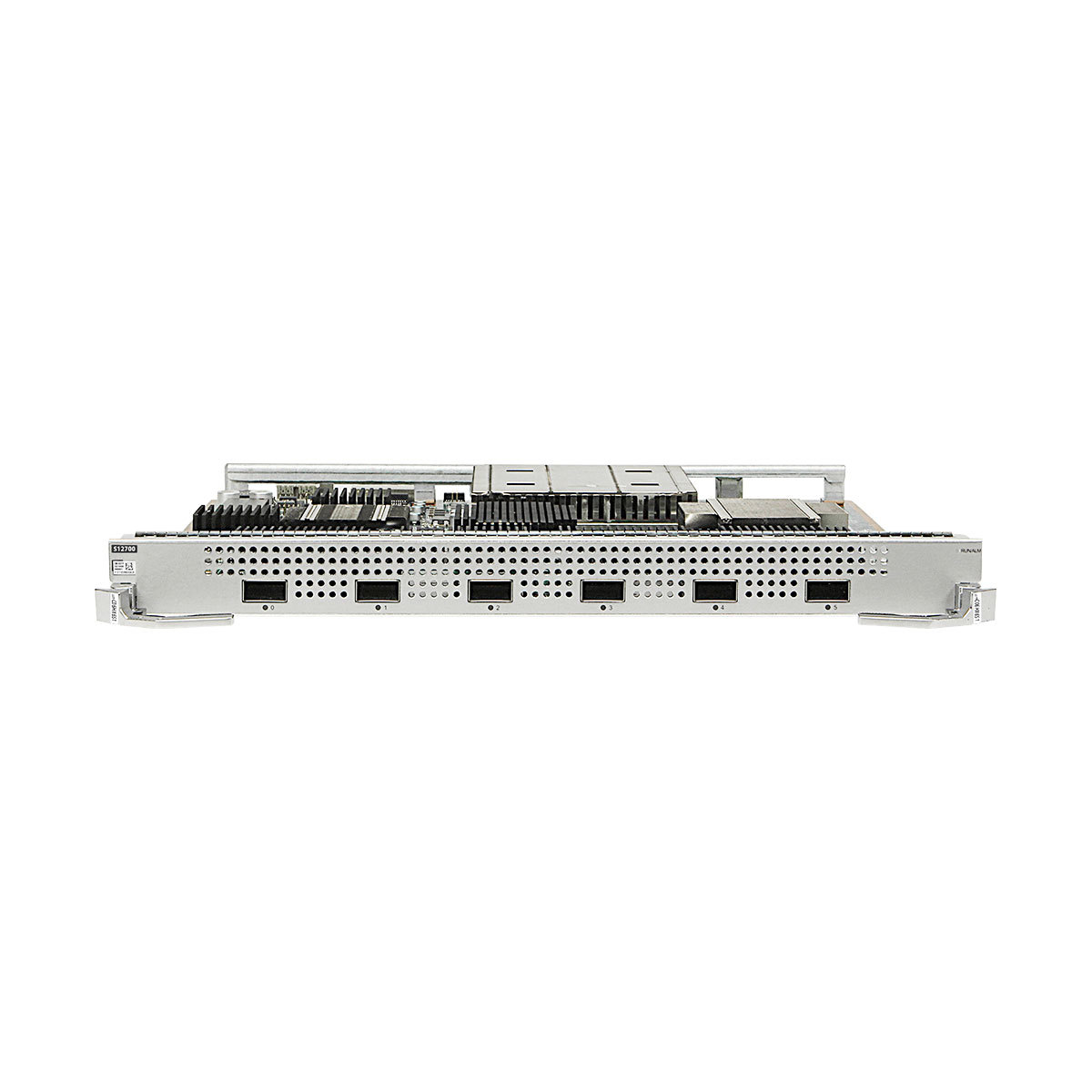

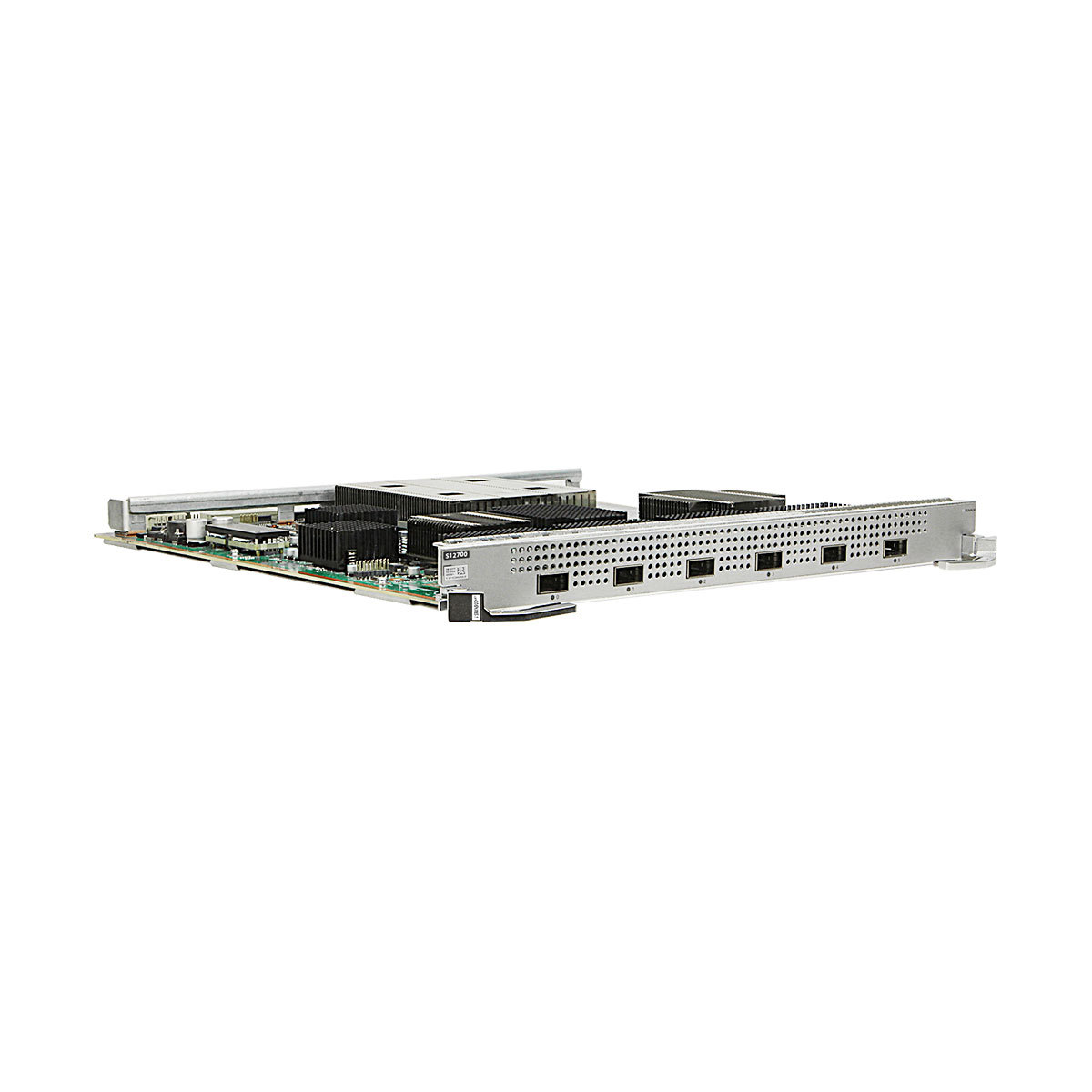

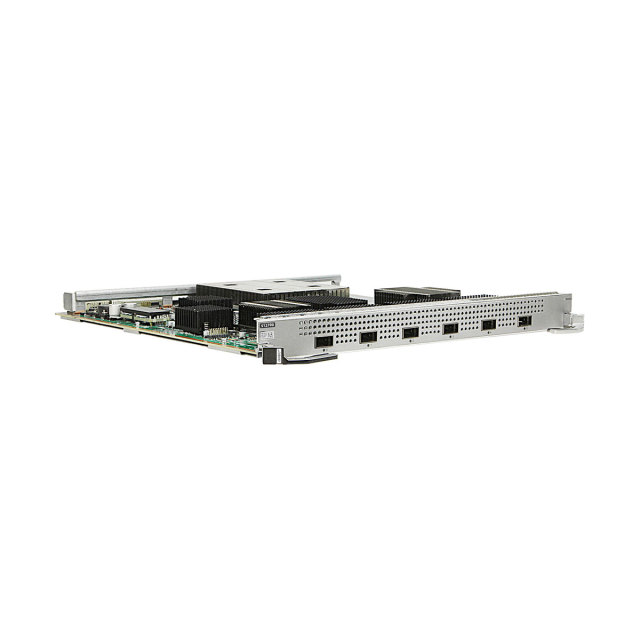

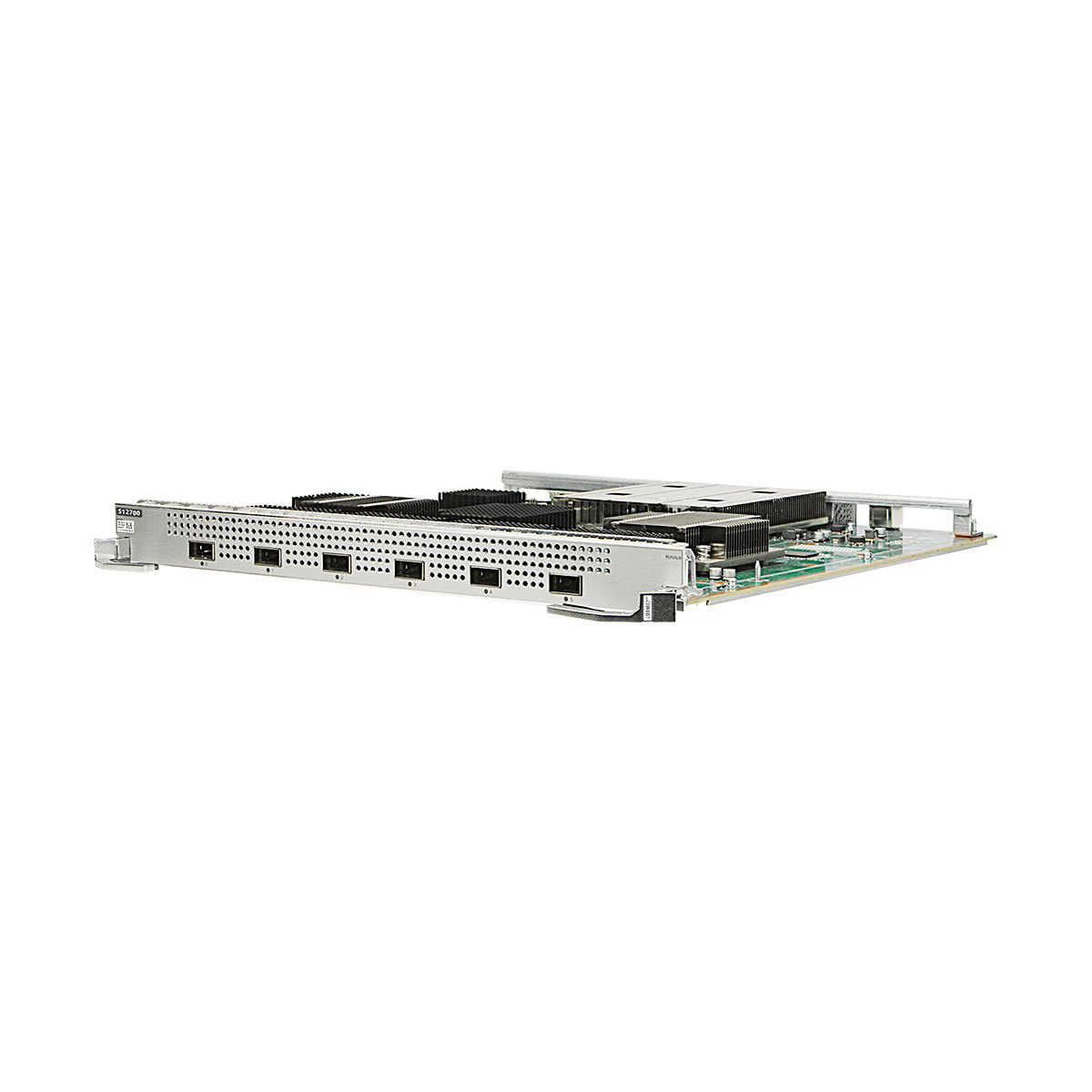

Provides six 100GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported

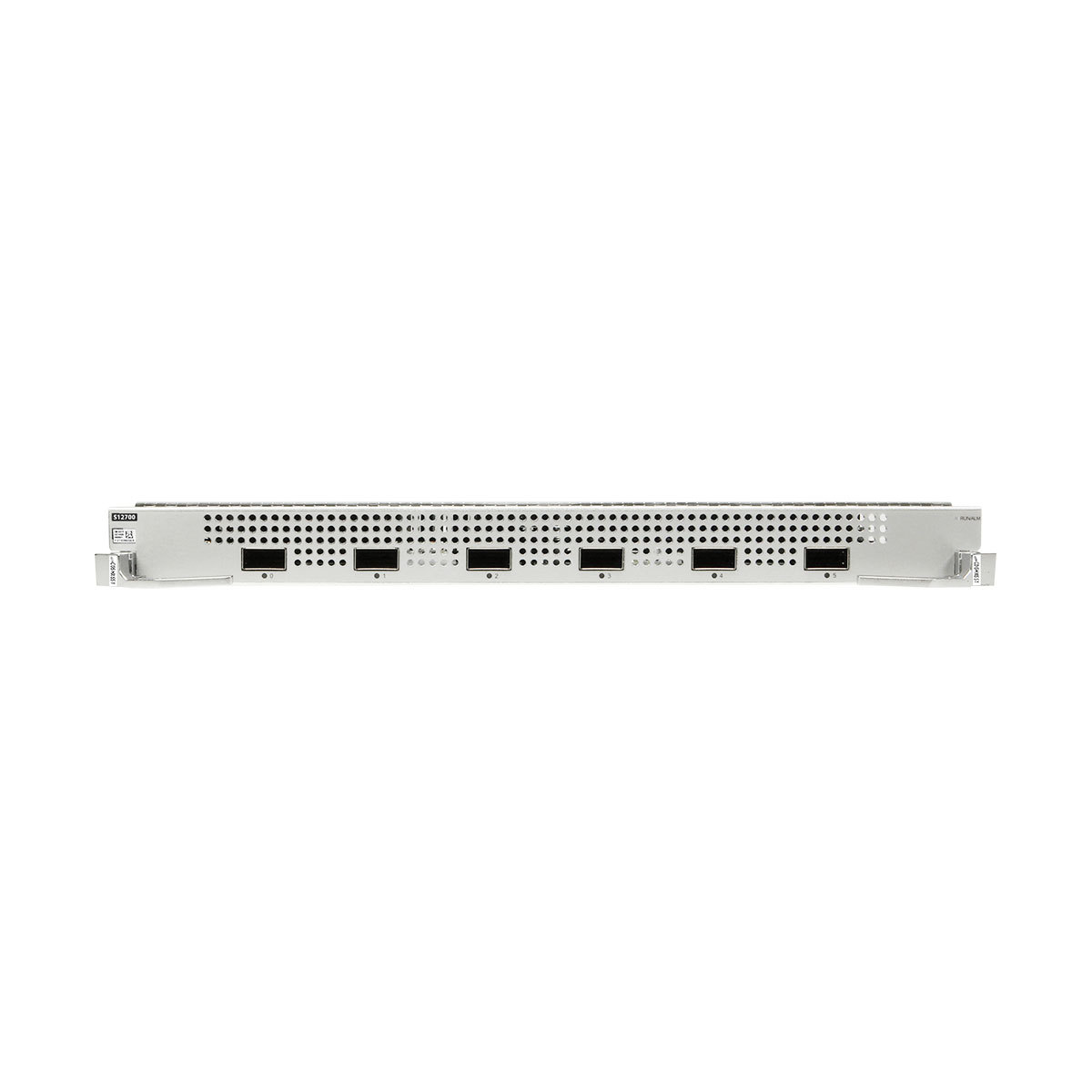

Port of the LST7C06HX6S1
Attribute
Description
Connector type
QSFP28
Optical port attributes
Depend on the40GE QSFP+ Optical Modules, 100GE QSFP28 Optical Modules or QSFP+ or QSFP28 AOC cable used.
Applicable cable
QSFP+ optical module and LC optical fiber
QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber)
QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
QSFP28 optical module and LC optical fiber
QSFP28 optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber)
QSFP28 AOC cable
Specifications of the LST7C06HX6S1
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.55 kg (7.83 lb)
Maximum power consumption: 189 W
LST7C06HX6S1 FAQ
Q1: What are the core advantages of this service board? How is the 40G long-distance transmission capability guaranteed?
A1: The core advantages are 40G high bandwidth, 80km long-distance repeater-free transmission, dual-rate compatibility, and low power consumption. Through optimized optical signal amplification and anti-interference design, stable long-distance transmission can be achieved without repeater equipment.
Q2: Which optical modules does it support? Is it directly compatible with existing 10G equipment?
A2: It supports Huawei standard QSFP+ 40G optical modules (SR4/LR4/ER4) and QSFP+ 10G optical modules; 40G/10G dual-rate adaptive, it can directly connect to existing 10G equipment without additional converter configuration.
Q3: How does its energy consumption and cost performance compare to other 40G long-distance boards of the same level?
A3: Total power consumption ≤120W, 30% more energy efficient than comparable products; 40G bandwidth per port replaces four 10G links, reducing link deployment costs and maintenance workload.
Q4: Suitable for which critical long-distance scenarios? Is installation complex?
A4: Suitable for critical scenarios such as data center interconnection, carrier backbone, and industry private networks; supports hot-swapping, installation without downtime, automatic speed recognition after insertion into the switch, and simple configuration.
