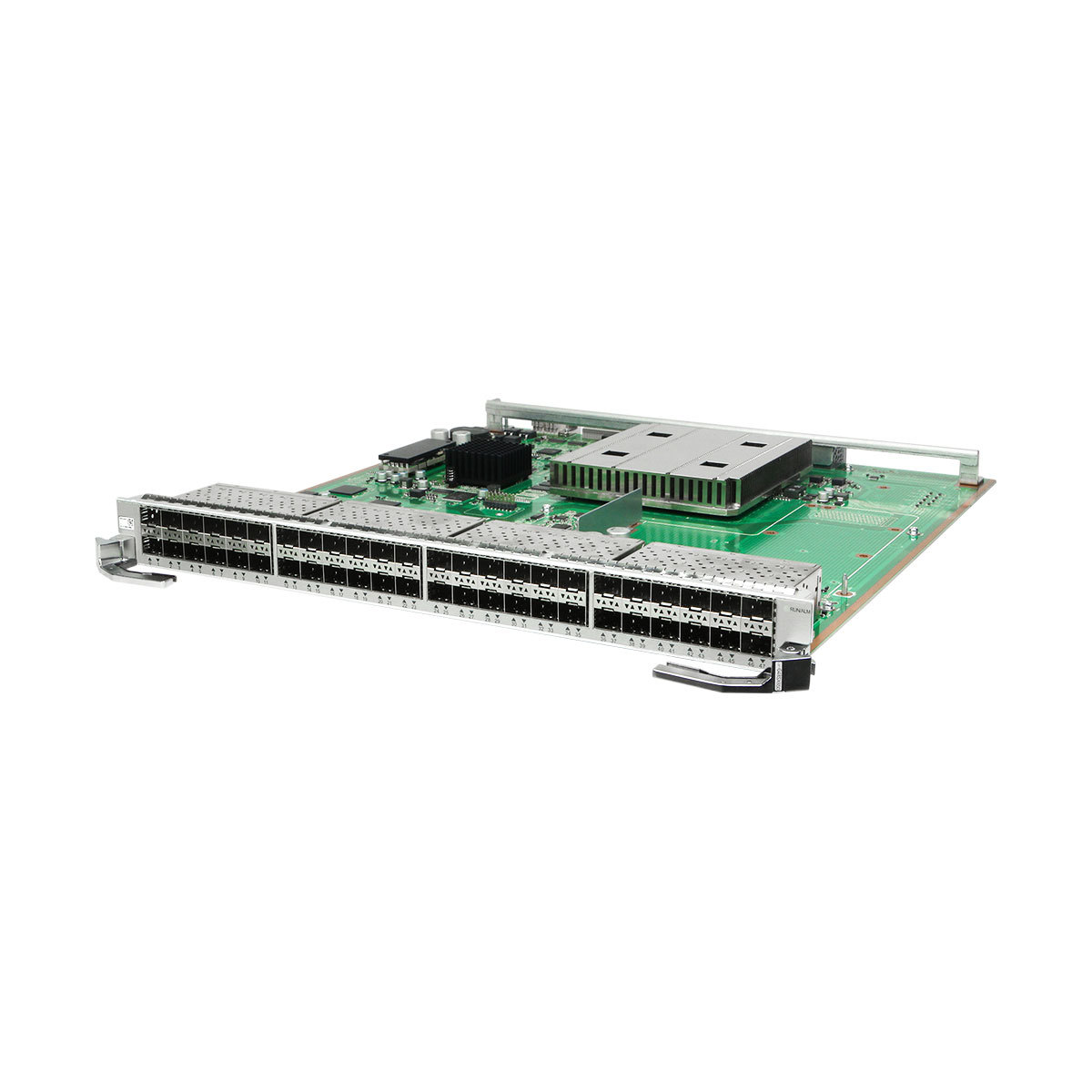

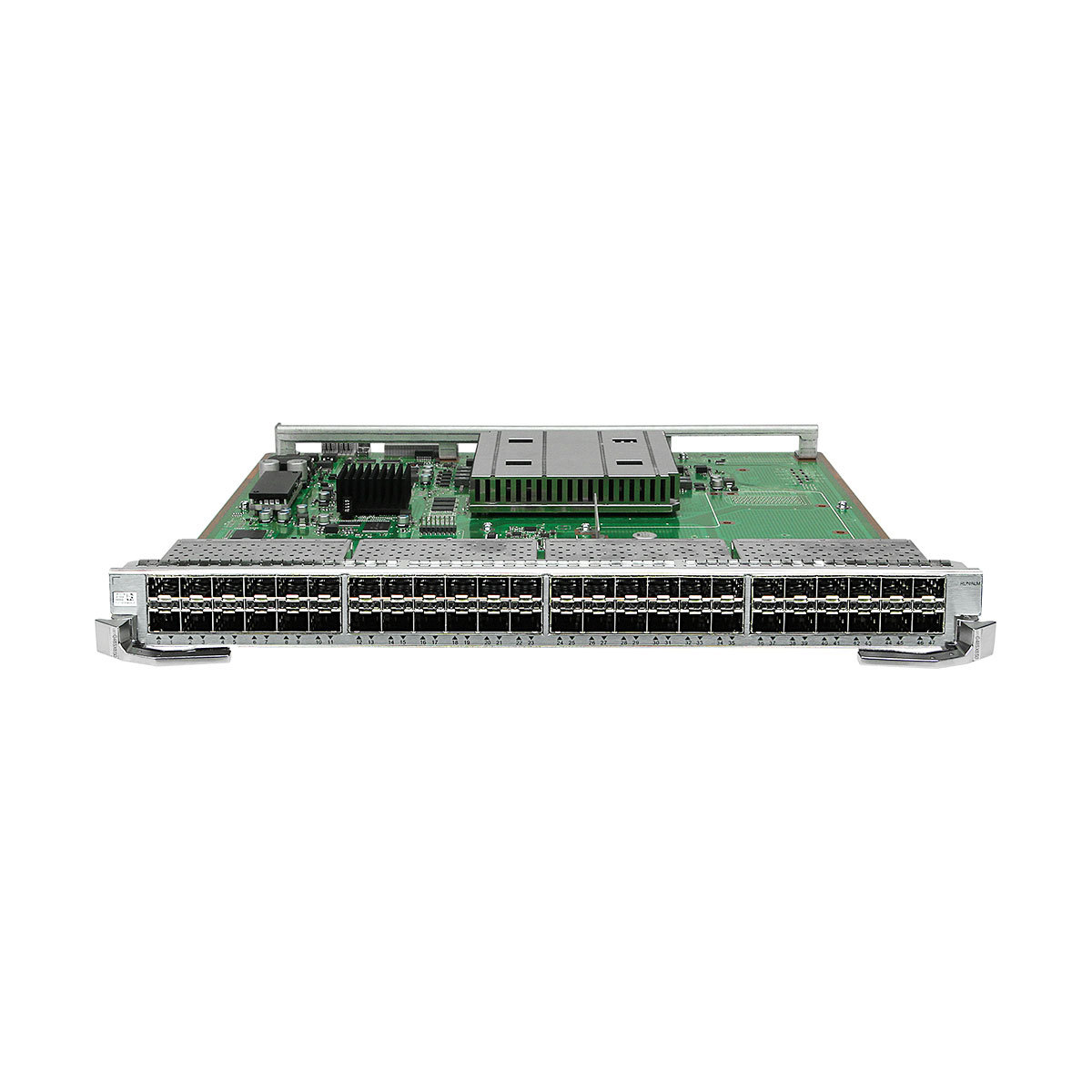

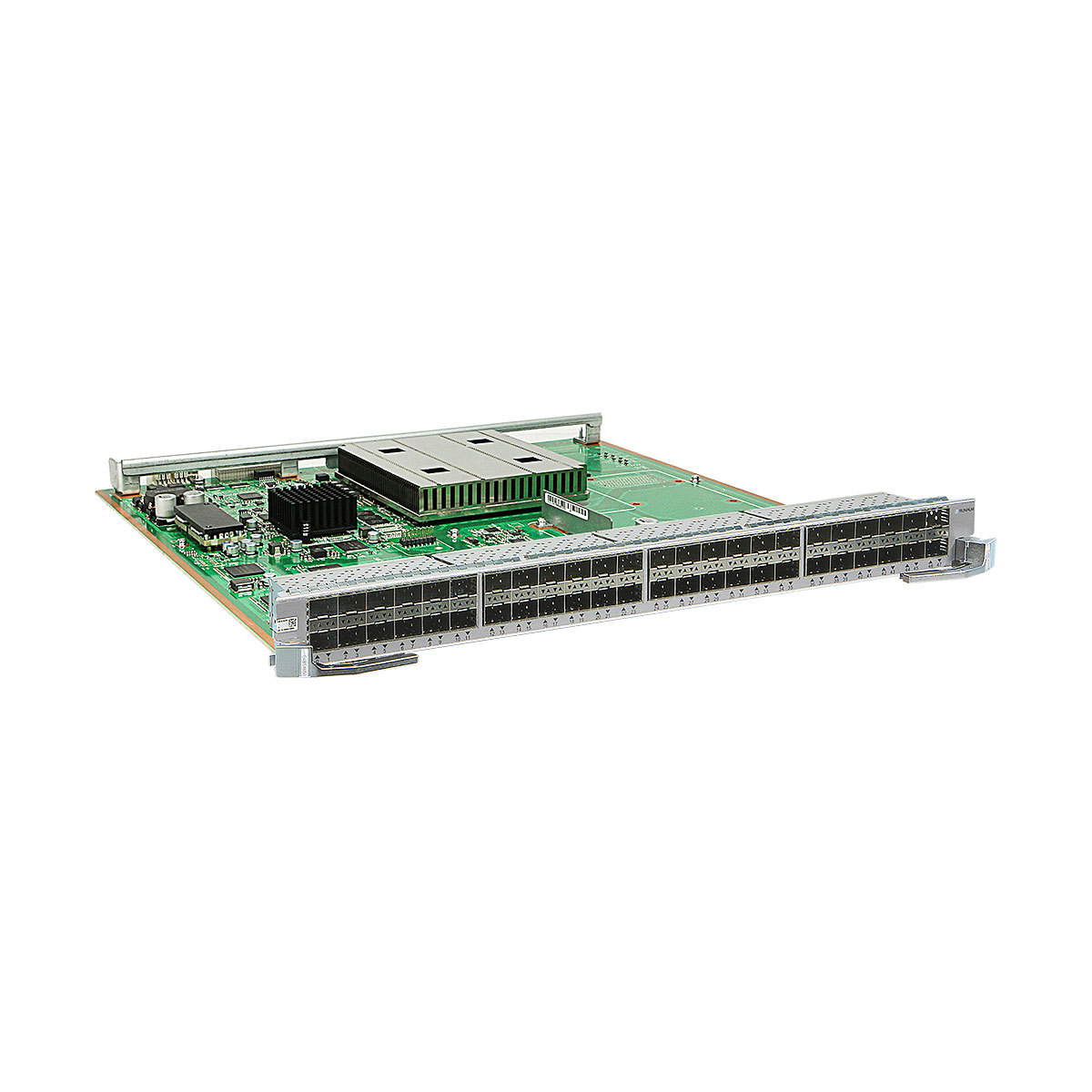

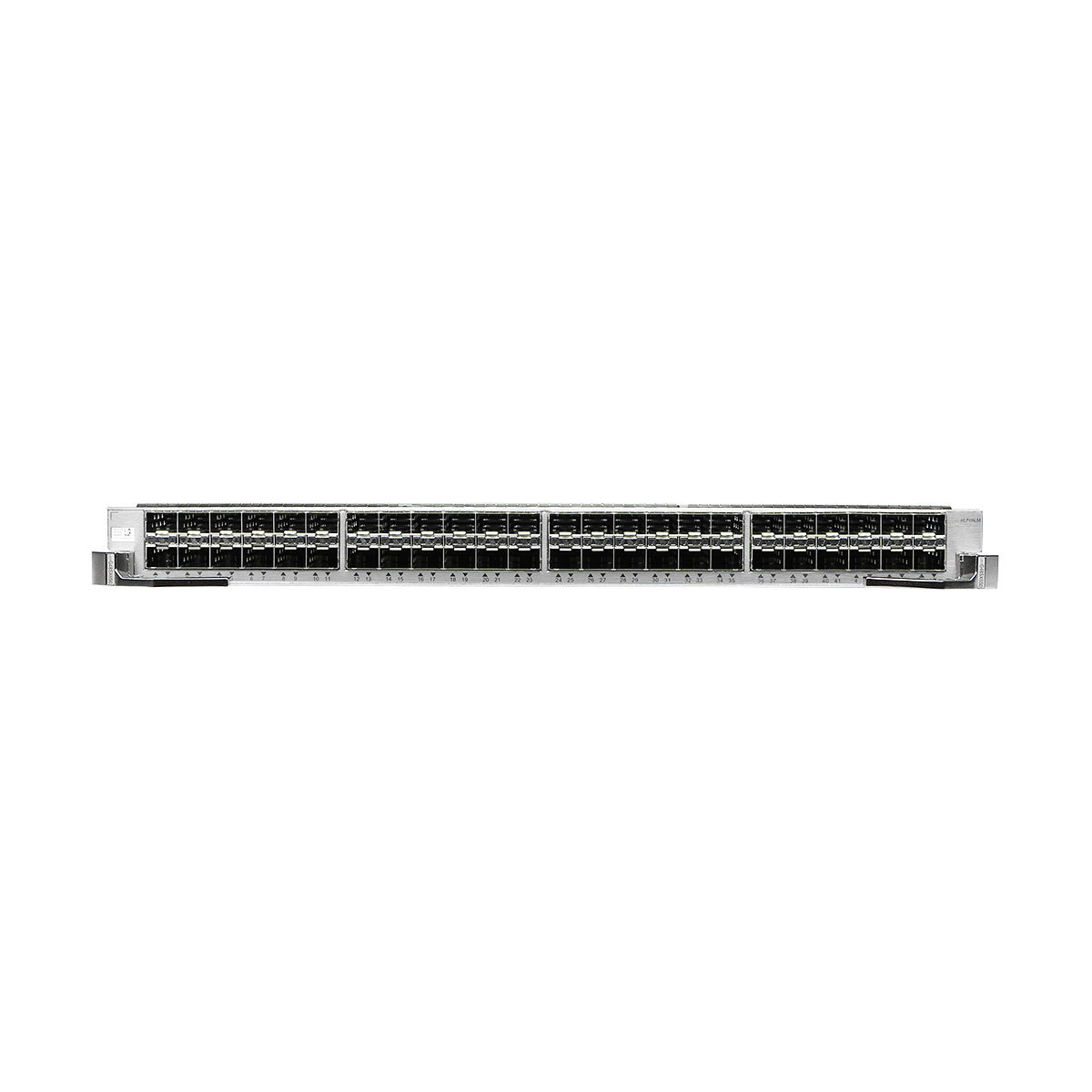

Huawei S12700 LST7G48SX6S0 48-Port GE SFP Interface Card (X6S, SFP).
The LST7G48SX6S0 provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.
The LST7G48SX6S0 provides the following functions:
Communicates with the MPU and works under the control of the MPU.
Searches for routes and destination addresses of data packets for forwarding.
Forwards data packets.
Function
Description
Basic functions
Provides forty-eight GE optical ports for data access and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Ports on the LST7G48SX6S0
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For optical modules supported by the LST7G48SX6S0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE 802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates).
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LST7G48SX6S0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.2 kg (7.05 lb)
Maximum power consumption: 147 W
LST7G48SX6S0 FAQ
Q1: What are the core advantages of this service board? Is it suitable for small to medium-sized networks with limited budgets?
A1: The core advantages are its high cost-effectiveness with 48 ports, dual-rate compatibility, low power consumption, and flexible expansion; precise cost control eliminates the need to pay for redundant functions, making it ideal for small to medium-sized networks with limited budgets.
Q2: Which optical modules does it support? Can it directly connect to existing 1G legacy equipment?
A2: It supports Huawei standard SFP+ 10G optical modules (SR/LR/ER) and SFP 1G optical modules; dual-rate adaptive, it can directly connect to existing 1G equipment without additional converter configuration.
Q3: How does its energy consumption and cost performance compare to other 48-port 10G boards of the same level?
A3: The total power consumption is ≤185W, saving 30% more energy than comparable products; procurement costs are reduced by 20%-25% while ensuring basic forwarding performance, resulting in outstanding cost-effectiveness.
Q4: What size network scenarios is it suitable for? Is installation complex?
A4: Suitable for small and medium-sized data centers, medium-sized parks, and county-level aggregation of operators; supports hot-swapping, installation without downtime, automatic speed recognition after insertion into the switch, and simple configuration.
