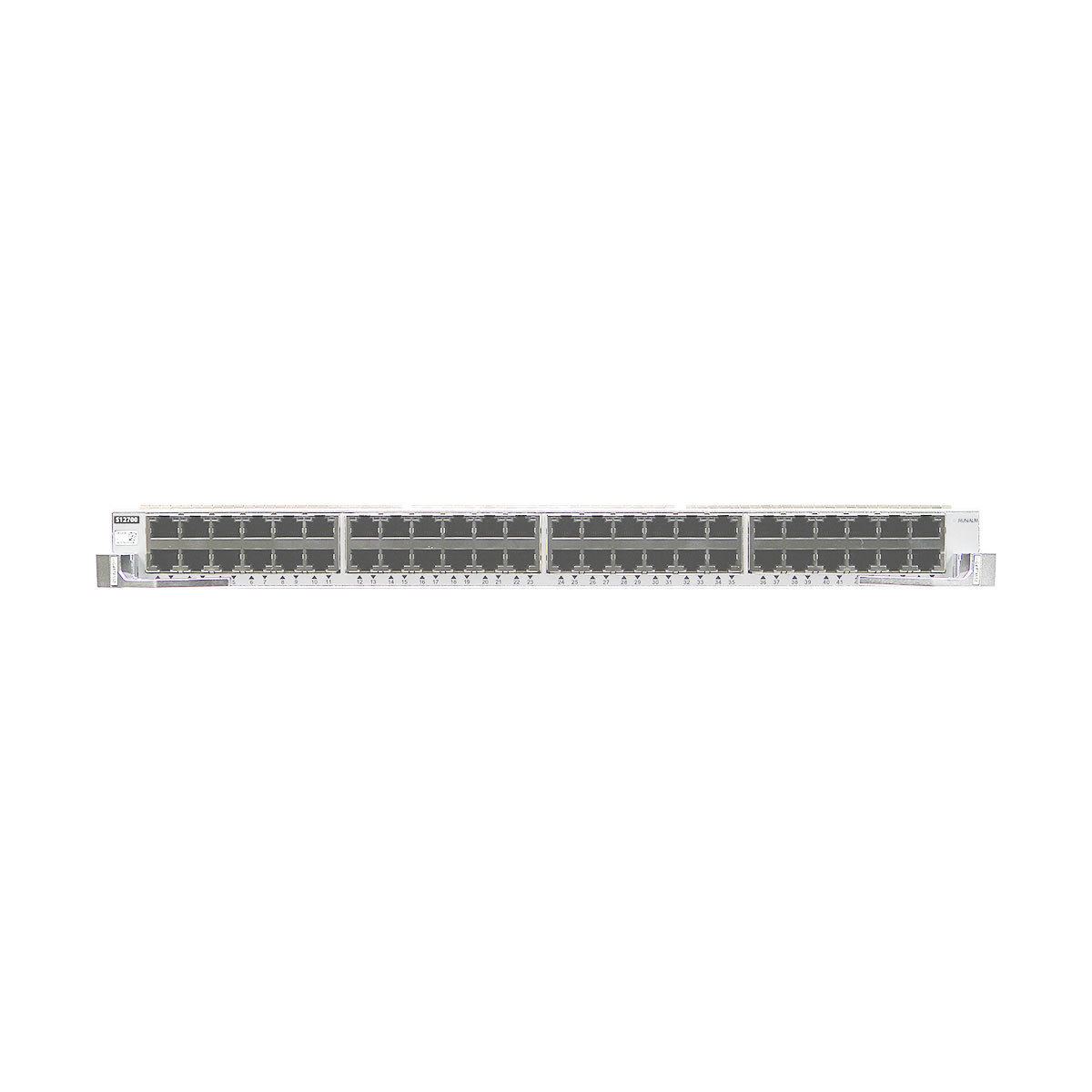

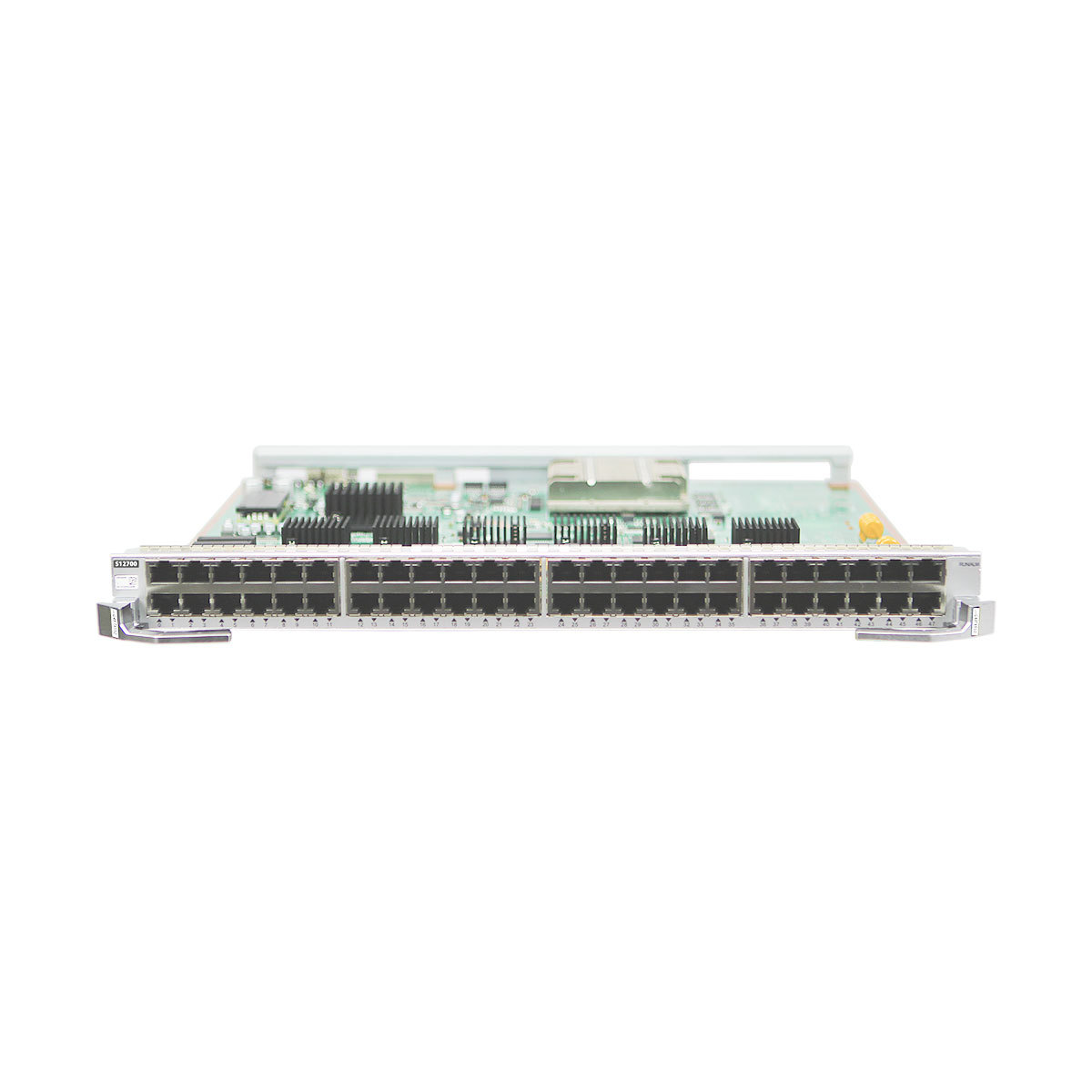

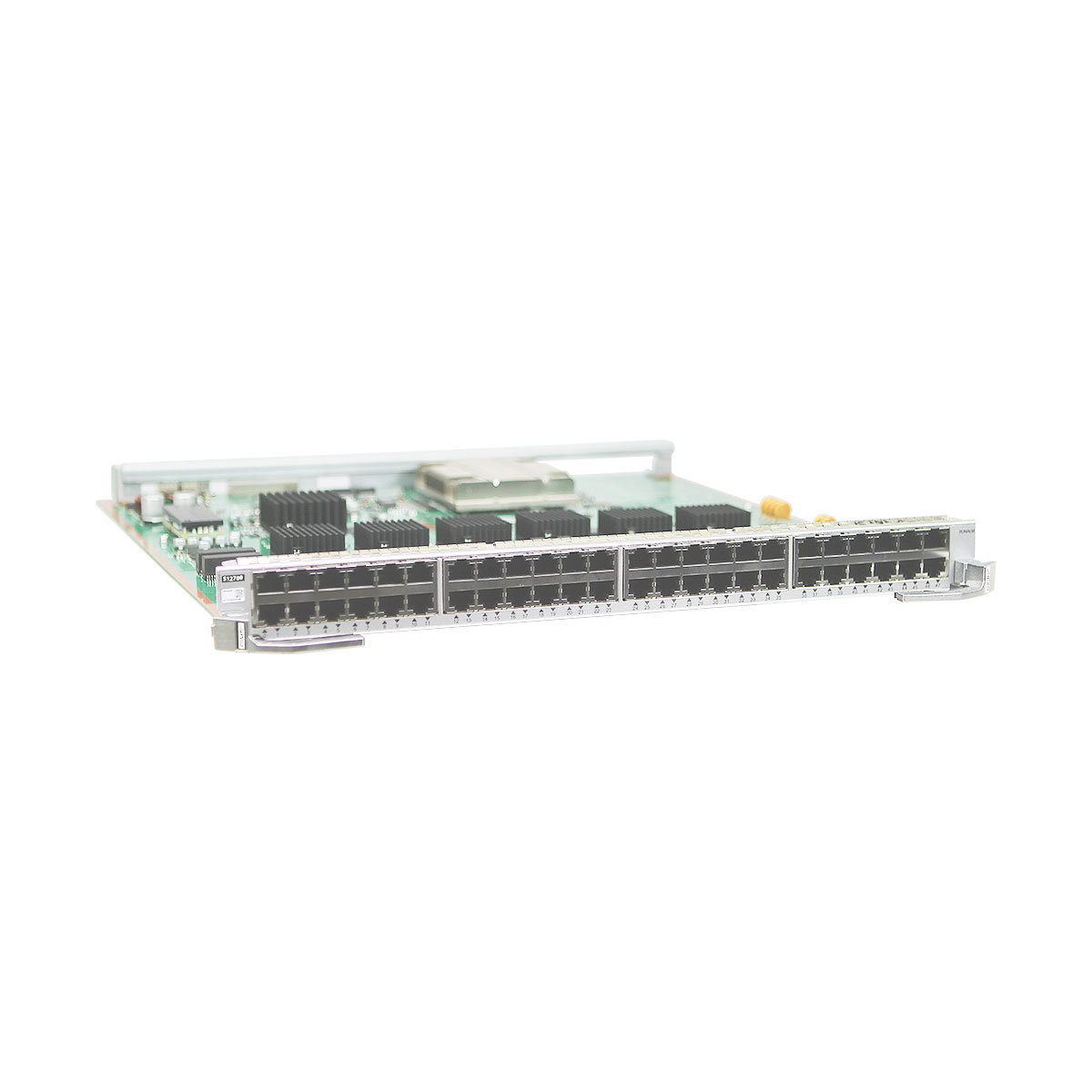

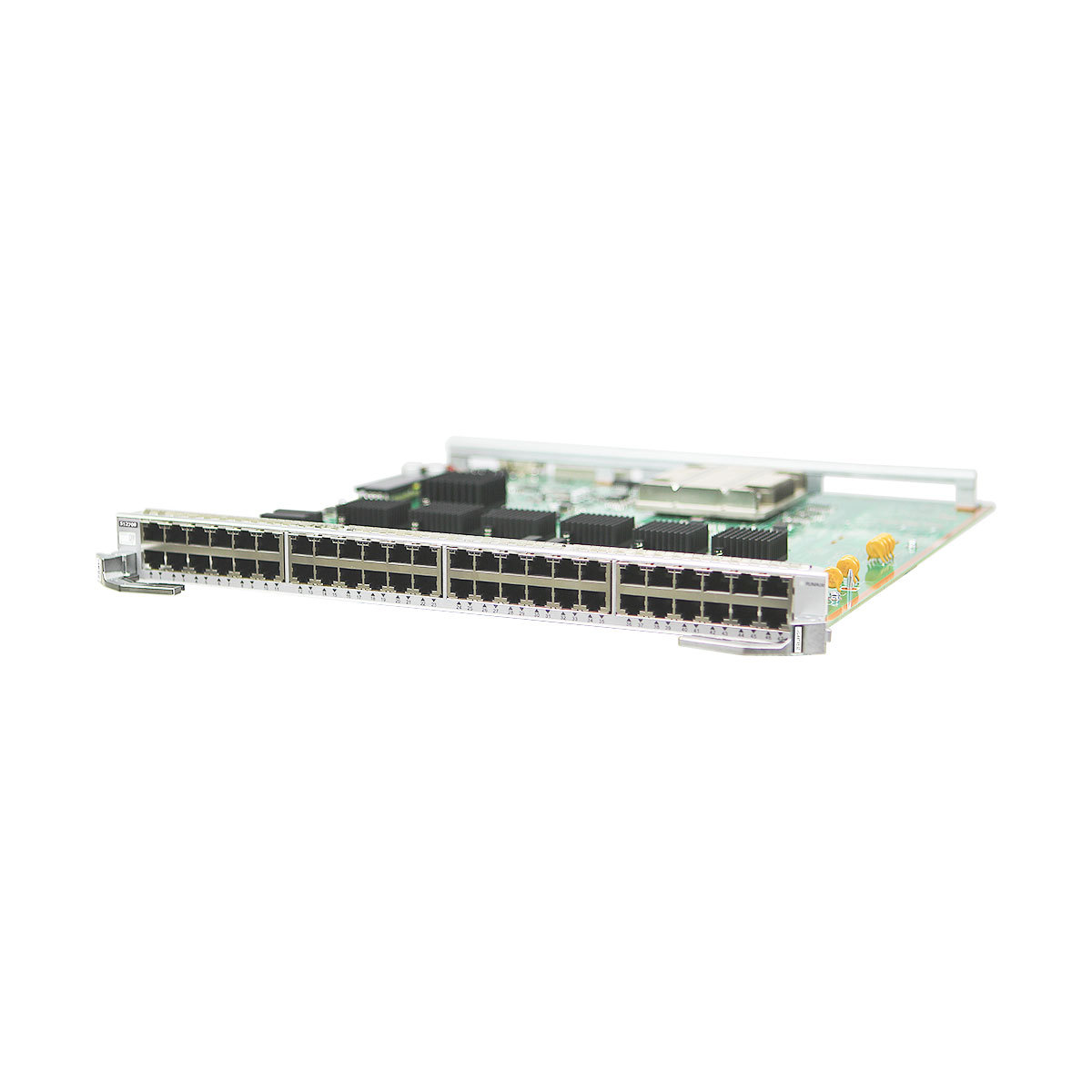

Huawei S12700 LST7G48TX5S0 48-port 10/100/1000BASE-T interface card (X5S, M, RJ45).
The LST7G48TX5S0 provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.
Provides forty-eight GE electrical ports for data access and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The LST7G48TX5S0 is hot swappable.
Ports on the LST7G48TX5S0
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LST7G48TX5S0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.27 kg (7.21 lb)
Maximum power consumption: 66 W
LST7G48TX5S0 FAQ
Q1: What are the core advantages of this service board? Why is 2.5G considered the golden speed for gigabit upgrades?
A1: The core advantages are low-cost gigabit upgrades, no need for rewiring, high-density access, and low power consumption. 2.5G bandwidth meets the current needs of cloud office, WiFi 6, and high-definition monitoring, with a cost only slightly higher than gigabit, and it is compatible with existing network cables, making it the optimal choice for gigabit upgrades.
Q2: What types of network cables does it support? Can it directly connect to existing gigabit terminals?
A2: It supports existing CAT5E/CAT6/CAT6A network cables, with a transmission distance of up to 100m; it supports 2.5G/1G/100M three-speed adaptive switching, and can directly connect to existing gigabit and lower speed terminals without additional configuration.
Q3: How does its energy consumption and cost performance compare to a comparable 48-port 2.5G board?
A3: Total power consumption ≤90W, 32% more energy efficient than comparable products; procurement cost is 80% lower than 10G boards, eliminating cabling costs, making it the most cost-effective gigabit upgrade solution.
Q4: Suitable for scenarios lacking professional maintenance personnel? Is installation complex?
A4: Suitable for small and medium-sized enterprises, commercial complexes, educational institutions, etc.; supports hot-swapping and plug-and-play, installation requires no professional skills, automatically recognized after insertion into the switch, and configuration is simple.
