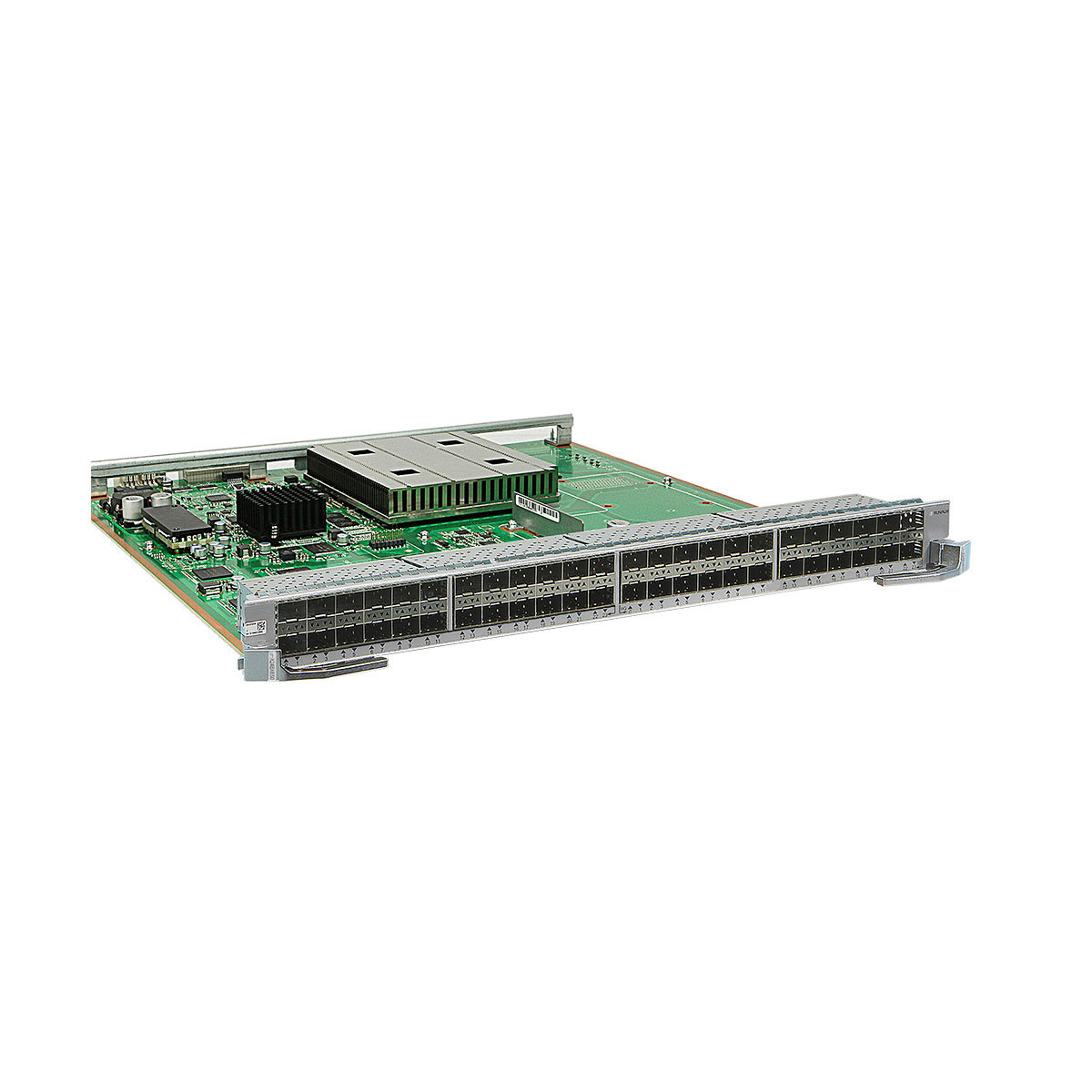

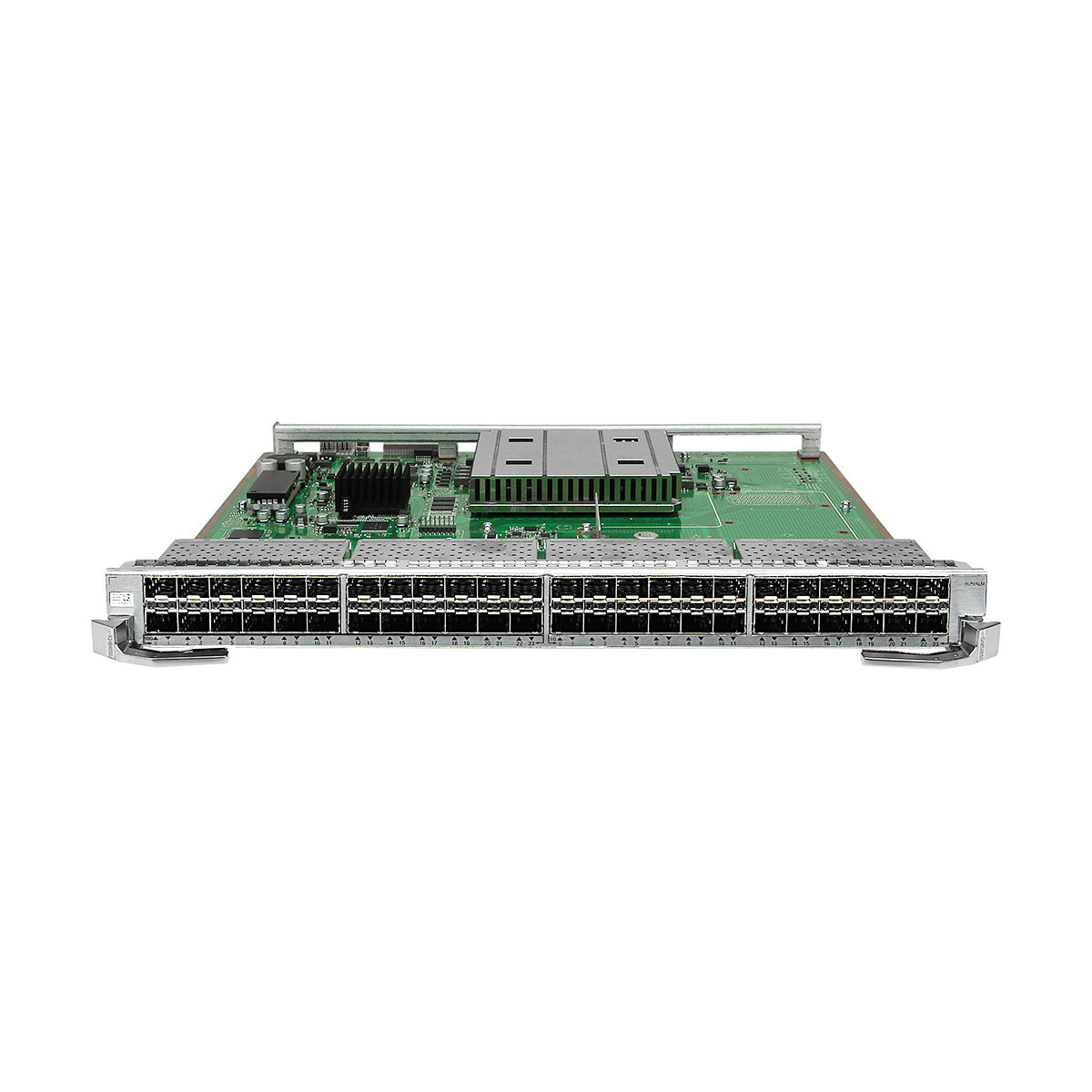

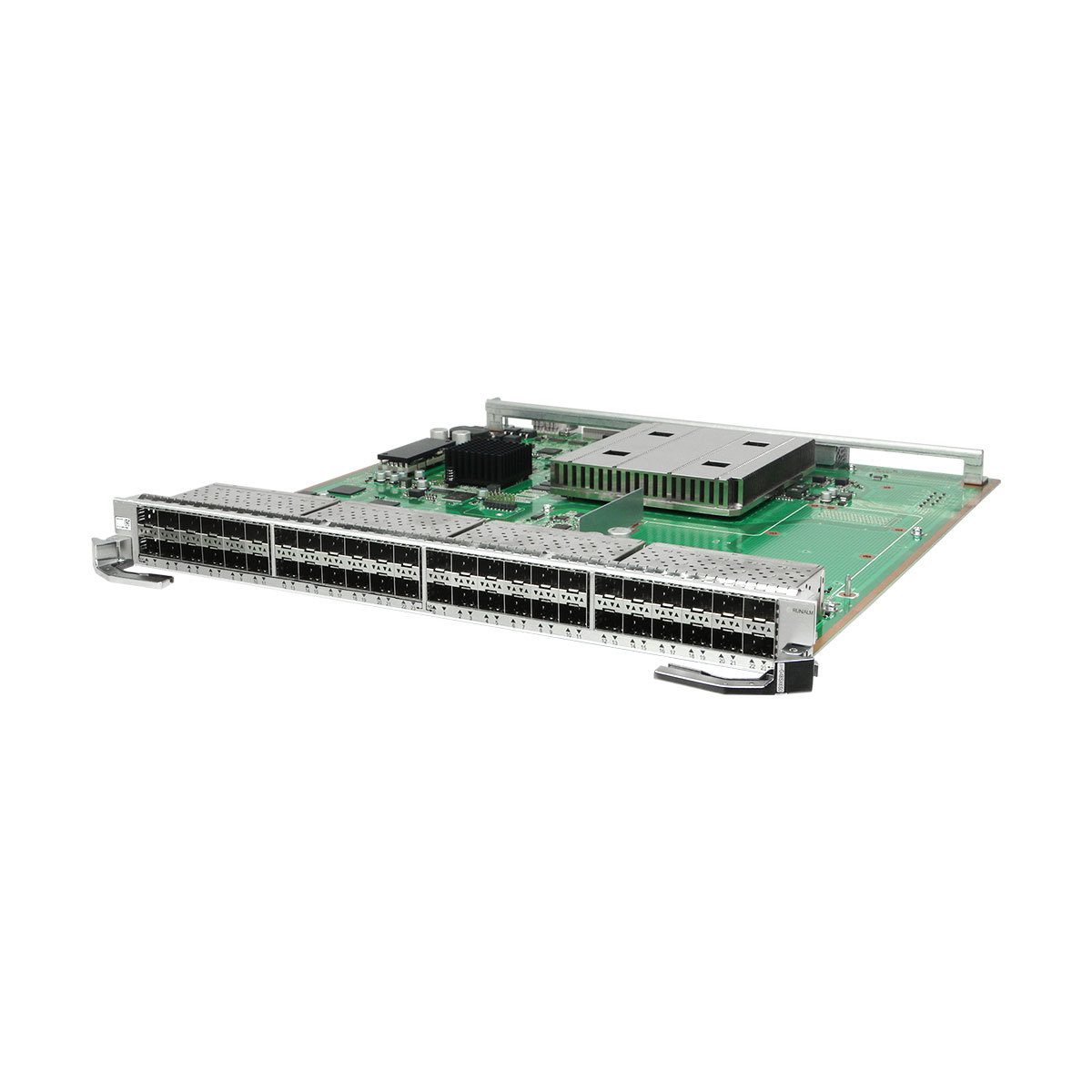

Provides twenty-four 10GE optical ports and twenty-four GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported

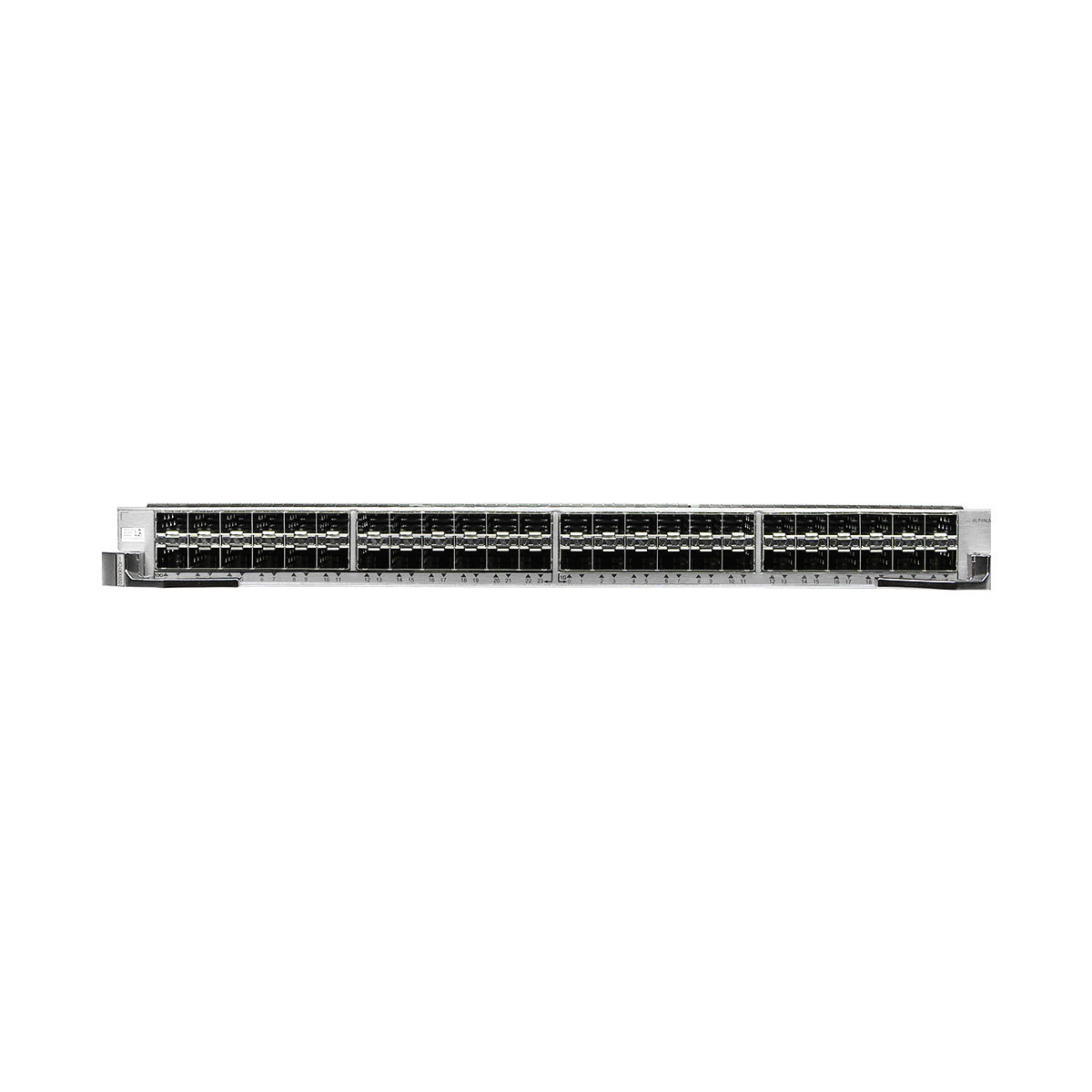

Ports on the LST7X24BX6S0
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used.
For the optical modules supported by the LST7X24BX6S0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the LST7X24BX6S0 and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LST7X24BX6S0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.2 kg (7.05 lb)
Maximum power consumption: 159 W
LST7X24BX6S0 FAQ
Q1: What are the core advantages of this service board? Can it use existing network cables?
A1: The core advantages are high-density 24 ports, three-rate adaptive speed, low power consumption, and plug-and-play functionality; it supports existing CAT6A/CAT7 network cables, eliminating the need for rewiring and reducing upgrade costs.
Q2: Which terminal speeds are supported? Is manual configuration required?
A2: It supports 10G/1G/100M three-rate adaptive speed. No manual configuration is required; the speed is automatically matched after the terminal is connected, making it plug-and-play.
Q3: How does its energy consumption and performance compare to comparable 24-port 10G Ethernet boards?
A3: The overall power consumption is ≤120W, saving 30% more energy than comparable products; the forwarding capacity is ≥480Gbps, supporting full-load concurrent forwarding across all 24 ports without performance bottlenecks.
