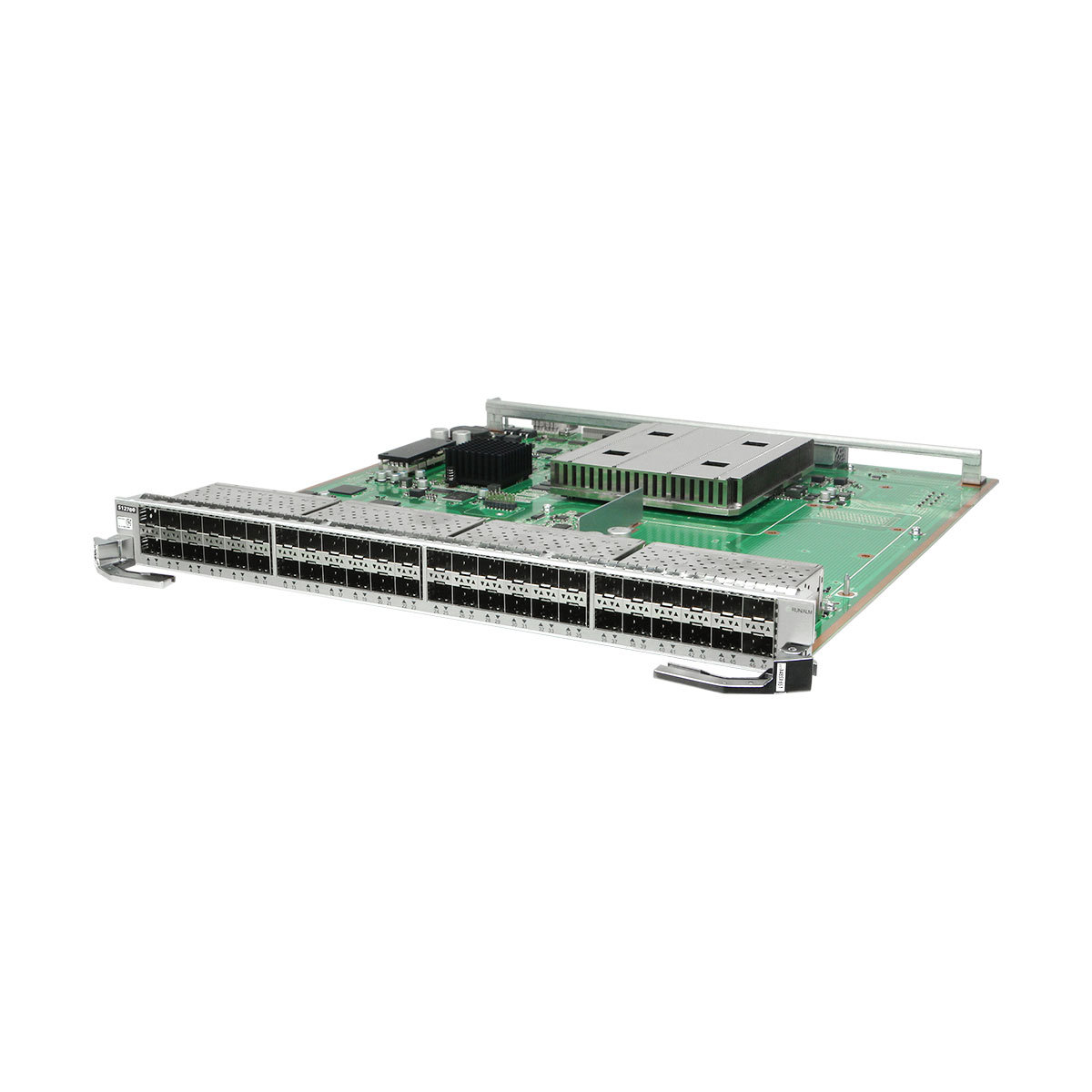

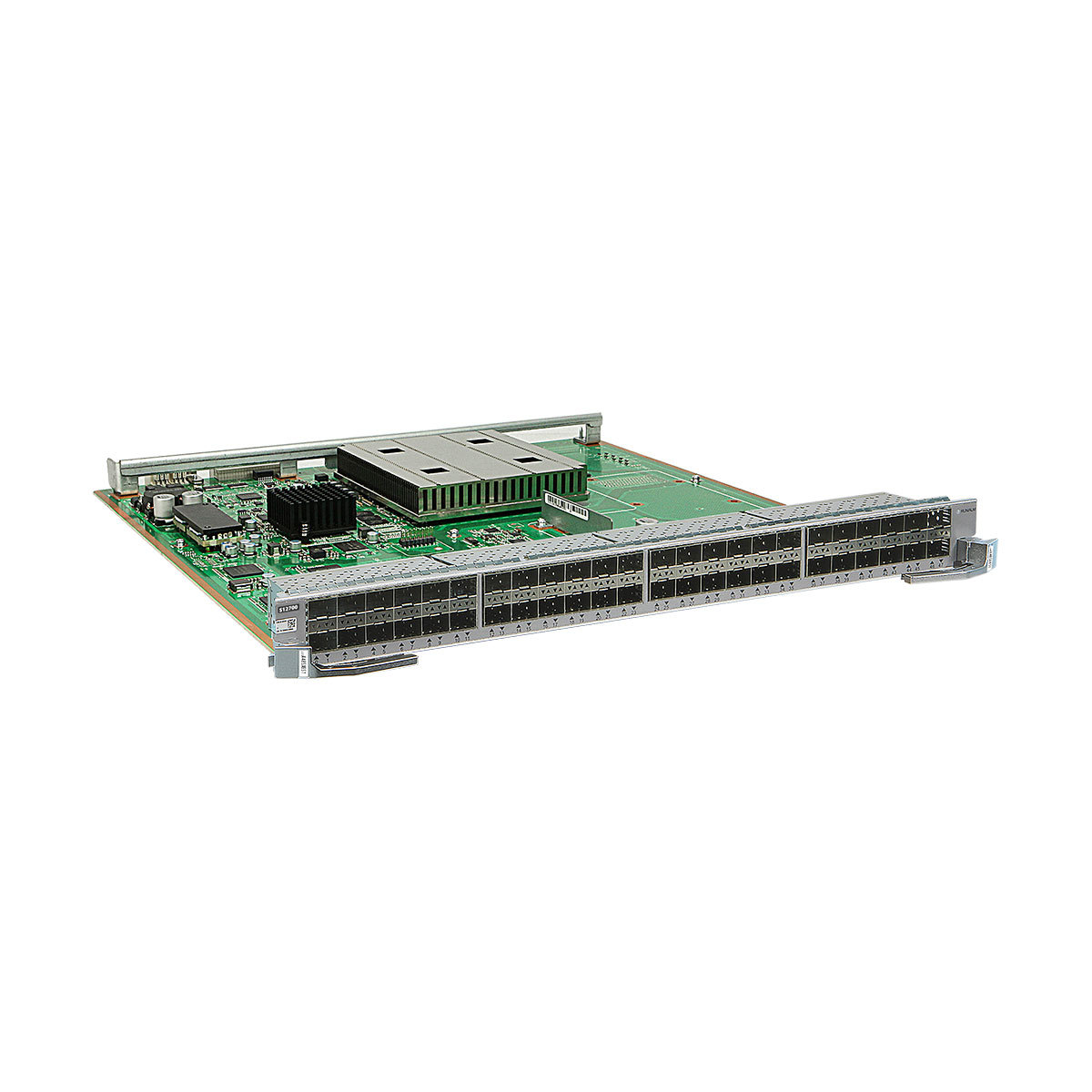

The LST7X48SX6S1 provides the following functions:
Communicates with the MPU and works under the control of the MPU.
Searches for routes and destination addresses of data packets for forwarding.
Forwards data packets.
Function
Description
Basic functions
Provides forty-eight 1000M/10G BASE-X ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported

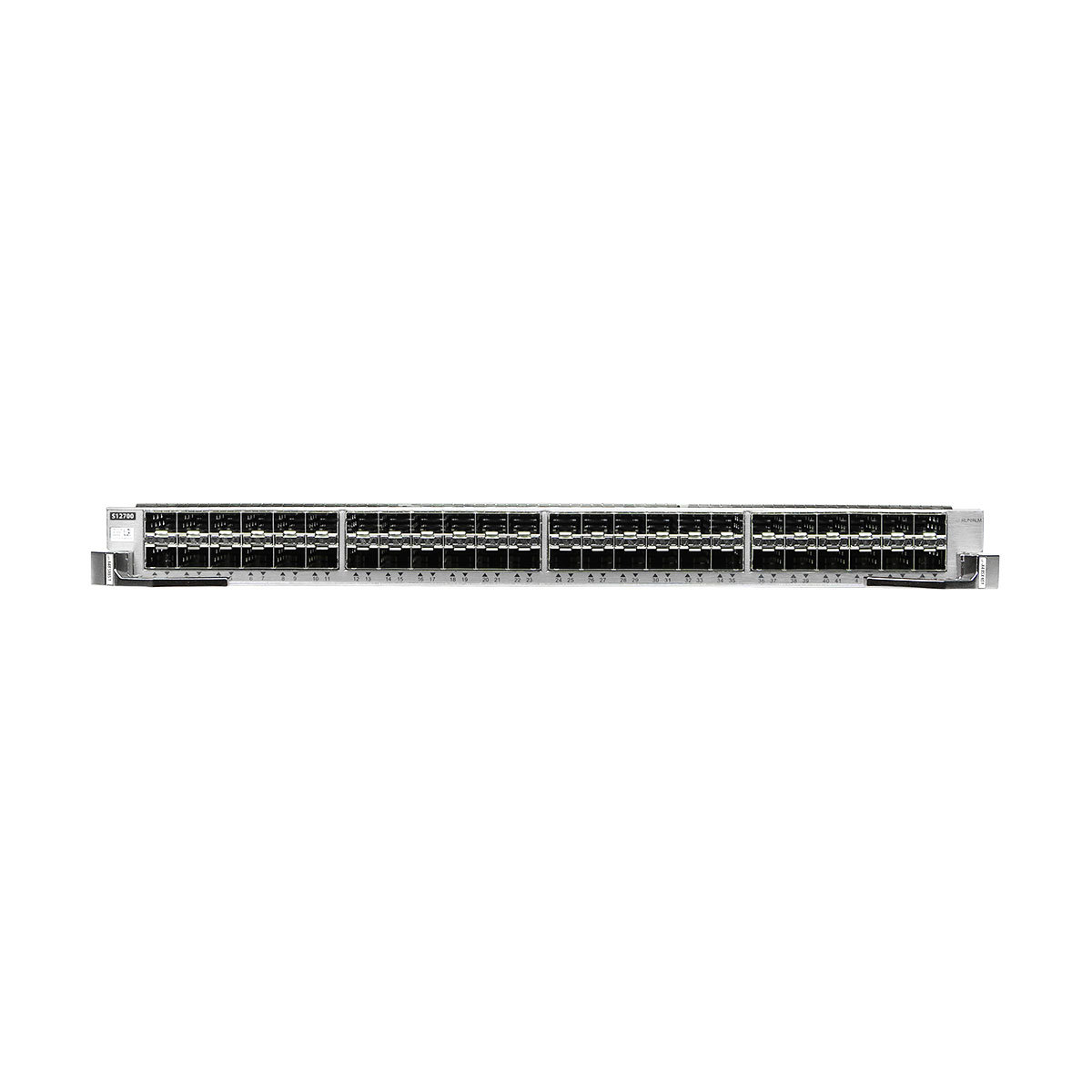

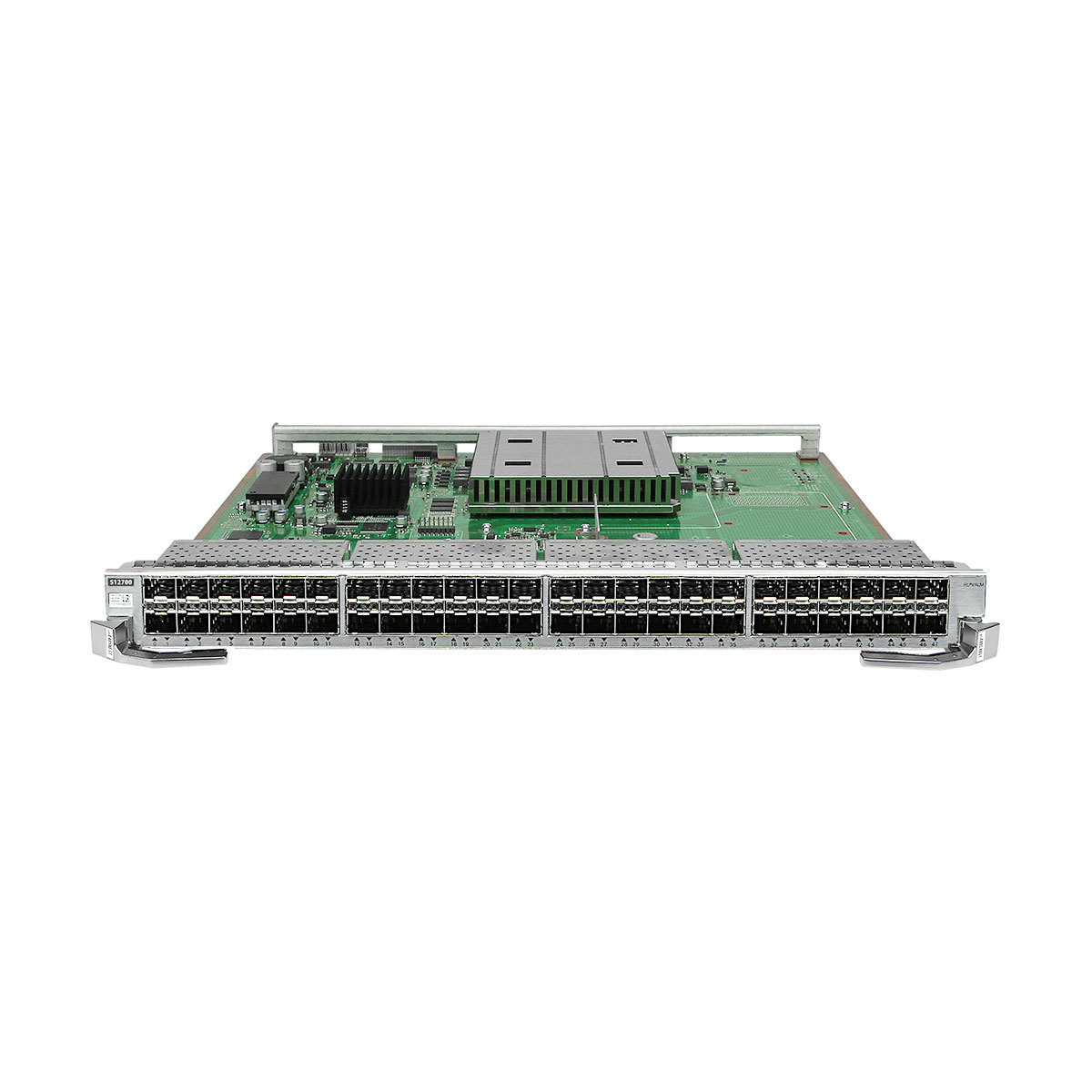

Port of the LST7X48SX6S1
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used. For the SFP optical modules supported by the LST7X48SX6S1 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the LST7X48SX6S1 and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LST7X48SX6S1
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.2 kg (7.05 lb)
Maximum power consumption: 197 W
LST7X48SX6S1 FAQ
Q1: What are the core advantages of this service board? What practical value does the high density of 48 ports bring?
A1: The core advantages are ultra-high density of 48 ports, 10G/1G dual-rate compatibility, low power consumption, and high stability. High density significantly saves switch slots, reducing the number of devices deployed. The dual-rate design reduces upgrade costs and adapts to ultra-large-scale all-optical networks.
Q2: Which optical modules does it support? Can it directly connect to existing 1G legacy equipment?
A2: It supports Huawei standard SFP+ 10G optical modules (SR/LR/ER) and SFP 1G optical modules; dual-rate adaptive design allows direct connection to existing 1G equipment without additional converter configuration or manual debugging.
Q3: How does its power consumption and forwarding performance compare to other 48-port 10G boards of the same level? A3: Total power consumption ≤180W, 32% more energy efficient than comparable products; forwarding capacity ≥960Gbps, supports full-load concurrent forwarding of 48 ports, no performance bottlenecks, suitable for high-load scenarios.
Q4: What scale of network scenarios is it suitable for? Is installation complex?
A4: Suitable for ultra-large-scale 10G access scenarios such as large data centers, medium-to-large-scale campuses, and carrier city aggregation; supports hot-swapping, installation without downtime, automatic speed recognition after insertion into the switch, simple configuration.
