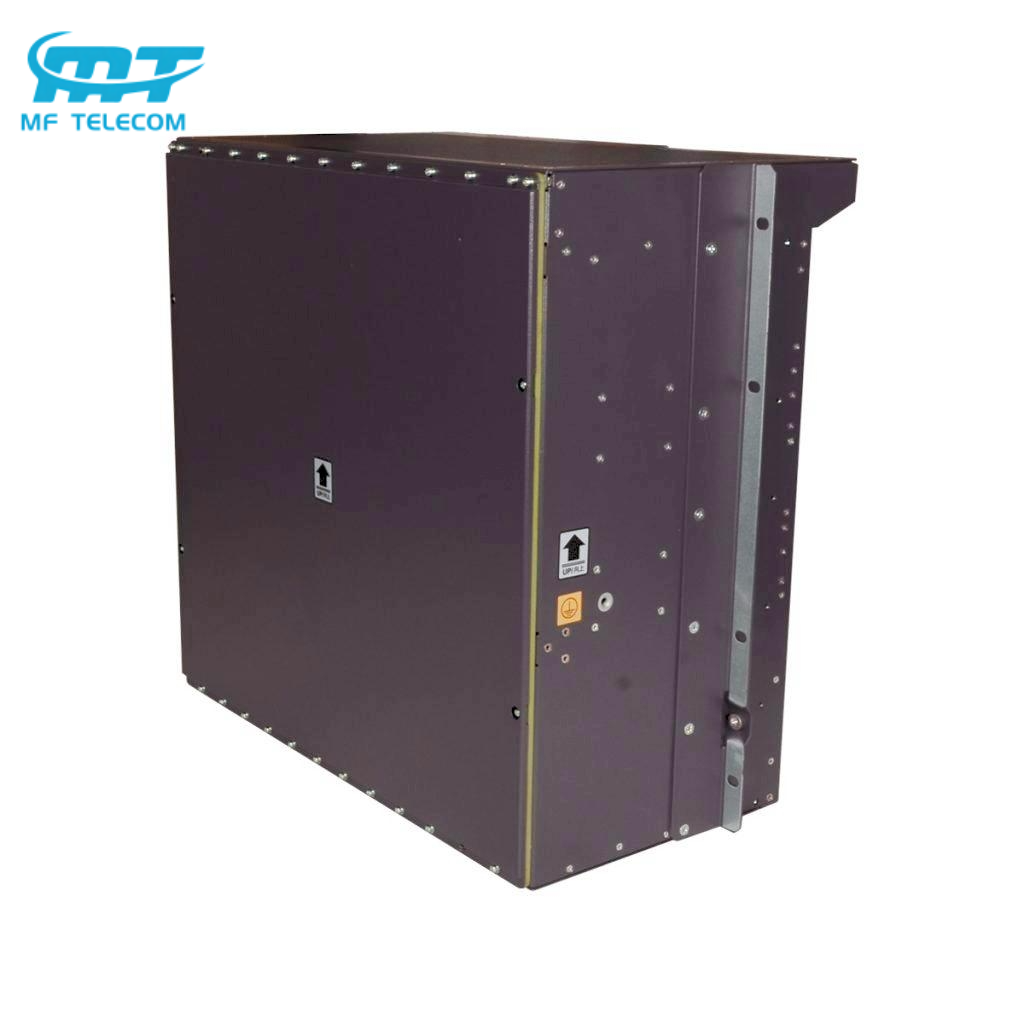

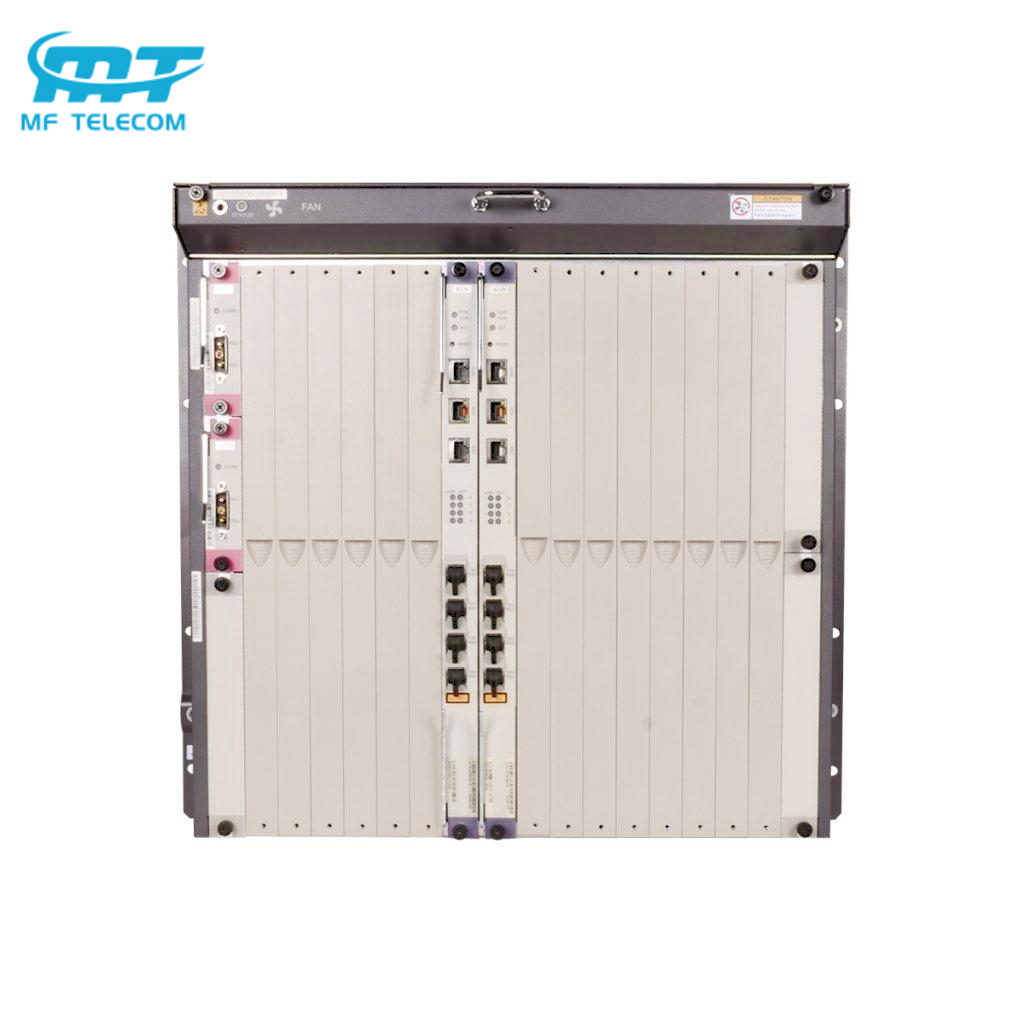

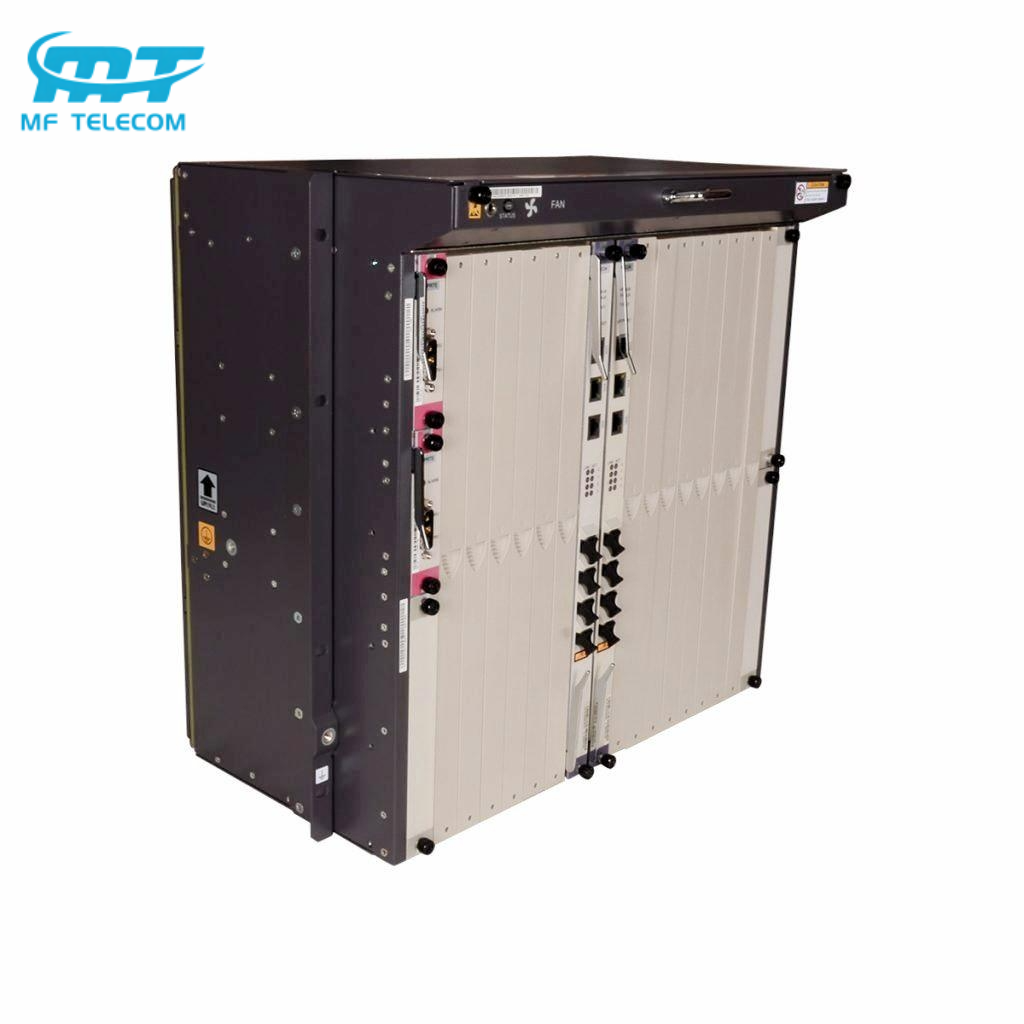

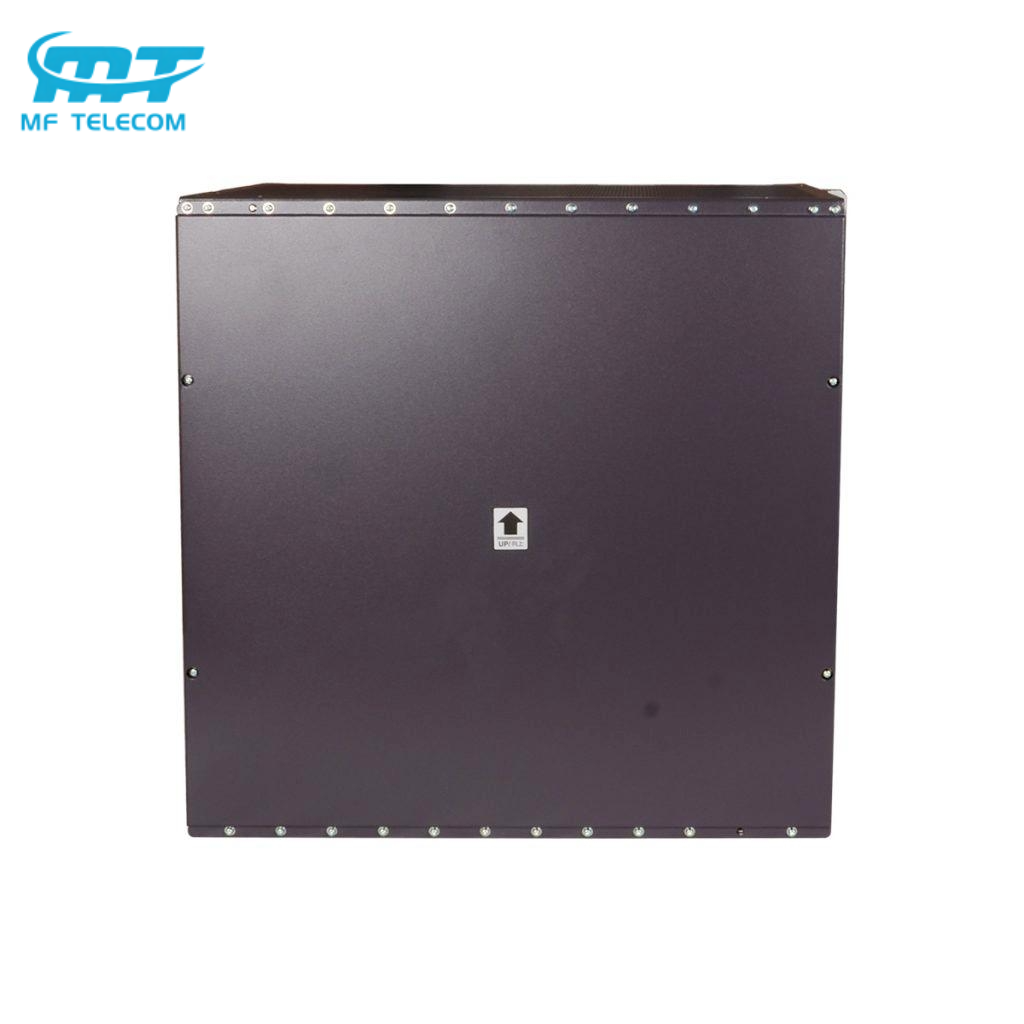

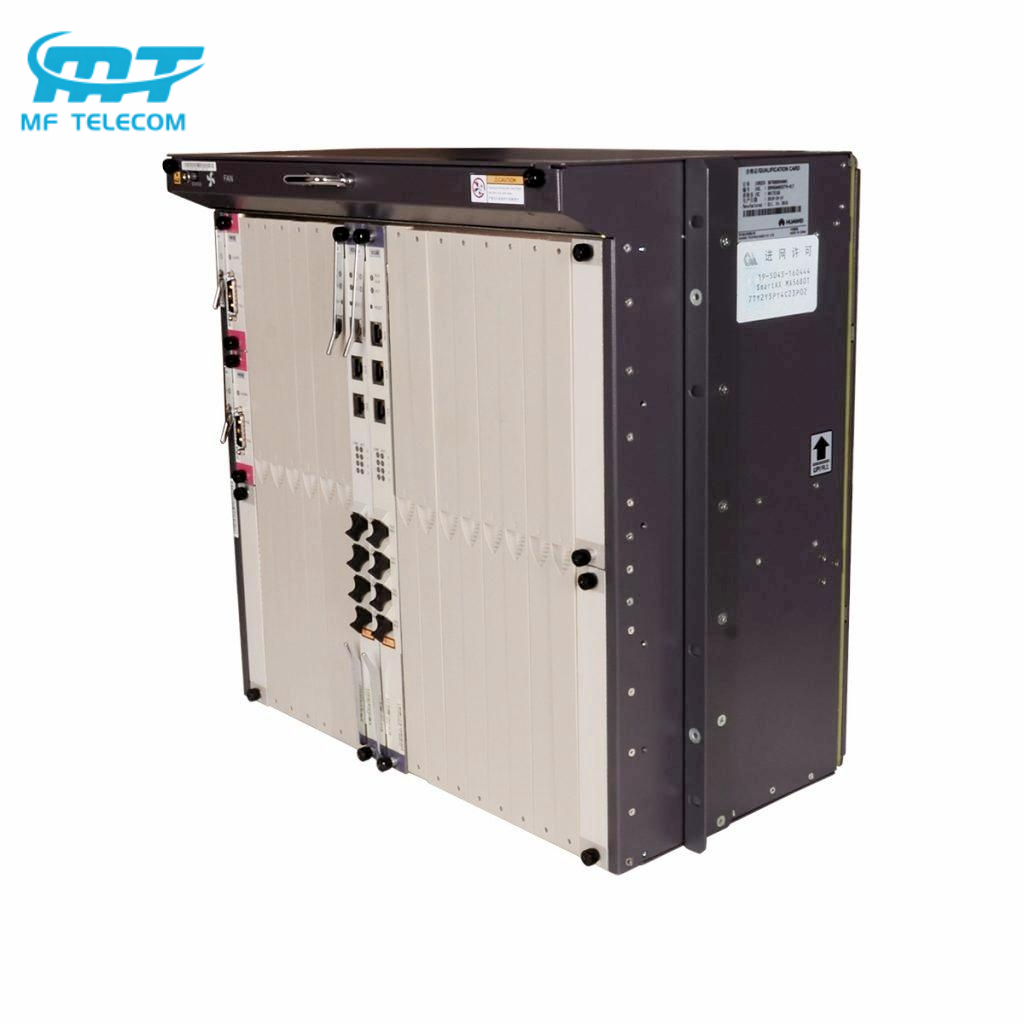

Huawei MA5680T OLT

• MA5680T: High-density flagship model, supporting up to 8K ONT access per chassis, focusing on operators' large-scale urban optical networks and multi-service bearing scenarios;
• MA5683T: Medium-capacity model, supporting 2K-4K ONT access per chassis, adapting to medium-scale networking such as prefecture-level cities and counties;
• MA5608T: Mini model, small in size and low in power consumption, supporting hundreds of ONT access per chassis, suitable for small-capacity scenarios such as towns, rural areas, and small enterprises;
• The three are fully compatible in software versions and user boards, and can be flexibly combined for networking according to coverage scale.

2. Does the MA5680T support upgrading from GPON to 10G PON? Is it necessary to replace the entire machine?

• Hardware level: Only need to replace the PON board (e.g., replace the GPBD board with a 10G GPON board), and the core hardware, such as the backplane and chassis, does not need to be modified;
• Software level: Upgrading to the corresponding version can support the 10G PON protocol, and the existing services can be guaranteed uninterrupted during the upgrade process, fully protecting the initial construction investment.

3. What is the maximum number of users the device can support? Will a splitting ratio of 1:128 affect bandwidth experience?

• Maximum number of access users: A single chassis supports up to 8K ONTs (with fully equipped PON boards), meeting the centralized access needs of large urban areas or parks;
• Impact of splitting ratio: 1:128 is the theoretical maximum splitting ratio. In actual deployment, it will be adjusted according to bandwidth needs (e.g., 1:64 is commonly used for home users, and 1:32 for enterprise leased lines); in addition, the device supports "dynamic bandwidth allocation", which can schedule bandwidth according to users' real-time needs. Even with a 1:128 splitting ratio, it can ensure the fluency of daily internet access, video viewing, and other scenarios.

4. Why does the MA5680T support 1588v2 clock synchronization? What scenarios is it mainly used for?

• 5G/4G base station transmission: Base station signal handover and user call connection require high-precision time synchronization; dropped calls and signal interruption will occur.
• Industrial control scenarios: The automated production lines and sensor data collection in industrial parks require time synchronization to ensure the consistency of command execution.
• Other scenarios: Industry access with high time precision requirements, such as financial transactions and power dispatching.

5. Does the device support access to ONTs (optical modems) of other brands?

6. How to remotely manage the MA5680T during operation and maintenance? Does it support batch configuration?

• Management interfaces: Supports Telnet, SSH, SNMP (v1/v2c/v3), Web network management, and CLI command line;
• Batch configuration: Supports Huawei iMaster NCE network management system, which can realize batch configuration, version upgrade, and fault monitoring of multiple OLTs and thousands of ONTs;
• Fault diagnosis: Built-in "one-click diagnosis" function, which can automatically locate problems such as ONT offline and bandwidth stuttering, reducing manual troubleshooting time.

7. What is the specific energy-saving effect of the MA5680T? Is it suitable for scenarios with tight power resources such as rural areas?

• The power consumption of a single 8-port GPON board is ≤ 55W, which is more than 30% energy-saving compared with traditional OLT boards.
• Supports "intelligent sleep": Idle ports and boards are automatically powered off, and the device automatically reduces power consumption when user bandwidth demand is low at night.
• Wide voltage adaptation: Supports AC 110V-240V and DC -48V power supply, adapting to rural power grid fluctuation scenarios with strong stability.

8. When enterprises use the MA5680T, how to guarantee the bandwidth priority of critical services (such as ERP and video conferences)?

• Step 1: Divide "service VLANs" for the enterprise (e.g., ERP, video conferences, and ordinary office into different VLANs.
• Step 2: Set bandwidth priorities (video conferences > ERP > ordinary office) and configure minimum guaranteed bandwidth (e.g., reserve 20 Mbit/s for video conferences and 10 Mbit/s for ERP);
• Step 3: The device automatically identifies service traffic, forwards high-priority services first, avoids ordinary office traffic occupying the bandwidth of critical services, and meets enterprise SLA requirements.
