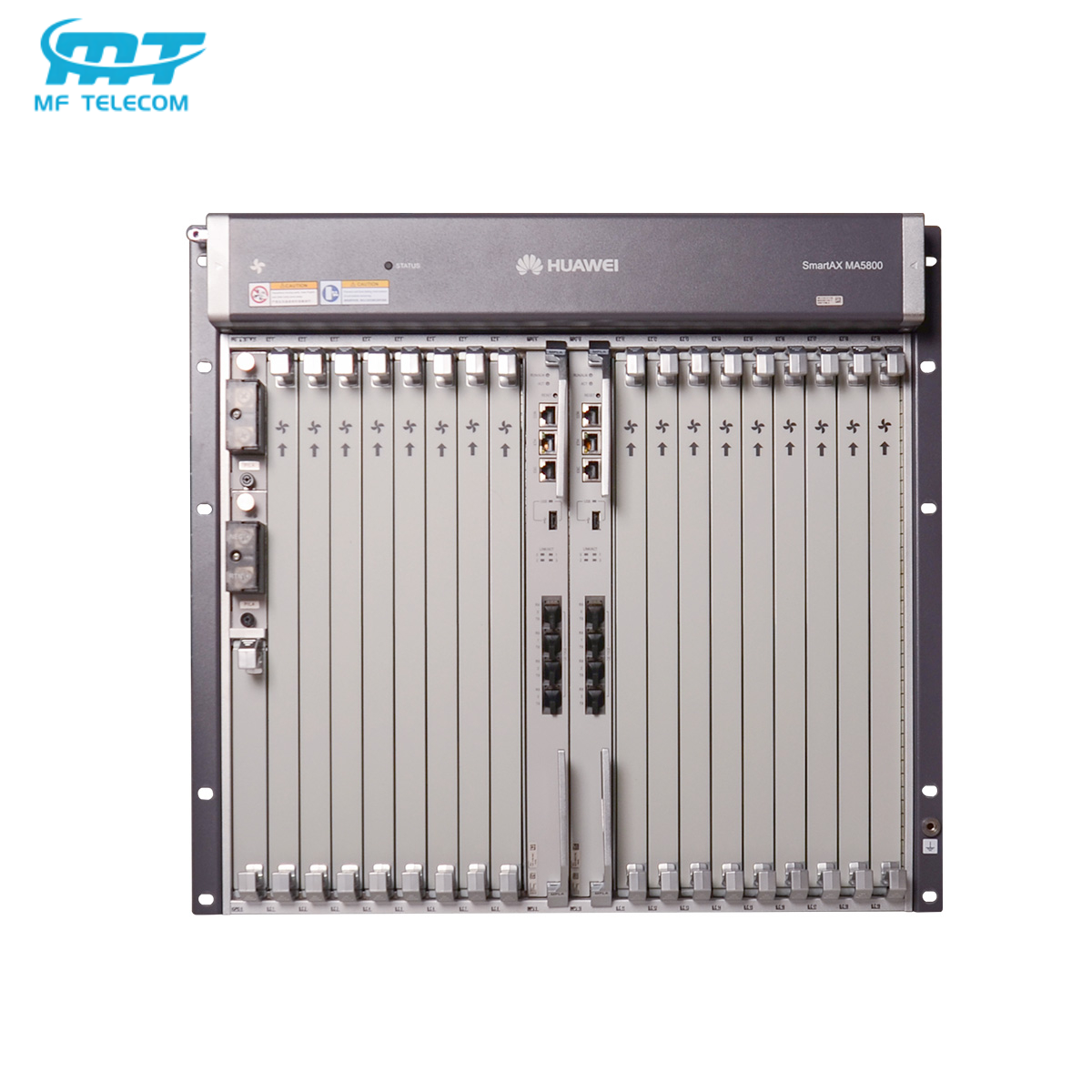

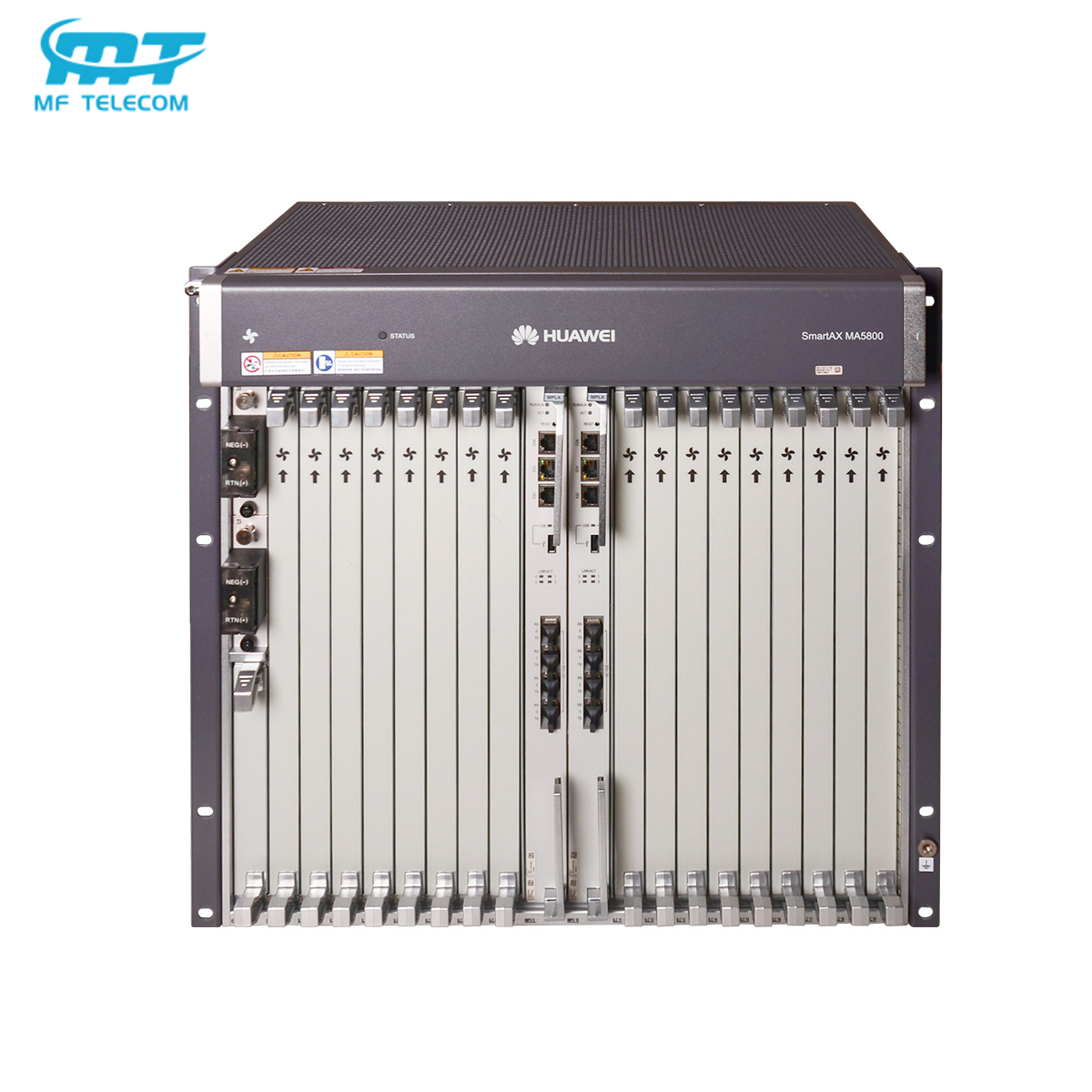

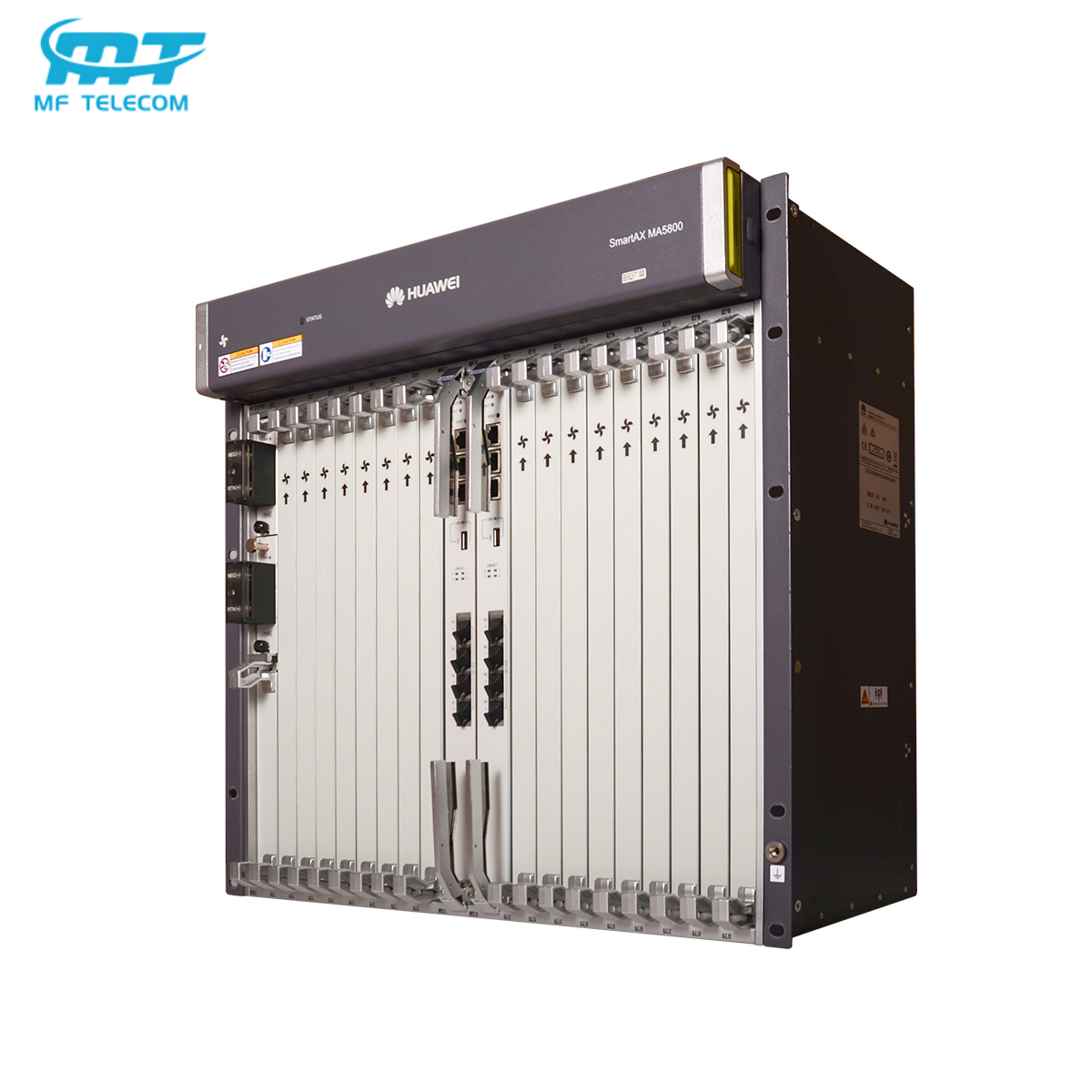

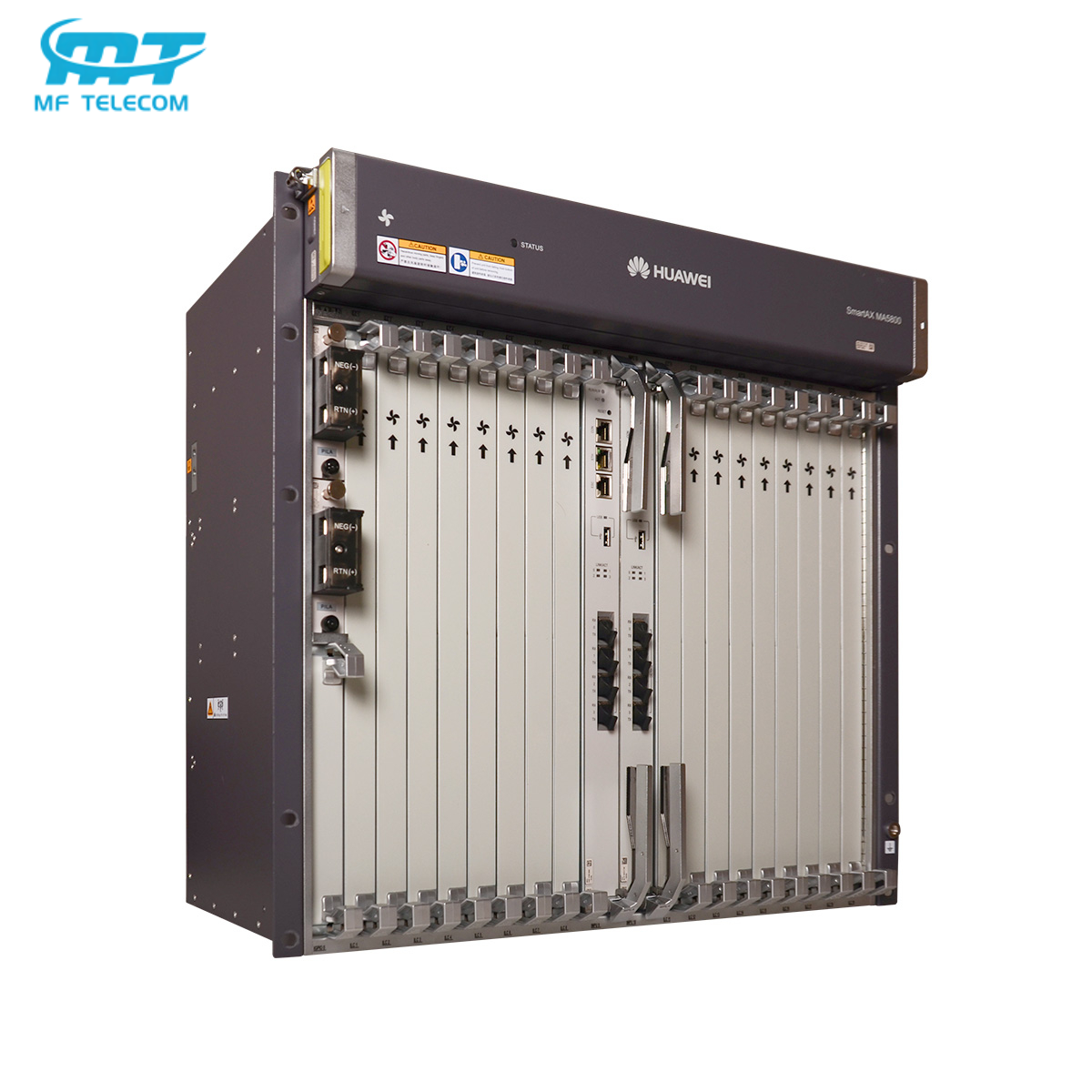

Huawei MA5800-X17 Overview
The Huawei MA5800-X17 is a large-capacity, next-gen smart Optical Line Terminal (OLT) with a distributed architecture, offering unified access (GPON, 10G PON, P2P) for Fiber-to-the-Home (FTTH) & Enterprise, supporting 4K/8K video, virtual networks, and future 40G/100G PON upgrades with high throughput (200Gbps per slot) and energy efficiency, simplifying networks for Gigaband era.
Product Features
- Distributed Architecture: Industry-first for OLTs, separating control/forwarding for higher capacity and reliability (200Gbps/slot), with ISSU (In-Service Software Upgrade) for zero downtime.
- High Capacity & Performance: Up to 8 Tbps switching capacity, supporting 16,000 concurrent 4K video users for smooth, buffer-free viewing.
- Unified Service Access: Integrates PON, 10G PON, P2P, Copper, CATV on one platform, converging Fiber, Copper, and Cable networks.
- Future-Proof Evolution: Smoothly upgrades to 40G/100G PON, supporting next-gen broadband demands.
- Service-Based Virtualization: Logically partitions the physical network for multi-service operations and network wholesale.
- Intelligent Features: Programmable NP chipset for SDN, smart O&M, precise fault location, and energy saving.
Supported Boards
Control Board
|
MPLA |
4*10GE Uplink, 100 Gbit/s |
| MPLB |
4*10GE Uplink, 200 Gbit/s |
| MPLG |
2*SFP+/SFP 10GE/GE/FE +1*QSP28 100G, 200 Gbit/s |
| Power Board |
PILA |
DC power Board |
| GPON Interface Board |
H901/H902GPHF |
16-port Advanced GPON OLT Interface Board |
| H901GPSF |
16-port GPON OLT Interface Board |
| H901/H902GPUF |
16-port GPON OLT Interface Board |
| H901GPLF |
16-port GPON OLT Interface Board |
| Flex-PON Interface Board |
H901/H902FLHF |
16-port Flex-PON OLT Interface Board |
| XG-PON Interface Board |
H901XGHD |
8-port Advanced XG-PON OLT Interface Board |
| H901XGSF |
16-port XG-PON OLT Interface Board |
| XGS-PON Interface Board |
H901XSHF |
16-port Advanced XGS-PON OLT Interface Board |
| H902XSHD |
8-port Advanced XGS-PON OLT Interface Board |
| H901/H902TWED |
8-port Enhanced TWDM PON OLT Interface Board |
| XG-PON Combo Interface Board |
H901CGHF |
16-port XG-PON&GPON Combo OLT Interface Board |
| H901CGID |
8-port XG-PON&GPON Combo OLT Interface Board |
| H902CGHD |
8-port Advanced XG-PON & GPON Combo OLT Interface Board |
| H902CGHF |
16-port XG-PON&GPON Combo OLT Interface Board |
| XGS-PON Combo Interface Board |
H901/H902CSHF |
16-port XGS-PON&GPON Combo OLT Interface Board |
| H902CSHD |
8-port Advanced XGS-PON & GPON Combo OLT Interface Board |
Compatible ONTs
| Item |
Description |
| HG8310M |
1GE |
| EG8120L |
1GE+1FE+1TEL |
| HG8321R |
1GE+1FE+1TEL |
| HG8321V |
1GE+1FE+1TEL+CATV(12V) |
| HG8546M |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8141A5 |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8247H5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| EG8143A5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| HG8247H5 |
1GE+3FE+1TEL+1USB+CATV(12V)+WIFI(5dBi) |
| EG8145V5 |
4GE+1TEL+1USB+2.4/5G WIFI(5dBi) |
| EG8247W5 |
4GE+1TEL+2USB+CATV+2.4/5G WIFI(5dBi) 4Antennas |
| EG8147X6 |
4GE+USB+CATV+2.4/5G WIFI6 AX3000 (5dBi) |
| HG8245Q2 |
4GE+1TEL+2USB+2.4/5G WIFI |
| EG8145X6 |
4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8145X6 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8346V5 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI (5dBi) |
| K662C |
ONT/Edge Router with 1GE+3GE+2.4G/5GHz Wi-Fi6 |
Application Scenarios & Real-World Cases
1. Global Tier-1 Operator Gigabit Deployment
A leading North American telecom deployed MA5800-X17 to deliver 10Gbps FTTH to 4.2 million households, supporting 8K streaming and smart city infrastructure.
2. European Enterprise & Cloud Access
A major German operator used the OLT for enterprise cloud connectivity and industrial IoT in manufacturing hubs, cutting latency by 40% and operational costs by 35%.
3. Asian Metro-Area Convergence
A top Chinese telecom adopted MA5800-X17 for metro-area access, unifying residential, enterprise, and 5G backhaul services for 2 million users across 3 cities.
Downloadable resources
Technical Specifications
|
Huawei MA5800-X17 OLT Datasheet
|
|
Item
|
MA5800-X17
|
|
Access features
|
|
GPON/XG(S)-PON Access
|
10GE/GE P2P Access
|
|
Layer 2 features
|
|
VLAN+MAC forwarding
|
SVLAN+CVLAN forwarding
|
|
PPPoE+
|
DHCP option82
|
|
Layer 3 features
|
|
Static route
|
RIP/RIPng
|
|
OSPF/OSPFv3
|
IS-IS
|
|
BGP/BGP4+
|
ARP
|
|
DHCP relay
|
VRF
|
|
Multicast
|
|
IGMP v2/v3
|
IGMP Proxy/Snooping
|
|
MLD v1/v2 (V100R016C10 and later versions)
|
MLD Proxy/Snooping (V100R016C10 and later versions)
|
|
VLAN-based IPTV multicast
|
IPv4 PIM and PIM-SSM (V100R017C00 and later versions)
|
|
QoS
|
|
Traffic classification
|
Priority processing
|
|
trTCM-based traffic policing
|
WRED
|
|
Traffic shaping
|
HQoS
|
|
PQ/WRR/PQ+WRR
|
ACL
|
|
MPLS&PWE3
|
|
MPLS LDP
|
MPLS RSVP-TE
|
|
MPLS OAM
|
MPLS BGP IP VPN
|
|
PW protection switching
|
Tunnel protection switching
|
|
TDM/ETH PWE3
|
|
IPv6
|
|
IPv4/IPv6 dual stack
|
IPv6 L2 and L3 forwarding
|
|
DHCPv6 relay
|
|
System reliability
|
|
GPON type B/type C protection
|
ERPS (G.8032)
|
|
BFD (V100R016C10 and later versions)
|
10G GPON type B/type C protection
|
|
Monitor Link (V100R018C10 and later versions)
|
Intra-board and inter-board LAG
|
|
Service overload control
|
MSTP
|
|
2 control boards and 2 power boards for redundancy protection
|
In-service board fault detection and rectification
|
|
In-service software upgrade (ISSU) of the control board
|
|
Application security
|
|
802.1x
|
AAA
|
|
Eco-friendly and energy-saving
|
|
In compliance with the Code of Conduct v8 released by the European Commission(V100R021C10 and later versions)
|
|
VXLAN (V100R018C00 and later versions)
|
|
Virtual eXtensible LAN
|
|
SRv6 (V100R019C1x and later versions)
|
|
Segment Routing IPv6
|
|
Slice (V100R021C00 and later versions)
|
|
Service slicing
|
FAQ
Q: What is the maximum port capacity of the MA5800-X17?
A: It has 17 service slots, supporting up to 272 GPON or 136 XGS-PON ports, plus 48-128 GE/10GE/100GE upstream ports
Q: What physical dimensions does the device have?
A: 8U height (356.2mm), 19-inch width, 25.8kg weight (full configuration), ideal for data centers and central offices.
Q: What after-sales support does MF-Telecom provide?
A: We offer 1-year warranty, remote configuration, and on-site support in key global regions.
Q: Do you support customization?
A: OLT products are official original equipment and do not support customization.
Q: Which access technologies does the MA5800-X17 support?
A: It supports GPON, XG-PON, XGS-PON, 10G-EPON, EPON, and P2P GE/10GE access, enabling unified fiber-copper integration.
