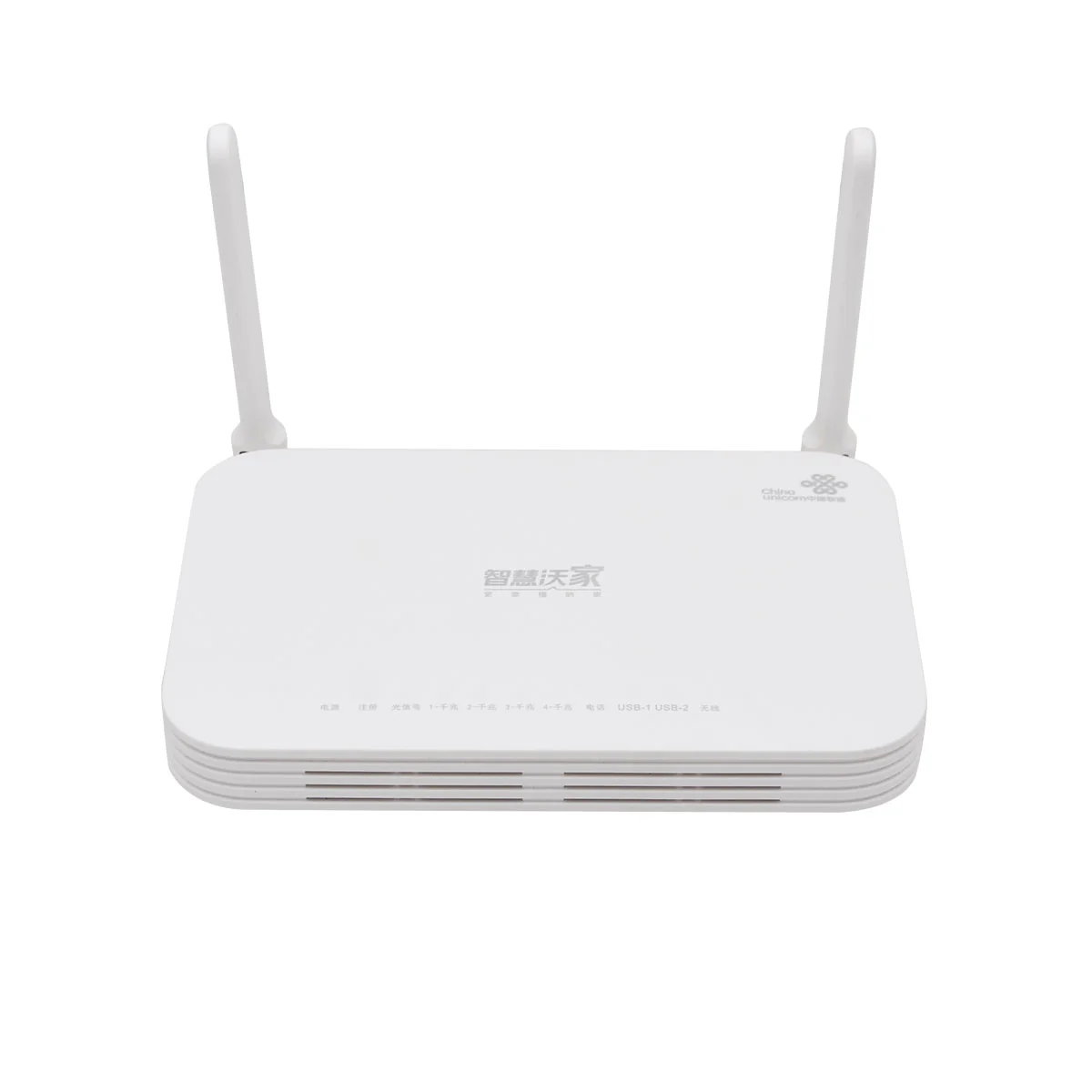

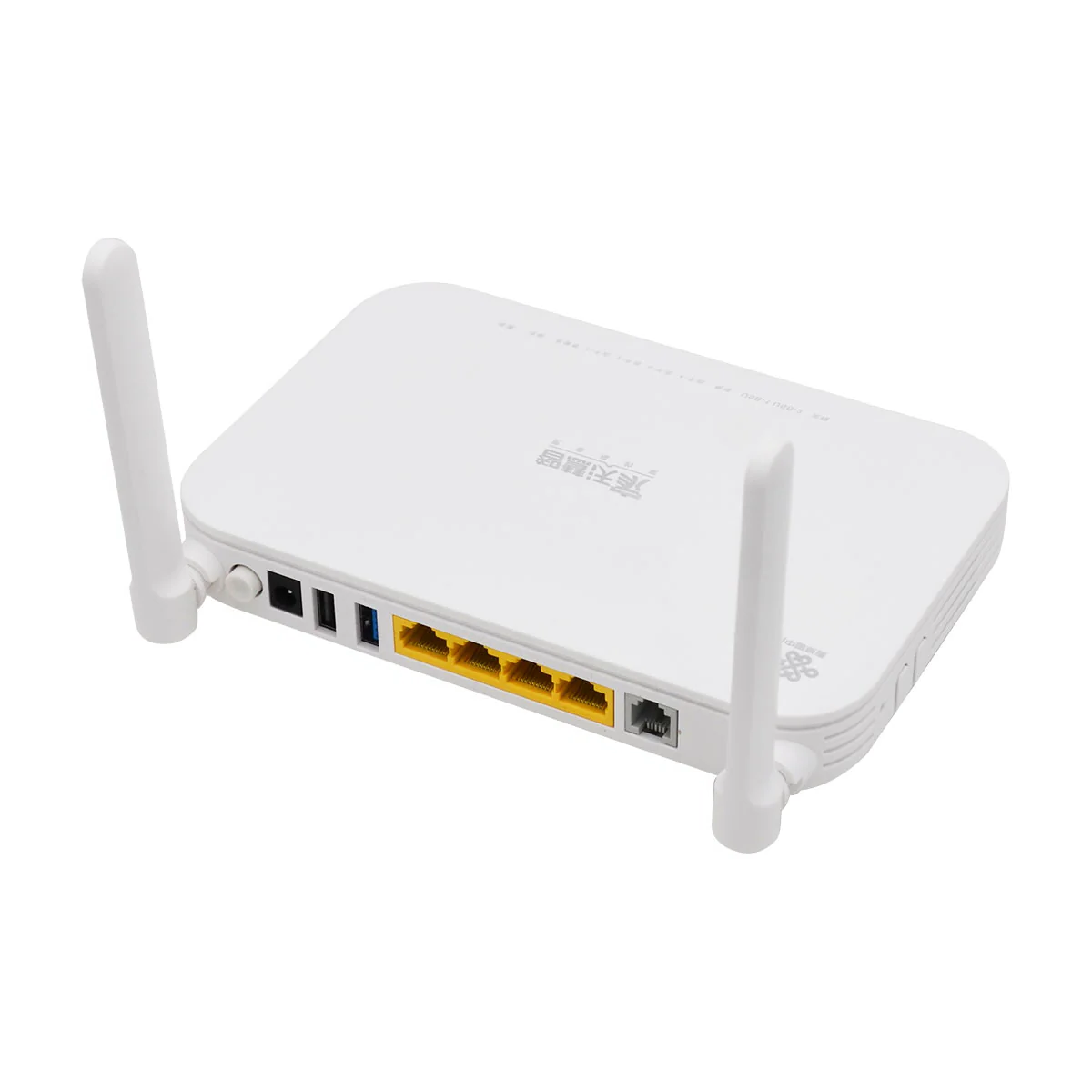

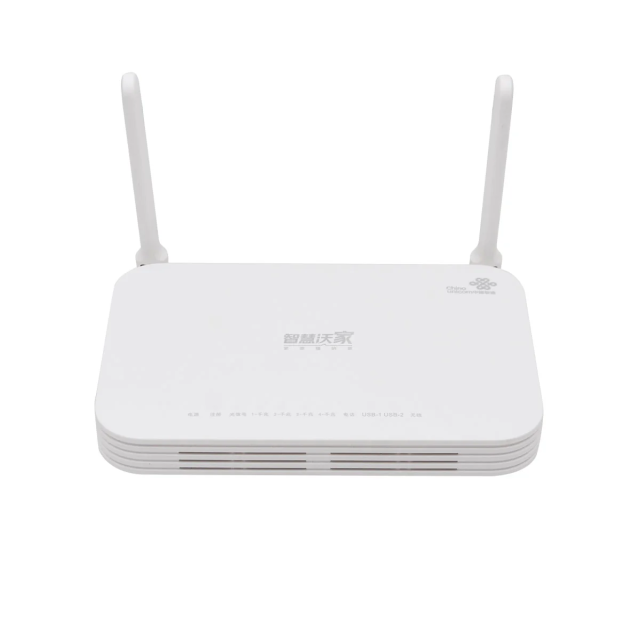

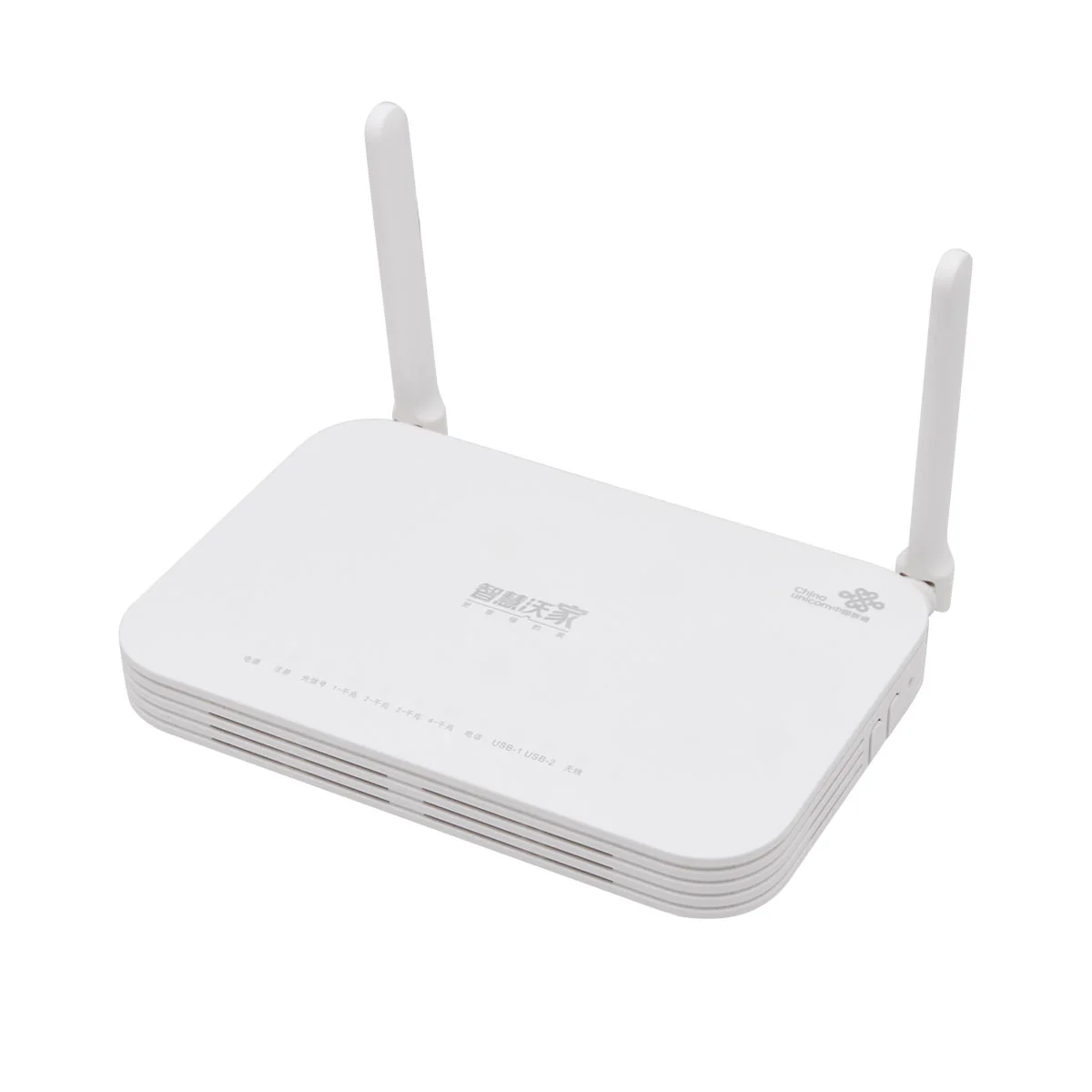

The Huawei HN8346V5 is a high-performance XG-PON routing-type ONT designed for ultra-broadband fiber connections, ideal for both home and business environments.The user-side rate of a Huawei 10G PON ONT can reach up to 1000 Mbit/s, meeting the requirements of home users on bandwidth-hungry services such as 4K/8K HD video, AR/VR, home cloud, and video calls. It can also provide private line access services of up to 10 Gbit/s.
| Item | Parameters |
| NNI | XGPON |
| UNI | 4GE+1TEL+2USB+2.4/5G WIFI |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Max. power consumption | 30 W |
| Power specifications | Power adapter input: 170 ～ 240 V AC，50/60 Hz |
| System power supply: 11 ～14V DC, 1.5 A | |
| WLAN | 2.4GHz (802.11n) |
| 5GHz (802.11ac) | |
| 2×2 MIMO | |
| Antenna gain: 5 dBi | |
| Network-side Port | XG-PON |
| User-side Ports | 1 x POTS + 4 x GE + 2 x USB + 2.4G/5G WiFi |
| Indicators | POWER/LOS/PON/LAN 1-4/TEL/USB/WLAN |
| Dimensions(length x width x height) | 185mm x 145mm x 35mm |
| Weight | About 850g |
