HW HG8321V CATV ONT

No.MF0003
HG8321V GPON CATV ONT with 1GE+1FE+1TEL+1CATV(Controllable)
Packing Box Specifications
42.5x39x30.5cm
Gross Weight
11KG
QTY per Carton
30pcs
Free Customized Service
Logo, box, firmware
Connector
SC/APC
Power Adapter
US/EU/AR/AU/UK standard
Lead Time
2 working days per 500 pcs
Shipping Methods
EXW Free Shipping, DHL, UPS, FedEx, Sea/Air/Railway Freight
Payment Method
Bank Transfer(T/T),PayPal, L/C, Western Union, UnionPay, Alipay
Warranty
12 months
  • HW HG8321V CATV ONT
  • HW HG8321V CATV ONT
  • HW HG8321V CATV ONT
  • HW HG8321V CATV ONT
  • HW HG8321V CATV ONT
  • HW HG8321V CATV ONT

Description

HG8321V Overview

The HG8321V, an optical network terminal (ONT), is a high-end home in FTTH solution.
By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

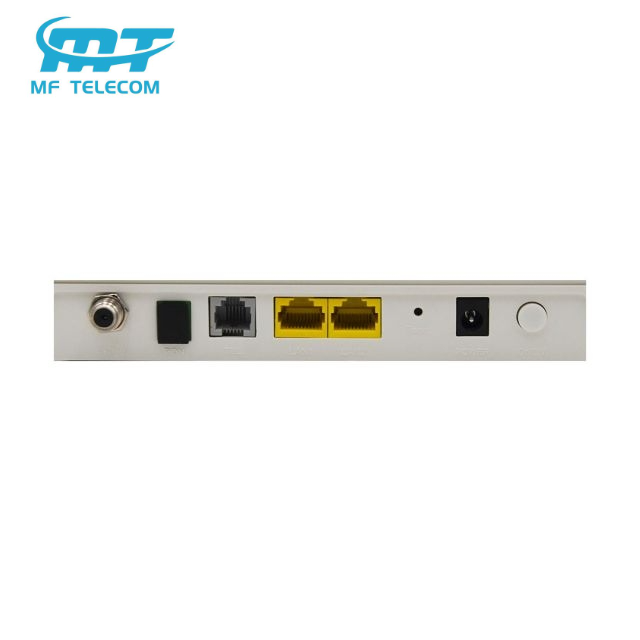

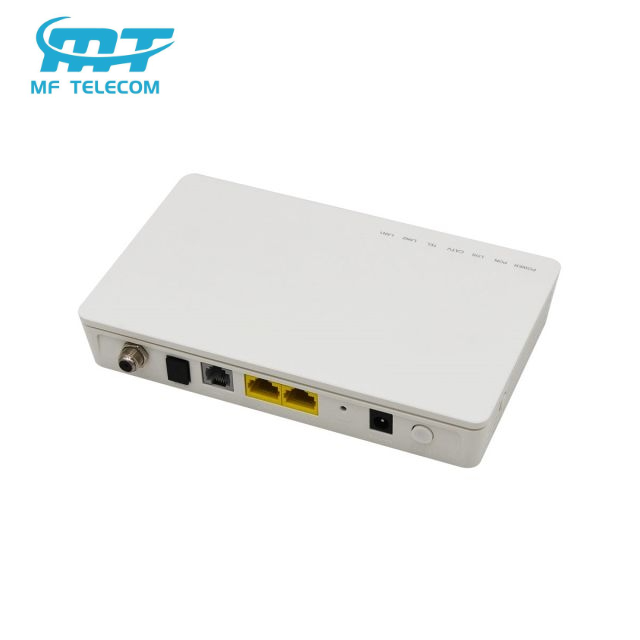

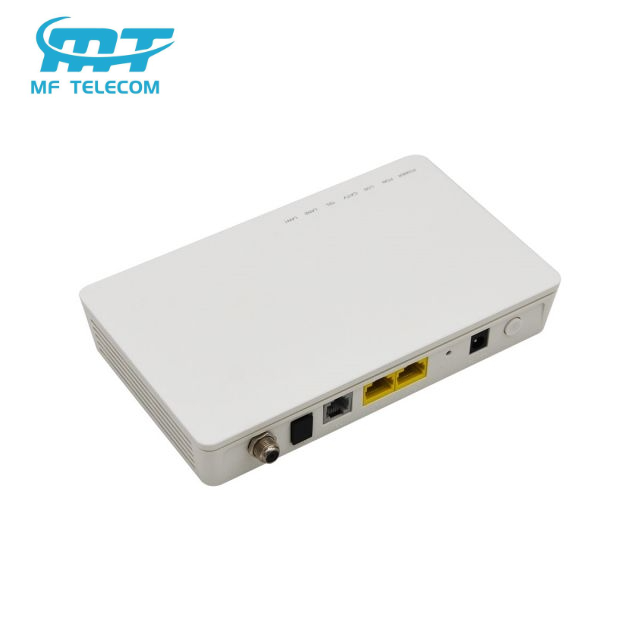

The ONT provides one CATV(RF) port, one POTS(TEL) port, one GE LAN port, and one FE LAN port.
The ONT features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet, and HD video services.
This model doesn't have a WIFI(WLAN) function if you need it, you can choose the EG8247H5, EG8143A5, EG8247W5 or F668P.

HG8321V Features

1. Full compatible with ITU-T G.984.
2. Support port-based rate limitation and bandwidth control.
3. Integrated OMCI remote configuration and maintenance function.
4. Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
5. Support Dynamic Bandwidth Allocation (DBA)
6. Support ONT auto-discovery/Link detection/remote upgrade of software;
7. Support VLAN division and user separation to avoid the broadcast storm;
8. Support power-off alarm function, easy for link problem detection
9. Support broadcasting storm resistance function
10. Support port isolation between different ports
11. Support ACL and SNMP to configure data packet filter flexibly
12. Specialized design for system breakdown prevention to maintain a stable system
13. Support software online upgrading 14.EMS network management based on SNMP, convenient for maintenance

HG8321V Compatible OLT

HG8321V Datasheet

PON Interface Interface Type SC/APC, CLASS B+
Rate Uplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface 1*10/100/1000BASE-T;1*10/100BASE-T;1*RF interface; 1 POTS port
Size (Mm) 167(L)×118(W)×30(H)
Maximum Power Consumption <8W
Weight 120g
Operating Environment Temperature: -10°C ~ 55°C
Humidity: 5% ~ 95% (no condensation)
Power Supply External Power Adapter 12V/1A
Power Adapter Input 100-240V AC, 50/60Hz
Power Interface Size metal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm

FAQ

Q. Is this a Huawei brand product?
A. No, it's not a Huawei brand product. It's an OEM product, compatible with Huawei OLTs.
