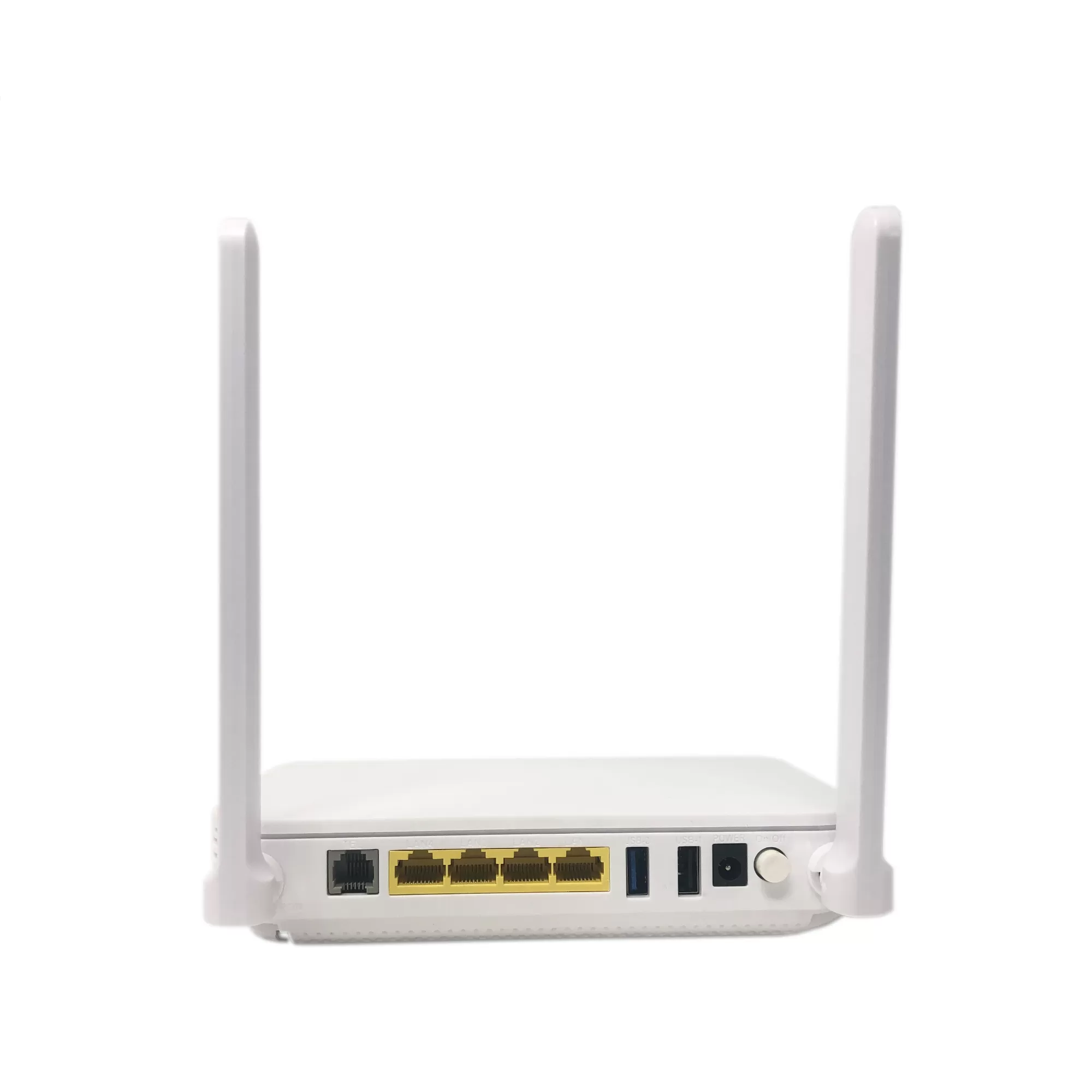

The OptiXstar HN8145X6 is an XG-PON and Wi-Fi 6 routing-type ONT. It uses the XG-PON and Wi-Fi 6 technology to implement ultra-broadband access, high performance, and wide coverage for users. The user-side rate of a 10G PON ONT can reach up to 1000 Mbit/s, meeting the requirements of home users on bandwidth-hungry services such as 4K/8K HD video, AR/VR, home cloud, and video calls. It can also provide private line access services of up to 10 Gbit/s.
It provides 4 GE ports, 1 POTS port, 2 USB ports, and 1 2.4G&5G Wi-Fi 6 port.
2.5 Gbit/s upstream, 10 Gbit/s downstream
Receiver sensitivity: -28 dBm
Wavelengths: US 1260-1280 nm, DS 1575-1580 nm
IEEE 802.11 b/g/n/ax (2.4G)
IEEE 802.11 a/n/ac/ax (5G)
2×2 MIMO (2.4G)
2×2 MIMO (5G)
Antenna gain: 5 dBi
OMCI/Web UI/TR069
Variable-length OMCI messages
| Item | Parameters |
| NNI | XGPON |
| UNI | 4GE+1TEL+2USB+2.4/5G WIFI 6 |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Max. power consumption | 18 W |
| Power specifications | Power adapter input: 170 ～ 240 V AC，50/60 Hz |
| System power supply: 11 ～14V DC, 1.5 A | |
| WLAN | IEEE 802.11 b/g/n/ax(2.4G) |
| IEEE 802.11 a/n/ac/ax(5G) | |
| 2×2 MIMO（2.4G&5G） | |
| Antenna gain: 5 dBi | |
| WMM/Multiple SSIDs | |
| Air interface rate: 574 Mbit/s (2.4G), 2402 Mbit/s (5G) | |
| Network-side Port | XG-PON |
| User-side Ports | 1 x POTS + 4 x GE + 2 x USB + 2.4G/5G 11ax Wi-Fi 6 |
| Indicators | POWER/REG/PON/LAN 1-4/TEL/USB/WLAN |
| Dimensions(length x width x height) | 40mm x 185mm x 120mm |
| Weight | About 400 g |
