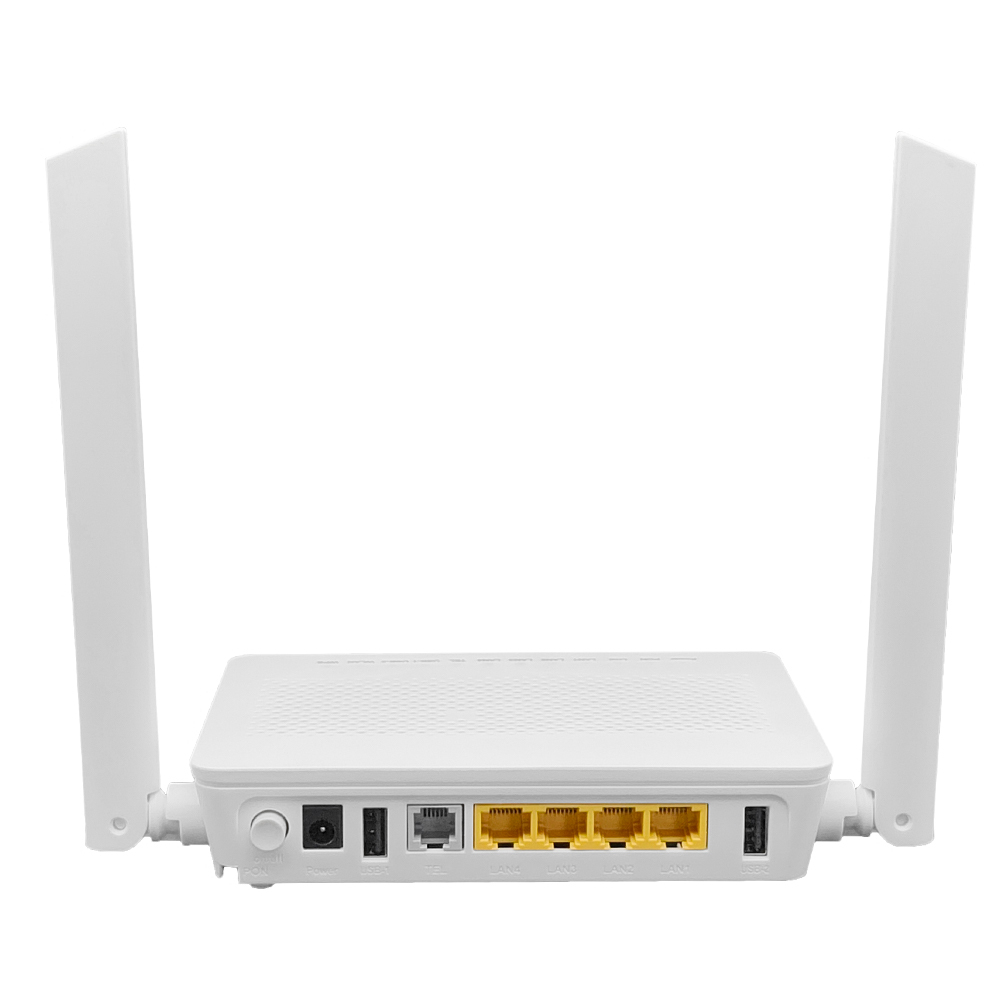

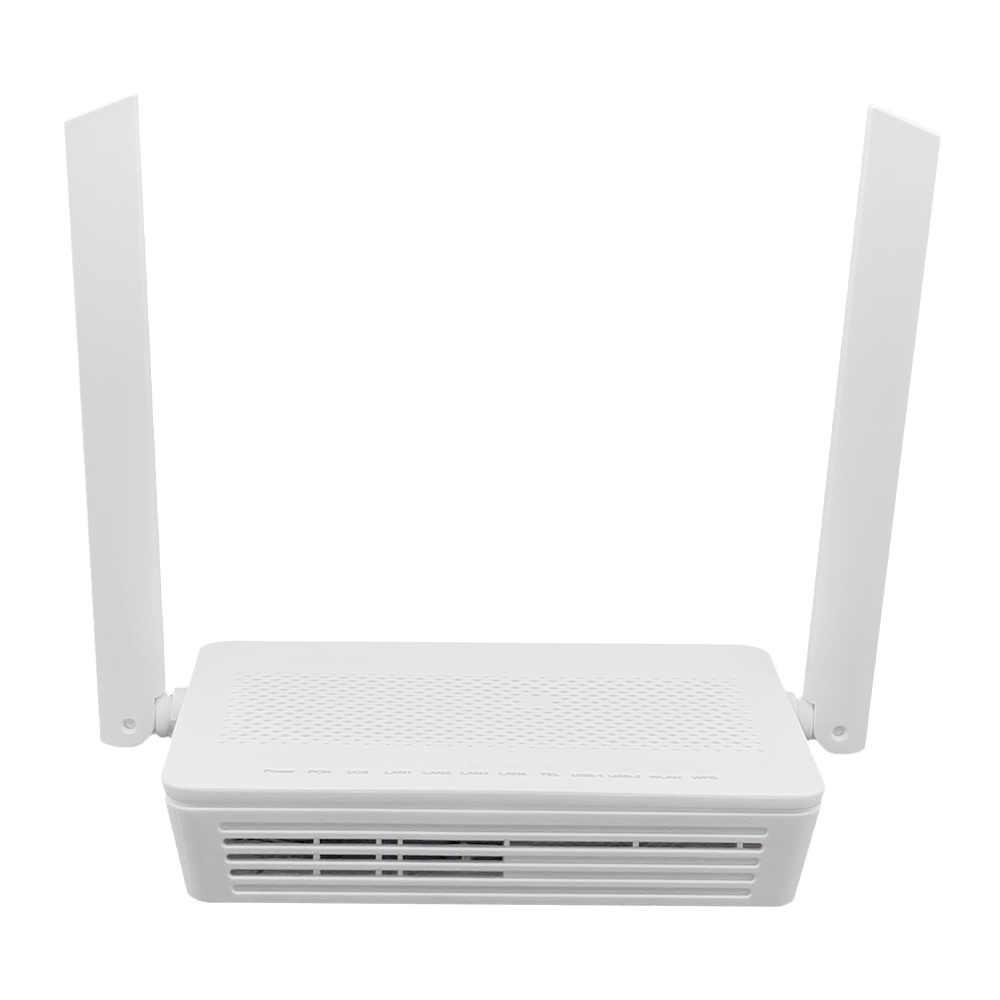

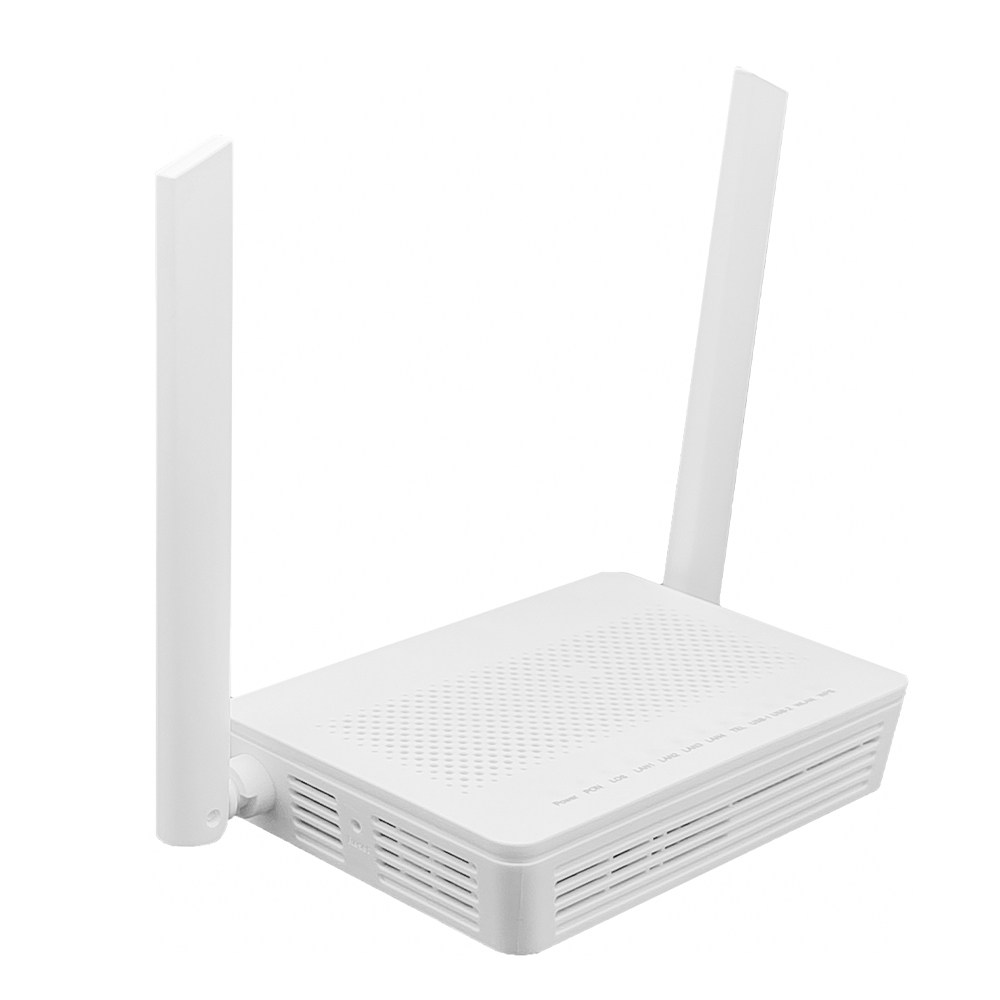

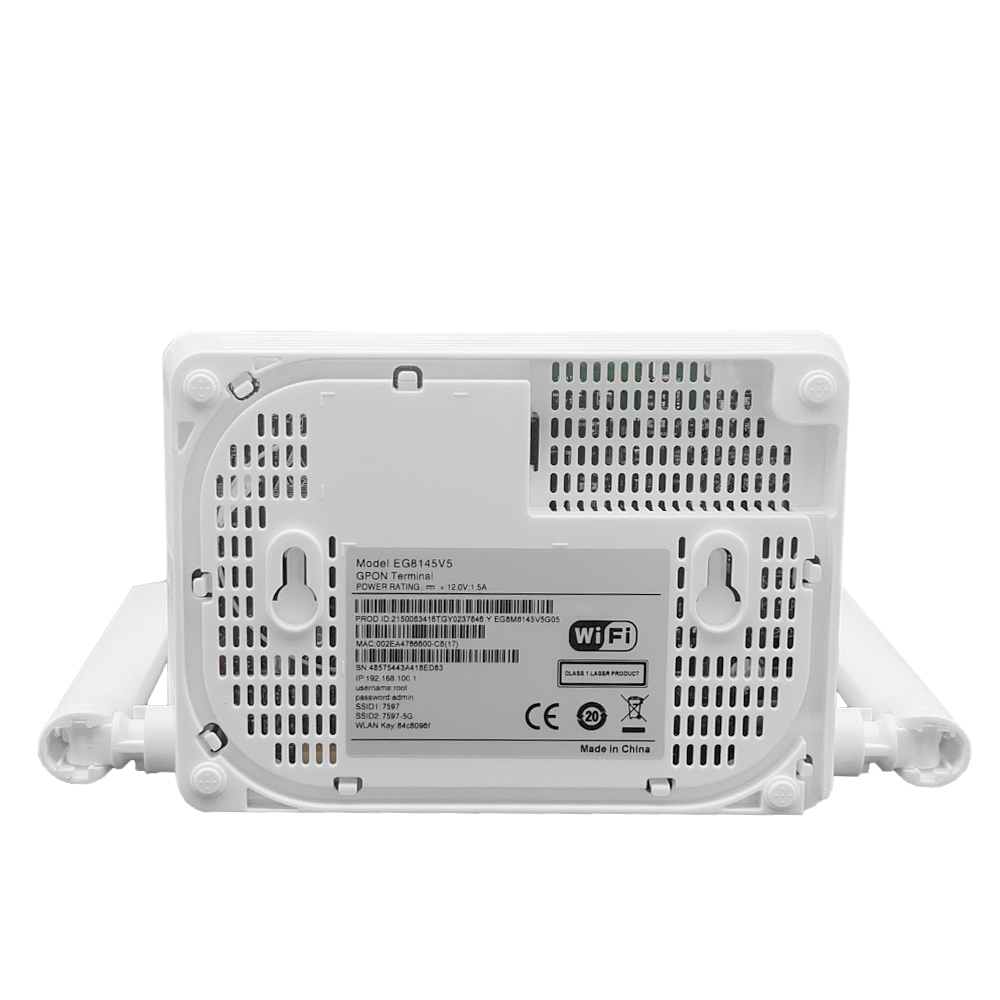

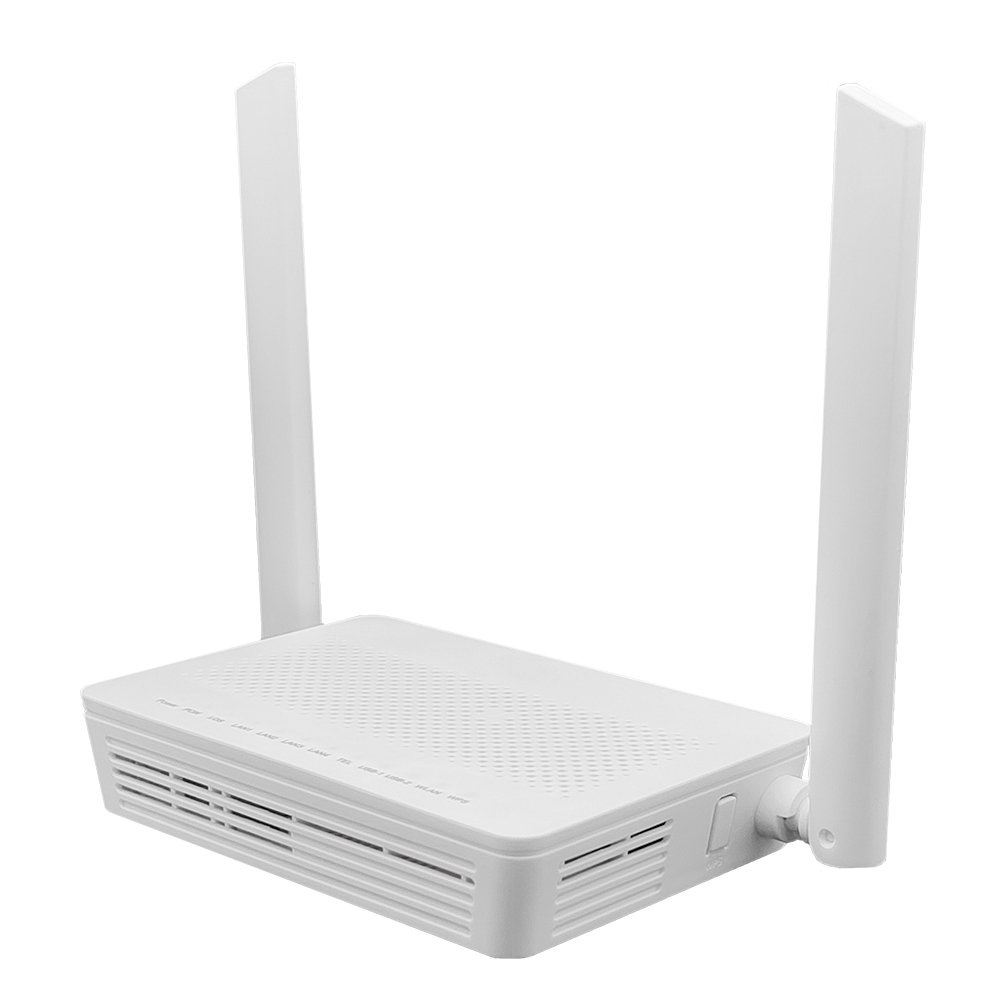

The EG8145V5 is a high-performance routing-type dual band WiFi ONT used in FTTH deployments. It supports GPON technology for ultra-broadband access, workable with Huawei MA5600T and MA5800 OLT to provide FTTH solution.
EG8145V5Key Features
Smart interconnection
• Smart Wi-Fi coverage
• SIP/H.248 auto-negotiation
• Any port any service
• Parental control
• L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Smart service
• Scheduled Wi-Fi shutdown
• Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
Smart O&M
• IPTV video quality diagnosis
• eMDI
• Rogue ONT detection and isolation from the OLT
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation
Layer 3 Features
• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI
• Static/Default routes
• Multiple services on one WAN port
| Item | Parameters |
| UNI | 4GE+1TEL+2USB+2.4/5G WIFI 5dBi |
| NNI | GPON |
| Ethernet Port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
| WLAN | • IEEE 802.11 b/g/n (2.4G) • IEEE 802.11 a/n/ac (5G) • 2 × 2 MIMO (2.4G&5G) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4G&5G concurrent • Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G) |
| GPON Port | • Class B+ • Receiver sensitivity: -27 dBm • Overload optical power: -8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) of G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing&dual-homing) |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Max. power consumption | 18 W |
| Power specifications | Power adapter input: 170 ～ 240 V AC，50/60 Hz |
| System power supply: 11 ～14V DC, 1.5 A | |
| Network-side Port | GPON |
| User-side Ports | 1 x POTS + 4 x GE + 2 x USB + 2.4G/5G WiFi |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimensions(length x width x height) | 173 mm x 120 mm x 30 mm |
| Weight | About 250 g |
FAQ
Q. Is this a Huawei brand product?
A. No, it's not a Huawei brand product. It's an OEM product, compatible with Huawei OLTs.
