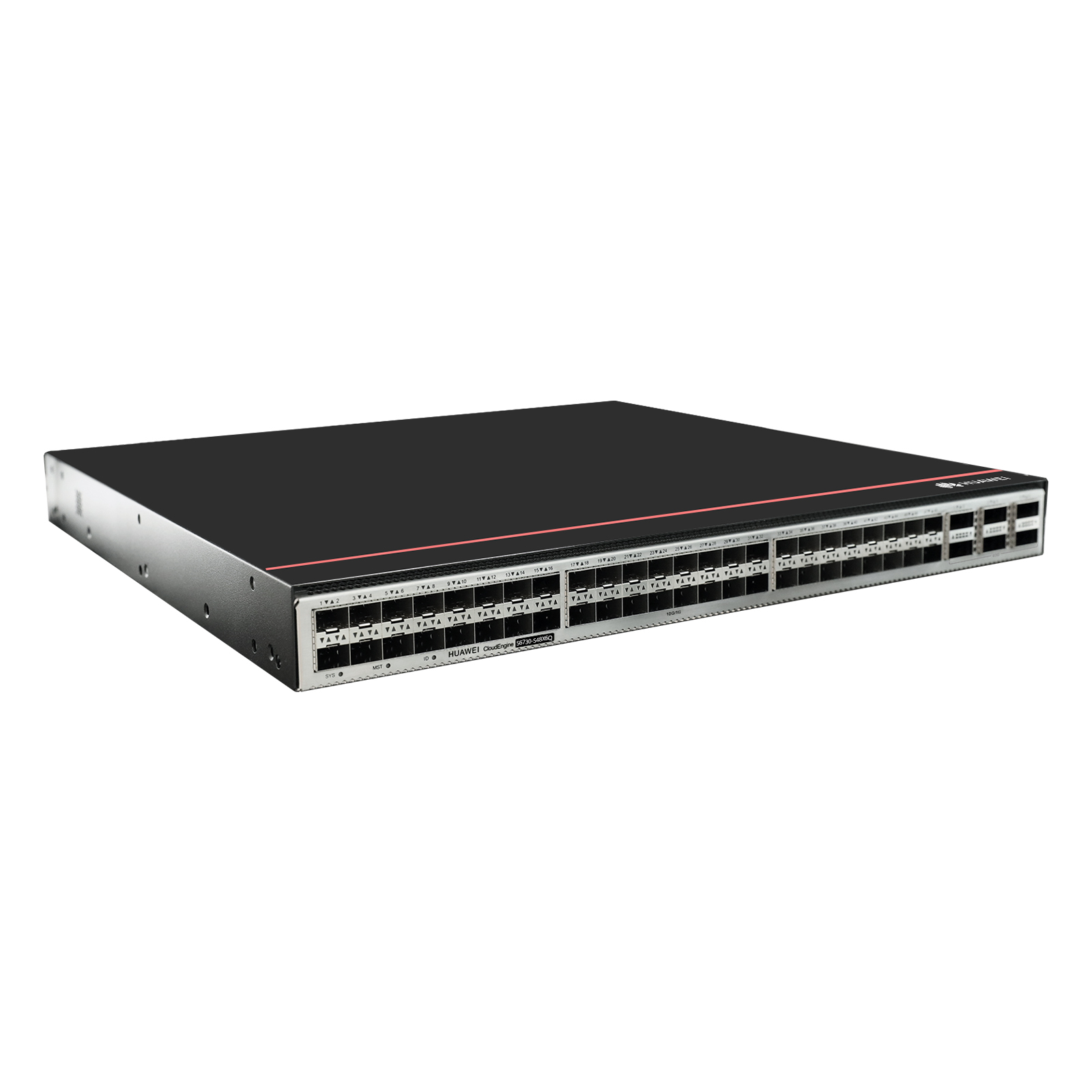

Huawei S6730-S48X6Q 48-port Switch

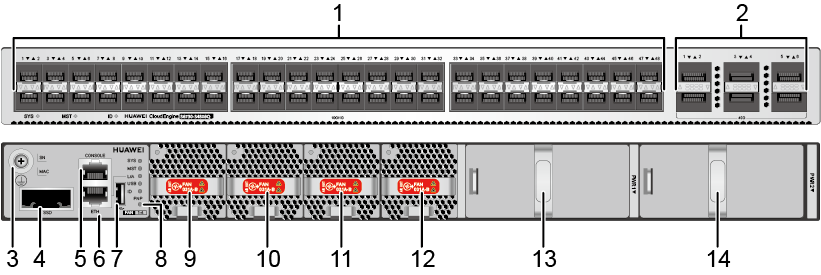

1

Forty-eight 10GE SFP+ ports

2

Six 40GE QSFP+ optical ports

3

Ground screw

4

SSD card slot

5

One console port

6

One ETH management port

7

One USB port

8

One PNP button

9

Fan module slot 1

10

Fan module slot 2

11

Fan module slot 3

12

Fan module slot 4

13

Power module slot 1

14

Power module slot 2

• GE eSFP optical modules
• GE-CWDM eSFP optical modules
• GE-DWDM eSFP optical modules
• GE SFP copper module
• 10GE SFP+ optical modules (OSXD22N00 not supported)
• 10GE-CWDM SFP+ optical modules
• 10GE-DWDM SFP+ optical modules
• 10GE SFP+ copper module (supported in V200R023C10 and later versions)
• 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
• 3 m and 10 m SFP+ AOC cables
• 0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking)

A 40GE QSFP+ Ethernet optical port sends and receives service data at 40 Gbit/s.

By default, QSFP+ optical ports work at 40 Gbit/s. In V200R024C00 and later versions, a 100GE RTU license can be used to upgrade the port rate to 100 Gbit/s.

The QSFP+ ports can work as 100GE ports after you activate the license, run the assign port-type 100ge [ slot slot-id | all ] command, and restart the switch.

• 40GE QSFP+ optical modules
• 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables
• 10 m QSFP+ to QSFP+ AOC cable
• 2 m QSFP28 dedicated stack cable
• 100GE QSFP28 optical modules (supported with a license loaded)
• 1 m QSFP28 to QSFP28 high-speed copper cable (supported with a license loaded)
• 10 m QSFP28 to QSFP28 AOC cable (supported with a license loaded)

Console cable

Ethernet cable

The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.

USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor.

USB flash drive

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

High temperature 45°C (113°F), 100% traffic, and dual power modules: 177.5 W

High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 259.5 W

High temperature 45°C (113°F), 100% traffic, and dual power modules: 605.65

High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 885.44

1+1

Pluggable AC and DC power modules can be used together in the same switch.

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

• AC input: 100 V AC to 240 V AC; 50/60 Hz
• High-voltage DC input: 240 V DC
• DC input: –48 V DC to –60 V DC

• AC input: 90 V AC to 290 V AC; 45–65 Hz
• High-voltage DC input: 190 V DC to 290 V DC
• DC input: -38.4 V DC to -72 V DC

• Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
• Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

EMC certification

Safety certification

Manufacturing certification
