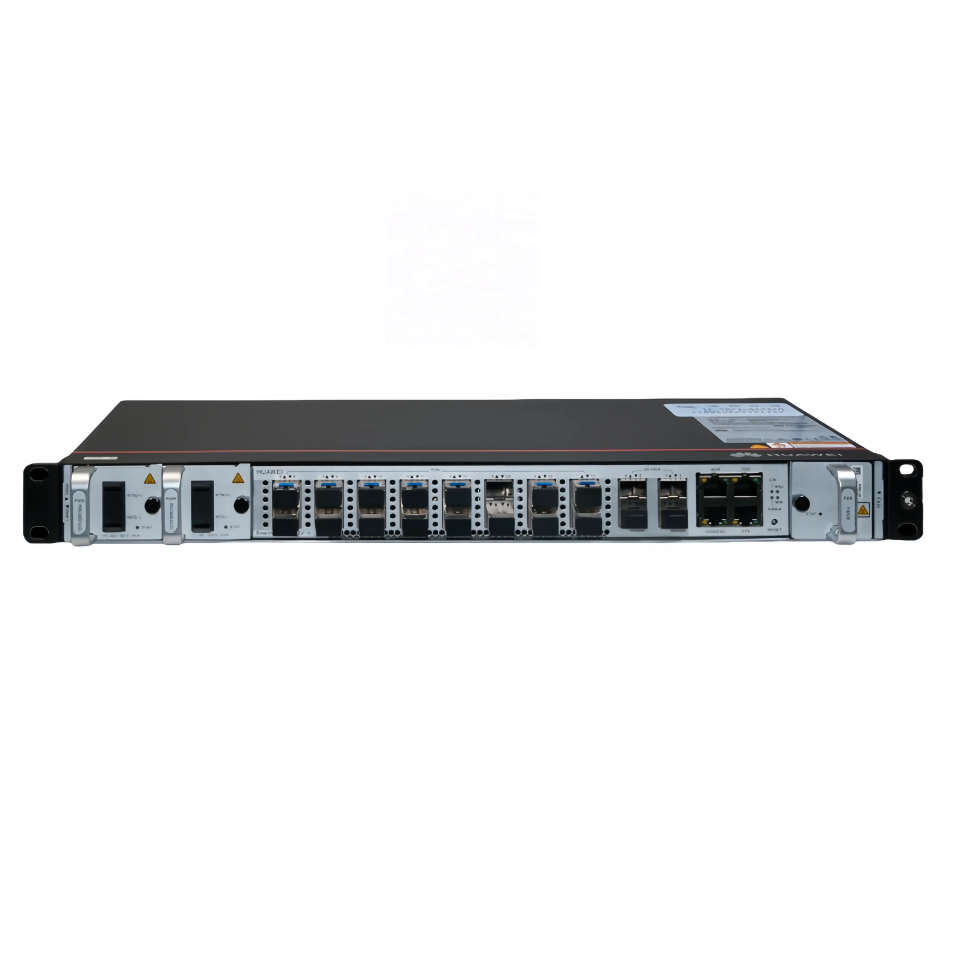

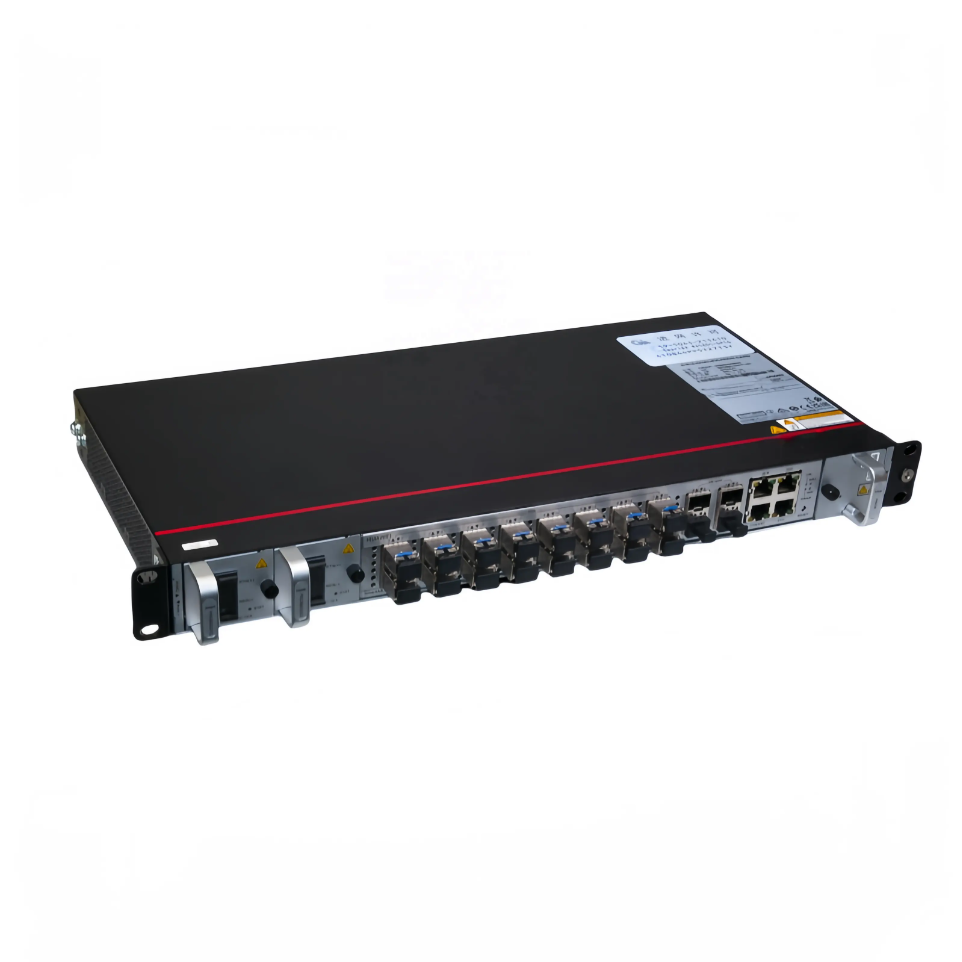

Huawei EA5801E-GP08 Overview
The Huawei EA5801E-GP08 is a compact, 1U, box-shaped Optical Line Terminal (OLT) for Fiber-to-the-Home (FTTH) and Passive Optical LAN (POL) networks, known for its lightweight design, easy deployment in small spaces (like poles, walls), and high reliability with dual AC/DC power options. Key features include 8 GPON service ports, multiple 10GE/GE upstream ports, support for integrated control/service modules, and simplified network architecture by carrying voice, video, and broadband services over a single fiber.
Product Features
- Compact & Lightweight: Weighs under 5 kg and uses only 1U rack space, making it ideal for flexible deployment in various environments, including small outdoor cabinets.
- High Reliability: Supports dual AC or DC power supplies for redundancy and high availability, with options for different power input ranges (e.g., 100-240V AC or -38.4V to -72V DC).
- Flexible Deployment: Can be installed in small cabinets on poles, walls, or towers, reducing engineering costs and enabling rapid service rollout.
- Unified Service Platform: Carries broadband, voice, and video services over a single fiber, simplifying network architecture and lowering Operating Expenses (OPEX).
- Port Configuration: Offers 8 GPON service ports and dedicated 10GE/GE upstream ports for high-speed uplink.
- Integrated Modules: Comes with built-in control and service modules, plus slots for optional fan and power modules.
Compatible ONTs
| Item |
Description |
| HG8310M |
1GE |
| EG8120L |
1GE+1FE+1TEL |
| HG8321R |
1GE+1FE+1TEL |
| HG8321V |
1GE+1FE+1TEL+CATV(12V) |
| HG8546M |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8141A5 |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8247H5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| EG8143A5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| HG8247H5 |
1GE+3FE+1TEL+1USB+CATV(12V)+WIFI(5dBi) |
| EG8145V5 |
4GE+1TEL+1USB+2.4/5G WIFI(5dBi) |
| EG8247W5 |
4GE+1TEL+2USB+CATV+2.4/5G WIFI(5dBi) 4Antennas |
| EG8147X6 |
4GE+USB+CATV+2.4/5G WIFI6 AX3000 (5dBi) |
| HG8245Q2 |
4GE+1TEL+2USB+2.4/5G WIFI |
| EG8145X6 |
4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8145X6 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8346V5 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI (5dBi) |
| K662C |
ONT/Edge Router with 1GE+3GE+2.4G/5GHz Wi-Fi6 |
Application Scenarios & Real-World Cases
A UAE oilfield service provider deployed 50 EA5801E-GP08 units to connect 400 small on-site SMEs (e.g., equipment maintenance shops, canteens) in Dubai’s desert oilfields. The device’s -40°C~70°C tolerance withstood 50°C+ summer heat, while 6kV surge protection resisted sandstorm-induced electrical interference. 2 GE uplinks connected to the regional MA5800-X7 OLT, and dual DC power (48V) matched oilfield power systems. Post-deployment, network uptime reached 99.99%, supporting real-time equipment monitoring and staff broadband.
Norwegian operator Telenor used 80 EA5801E-GP08 units to serve 640 households in Arctic suburban Tromsø. The device’s -40°C low-temperature resistance withstood winter frosts, and reinforced casing prevented ice damage. 8-port aggregation covered 8 households per device (small Arctic MDUs), with GE uplinks linking to MA5800-X2 OLTs. Remote management reduced on-site visits (difficult in Arctic winters), and QoS ensured smooth 4K streaming for residents.
Downloadable resources
Technical Specifications
| Huawei EA5801E-GP08 OLT Datasheet |
| Ambient temperature |
-40℃ to +65℃ |
| Ambient humidity |
5% RH to 95% RH |
| Atmospheric pressure |
70–106 kPa |
| Working Voltage Range |
DC power supply: –38.4 V to –72 V
AC power supply: 100–240 V |
| Maximum Input Current |
DC power supply: 6 A
AC power supply: 2.5 A |
| Static Power Consumption (W) |
55W |
| Max Power Consumption (W) |
140W |
| Dimensions (mm) |
Excluding mounting ears: 43.6 x 442 x 220 mm
Including IEC Mounting Ears: 43.6 x 482.6 x 220 mm
Including ETSI mounting ears: 43.6 x 535 x 220 mm |
| Weight (kg) |
5 |
| System switching capacity |
140 Gbit/s |
| Access ONT |
256 |
| IPv4 Routing Table |
8192 |
| IPv6 Routing Table |
4096 |
| ARP Table |
16384 |
FAQ
Q: How many ONTs can the Huawei EA5801E-GP08 support?
A: It supports up to 256 ONTs access, ideal for medium-scale residential or enterprise networks.
Q: What power supply options are available?
A: It offers dual AC (100-240V) or DC (-38.4V to -72V) backup power supplies for high reliability.
Q: Is it suitable for outdoor deployment?
A: Yes, with -40℃ to +65℃ operating temperature and matching outdoor cabinets, it works in harsh outdoor environments.
Q: Does MF-Telecom provide technical support for this product?
A: Yes, we offer global technical support, including configuration guidance and troubleshooting for Huawei OLTs.
Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.
