| Item | Description |
| HG8310M | 1GE |
| EG8120L | 1GE+1FE+1TEL |
| HG8321R | 1GE+1FE+1TEL |
| HG8321V | 1GE+1FE+1TEL+CATV(12V) |
| HG8546M | 1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8141A5 | 1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8247H5 | 1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| EG8143A5 | 1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| HG8247H5 | 1GE+3FE+1TEL+1USB+CATV(12V)+WIFI(5dBi) |
| EG8145V5 | 4GE+1TEL+1USB+2.4/5G WIFI(5dBi) |
| EG8247W5 | 4GE+1TEL+2USB+CATV+2.4/5G WIFI(5dBi) 4Antennas |
| EG8147X6 | 4GE+USB+CATV+2.4/5G WIFI6 AX3000 (5dBi) |
| HG8245Q2 | 4GE+1TEL+2USB+2.4/5G WIFI |
| EG8145X6 | 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8145X6 | 10GPON 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8346V5 | 10GPON 4GE+1TEL+2USB+2.4/5G WIFI (5dBi) |
| K662C | ONT/Edge Router with 1GE+3GE+2.4G/5GHz Wi-Fi6 |
|

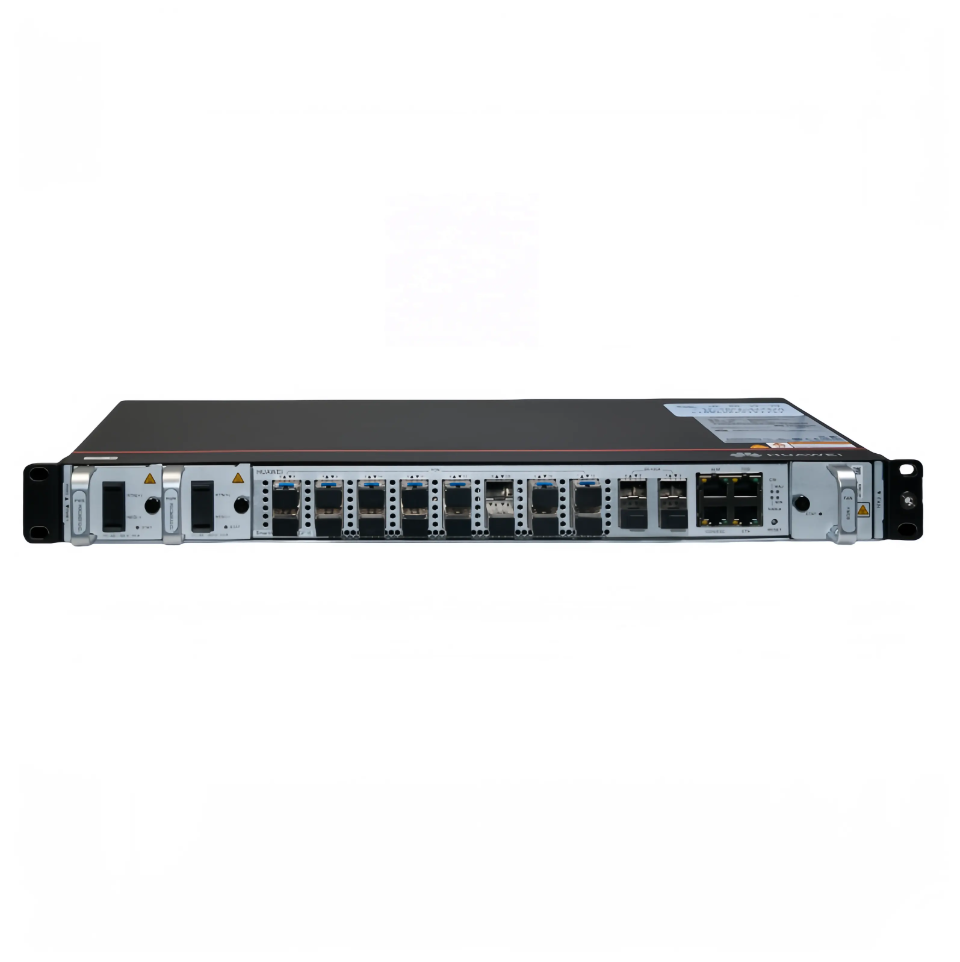

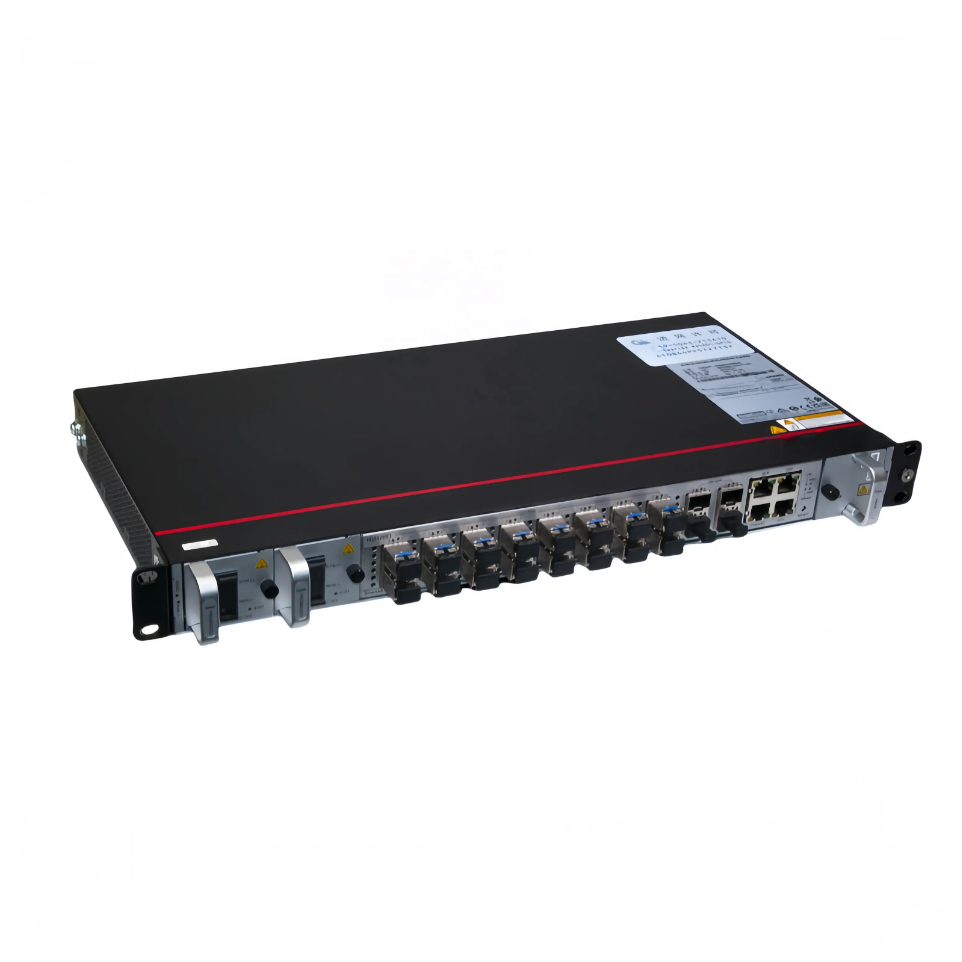

Huawei MA5801-FL04-H1 OLT Datasheet
|
|
|
Dimensions (W x D x H) (mm)
|
Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 531 x 220 x 43.6 |
|
Maximum fully-loaded weight
|
5 kg
|
|
Power supply mode
|
DC power supply (dual backup)
AC power supply (dual backup) |
|
Working voltage range
|
DC power supply: -38.4 V to -72 V
AC power supply: 100-240 V |
|
Rated voltage
|
DC power supply: -48 V/-60 V
AC power supply: 110 V/220 V |
|
Maximum input current
|
DC power supply: 6 A
AC power supply: 2.5 A |
|
Ambient temperature
|
-40°C to +65°C
The device can start up at a lowest temperature of -25°C. NOTE The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
|
Ambient humidity
|
5%-95% RH
|
|
Atmospheric pressure
|
70-106 kPa
|
|
Altitude
|
< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
|
|
System switching capacity
|
460 Gbit/s
|
|
MAC addresses
|
32768
|
|
Access ONT
|
2048
|
|
IPv4 routing table
|
8192
|
|
IPv6 routing table
|
4096
|
|
ARP table
|
16384
|
|
Bit error rate (BER) in full load
|
When FEC is enabled, the GPON BER is less than 10 e-10, and the XG(S)-PON BER is less than 10 e-12.
|
|
Upstream ports
|
4 GE/10GE
|
|
Service ports
|
16 Flex-PON
|
|
System reliability specifications
|
System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 45 years
NOTE
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5801 is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers. |
|
Power consumption
|
DC power supply:
Static power consumption: 72W Typical power consumption: 127W Maximum power consumption: 228W AC power supply: Static power consumption: 73W Typical power consumption: 128W Maximum power consumption: 229W NOTE The power consumption of a product is tested in the following conditions: Static power consumption: 25°C, no optical module in optical ports, and no service. Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 16 x Flex- PON(XGS Combo C+) ports on the user side, full services, and maximum traffic. Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 16 x Flex-PON(XGS Combo C+) ports on the user side, full services, and maximum traffic. |
