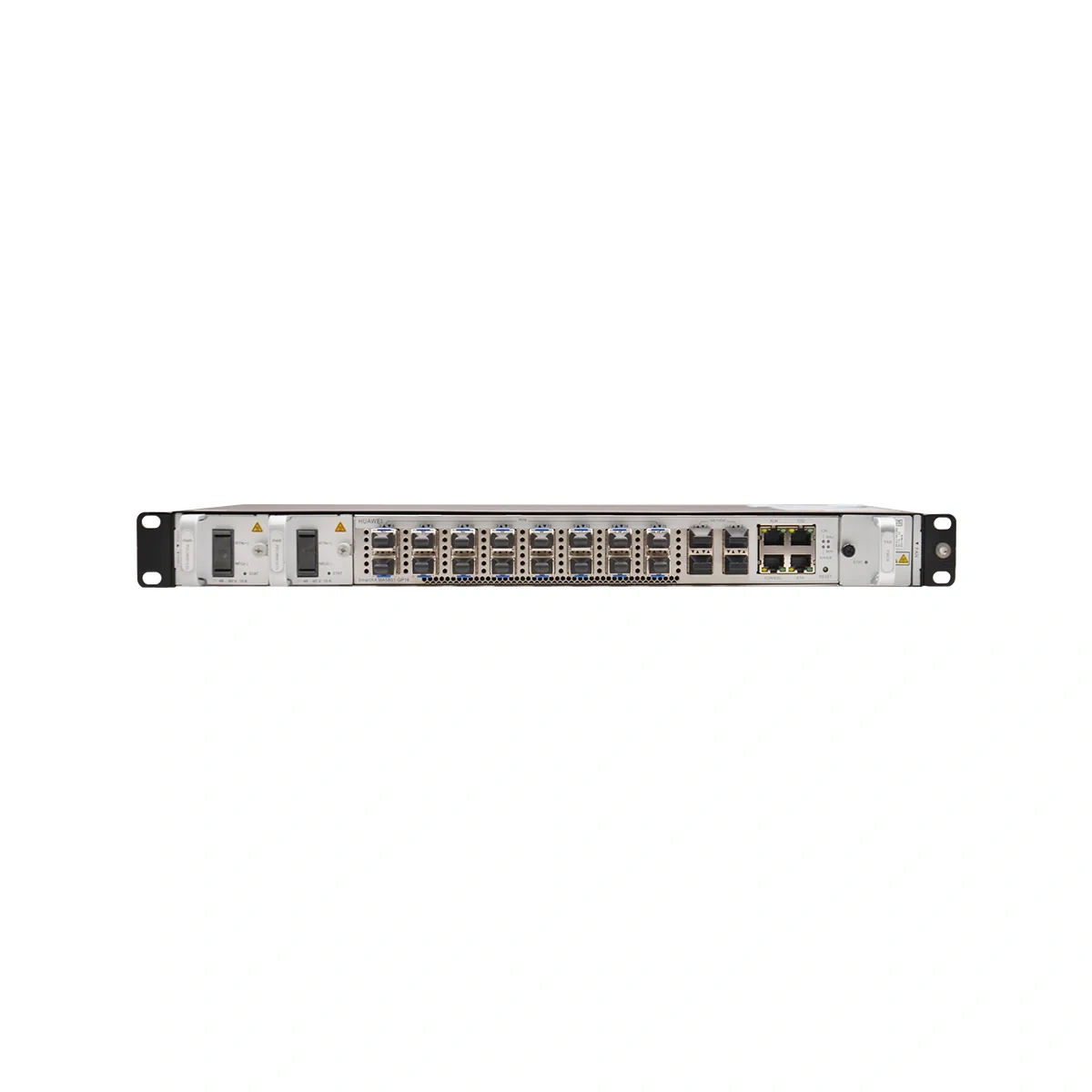

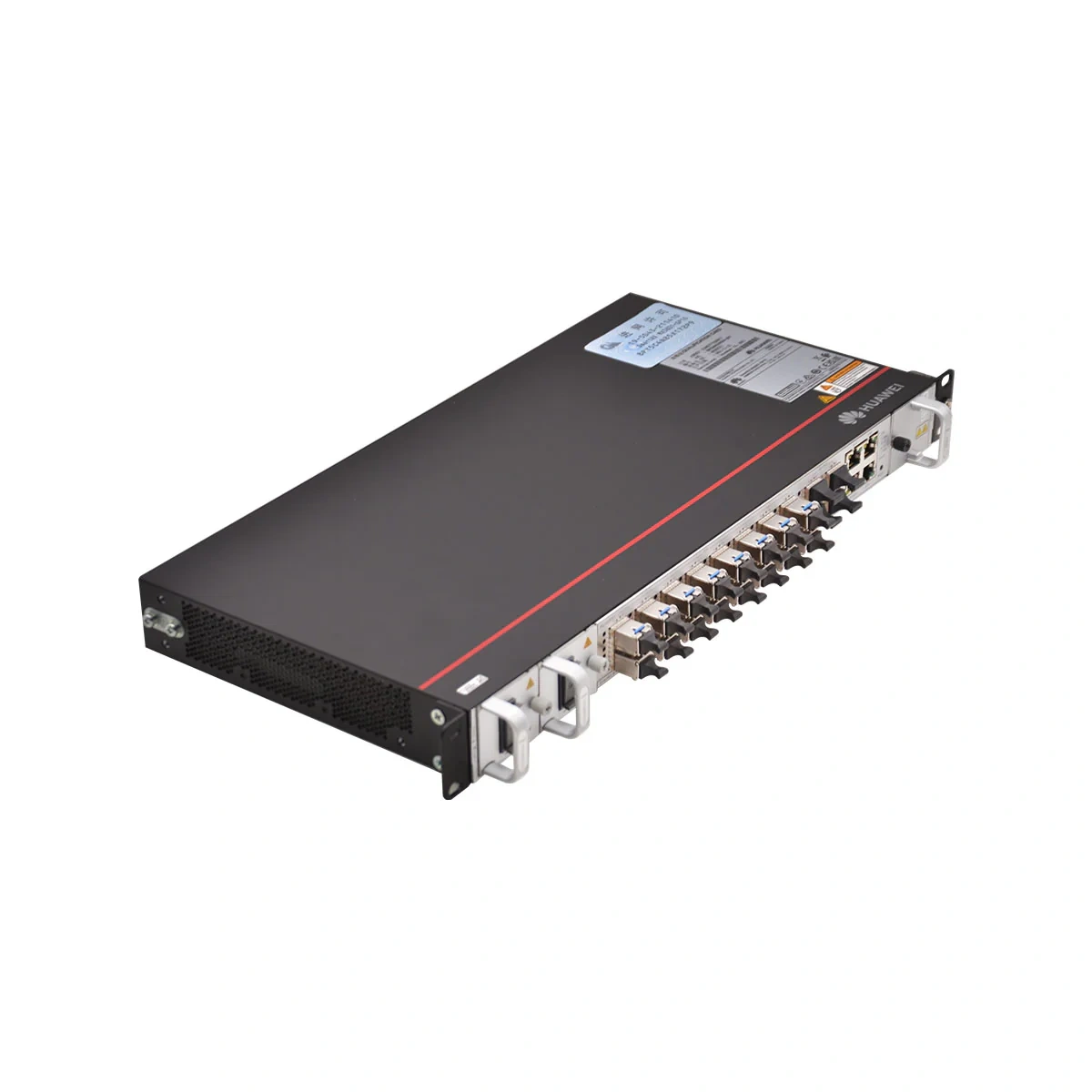

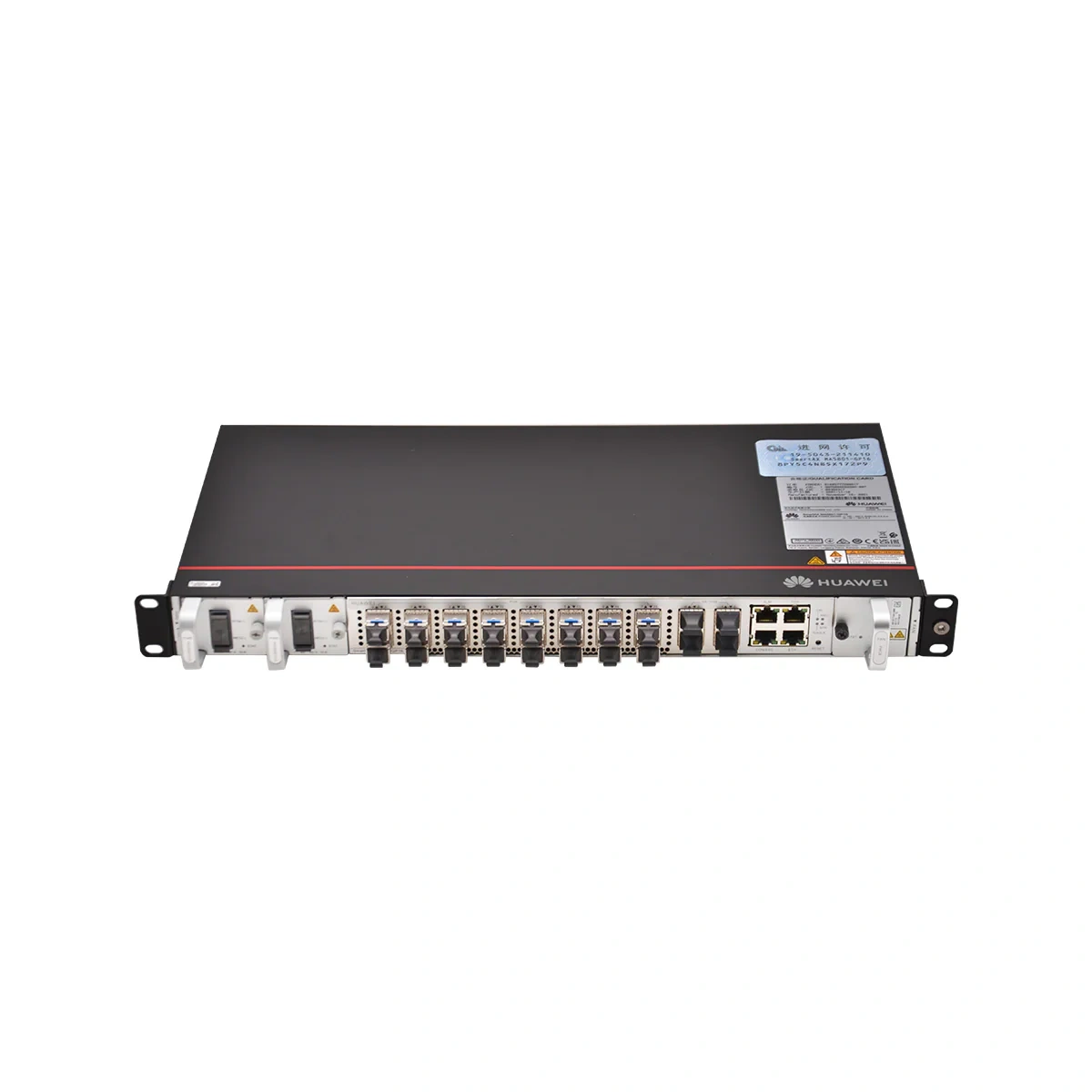

Huawei SmartAX MA5801-FL16-H1 OLT Datasheet
|
|
|
Dimensions (W x D x H) (mm)
|
Excluding mounting ears: 442 x 220 x 43.6 Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 531 x 220
x 43.6 |
|
Maximum fully-loaded weight2
|
5kg
|
|
Power supply mode
|
DC power supply (dual backup)
|
|
AC power supply (dual backup)
|
|
|
Working voltage range
|
DC power supply: -38.4 V to -72 V
|
|
AC power supply: 100-240 V
|
|
|
Rated voltage
|
DC power supply: -48 V/-60 V
|
|
AC power supply: 110 V/220 V
|
|
|
Maximum input current
|
DC power supply: 6 A
|
|
AC power supply: 2.5 A
|
|
|
Ambient temperature
|
-40°C to +65°C
|
|
The device can start up at a lowest temperature of -25°C.
|
|
|
Ambient humidity
|
5%-95% RH
|
|
Atmospheric pressure
|
70-106 kPa
|
|
Altitude
|
< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working
environment temperature of the device varies with the altitude. |
|
System switching capacity
|
240 Gbit/s
|
|
MAC addresses
|
32768
|
|
Access ONT
|
2048
|
|
IPv4 routing table
|
8192
|
|
IPv6 routing table
|
4096
|
|
ARP table
|
16384
|
|
Bit error rate (BER) in full load
|
When FEC is enabled, the GPON BER is less than 10 e-10, and the XG(S)-PON BER is less than 10 e-12.
|
|
Upstream ports
|
4GE/10GE
|
|
Service ports
|
16 Flex-PON
|
|
System reliability specifications
|
System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 45 years
|
|
Power consumption
|
• DC power supply:
|
|
• Static power consumption: 72W
|
|
|
• Typical power consumption: 127W
|
|
|
• Maximum power consumption: 228W
|
|
|
• AC power supply:
|
|
|
• Static power consumption: 73W
|
|
|
• Typical power consumption: 128W
|
|
|
• Maximum power consumption: 229W
|
|
