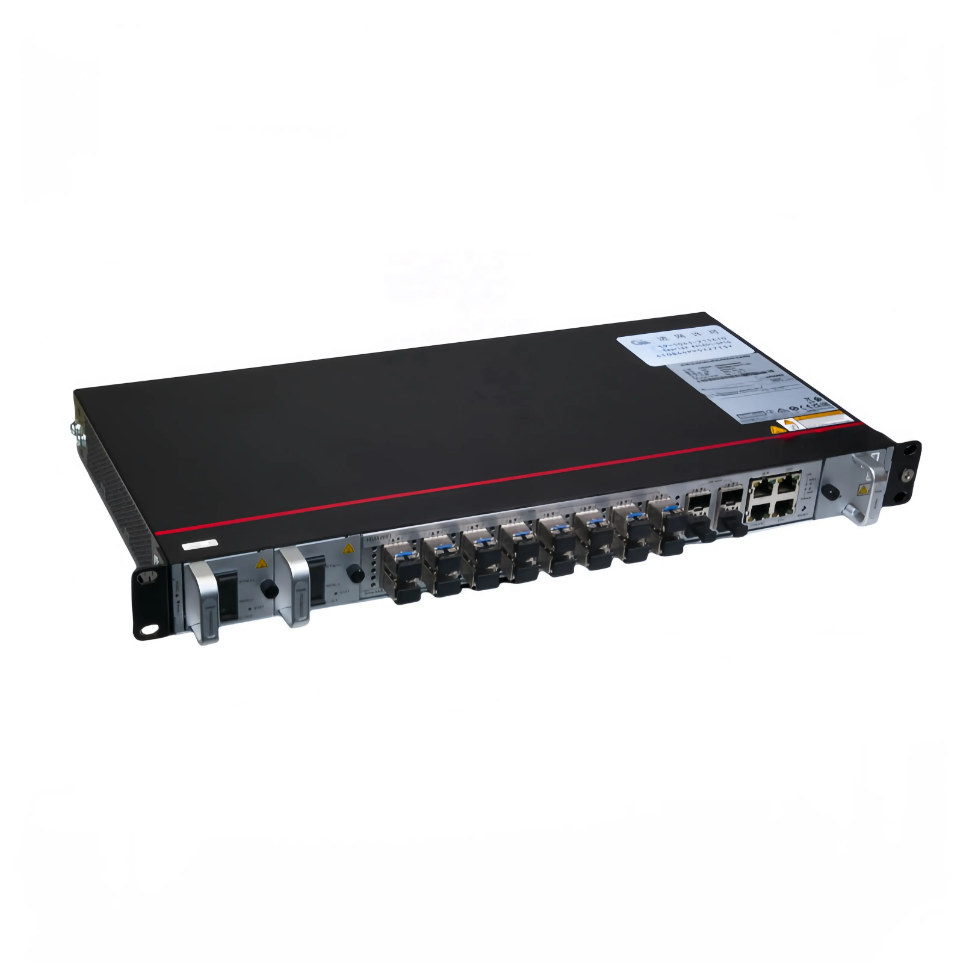

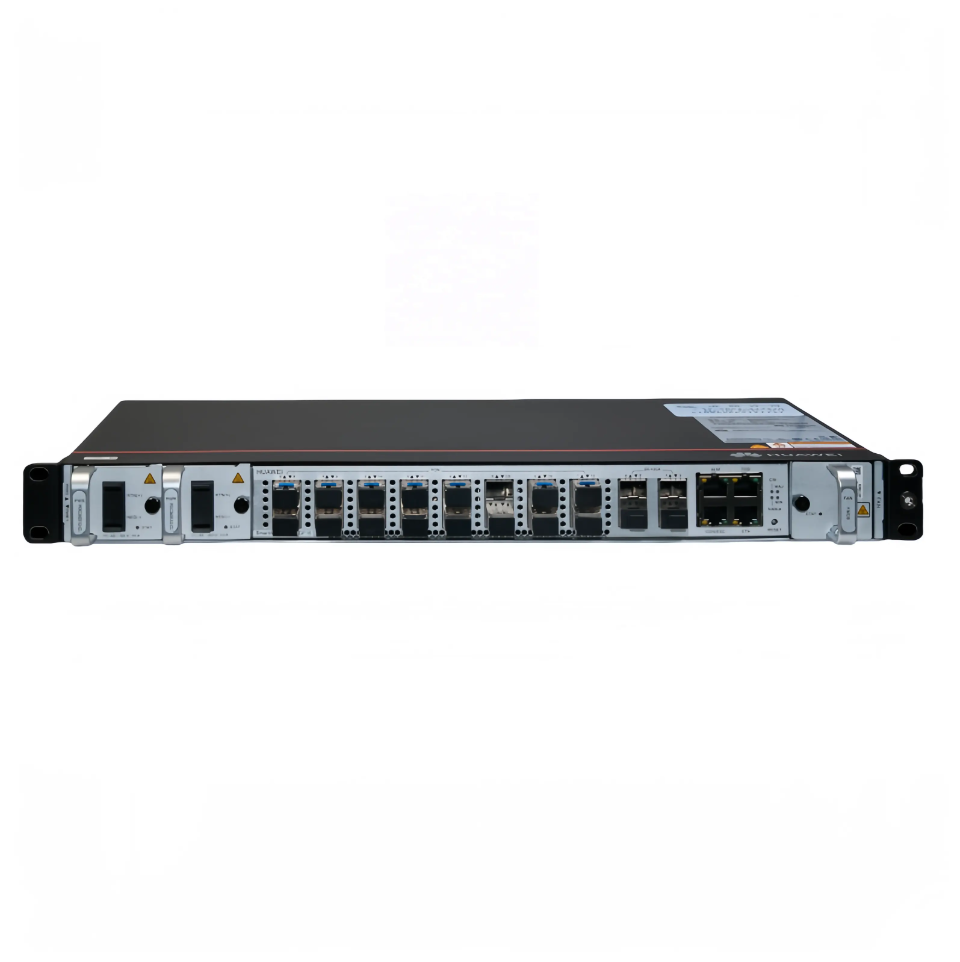

The Huawei MA5801-GP08-H2 is a compact, low-density GPON OLT (Optical Line Terminal) for FTTH (Fiber to the Home) with 8 GPON ports, 4 GE/10GE upstream ports, supports dual AC/DC power, and offers flexible deployment in small cabinets for various network scenarios, providing reliable and efficient optical access with high availability and simplified O&M.
Product Features
- Compact & Lightweight: Small 1U height, lightweight (around 4.2-4.6 kg), fitting into various deployment scenarios.
- High-Density Access: Equipped with 8 GPON ports for subscriber connections and 4 GE/10GE ports for upstream aggregation.
- Flexible Power: Supports dual AC or dual DC power supplies for high reliability and operational flexibility.
- Easy Deployment: Can be installed in small outdoor cabinets, on poles, towers, or walls, reducing engineering costs.
- High Reliability: Offers >99.999% system availability and features Type B/C quick switchover for service continuity.
- Economical & Efficient: Designed for cost-effective network construction in scenarios like national broadband, fixed-mobile convergence (FMC), and enterprise campuses.
Compatible ONTs
| Item |
Description |
| HG8310M |
1GE |
| EG8120L |
1GE+1FE+1TEL |
| HG8321R |
1GE+1FE+1TEL |
| HG8321V |
1GE+1FE+1TEL+CATV(12V) |
| HG8546M |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8141A5 |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8247H5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| EG8143A5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| HG8247H5 |
1GE+3FE+1TEL+1USB+CATV(12V)+WIFI(5dBi) |
| EG8145V5 |
4GE+1TEL+1USB+2.4/5G WIFI(5dBi) |
| EG8247W5 |
4GE+1TEL+2USB+CATV+2.4/5G WIFI(5dBi) 4Antennas |
| EG8147X6 |
4GE+USB+CATV+2.4/5G WIFI6 AX3000 (5dBi) |
| HG8245Q2 |
4GE+1TEL+2USB+2.4/5G WIFI |
| EG8145X6 |
4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8145X6 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8346V5 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI (5dBi) |
| K662C |
ONT/Edge Router with 1GE+3GE+2.4G/5GHz Wi-Fi6 |
Application Scenarios & Real-World Cases
Austrian operator A1 Telekom deployed 150 MA5801-GP08-H2 units to upgrade 1,200 households across 30 small MDUs (40 households each) in suburban Vienna. Each device aggregated 8 user ONTs, with GE uplinks connecting to the regional MA5800-X2 OLT. Dual power redundancy prevented outages during winter grid fluctuations, while QoS ensured smooth 4K streaming. Post-deployment, user satisfaction reached 92%, and 70% of households upgraded to 300Mbps plans.
New Zealand operator Spark used 90 MA5801-GP08-H2 devices to serve 720 local SMEs (cafés, small workshops) in Auckland. The 1U design fit into tiny SME equipment closets, and GE uplinks supported POS systems and video conferencing. Remote management reduced on-site visits by 55%, and low power consumption (<15W) cut annual energy costs for operators by NZD 25 per device. Network downtime dropped from 1.5 hours/week to <0.2 hours/week.
Downloadable resources
Technical Specifications
| Huawei MA5801-GP08-H2 OLT Datasheet |
| Switching capacity of the system |
140 Gbit/s |
| MAC address |
32768 |
| Access ONT |
1024 |
| IPv4 routing table |
8192 |
| IPv6 routing table |
4096 |
| ARP table |
16384 |
| Bit error rate (BER) in full load |
A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports |
4 GE/10GE |
| Service ports |
16 GPON |
Dimensions
(W x D x H) (mm) |
1U height
Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6
Including ETSI mounting ears: 531 x 220 x 43.6
|
| Maximum weight(including mounting brackets) |
5 kg |
| Technical specification |
| Maximum input current |
DC power supply: 6 A
AC power supply: 2.5 A
|
| Working voltage range |
DC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V
|
| Ambient temperature |
–40°C to +65°C
The device can start up at a lowest temperature of –25°C.
NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
|
| Ambient humidity |
5% RH to 95% RH |
FAQ
Q: How many ONTs can the MA5801-GP08-H2 support?
A: It supports up to 256 ONT access via 8 GPON ports, ideal for medium-scale access networks.
Q: What power supply options are available?
A: Dual backup AC (100-240V) and DC (-38.4 to -72V) power supplies, ensuring uninterrupted operation.
Q: What is the operating temperature range?
A: It works reliably from -40°C to +65°C and can start up at -25°C, suitable for extreme climates.
Q: Is technical support available globally?
A: MF-Telecom offers technical support and 1-year warranty for genuine Huawei MA5801-GP08-H2 OLTs.
Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.
